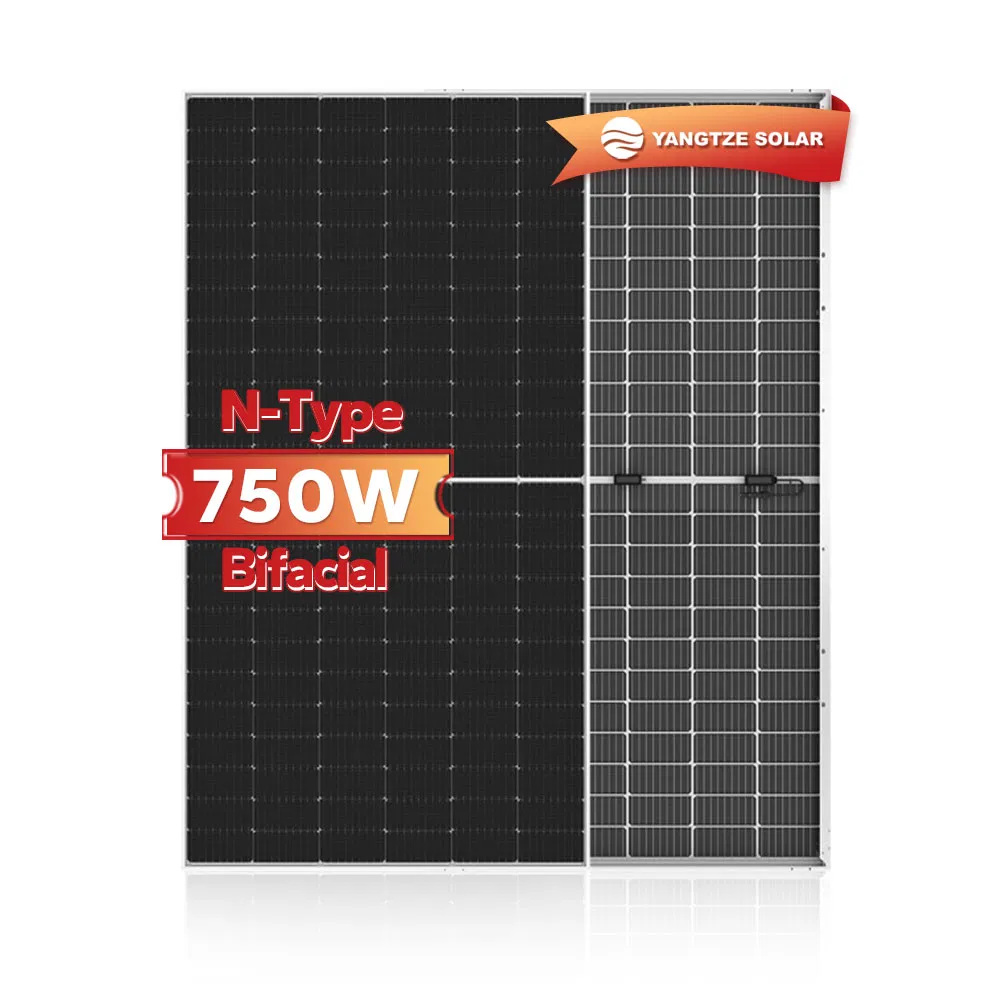

750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
1 / 5
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology

750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙️ Basic Specifications
Model NO.
YS750M-132
Number of Cells
66
Application
Industrial
Specification
750W
Material
Monocrystalline Silicon
Solar Cell
Mono 210X210 mm Cell
Module Efficiency
24.14%
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Waterproof
Size
2384*1303*35mm
Weight
36kg
Certification
ISO, CE, TUV
☀️ 750W Bifacial Solar Panel Technology

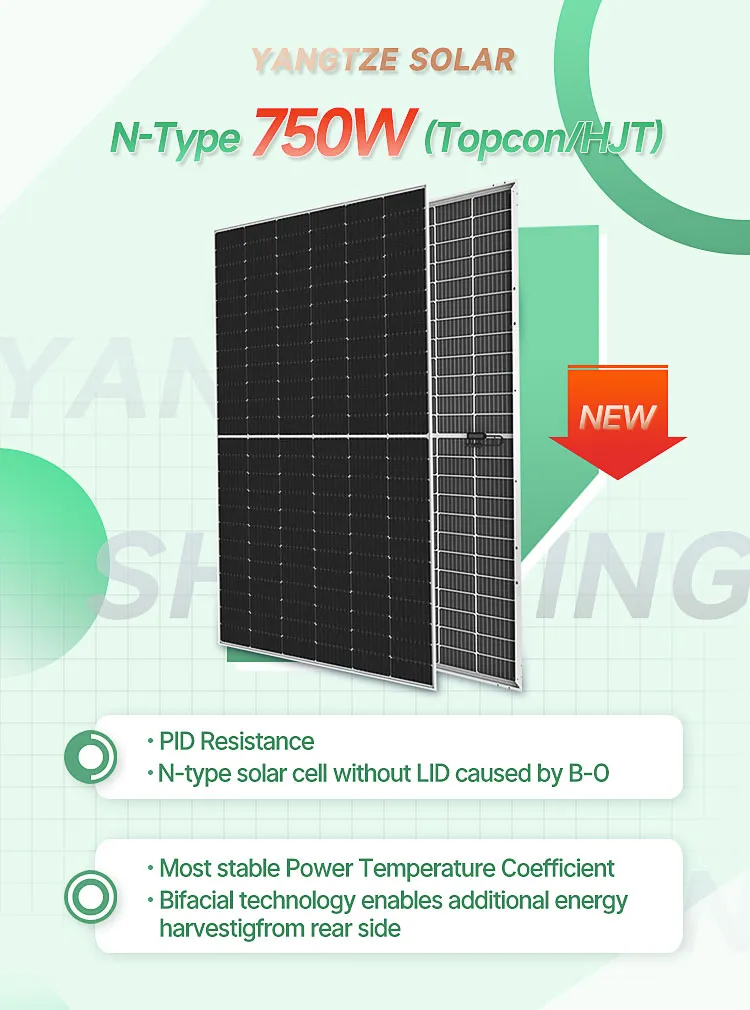

750W N Type Solar Panel
Model Type YS710M-132 YS720M-132 YS730M-132 YS740M-132 YS750M-132
Rated Maximum Power (Pmax) 710W 720W 730W 740W 750W
Maximum Power Voltage (Vmp) 40.48V 40.86V 41.04V 41.34V 41.52V
Maximum Power Current (Imp) 17.54A 17.62A 17.78A 17.9A 18.06A
Open Circuit Voltage (Voc) 45.55V 45.85V 46.15V 46.45V 46.75V
Short Circuit Current (Isc) 18.45A 18.54A 18.66A 18.79A 18.92A
Module Efficiency 22.85% 23.17% 23.5% 23.82% 24.14%

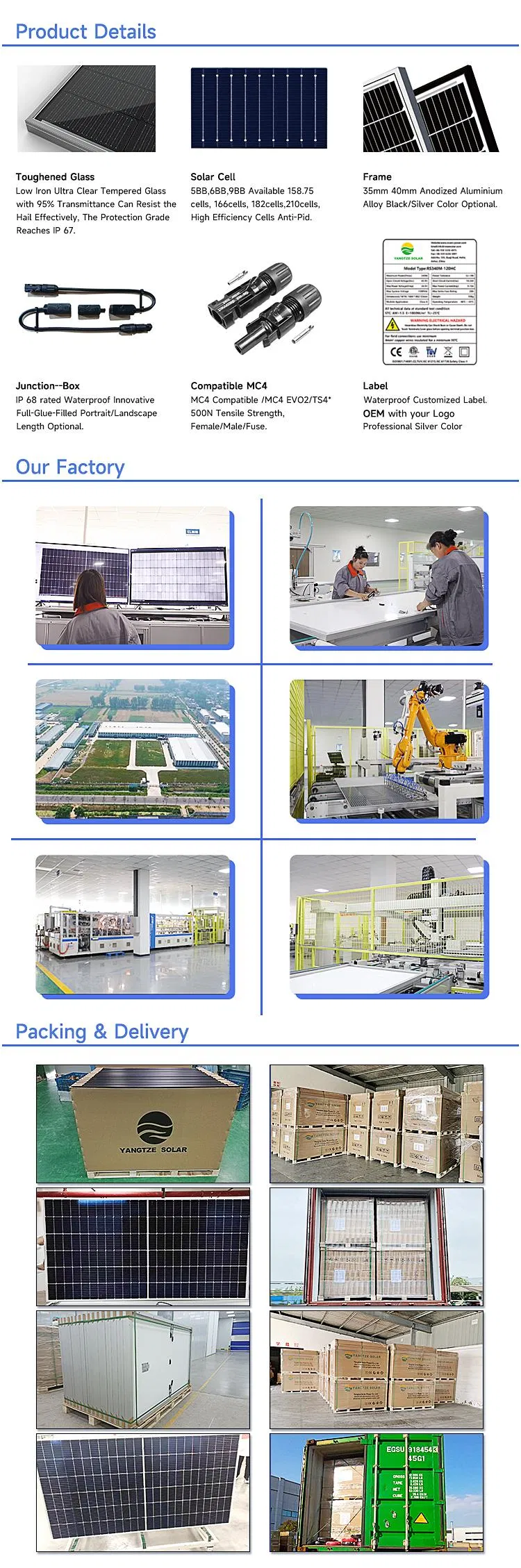

Technical Specifications Detail
Performance Charts
🏆 Professional Quality & Certifications
  • ⚡
    Advanced Technology: Utilizes A-grade bifacial solar panel double glass TOPCon N-type technology for maximum efficiency.
  • 🛡️
    Superior Warranty: 10 years workmanship warranty, with a linear power output warranty of 90% for 10 years and 80% for 25 years.
  • 🔍
    Rigorous Testing: 100% EL (Electroluminescence) testing conducted before packaging and shipping to ensure zero defects.
  • 🌍
    Global Reach: Products are certified by TUV (Germany) and CE, exported to more than 150 countries.
  • 🏗️
    Expertise: Rich experience in overseas construction of solar projects and offering turn-key solar systems.
Production Process
Certification Logo
❓ Frequently Asked Questions
What is the maximum efficiency of these solar panels?
The 750W N-type monocrystalline solar panels reach a peak module efficiency of up to 24.14%.
Are these panels suitable for harsh environmental conditions?
Yes, the panels are designed to operate in temperatures ranging from -40°C to +85°C and feature an IP68 waterproof junction box.
What is the benefit of Bifacial TOPCon N-type technology?
Bifacial technology allows the panel to capture sunlight from both the front and back sides, while TOPCon N-type cells offer higher efficiency and lower degradation rates compared to traditional P-type cells.
What certifications do your solar modules hold?
Our solar panels are certified by TUV (Germany) and CE, ensuring they meet international safety and performance standards.
What are the physical dimensions and weight of the 750W model?
The YS750M-132 model measures 2384*1303*35mm and weighs approximately 36kg.
How is the product quality ensured before shipping?
Every solar panel undergoes a 100% EL test before package and shipping to identify any micro-cracks or cell defects.
