ConTech Solar
1 / 5

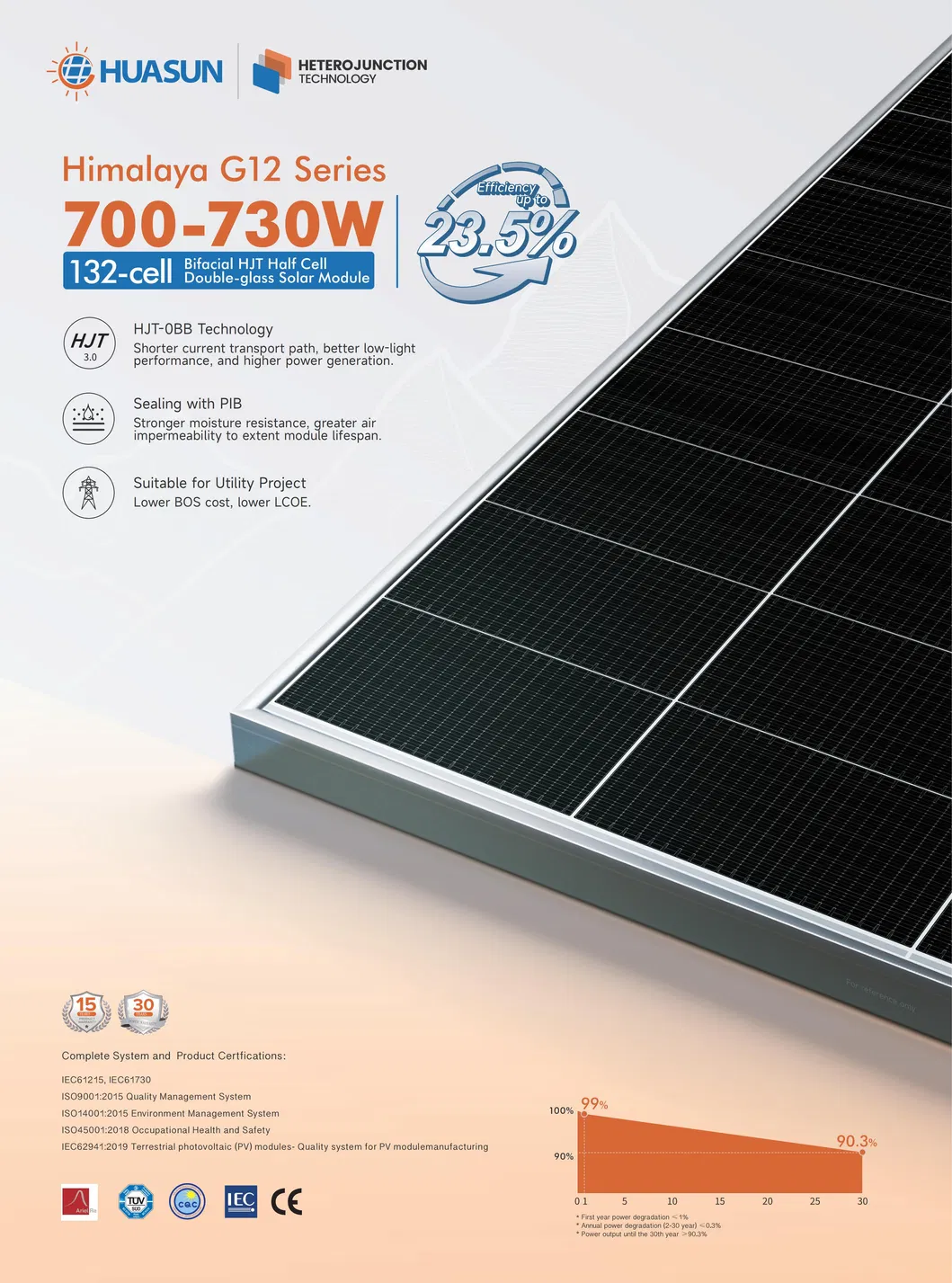

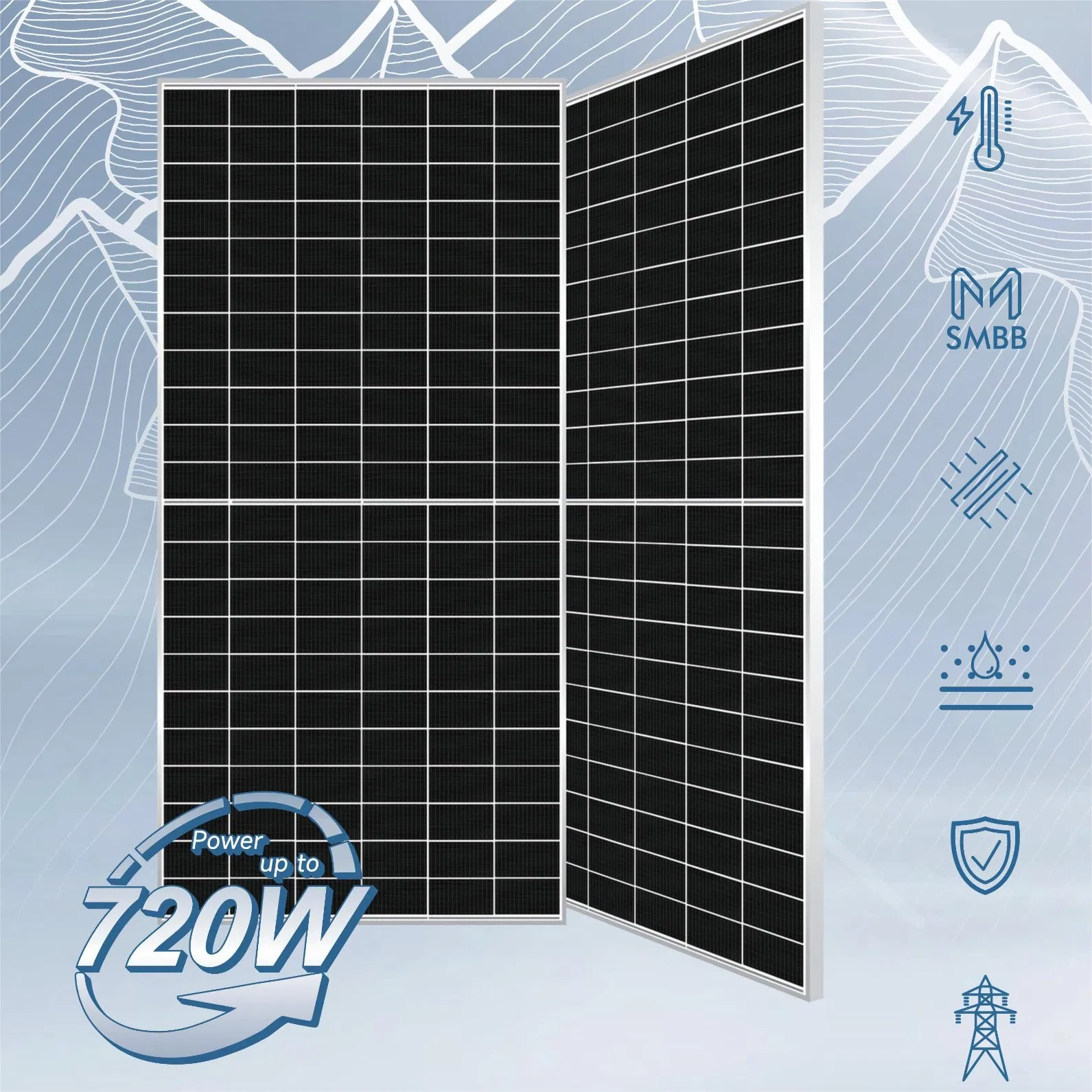

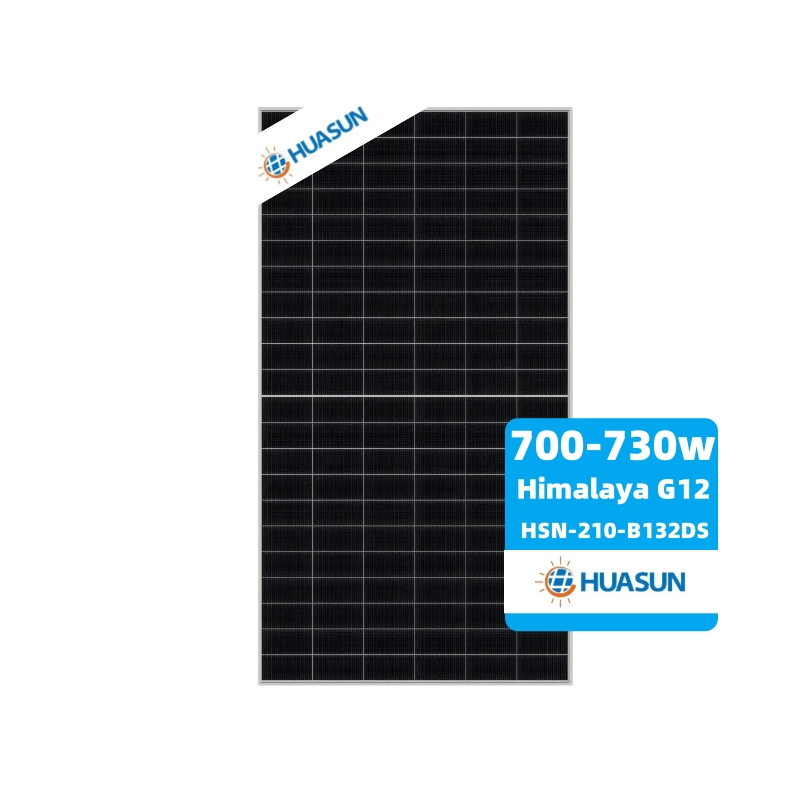

| Himalaya G12 Series 700-730W Electrical Characteristics | ||||||
|---|---|---|---|---|---|---|
| Model Type | DS700 | DS710 | DS715 | DS720 | DS725 | DS730 |
| Max Power (Pmax/W) | 700 | 710 | 715 | 720 | 725 | 730 |
| Module Efficiency (%) | 22.5 | 22.9 | 23.0 | 23.2 | 23.3 | 23.5 |
| Voltage at Pmax (Vmp/V) | 41.78 | 41.96 | 42.05 | 42.14 | 42.23 | 42.32 |
| Current at Pmax (Imp/A) | 16.76 | 16.93 | 17.02 | 17.10 | 17.18 | 17.26 |
| Open Circuit Voltage (Voc/V) | 49.77 | 49.97 | 50.07 | 50.17 | 50.27 | 50.37 |
| Short Circuit Current (Isc/A) | 17.81 | 17.99 | 18.08 | 18.17 | 18.26 | 18.35 |

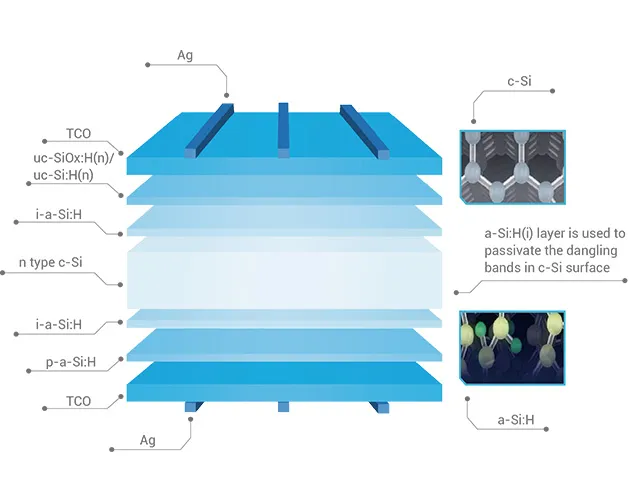

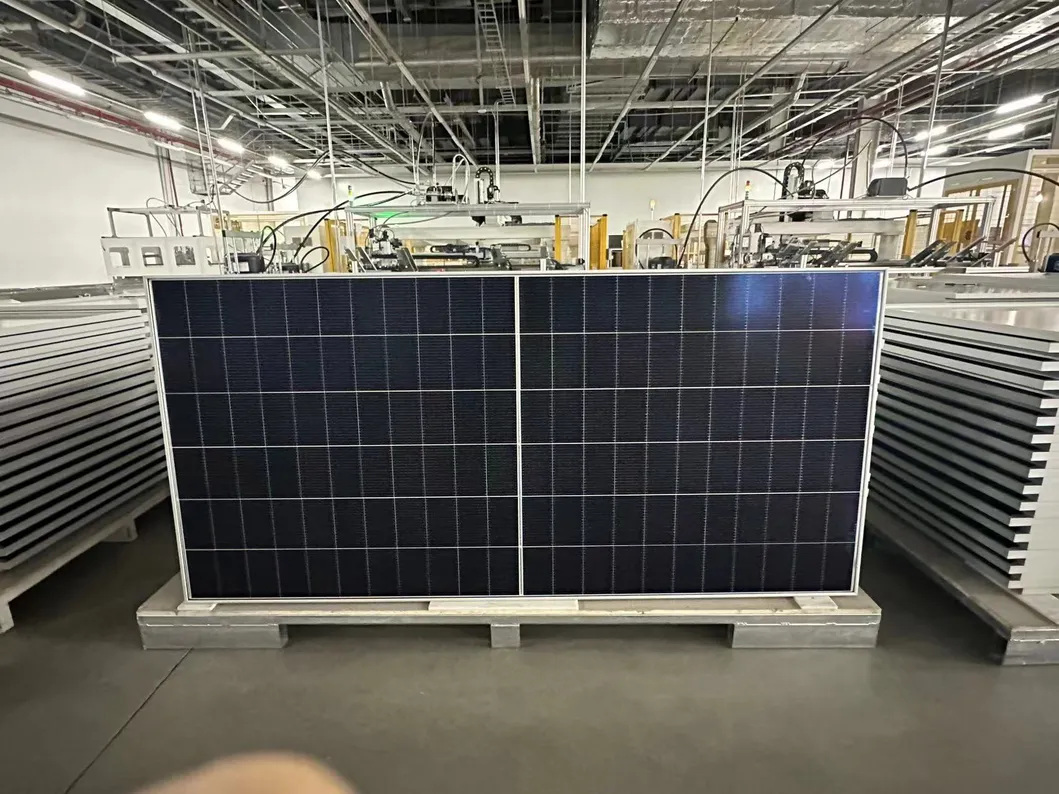

Heterojunction technology (HJT) is a N-type bifacial solar cell technology, by leveraging N-type monocrystalline silicon as a substratum and depositing silicon-based thin films with different characteristics and transparent conductive films on the front and rear surfaces respectively.

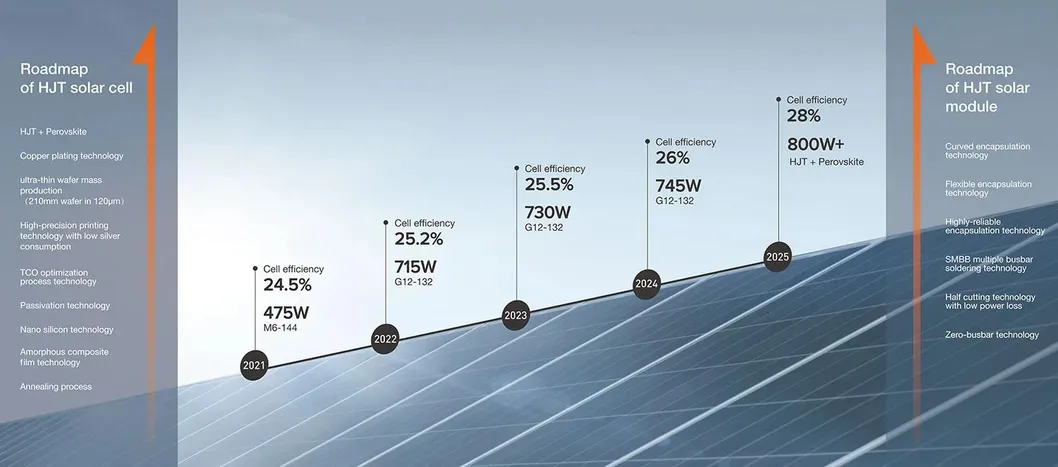

Combining with the benefits of crystalline silicon and amorphous silicon thin-film technologies, HJT technology has excellent photo absorption and passivation effects, as well as outstanding efficiency and performance. HJT panels represent the trend of the new generation of solar cell platform technology.

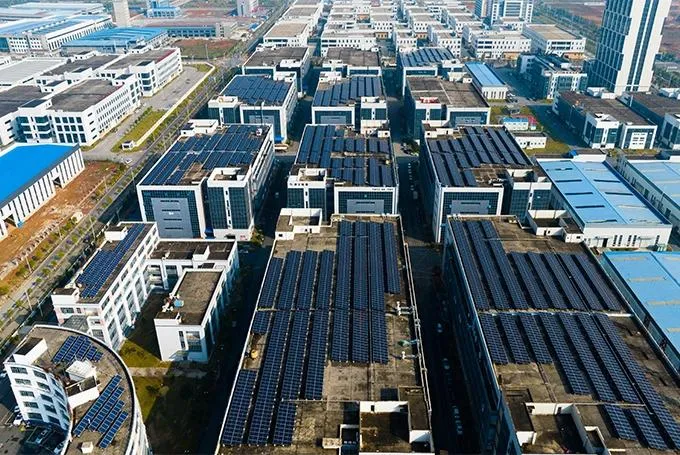

Location: Anhui, China
Generation: 4,800,000kWh/year
CO2 Reduction: 4,782tons/year

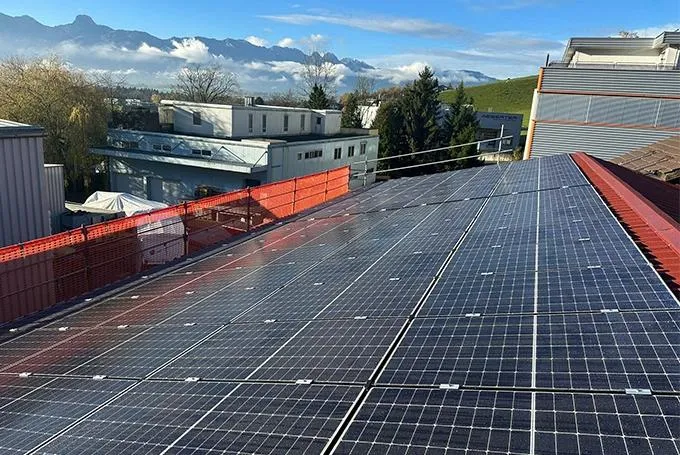

Location: Thun, Switzerland
Generation: 53,000kWh/year
CO2 Reduction: 53,100kg/year

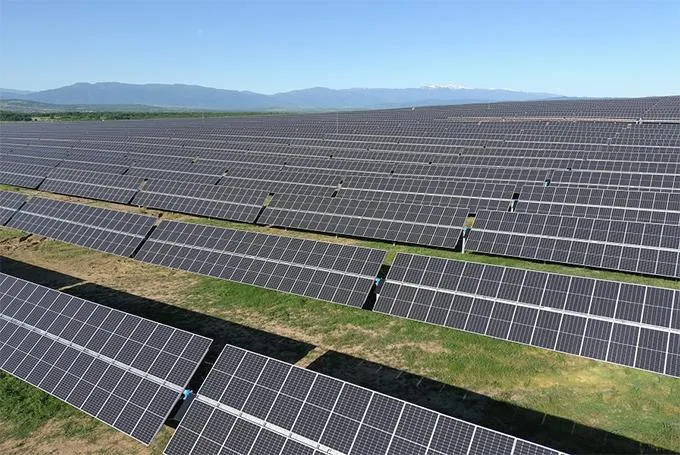

Location: Pazardzhik, Bulgaria
Generation: 908,918,200kWh/year
CO2 Reduction: 906,191tons/year

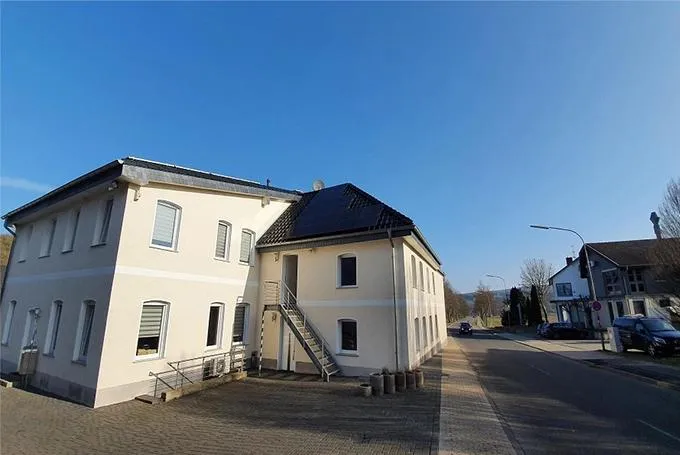

Location: Euskirchen, Germany
Generation: 5,492kWh/year
CO2 Reduction: 5,500kg/year
