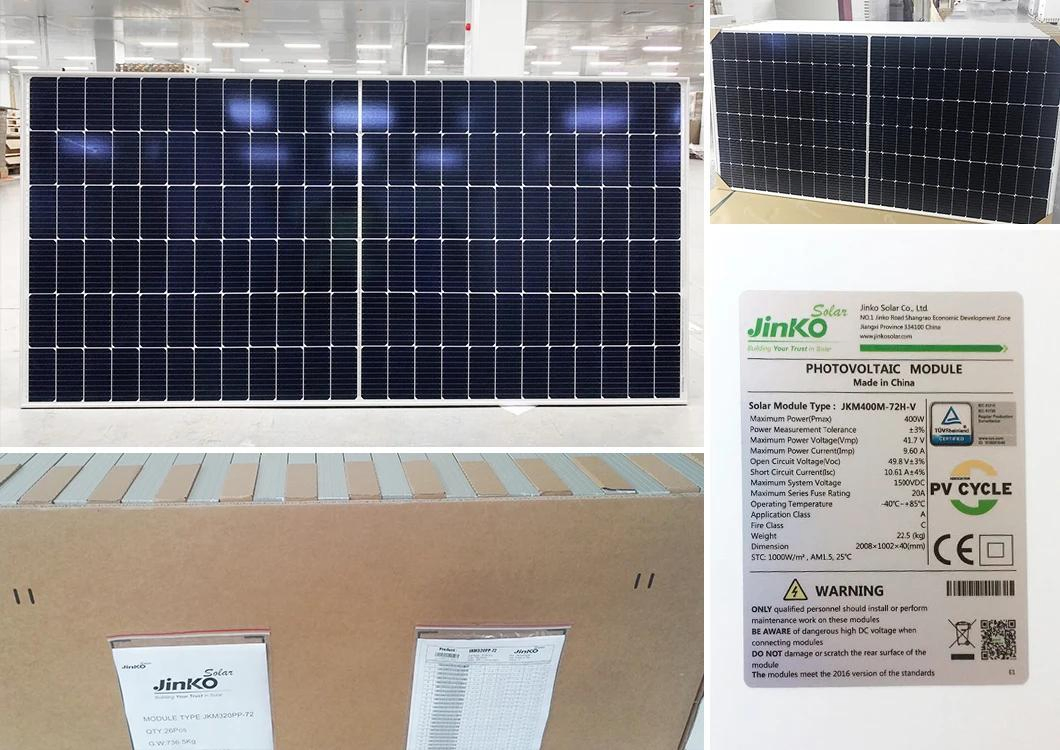

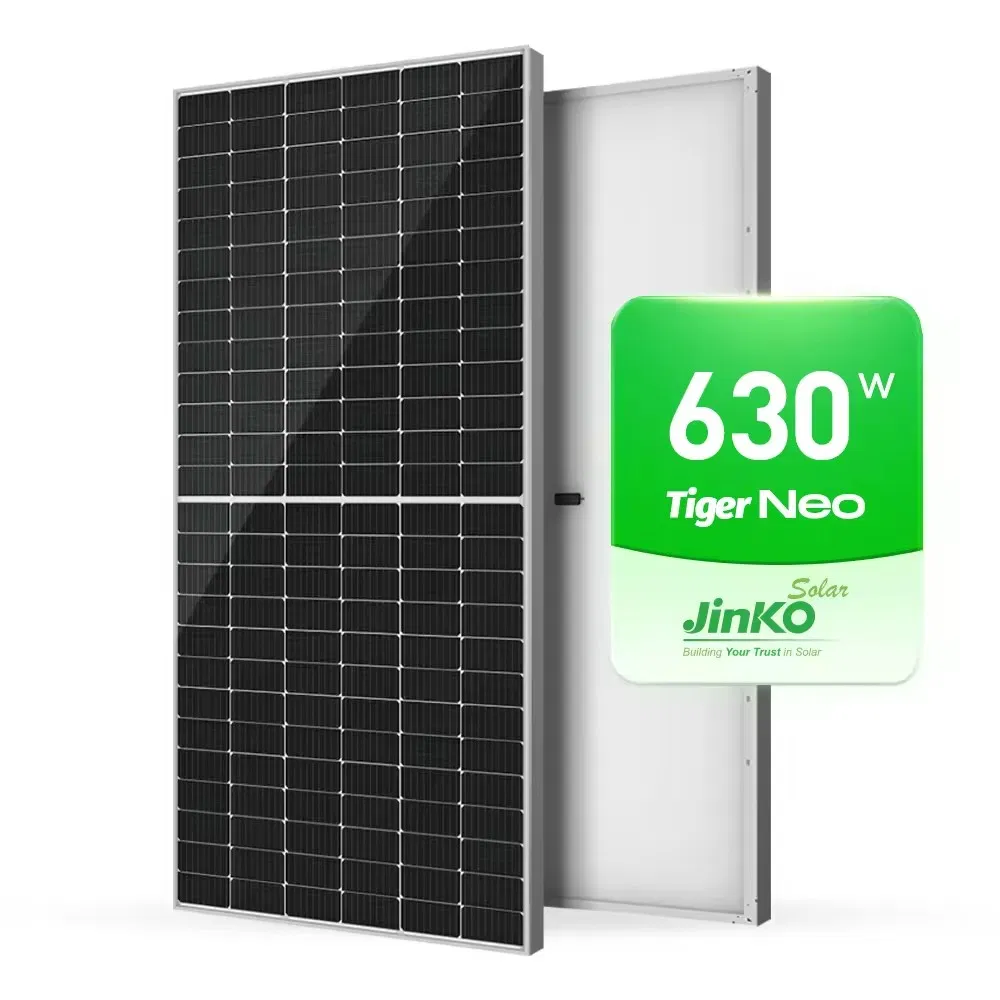

Jinko Solar Panel Price 580W 600W 670W 700W Bifacial Photovoltaic PV Solar Panels

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

Basic Info.
Model NO.
JKM570N-590N-72HL4-V
Number of Cells
144PCS
Application
Industrial
Condition
New
Certification
ISO, CE
Material
Monocrystalline Silicon
Solar Cell
A Grade
Junction Box
IP 68 Rated
Service
OEM Available
Panel Efficiency
22.84%
Type
Perc
Weight
27kg
Frame
Anodized Aluminium Alloy
Specification
2278*1134*35mm
Product Overview

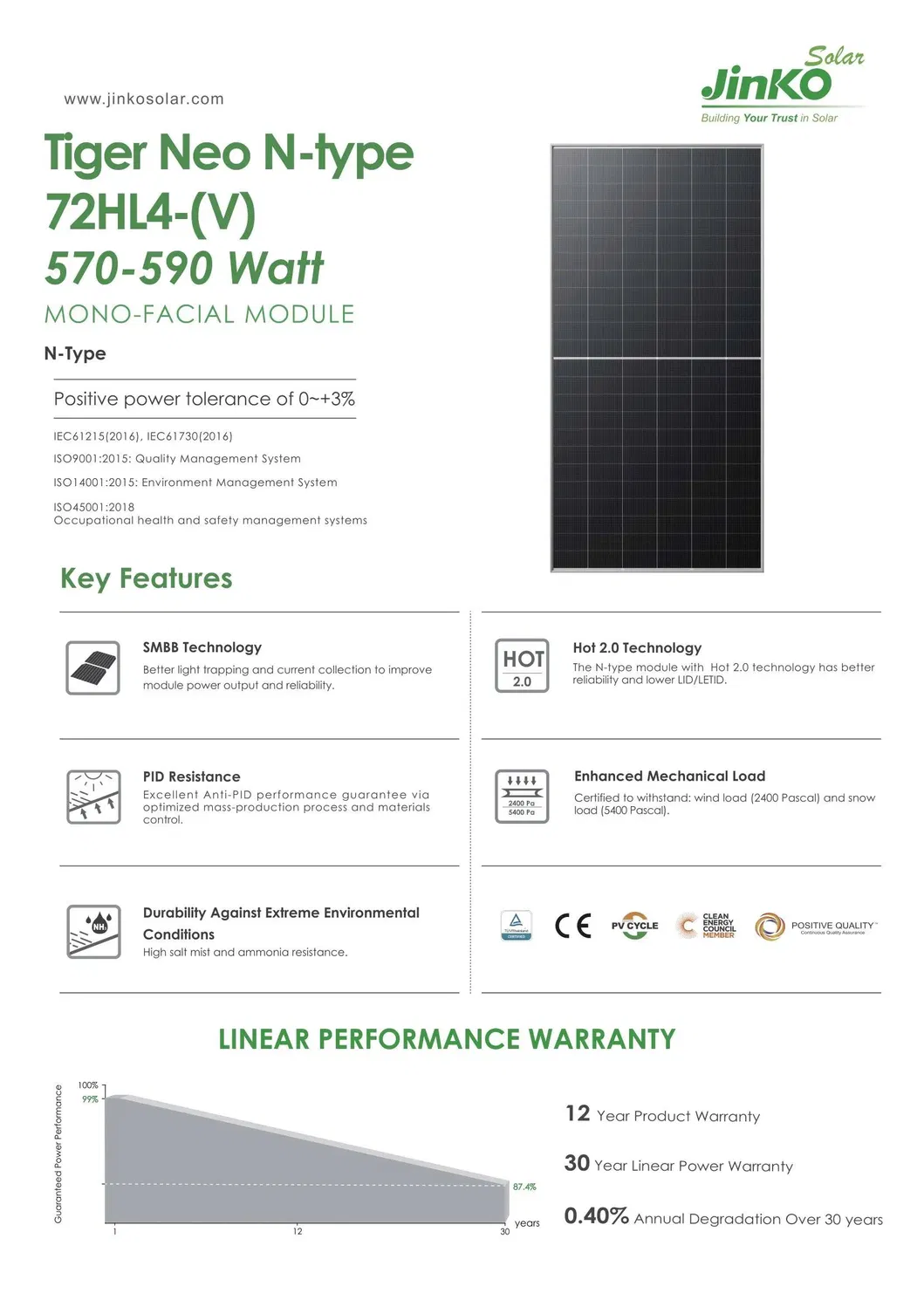

Solar Panel Overview

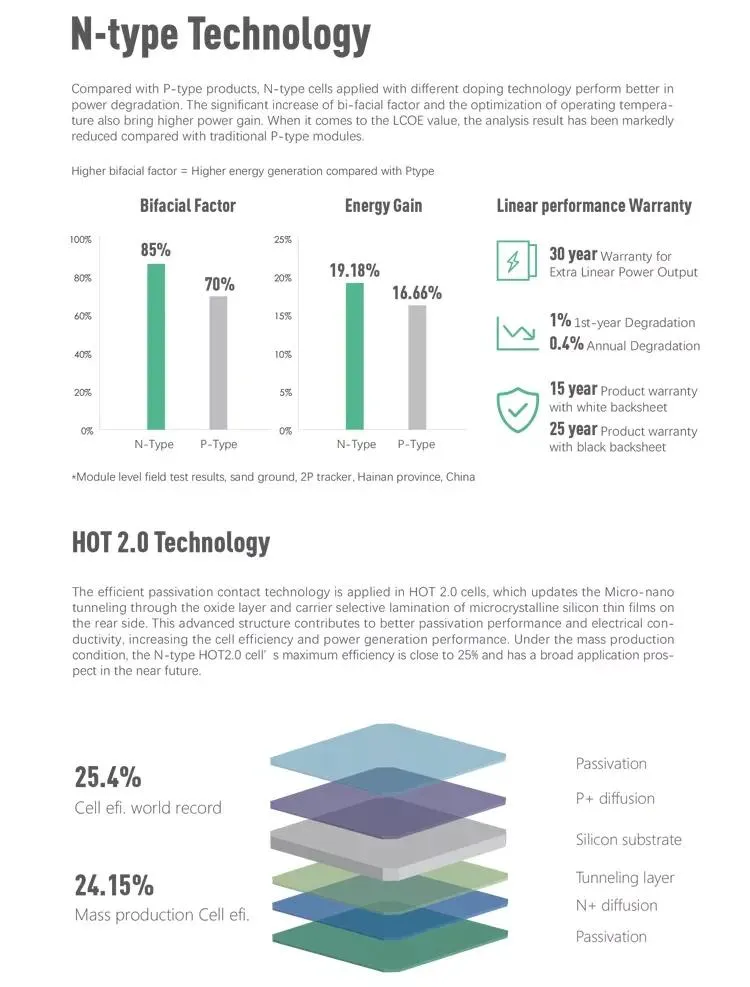

Detail 1

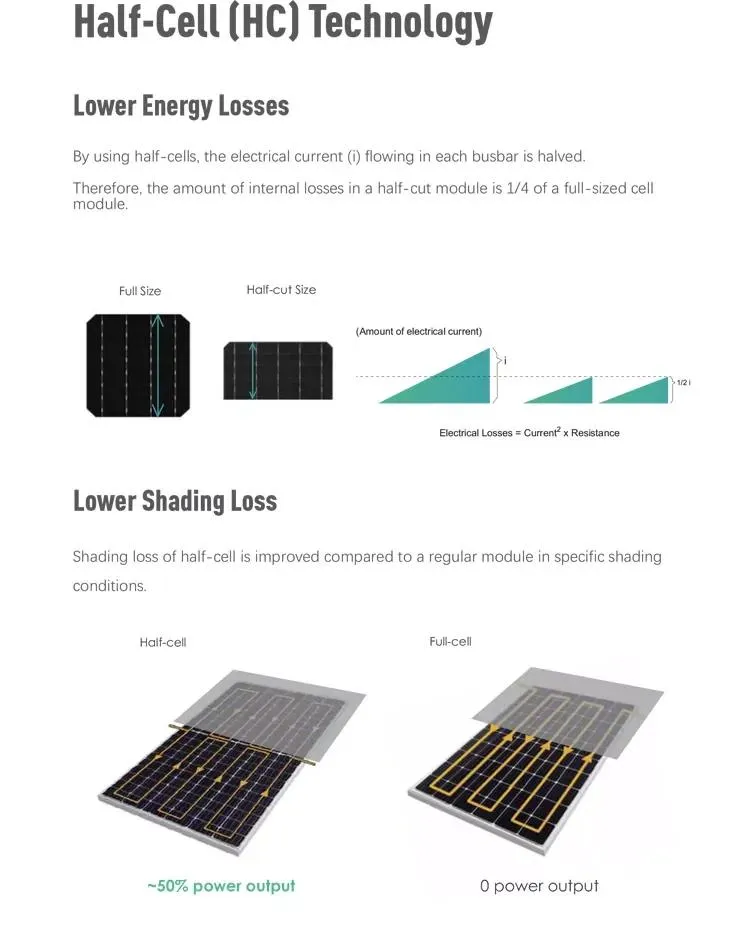

Detail 2
Technical Specifications
Module Performance Parameters
Peak Power Watts-PMAX (Wp)590w
Module Dimensions2278 × 1134 × 35 mm
Weight27kg
Maximum Power Voltage-VMPP (V)42.07V
Maximum Power Current-IMPP (A)13.55A
Open Circuit Voltage-VOC (V)50.74V
Short Circuit Current-ISC (A)14.31A
Module Efficiency (%)22.07%
Operational Temperature-40~+85°C
ELECTRICAL SPECIFICATIONS (STC) 570W 575W 580W 585W 590W
Maximum Power (Pmax/W) 570575580585590
Maximum Power Voltage (Vmp) 42.99V43.17V43.35V43.53V43.71V
Maximum Power Current (Imp) 13.26A13.32A13.38A13.44A13.50A
Module Efficiency STC (%) 22.07%22.26%22.45%22.65%22.84%
Technical Drawing

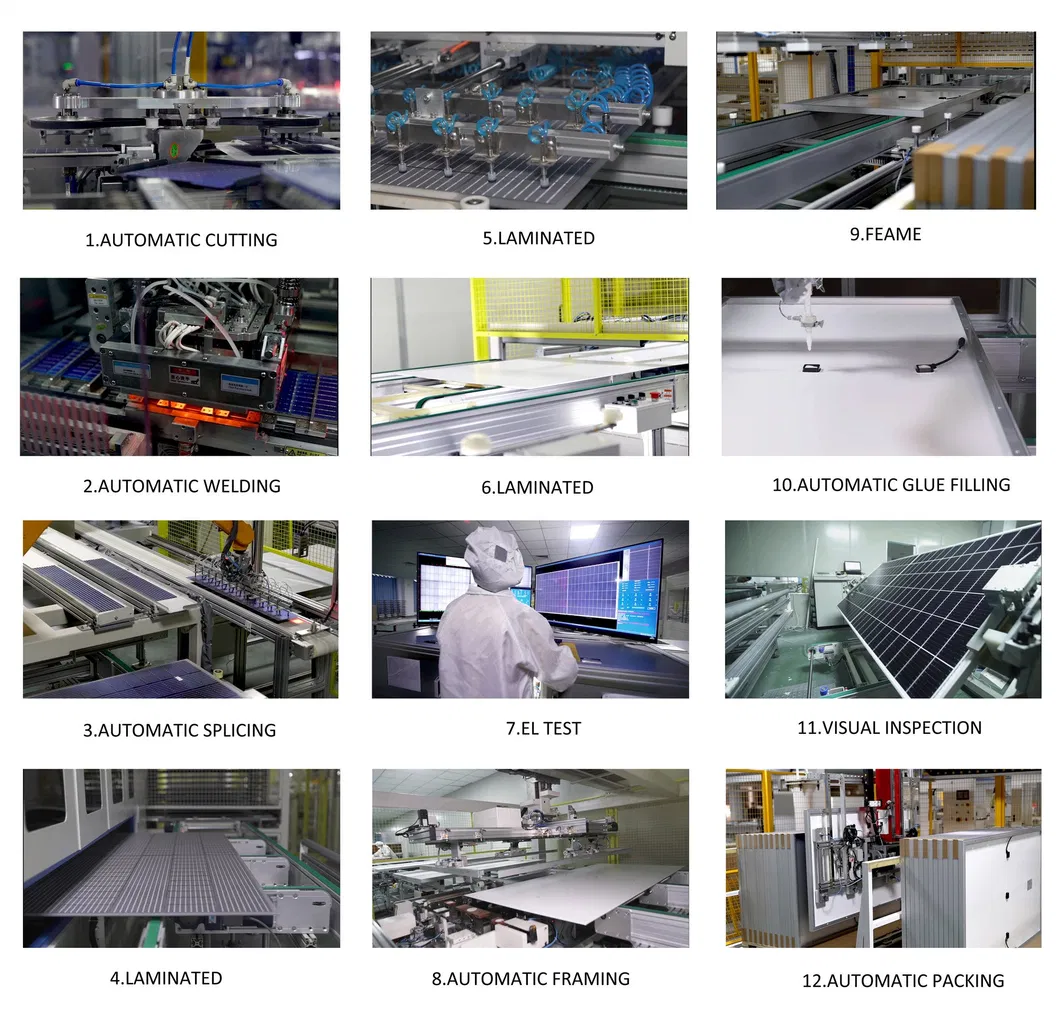

Production Process
Production Process
Project Cases & Factory

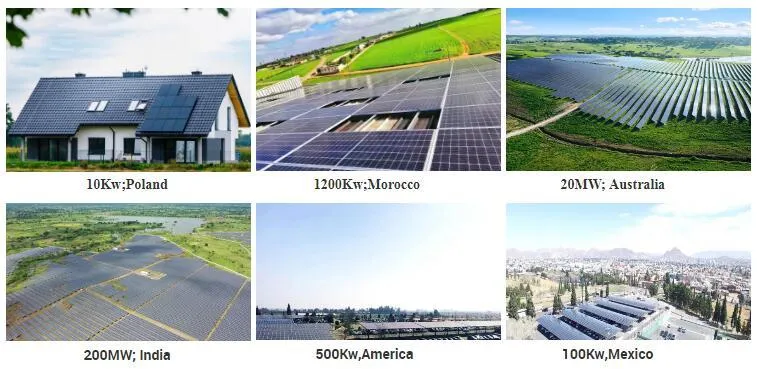

Project Cases

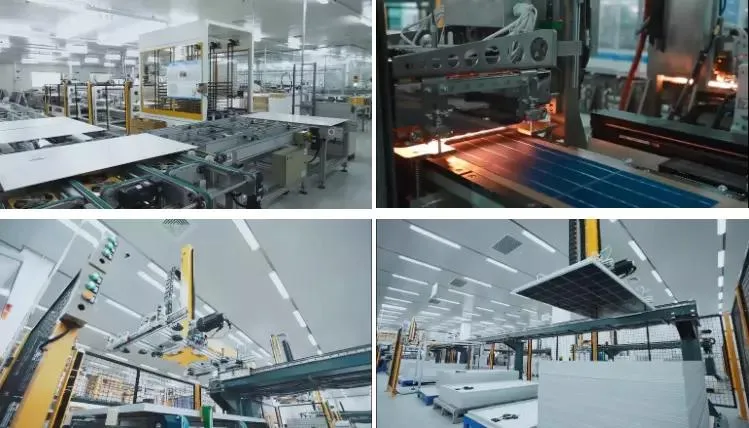

Factory View
Logistics & Delivery
Delivery 1
Delivery 2
Frequently Asked Questions
What are your payment terms and conditions?
We support T/T, Letter of Credit, Paypal, and Western Union on various terms including FOB, CIF, CFR, DDU, and DDP.
Can we print our own sticker for OEM orders?
Yes, OEM and ODM services are our key advantages. Custom stickers and branding are fully supported.
What are the advantages of your solar panels?
Our panels use A-grade monocrystalline cells with high efficiency (up to 22.84%), featuring robust IP68 protection and superior low-light performance.
What is the quality certification of these products?
All modules are manufactured under strict quality control standards and hold ISO and CE certifications for international markets.

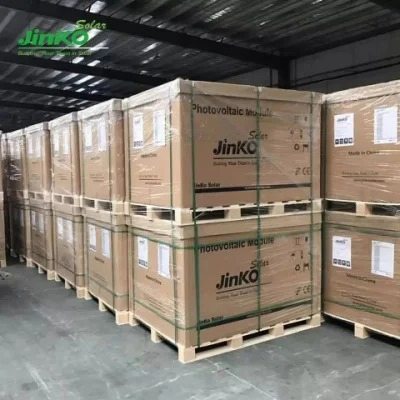

How are the solar panels packaged for transport?
Panels are securely packed with 31 pieces per carton, using reinforced packaging to ensure safety during sea and land transportation.
Do the panels perform well in extreme weather?
Yes, the 3.2mm tempered glass and anodized aluminum alloy frame allow the panels to operate efficiently in temperatures ranging from -40°C to +85°C.
