| Certification | GB, ISO, CE |
| Application | Balcony |
| Material | Aluminum Alloy |
| Type | Solar Balcony Bracket |

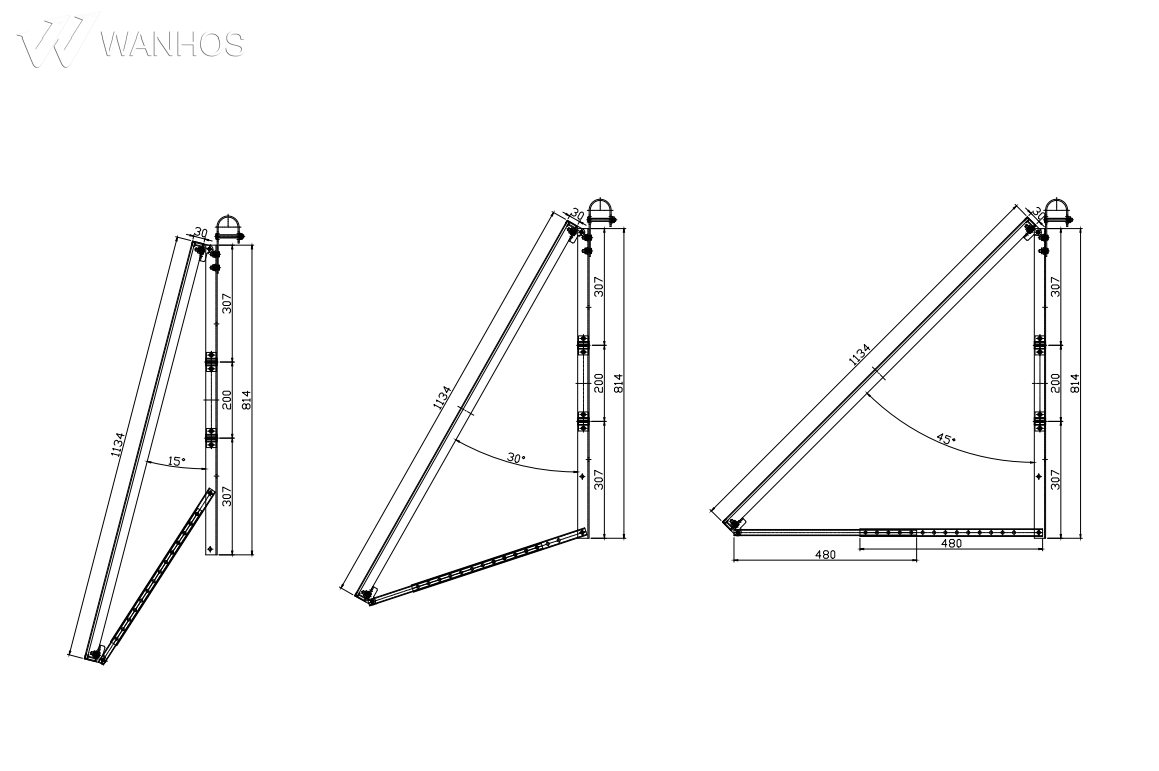

| Adjustable Tilt | 15~45° |
| Standard | AS/NZS 1170 |
| Module Orientation | Landscape |
| Transport Package | Standard Box |

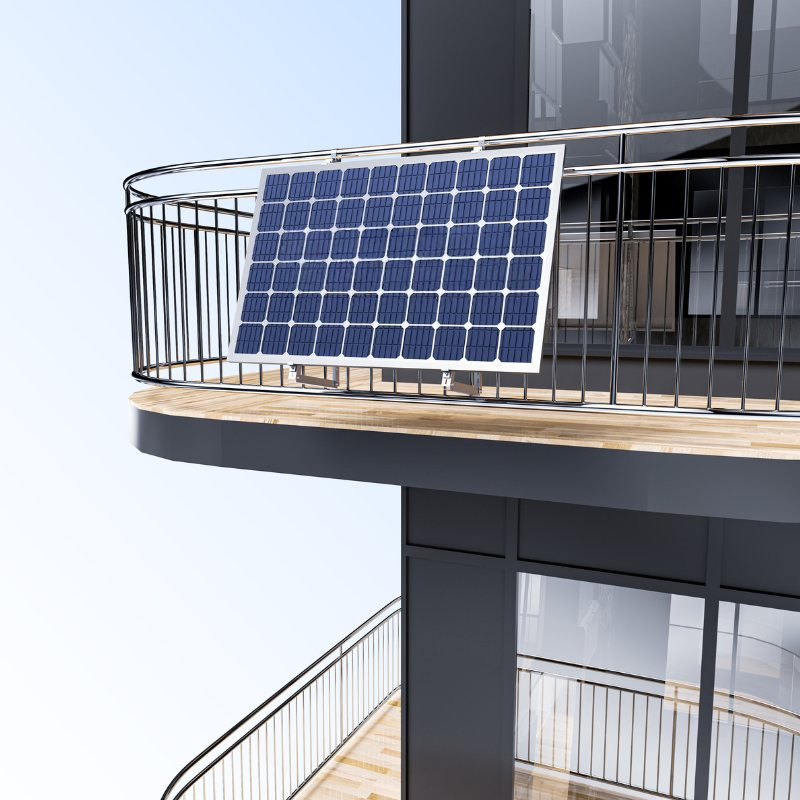

Our system is built for durability and adaptability, ensuring maximum energy yield regardless of your project's orientation. The adjustable balcony solar mount features a telescopic support leg with multiple pre-drilled settings, allowing you to optimize for seasonal sun positions.
| Product Name | Adjustable Angle Easy Solar Bracket |
| Material | AL6005-T5, SUS304 |
| Warranty | 10 Years Warranty, Over 20 Years Service Life |

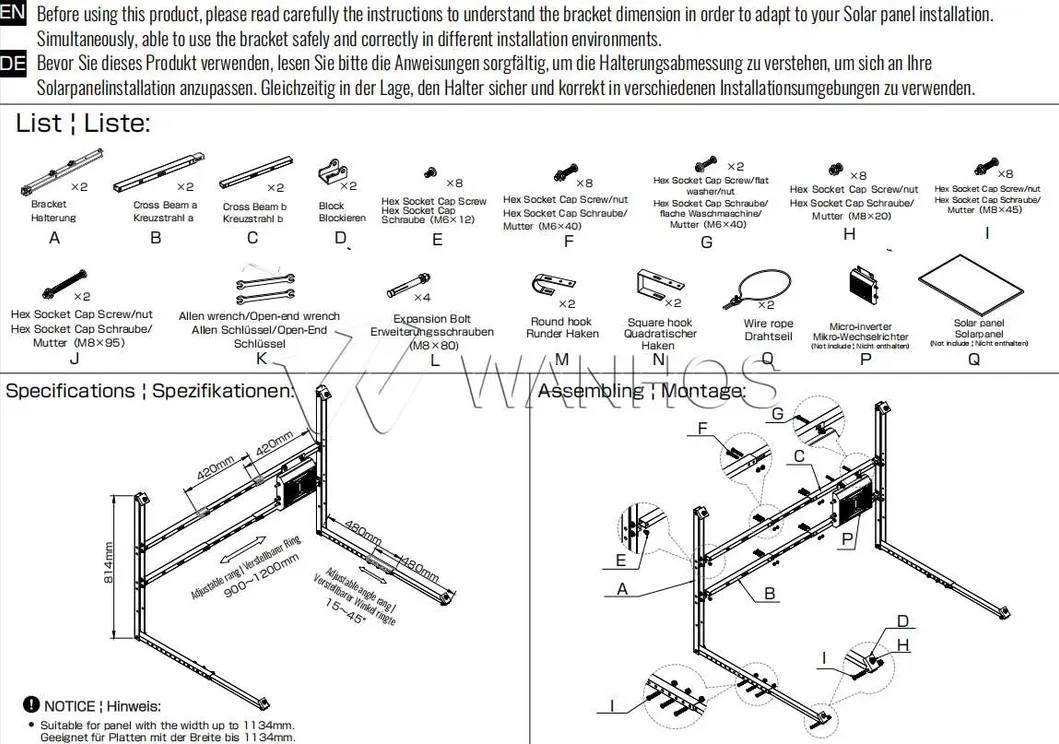

Setting up your balcony PV racking is a straightforward process. The kit includes all necessary hardware, from block connectors to specialized hooks.
Step 1: Assembly
Connect the main brackets with the adjustable cross beams using the provided M6 and M8 hex socket cap screws. The modular design allows adjustment between 900mm and 1200mm.

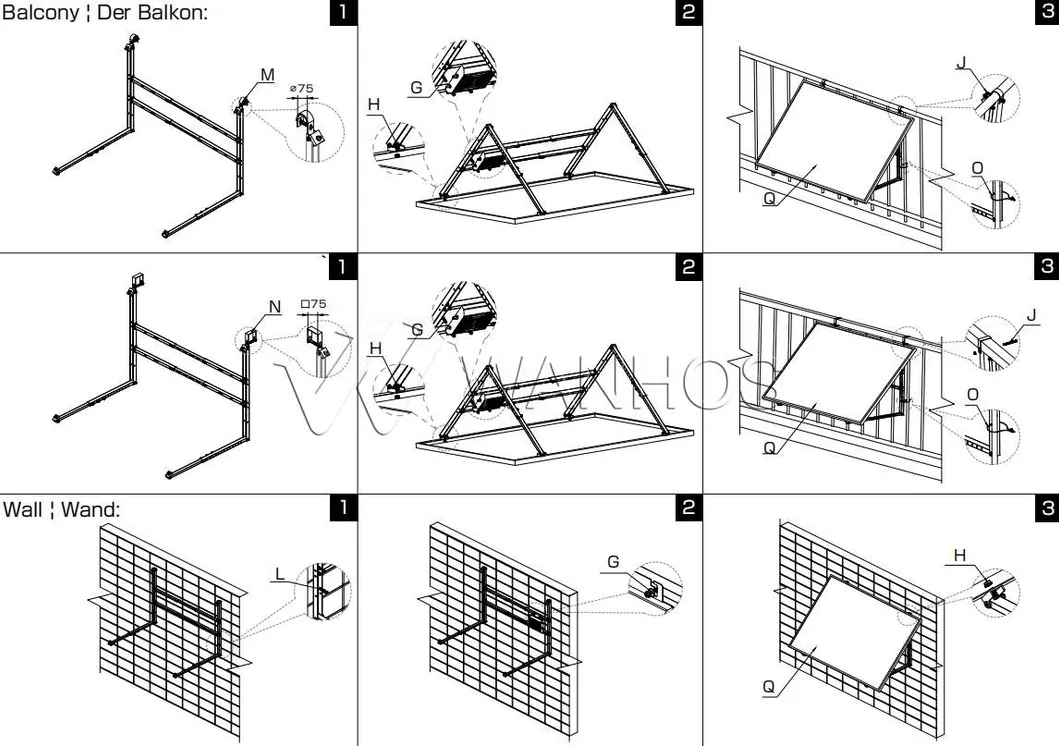

Step 2: Mounting & Securing

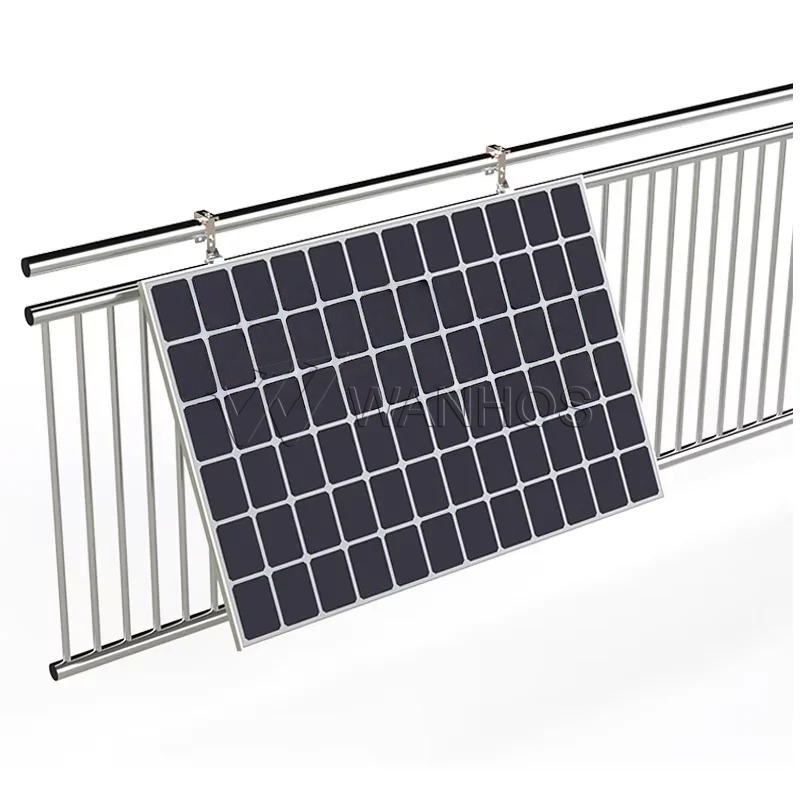

For balcony railings, use the round or square hooks. For wall mounts, utilize the expansion bolts. Finally, mount the solar panel and tighten all fasteners.
