Wall Mounted LiFePO4 Home Solar off Grid System Kit Solar Energy
What is an off-grid system?
Off-grid solar energy systems, also known as stand-alone solar systems, do not connect with the Utility Grid. They are highly suitable for remote areas where public power is unavailable or unstable.
This system is ideal for Home, Commercial, and Industrial applications. Available power ranges include 1kW to 200kW or customized solutions to meet specific energy needs.

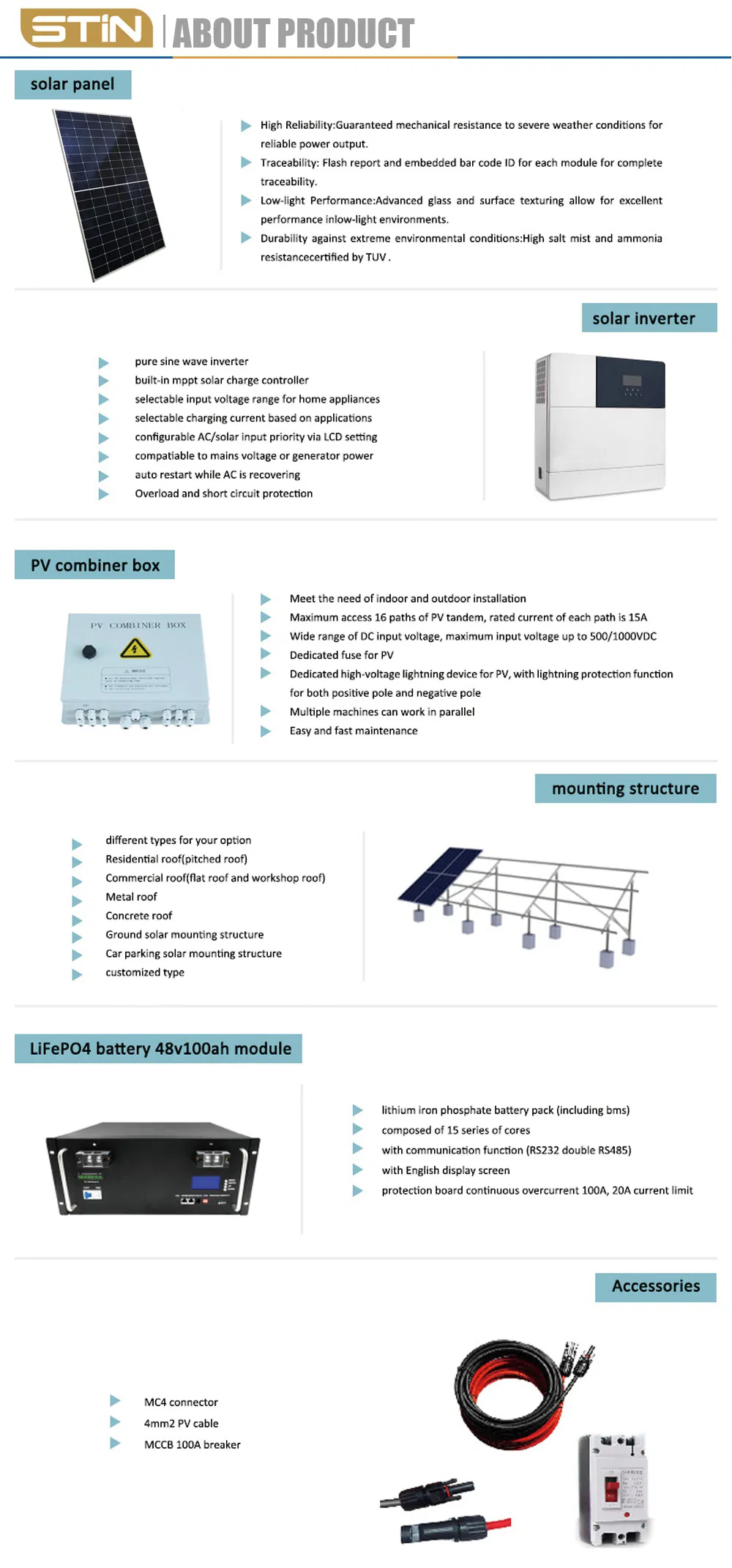

The system typically comprises solar panels, connectors, inverters, batteries, and mounting systems.

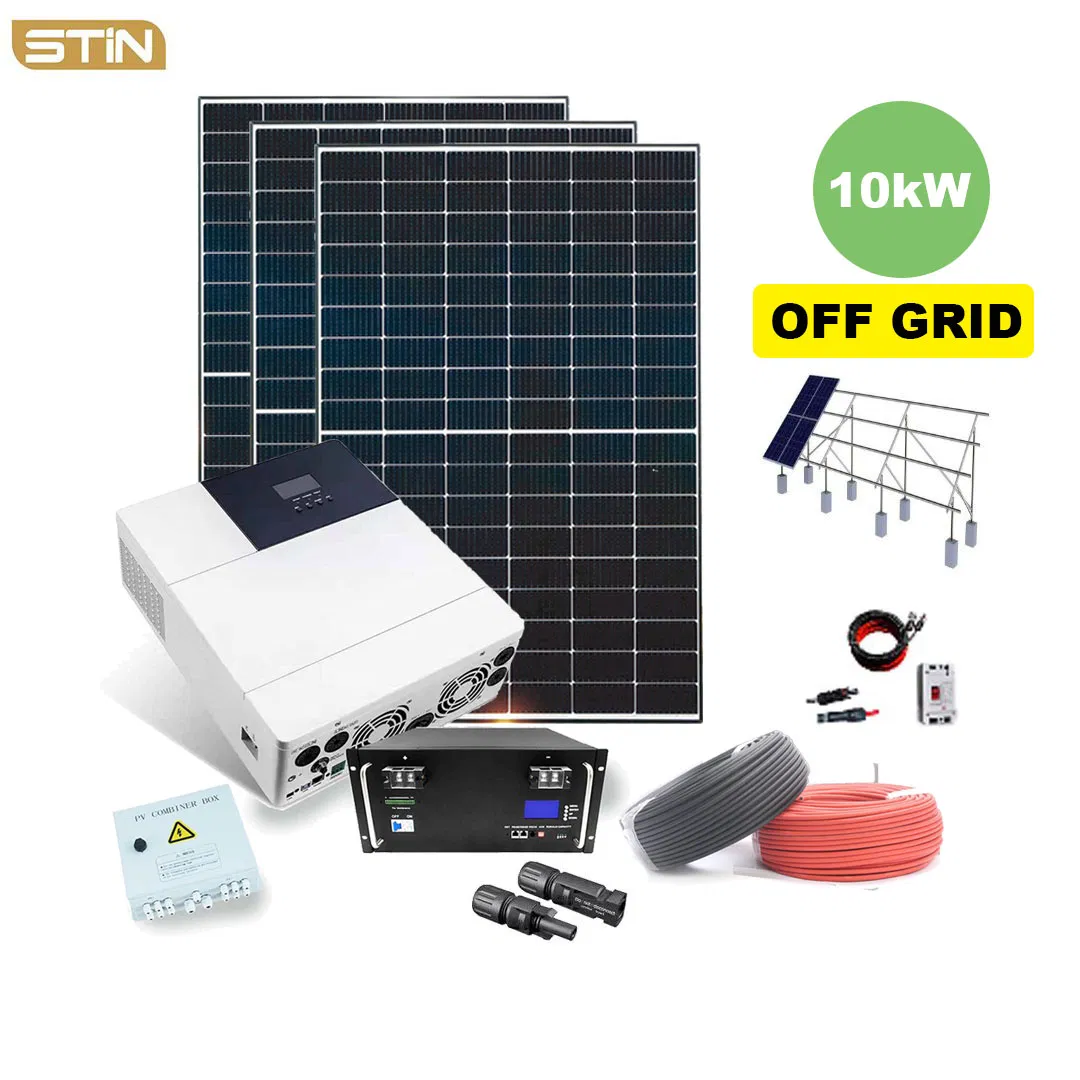

| 10kW Solar Off-Grid System Specifications | ||||
|---|---|---|---|---|
| No. | Name | Specification | Qty | Remark |

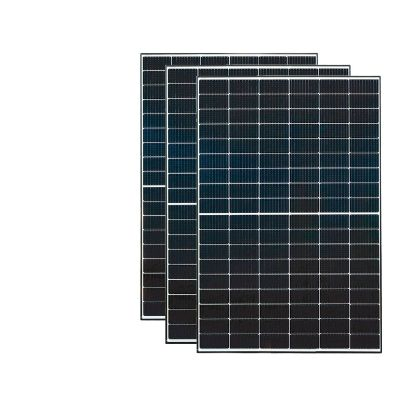

| 1 | Mono Panel | 410W | 12 | Grade A cells, 3pcs in string/4 strings parallel |
| 2 | PV Structure | C-shaped steel | 1 | Ground type |
| 3 | Combiner Box | GSB3-1 | 2 | Waterproof, lightning protection, DC breaker/fuse |

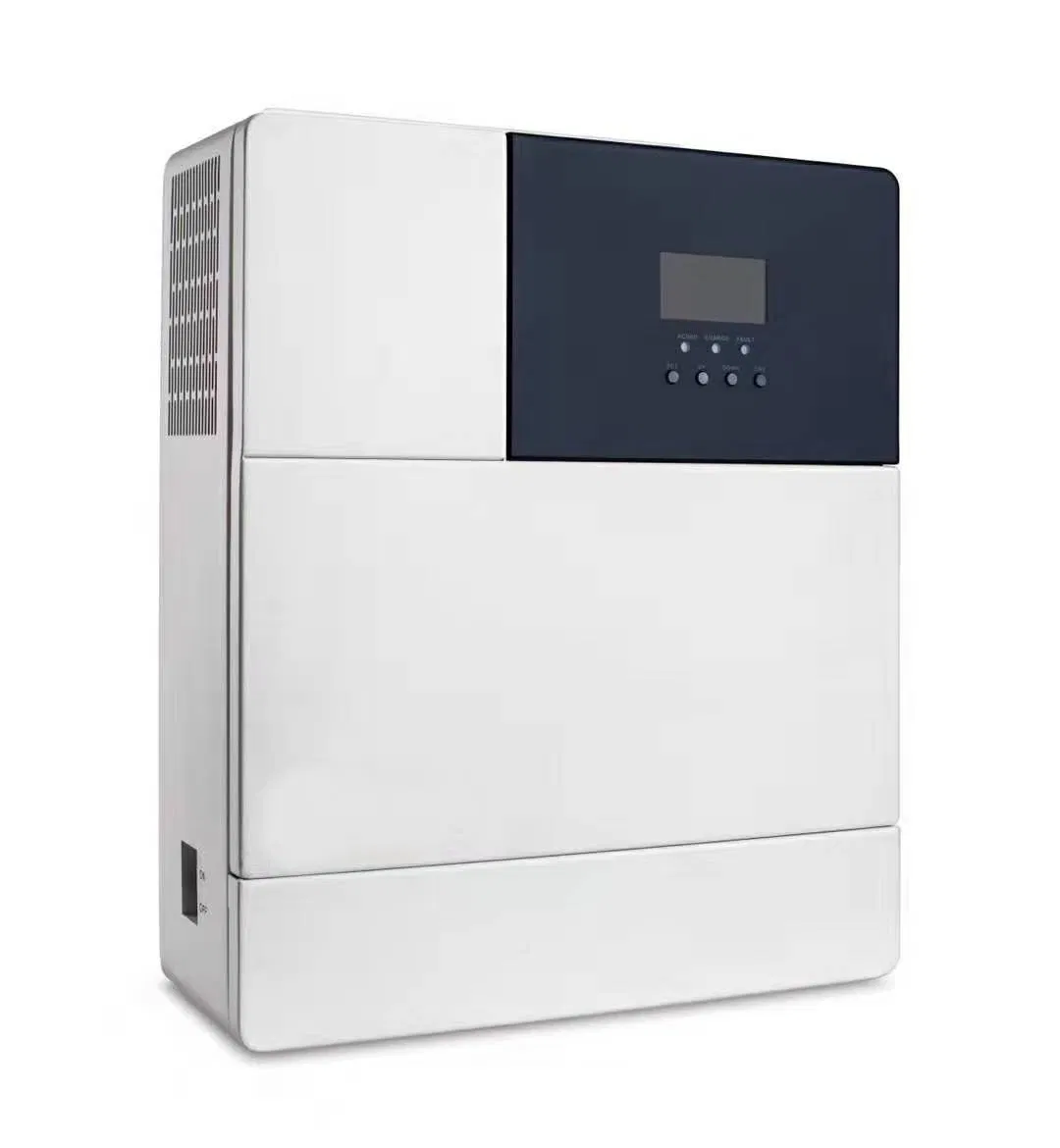

| 4 | Solar Inverter | Pure sine wave, 5kw | 2 | High frequency; 220VAC/50HZ, 48V80A MPPT |

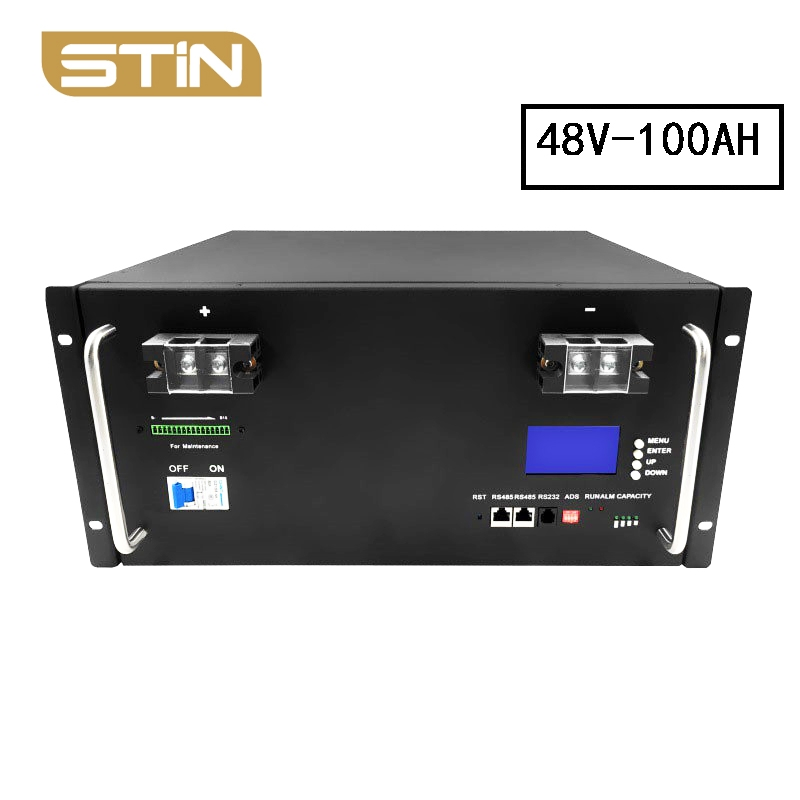

| 5 | LiFePO4 Battery | 48V100AH | 4 | 4pcs in parallel |

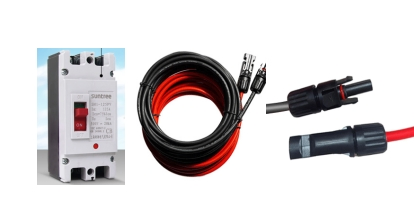

| 6 | Accessories | MC4/Cables | Set | Included PV and BVR cables (4mm², 10mm², 35mm²) |
The world is increasingly facing energy instability and environmental challenges. In response, our organization is dedicated to being a Total Solution Provider based on clean, sustainable solar energy. Our expertise spans the entire solar value chain, including polysilicon, ingots, wafers, cells, and modules, as well as PV equipment, EPC (Engineering, Procurement, and Construction), and O&M (Operation and Maintenance).
We are committed to global green energy independence. By providing high-quality raw materials and residential solutions worldwide, we continue to address global environmental issues. We recognize the profound importance of green energy and endeavor to protect these precious values for future generations.
