Solar Power System can be used in many scenarios without electricity or network. As an environmental protection and energy saving system, it offers substantial operational advantages.
1

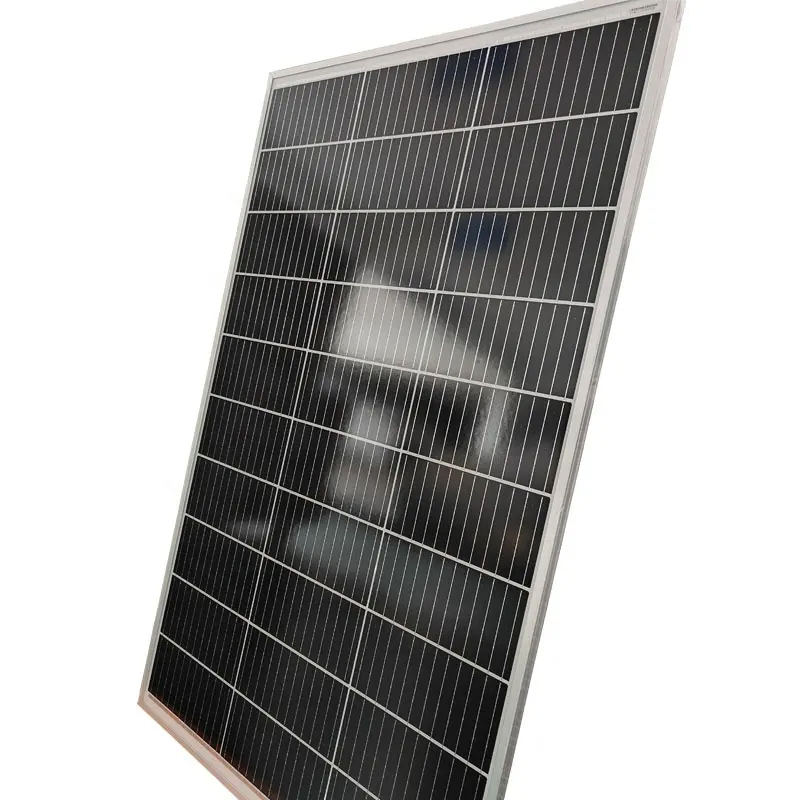

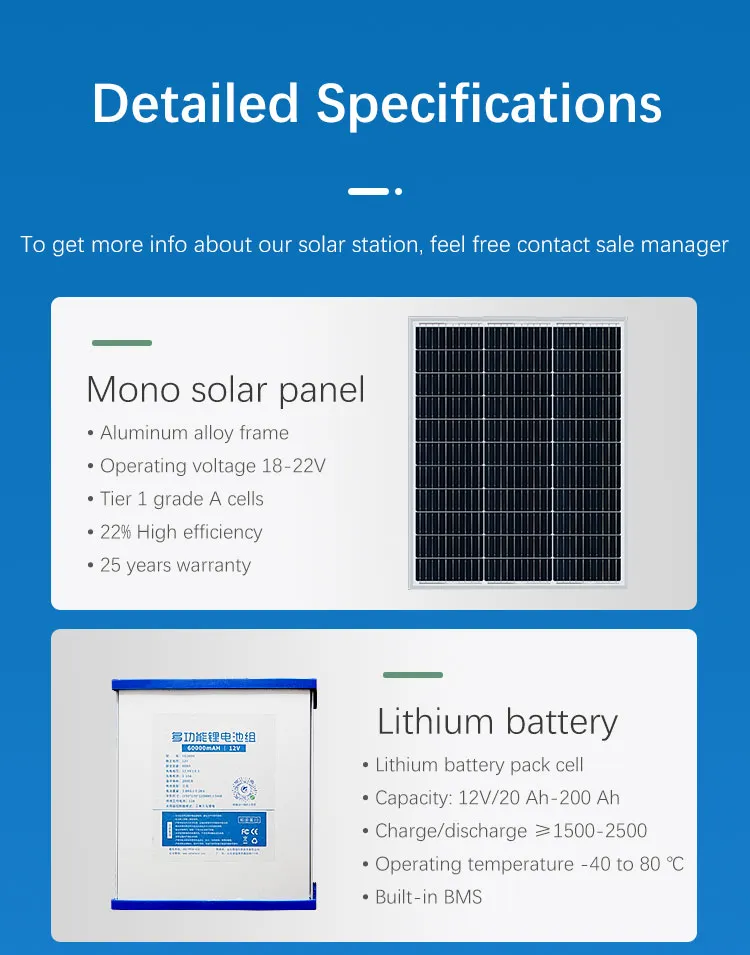

Complete Power Supply Set: Composed of mono solar panel, lithium batteries, PWM controller, waterproof box, installation bracket, and other essential accessories.
2
High Performance: Features high conversion efficiency and transmission rates for maximized power output.
3
Extended Standby: Extra long standby time, capable of supporting operations up to 3 days even during cloudy and rainy conditions.
4
Integrated Design: One-piece kit designed to be easily installed without requiring complex specialized wiring.
5
IP66 Protection: IP66-rated rain and dust protection allows the system to easily adapt to harsh outdoor environments.
6

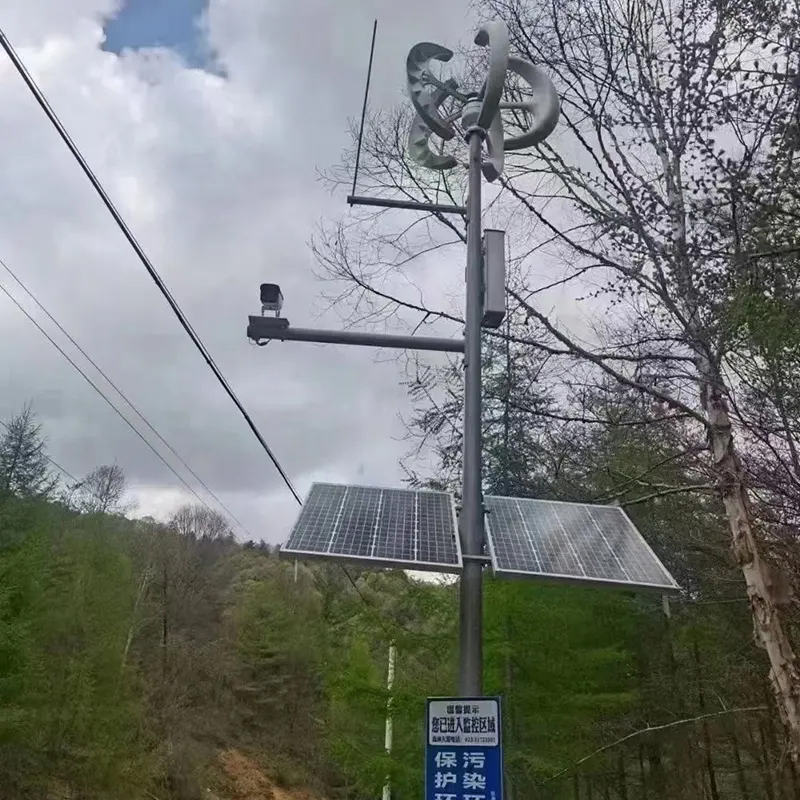

Versatile Applications: Widely deployed in agricultural fields, road monitoring, CCTV setups, Internet of Things (IoT) power supplies, and various remote industries.
System Specifications
Parameter
Specification Details
System Power
200W-120AH
System Output Voltage
Default 12V (24V, 36V, 48V Customized)
System Output Current
Max 10AMP
Solar Panel Pmax
200W 18V
Battery Capacity
12V 120AH
Controller
10A PWM Solar Charge Controller
Waterproof Box Size
280 * 190 * 100 mm
Packing List
Included Items
Quantity
100W 18V Mono Solar Panel
2 Pieces
12V 60AH Lithium Battery
2 Pieces
10A PWM Solar Charge Controller
1 Piece
Mounting Bracket
2 Sets
Waterproof Box
1 Piece
U-Shape Clamp for mounting solar bracket to pole
4 Pieces
Hose Clamp for mounting waterproof box to pole
2 Pieces
1m DC Wire
1 Piece
1m USB-DC Wire
1 Piece
POE Combiner
1 Piece
Packing Box
1 Piece
Multiple Configurations Available

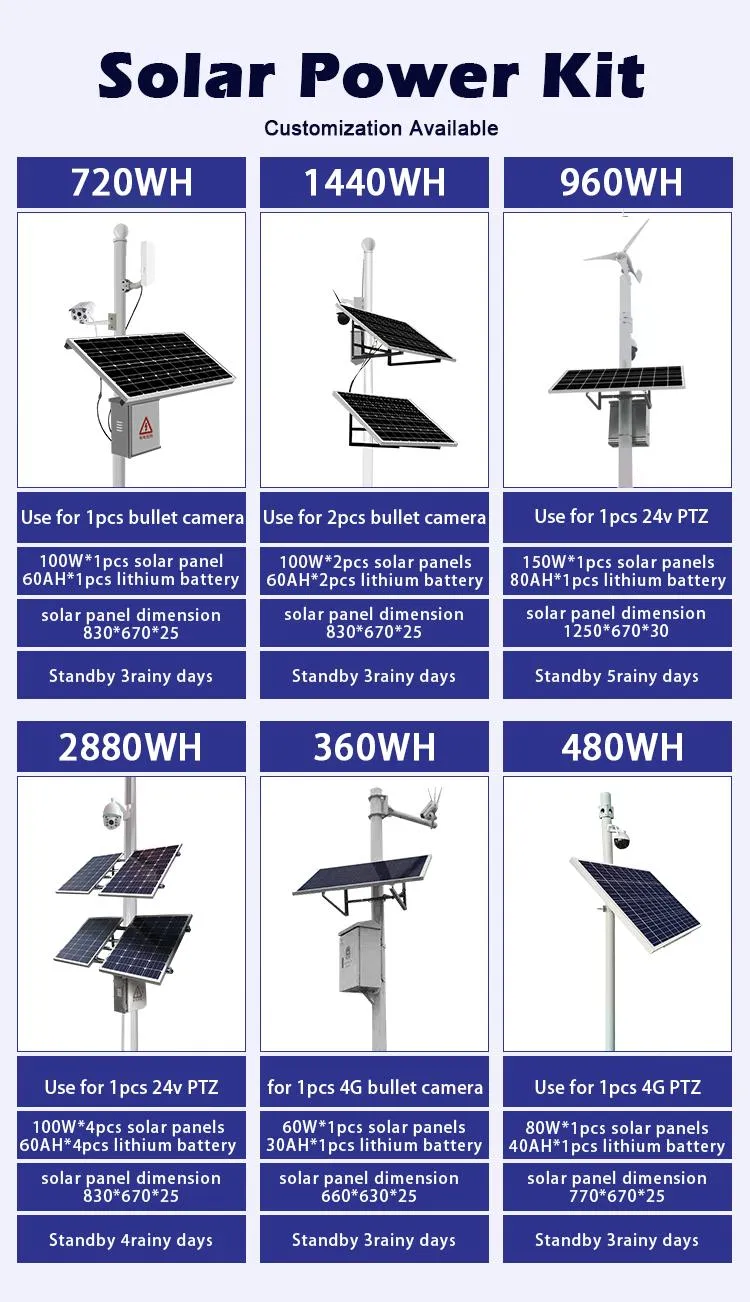

Besides the default configurations, a wide selection of other capacity formats is supported, including 30W, 60W, 80W, 100W, 150W, 200W, 300W, and 400W systems.

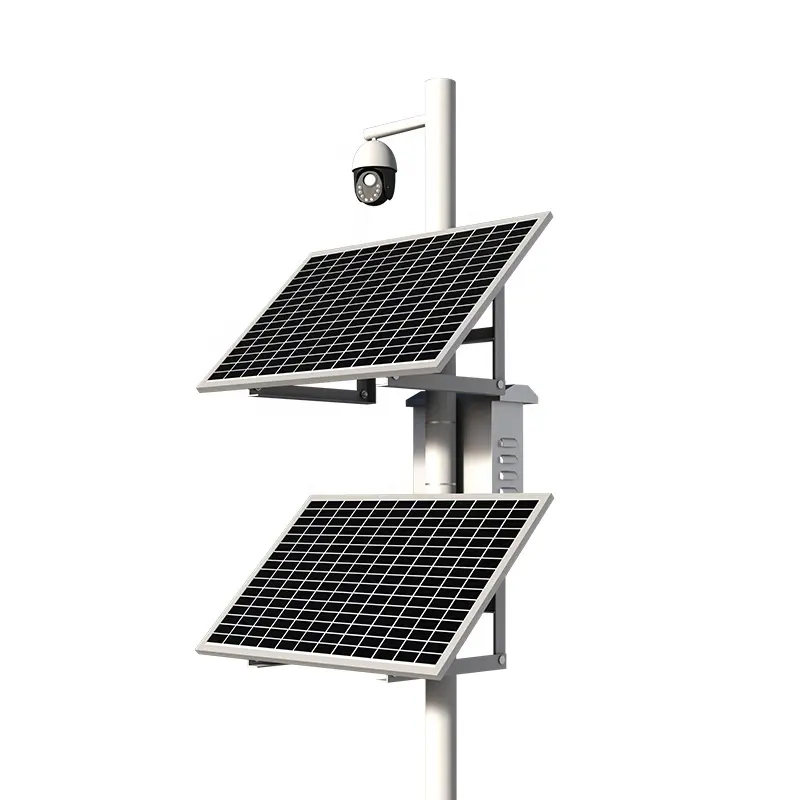

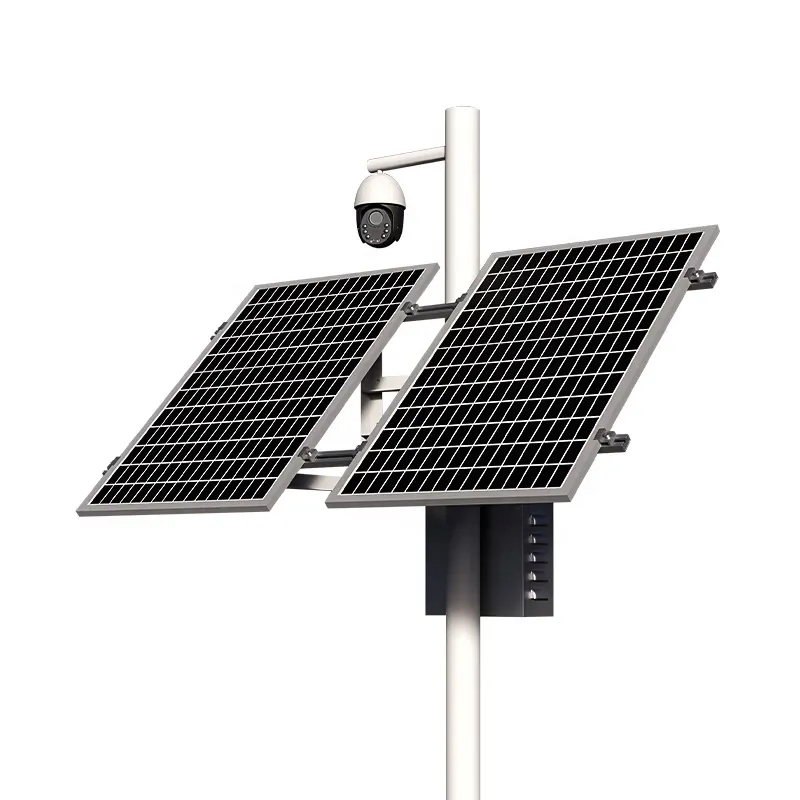

Product Diagram

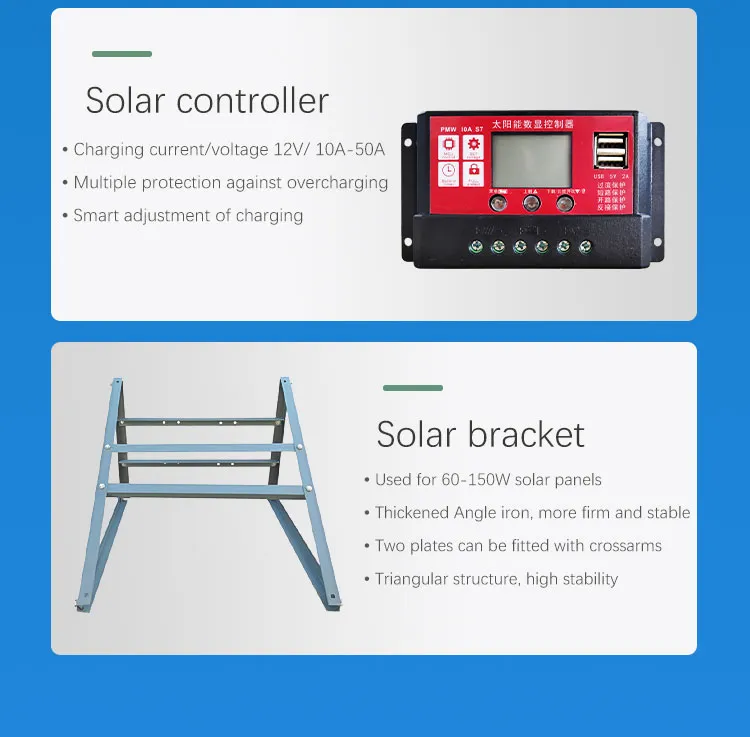

Completely integrated all-in-one assembly featuring solar panels, lithium battery pack, intelligent PWM controller, bracket mechanisms, and a durable waterproof housing enclosure.
Engineered utilizing advanced compact architectures to guarantee simple installation while significantly reducing complex field-level cabling setups.

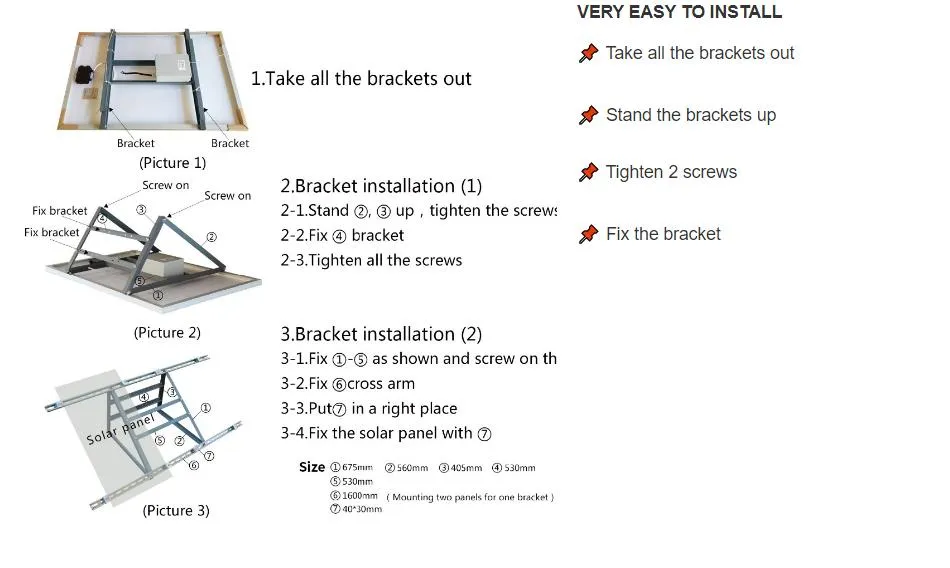

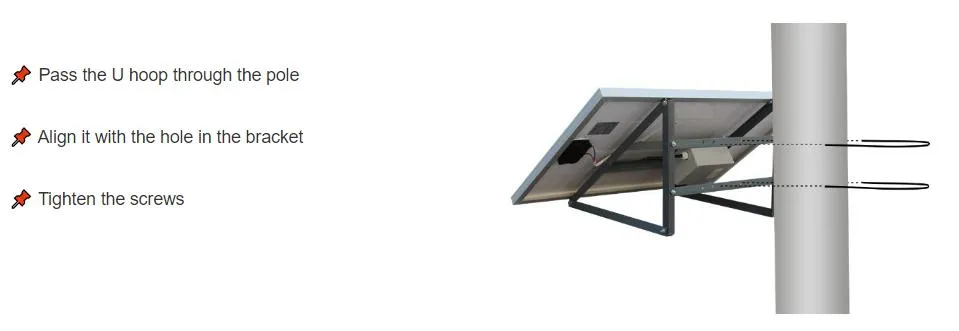

Features high-grade standardized mounting brackets for direct installation onto wall surfaces or utility poles.
Product Applications

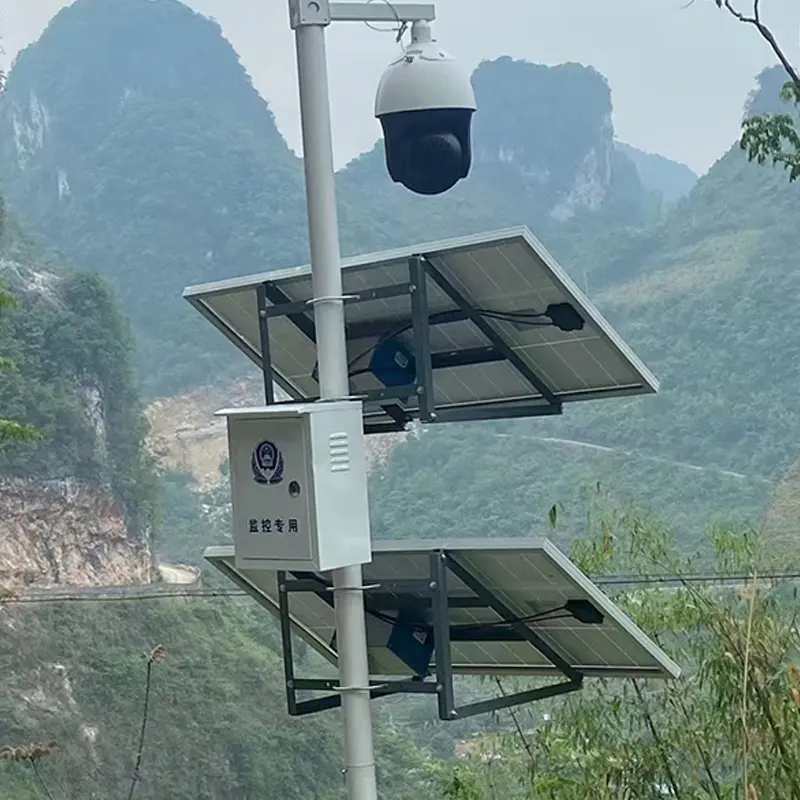

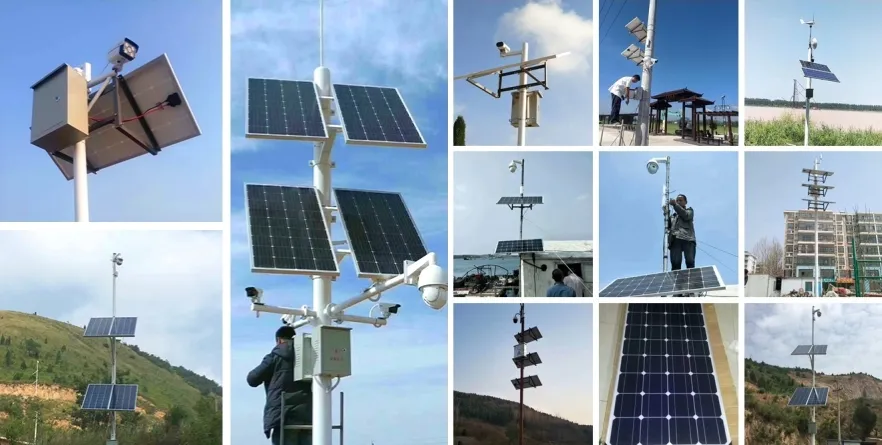

These heavy-duty solar power kits are exceptionally suited for remote sites facing electrical grid or network access challenges, such as isolated agricultural farms, dense forests, public highways, water reservoirs, active construction zones, and utility oil fields.
Packing & Delivering
FAQ
Commonly Asked Technical & Logistics Questions
Q1: Which system capacity is best suited for my requirements?
A1: It depends heavily on your daily power consumption load and target runtime. Standard capacities range from 30W up to 400W configurations to match multiple application requirements.
Q2: What is the typical delivery schedule?
A2: If the specific configuration you require is standard and in stock, components can be packed and dispatched within 10 to 25 days following verified payment processing. Global logistics coverage is fully supported.
Q3: Are these configurations appropriate for standard home use?
A3: Yes, hybrid setups are highly practical for residential settings, with 5kW and 10kW hybrid configurations being the typical selection for general home backup systems.
Q4: Is the installation process user-friendly?
A4: Yes, installation is very straightforward. The modular kits come with all essential operational brackets, fittings, and an extremely comprehensive manual to ensure a fast, self-contained DIY setup.
Q5: What sizes of turbines or power generation units are manufactured?
A5: Custom production parameters range from 150W up to 300KW systems. Orders can be processed as either single unit modules or comprehensive all-in-one kits.
Q6: What is the expected functional lifetime of the generation units?
A6: Engineered with high-strength structural materials and anti-wear components, these power systems offer an operational service lifetime exceeding 26 years under standard operating conditions.
