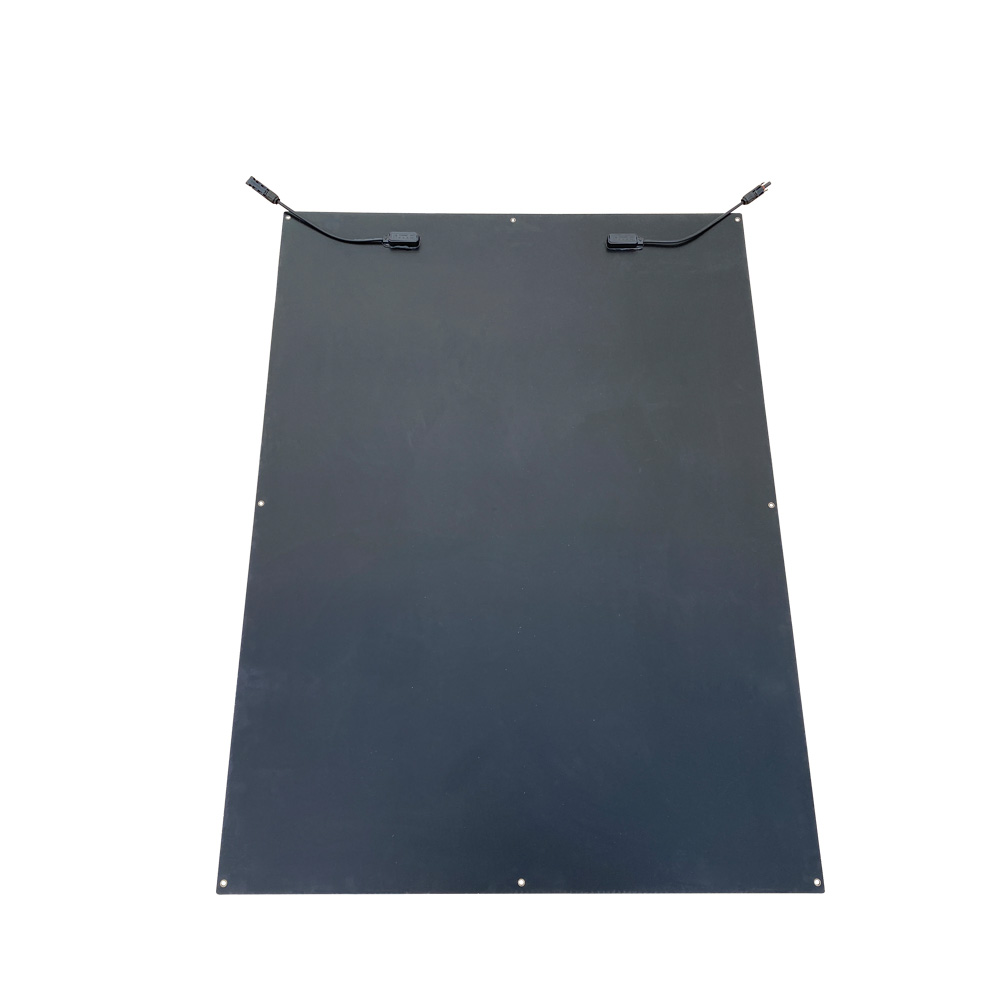

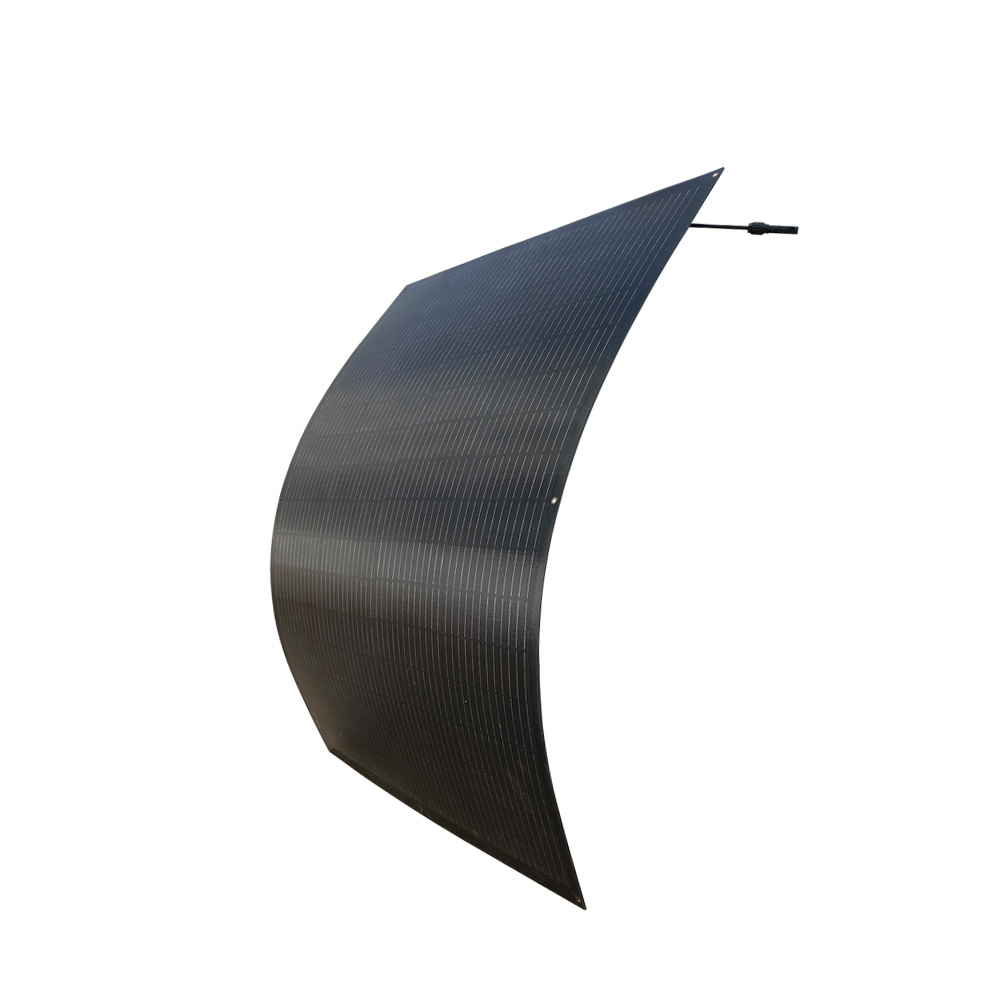

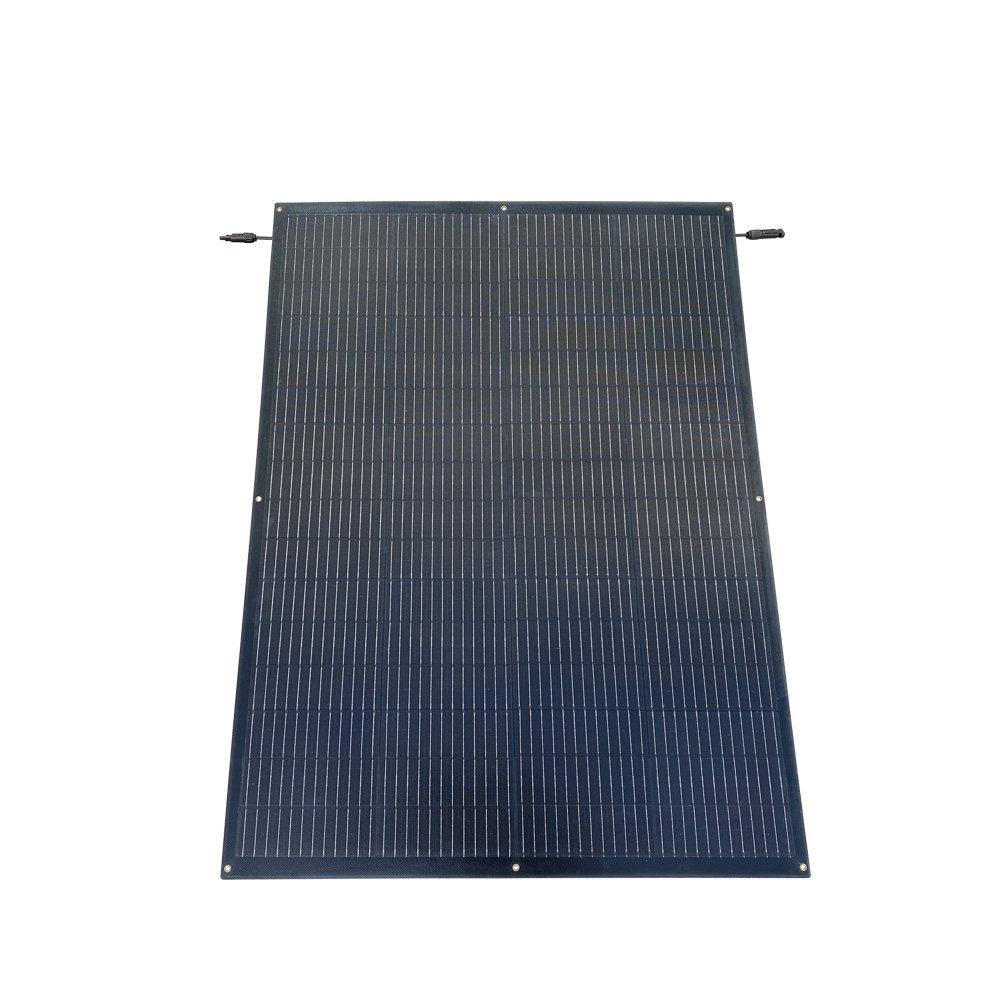

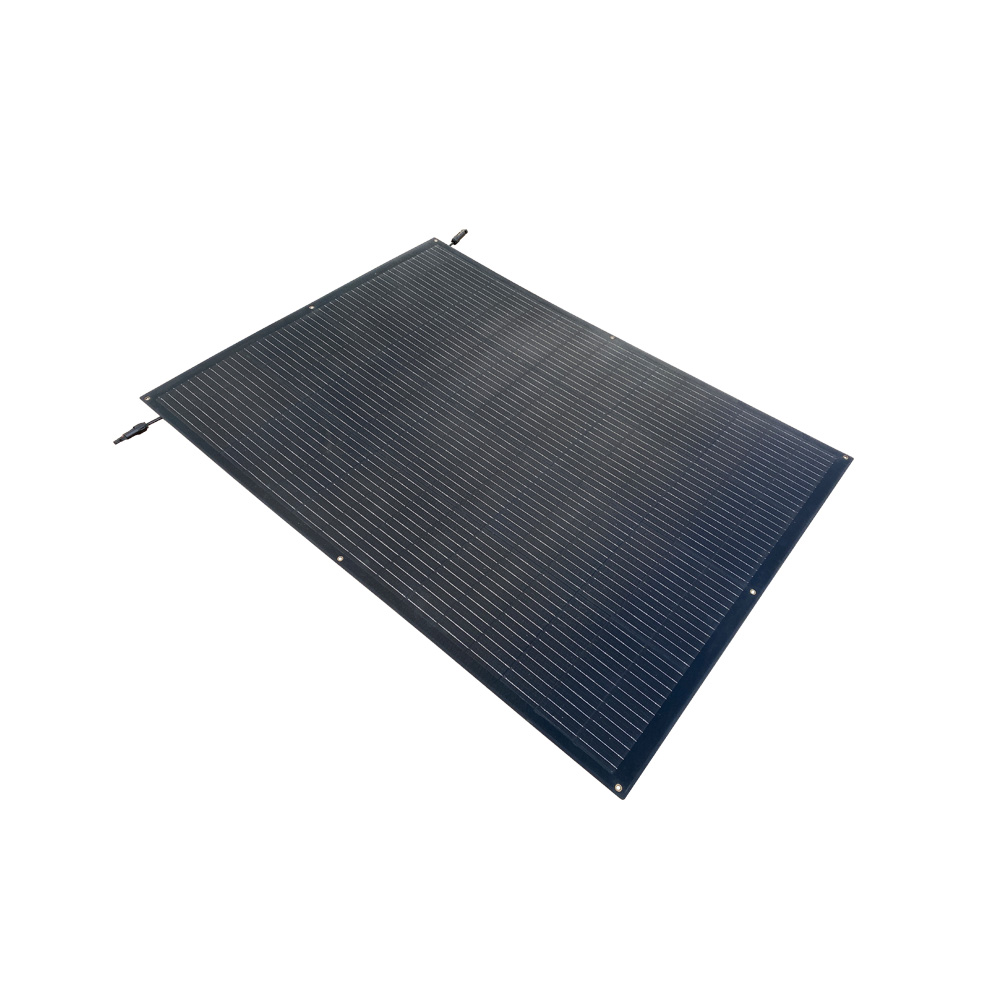

200W Thin Film Flexible Solar Panels New Technology Boat/RV Use 18% Efficiency IP67 Junction Box

Product Description

200W Thin Film Flexible Solar Panels New Technology Greenhouse

High cell efficiency PV solar panel with quality silicon material for long-term output stability and reliability.

Rigorous quality control processes executed to seamlessly meet the highest international standards.

High transmittance, low iron tempered glass layer featuring enhanced structural stiffness and impact resistance.

Unique, lightweight frame design engineered with high mechanical strength for simple and efficient installation.

Advanced encapsulation materials with multilayer sheet lamination to provide long product life and enhanced cell performance.

Outstanding electrical output performance even under challenging high-temperature or low-irradiance environmental conditions.

36 Back-Contact polycrystalline Si solar cells (providing efficiency performance of approximately 17.5%).

Product Introduction

Flexible Solar Panel Overview

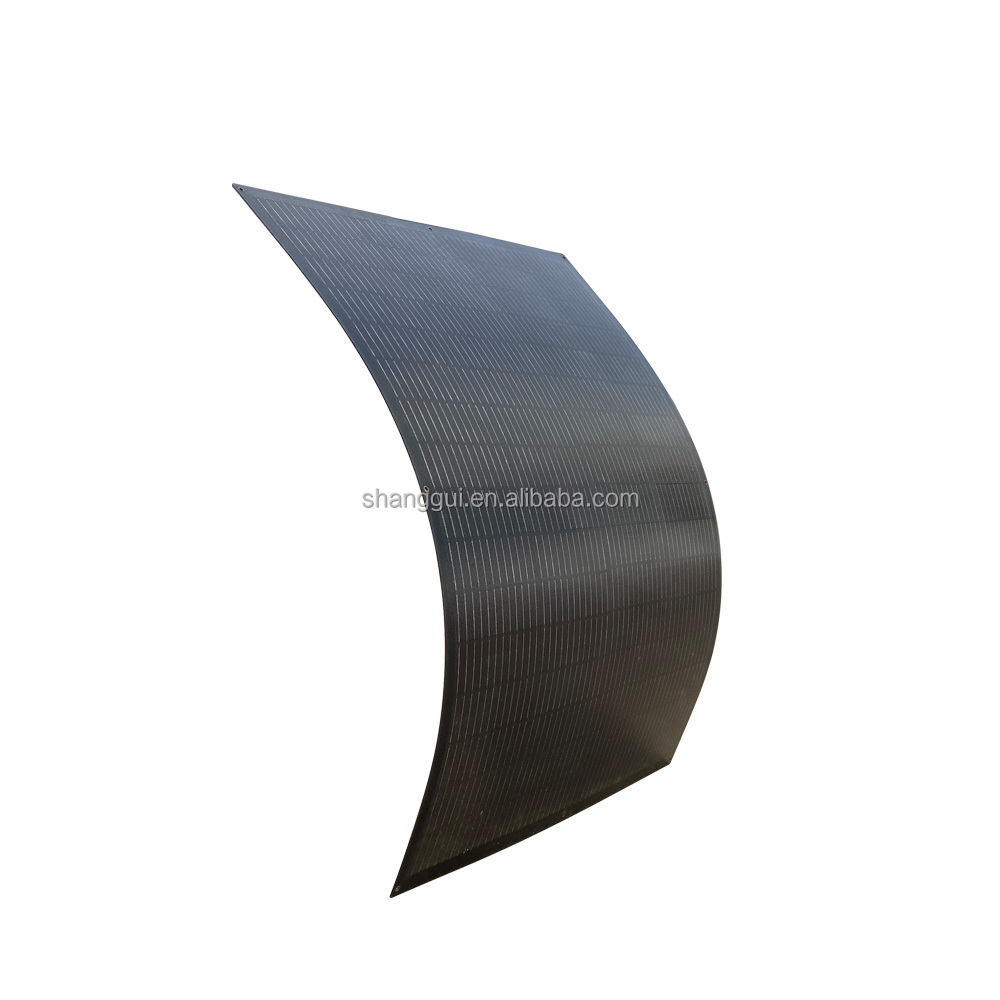

Flexible Solar Panel Detail Left Flexible Solar Panel Detail Right

Electrical Characteristics (STC*)

Parameter Specifications
Model No. SF36-200MF
Maximum Power at STC (Pmax) 200Wp
Maximum Power Voltage (Vmp) 18.3V
Maximum Power Current (Imp) 10.93A
Open Circuit Voltage (Voc) 21.96V
Short Circuit Current (Isc) 12.02A
Maximum System Voltage (V) 1000V DC (IEC)
Maximum Series Fuse Rating (A) 15A
Power Tolerance (%) 0 ~ +3%
NOCT 45±2℃
Pmax Temperature Coefficient -0.46%/℃
Voc Temperature Coefficient -0.346%/℃
Isc Temperature Coefficient 0.065%/℃
Operating Temperature -40℃ ~ +85℃
Technical Drawing Layout

Our Service & Support

Installation advice, detailed environmental conditions analysis, and custom PV module selection guidelines.

Comprehensive technical training and ongoing engineering support for optimization.

Professional installation and strict acceptance criteria technical guidance service.

Accurate system trouble diagnosis and swift technical troubleshooting services.

Complete PV module maintenance, problem-solving, operation, and technical training seminars.

Availability of a broad range of highly specific system spare parts as requested.

Product Packing & Protection

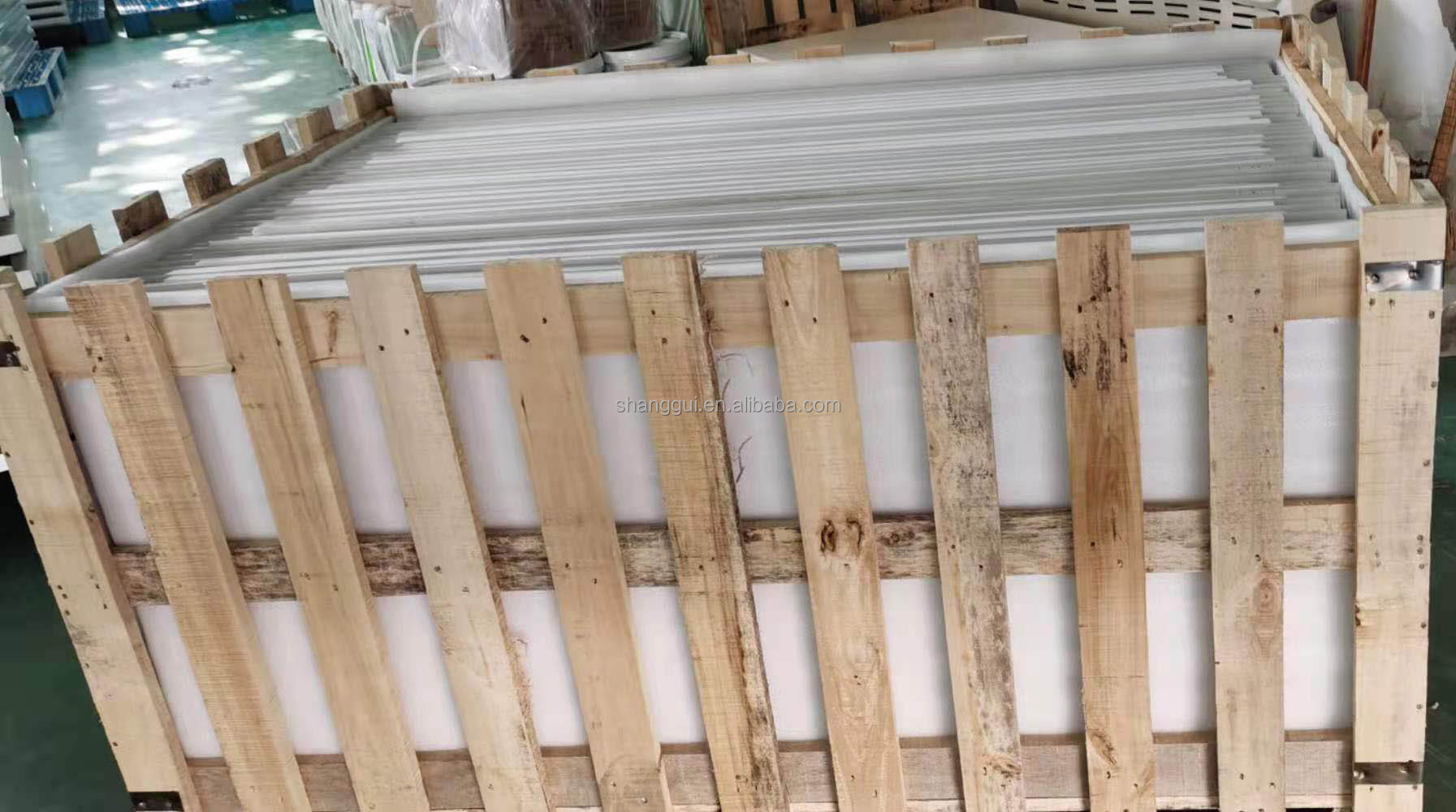

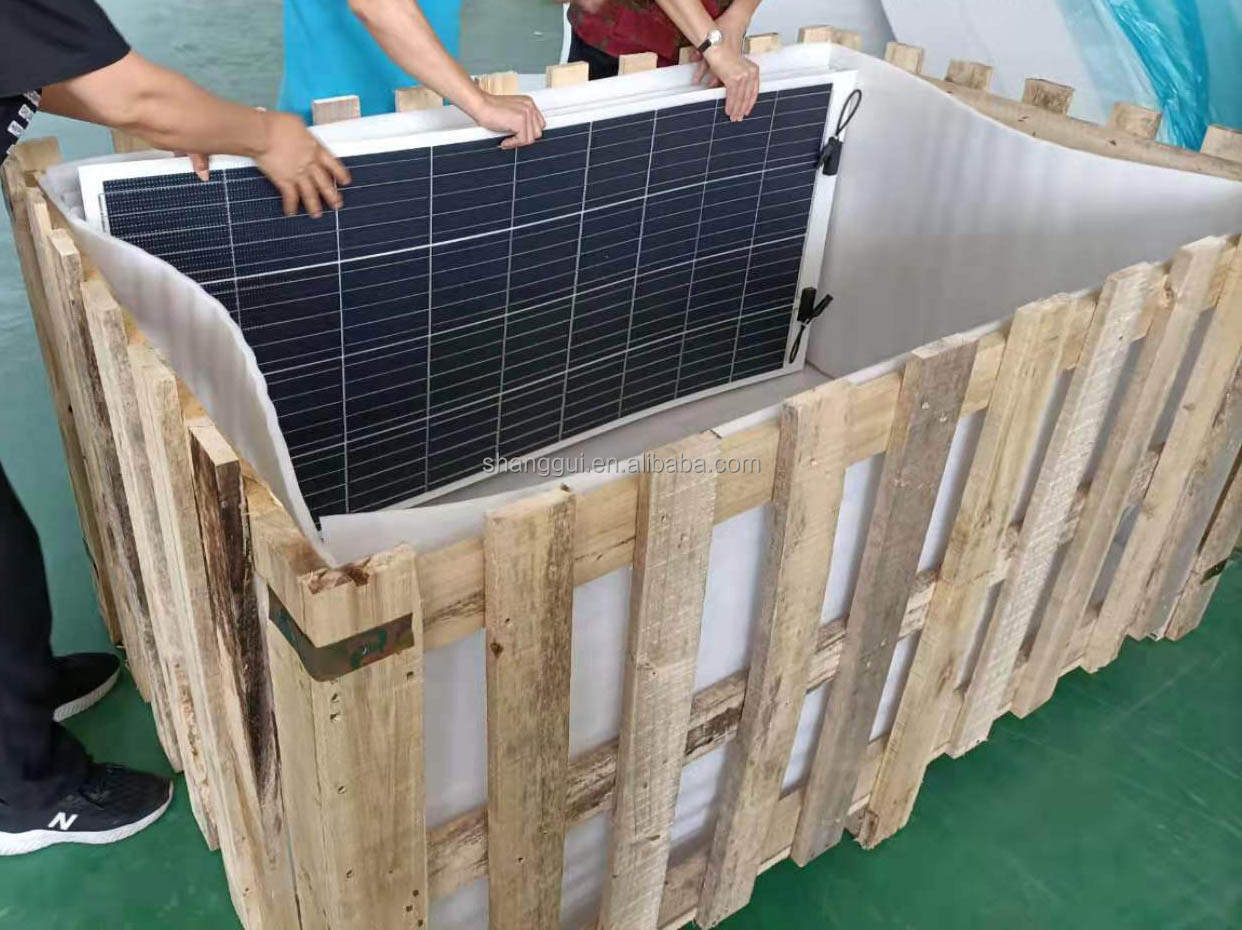

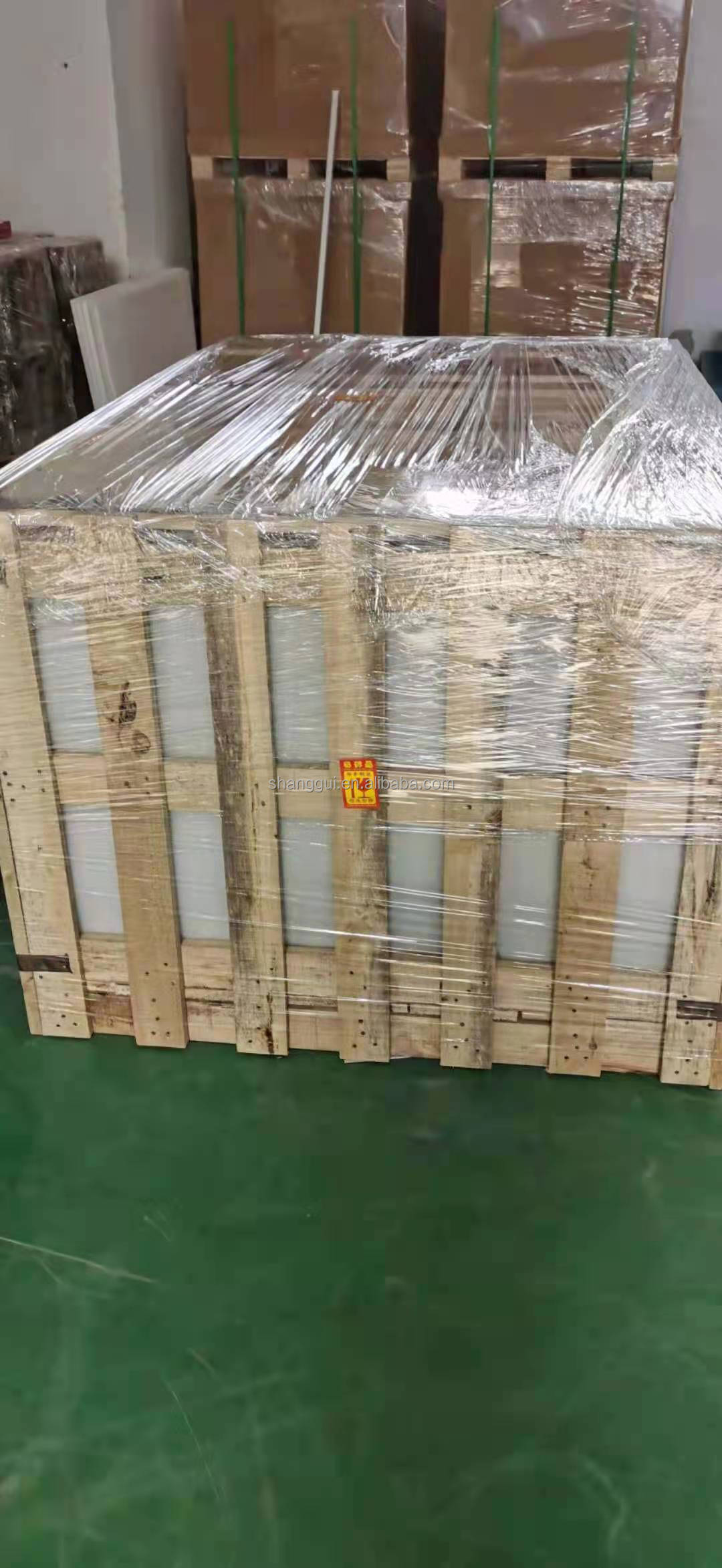

Packaging Step 1 Packaging Step 2 Packaging Step 3

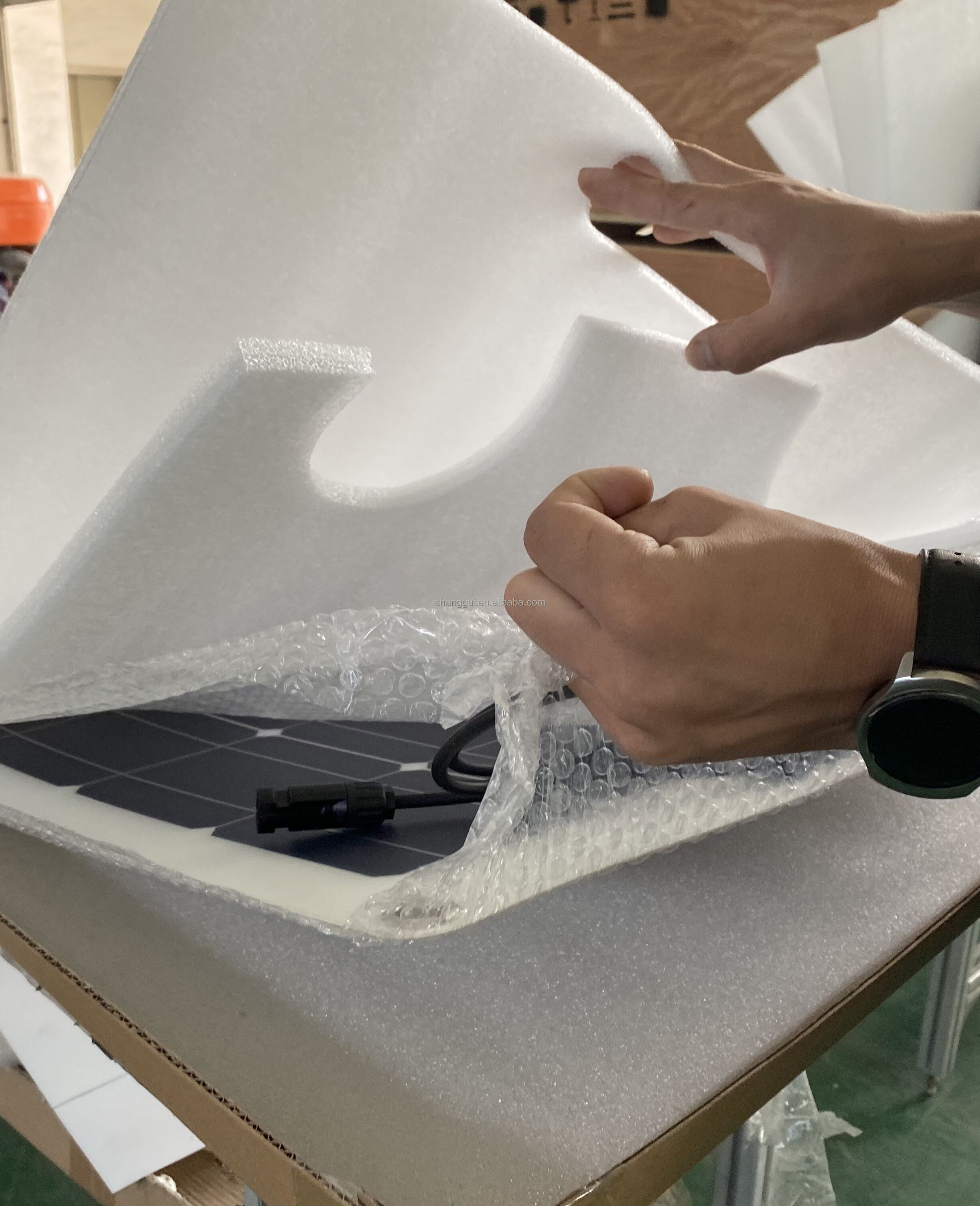

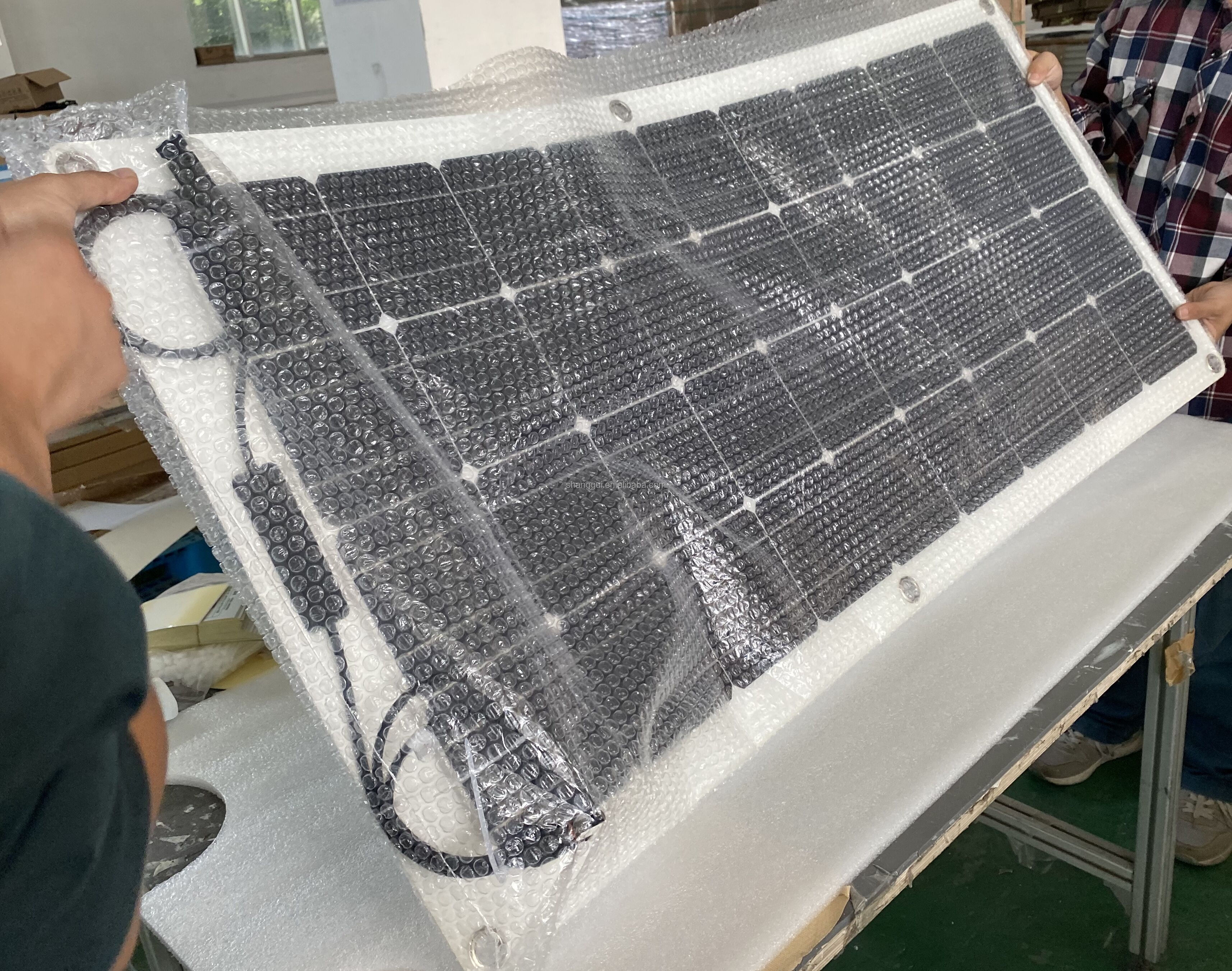

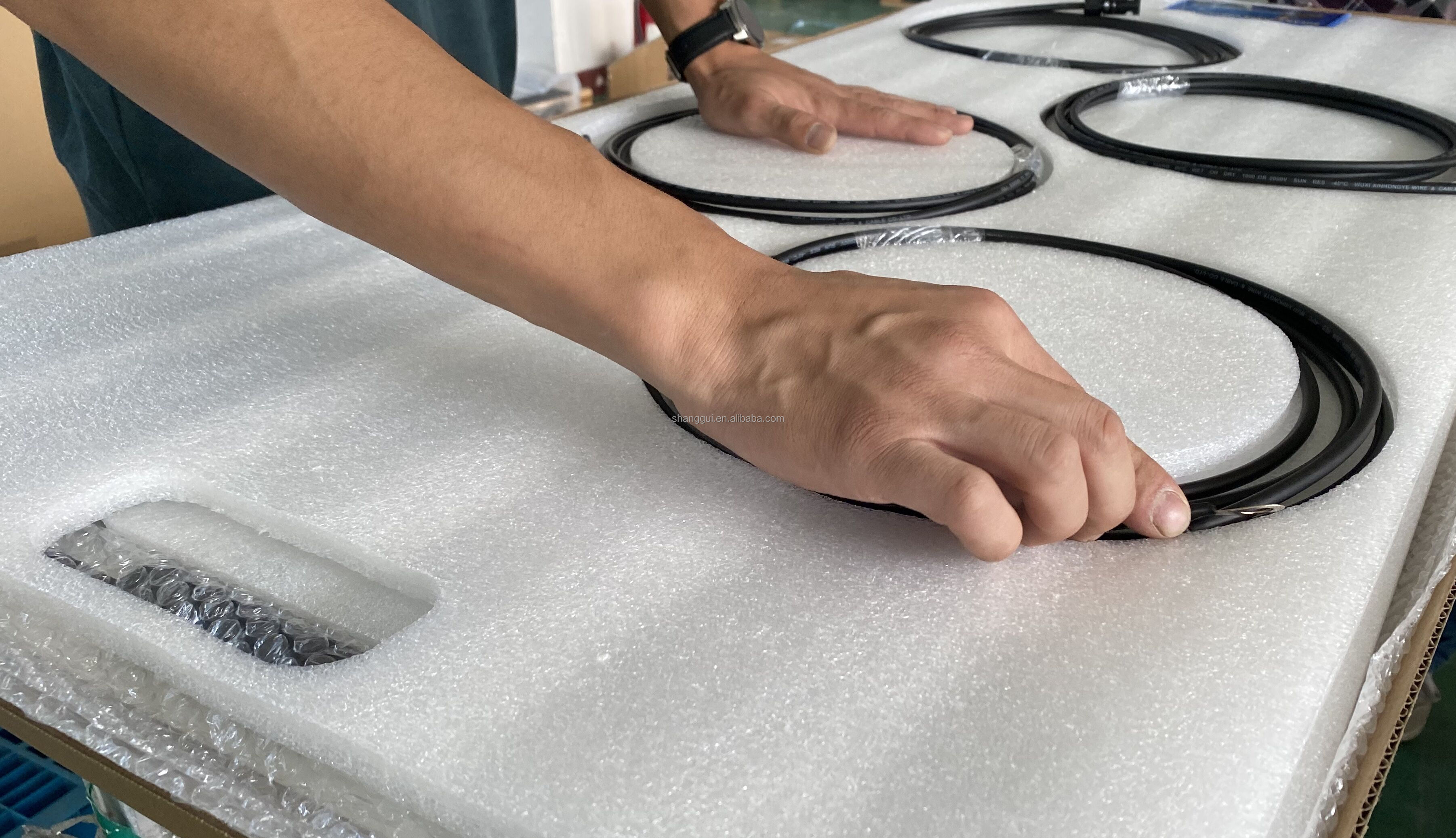

Warehouse Packing 1 Warehouse Packing 2 Warehouse Packing 3
Packing Configuration Specifications
Packing Quantity 80pcs / wooden box
Quantity per Pallet 1pc / carton, 50pcs / pallet
Container Loading Capacity 1100pcs / 40GP container

By Sea

Efficient bulk shipping from major international seaports.

By Air

Rapid premium delivery through major international airport networks.

By Express

Prompt courier solutions handled via recognized international express networks.

Frequently Asked Questions

What makes thin-film flexible solar panels suitable for greenhouse applications?

Thin-film flexible solar panels are lightweight and can easily integrate onto curved or structural greenhouse roofs without requiring heavy rack support. They feature outstanding performance in low-light or high-heat situations, ensuring consistent energy output throughout variable seasonal conditions.

Can these flexible panels be installed on uneven or curved surfaces?

Yes, the advanced physical flexibility allows them to contour seamlessly to unique architectural designs, curved arches, and uneven structural outlines where standard, rigid glass solar panels cannot be safely deployed.

How does the temperature coefficient affect panel performance?

With a low power temperature coefficient of -0.46%/℃, these modules maintain superior electrical performance and minimize efficiency loss even as ambient temperatures rise, ensuring stable energy yield in extreme summer climates.

What kind of durability features do these flexible panels offer?

The panels are constructed using low-iron tempered glass featuring enhanced structural stiffness and advanced multilayer sheet lamination. This provides excellent impact resistance and prevents environmental wear over long-term operations.

What packing and safety protection is provided during international shipping?

Modules are packaged securely inside heavy-duty cartons and reinforced wooden structures (80pcs per wooden box or standard 50pcs per pallet configuration) to prevent shifting or physical vibration damage during maritime, air, or express transit.
