700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate
700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate
700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate
700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate
700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate
1 / 5
700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate
700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate
700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate
700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate
700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate

700W Shingled Mono Bifacial Panel 680W PV Solar Panel with CE Certificate

Customization: Available
Warranty: 25 Years
Number of Cells: 132cells
Send Inquiry

Product Description

✨ Basic Information
🏠 Application: Home Appliances, Solar Energy Storage Systems
✅ Condition: New
📜 Certification: EST, ISO, CB, CE
💎 Material: Monocrystalline Silicon
⚖️ Weight: 34.4kg
🔋 Solar Cell: 5bb to 12bb Mono
🛡️ Glass: 3.2mm, High Transmission, AR Coated
📦 Junction Box: IP68 Rated
🔌 Connector: Compatible MC-4
🖼️ Frame: Anodized Aluminium Alloy
⚙️ OEM/ODM: Acceptable
🌐 Origin: China
🔍 Product Description
Solar Panel Divider

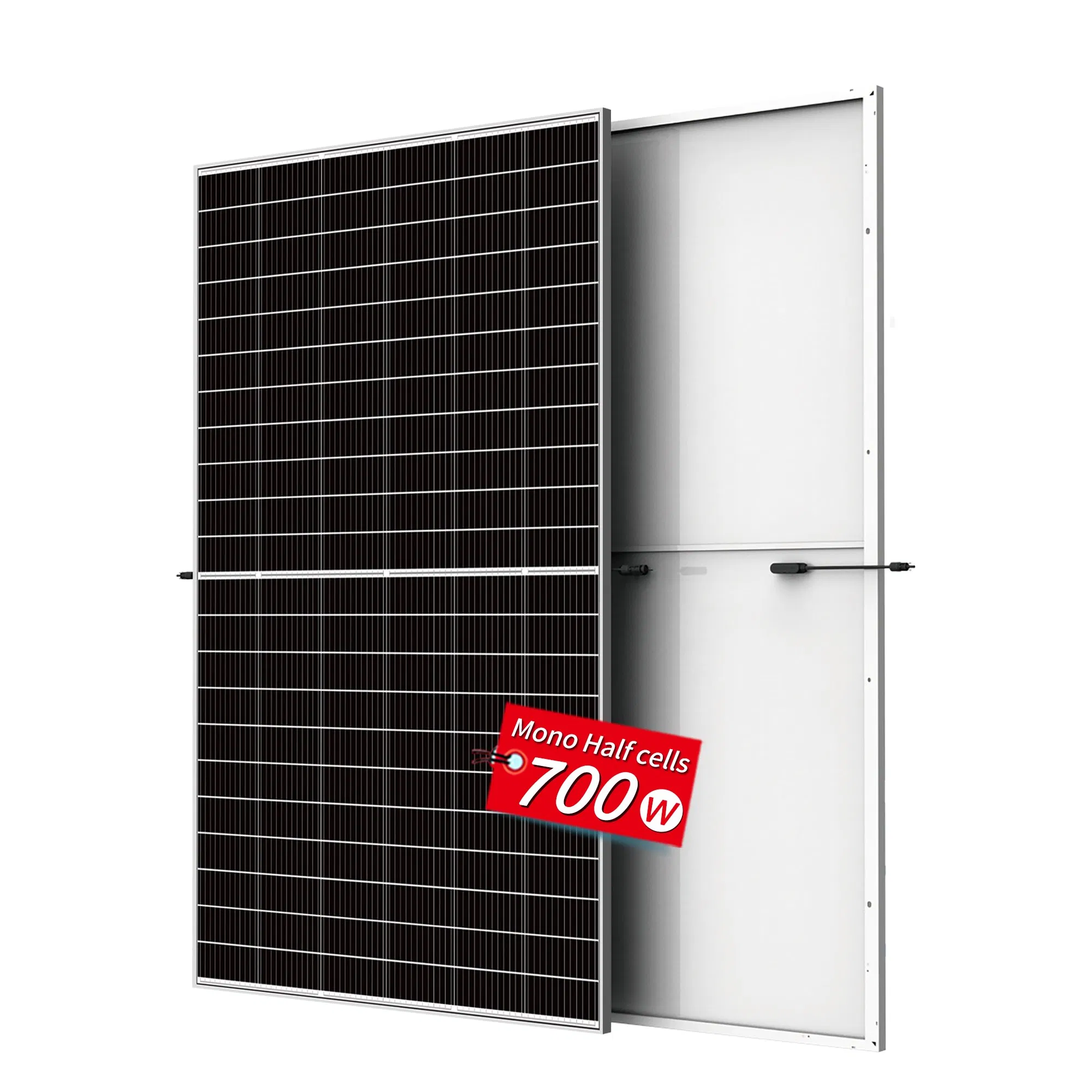

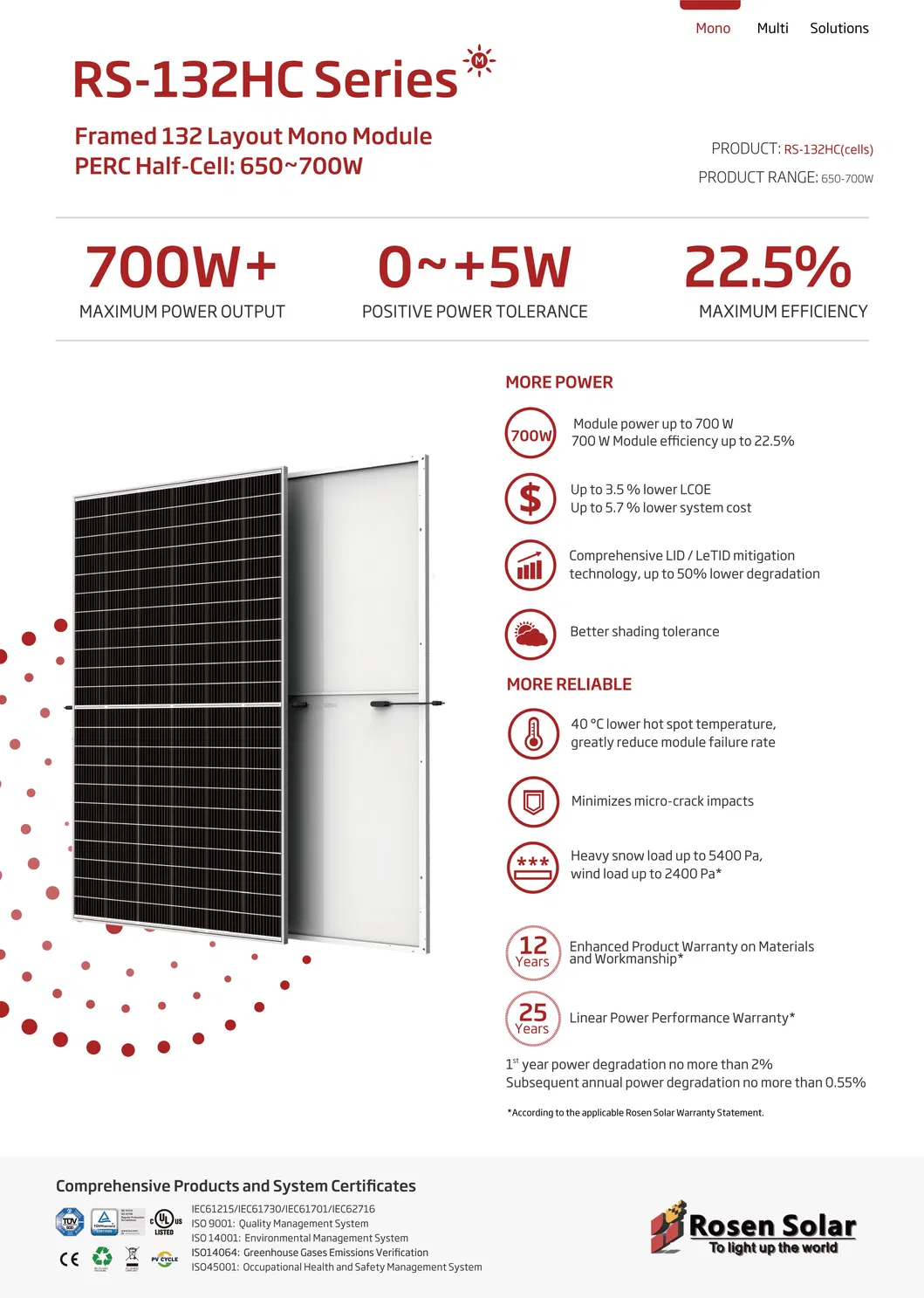

700W Shingled Mono Bifacial Panel

Technical Specification Data (STC)

Model RS650M-132HC RS660M-132HC RS680M-132HC RS690M-132HC RS700M-132HC
Peak Power (Wp) 650 660 680 690 700
Max Power Voltage (Vmpp) 37.9 38.3 39.1 39.5 39.9
Max Power Current (Impp) 17.16 17.24 17.40 17.48 17.55
Open Circuit Voltage (Voc) 45.0 45.4 46.2 46.8 47.2
Module Efficiency (%) 20.9 21.2 21.9 22.2 22.5
STC Condition Irradiance 1000W/m2, Cell Temp 25ºC, AM1.5

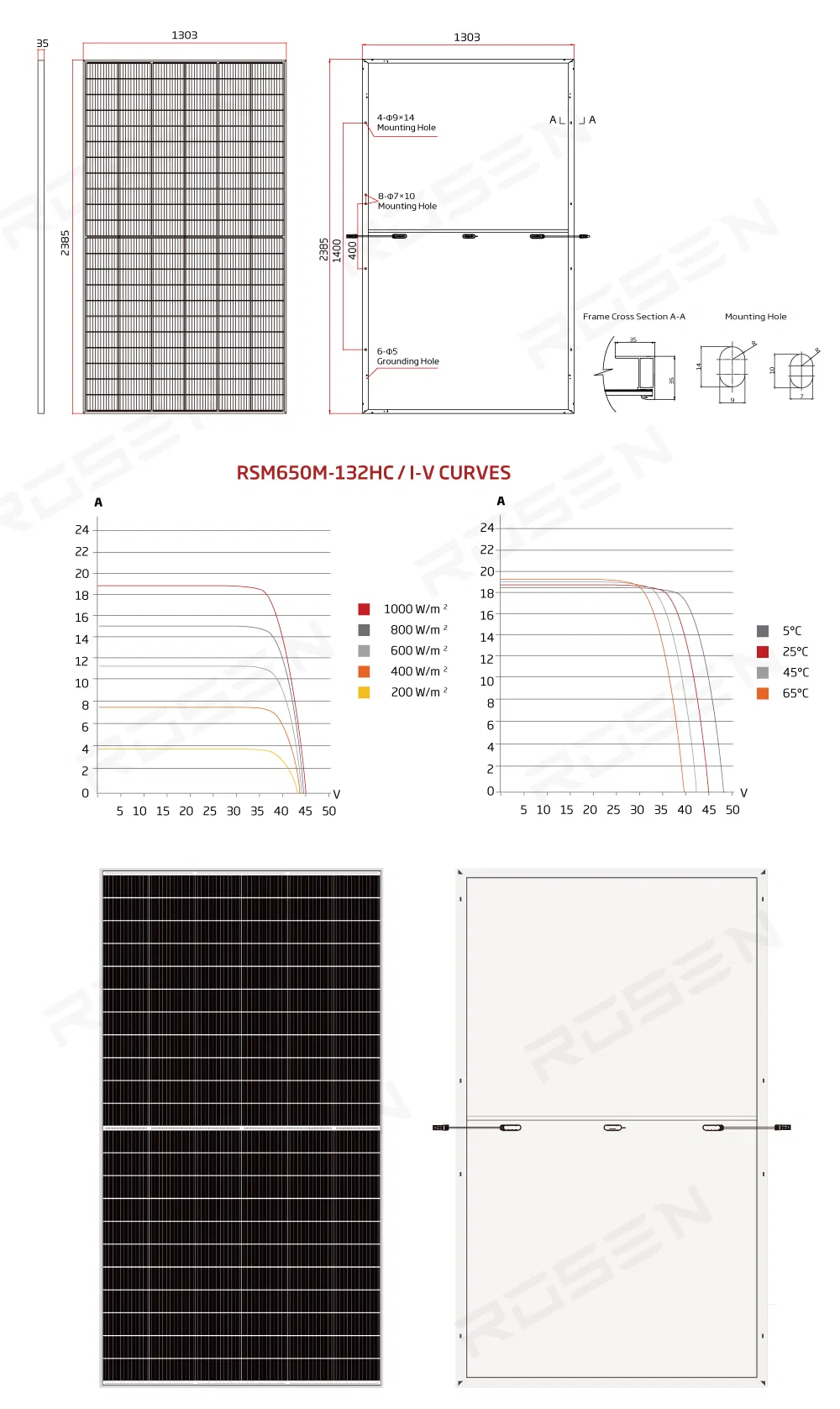

Performance Charts
📸 Detailed Images

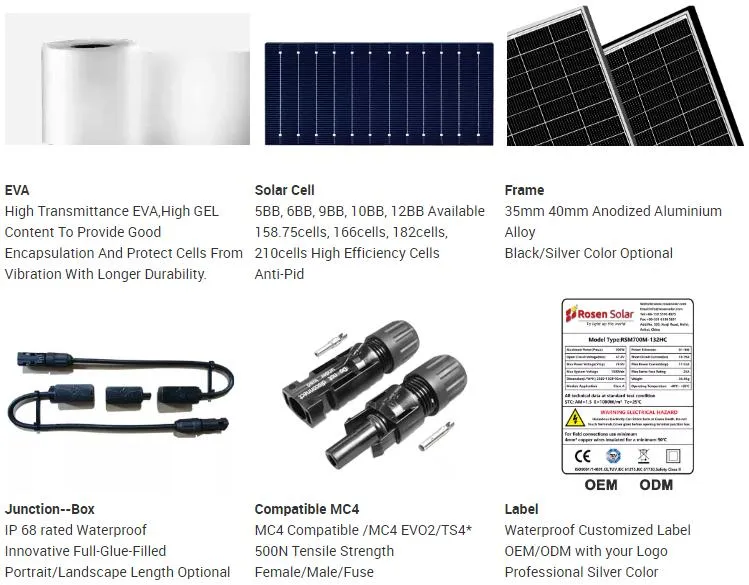

Solar Panel Details

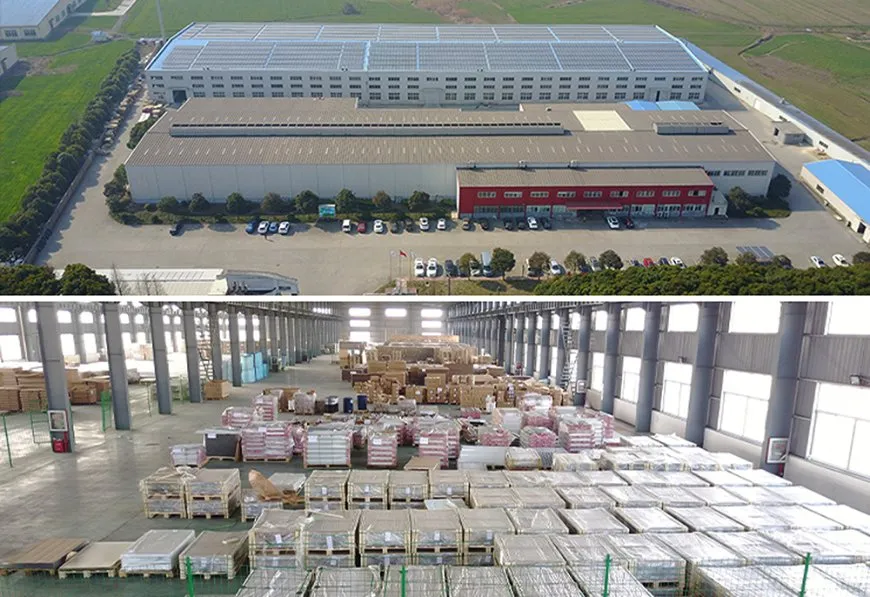

Factory Overview
🚚 Packing & Delivery

Packing Details: 31pcs per pallet or in reinforced wooden boxes.

Delivery Time: 5-7 days for standard orders.

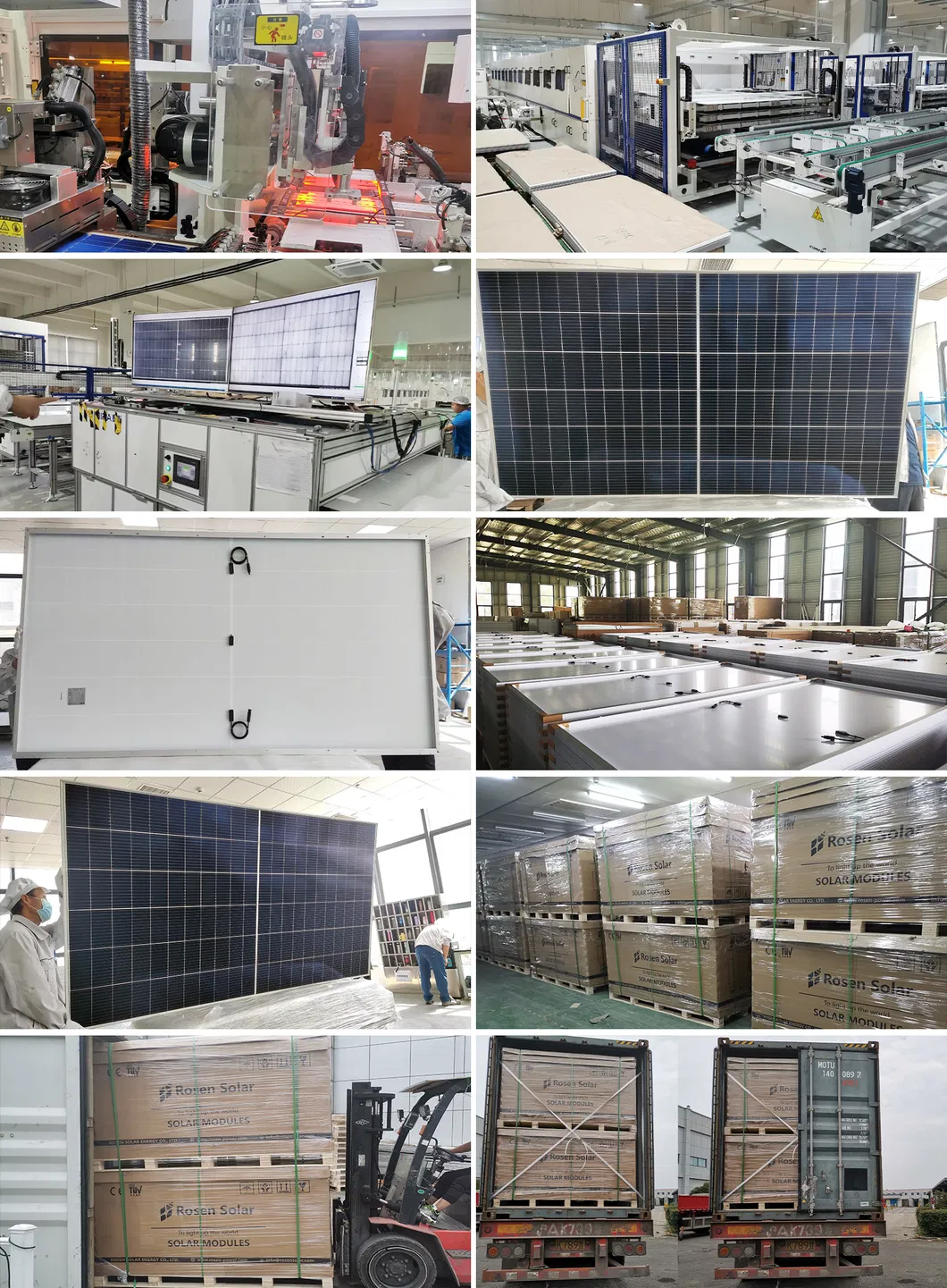

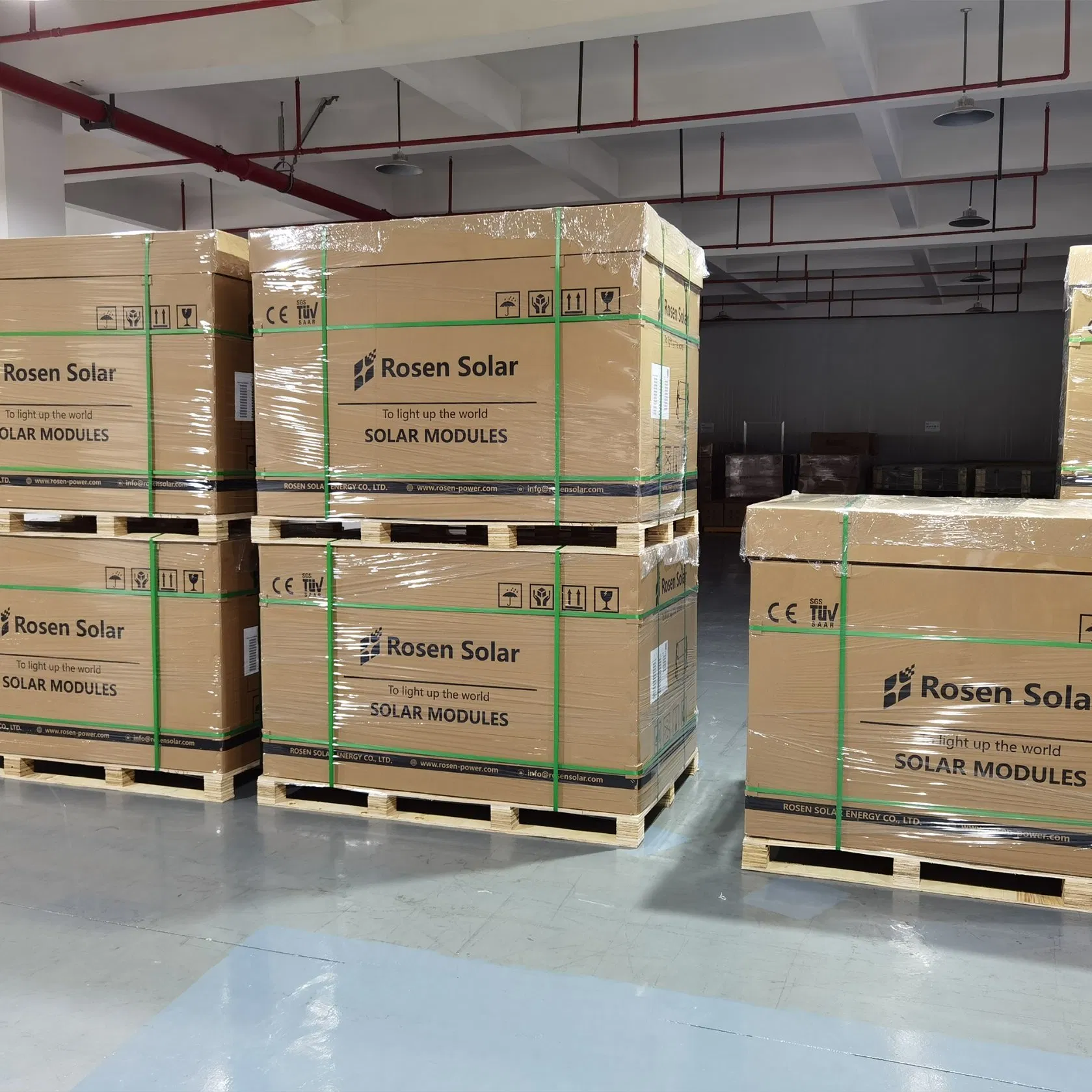

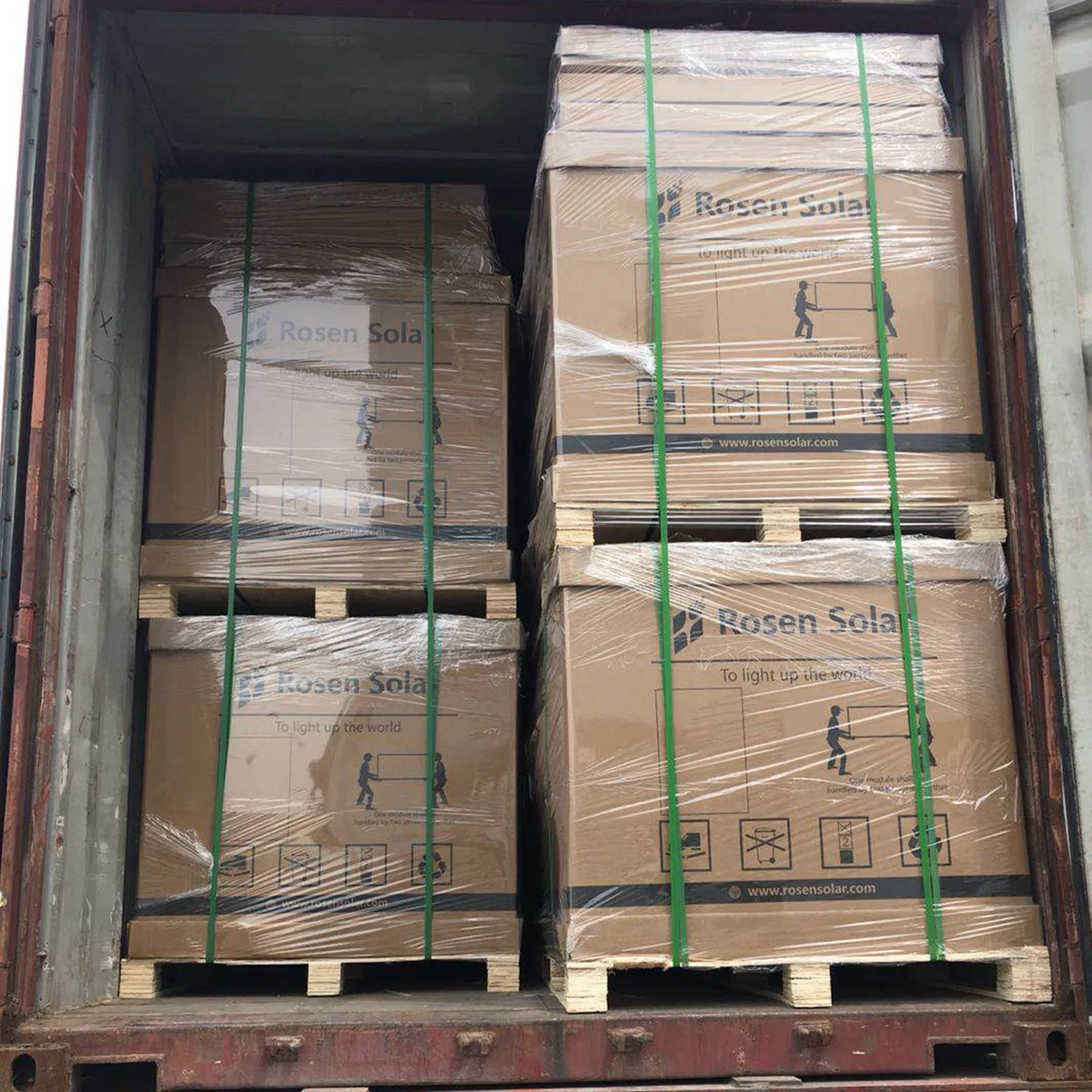

Packing Gallery
🌟 Global Projects

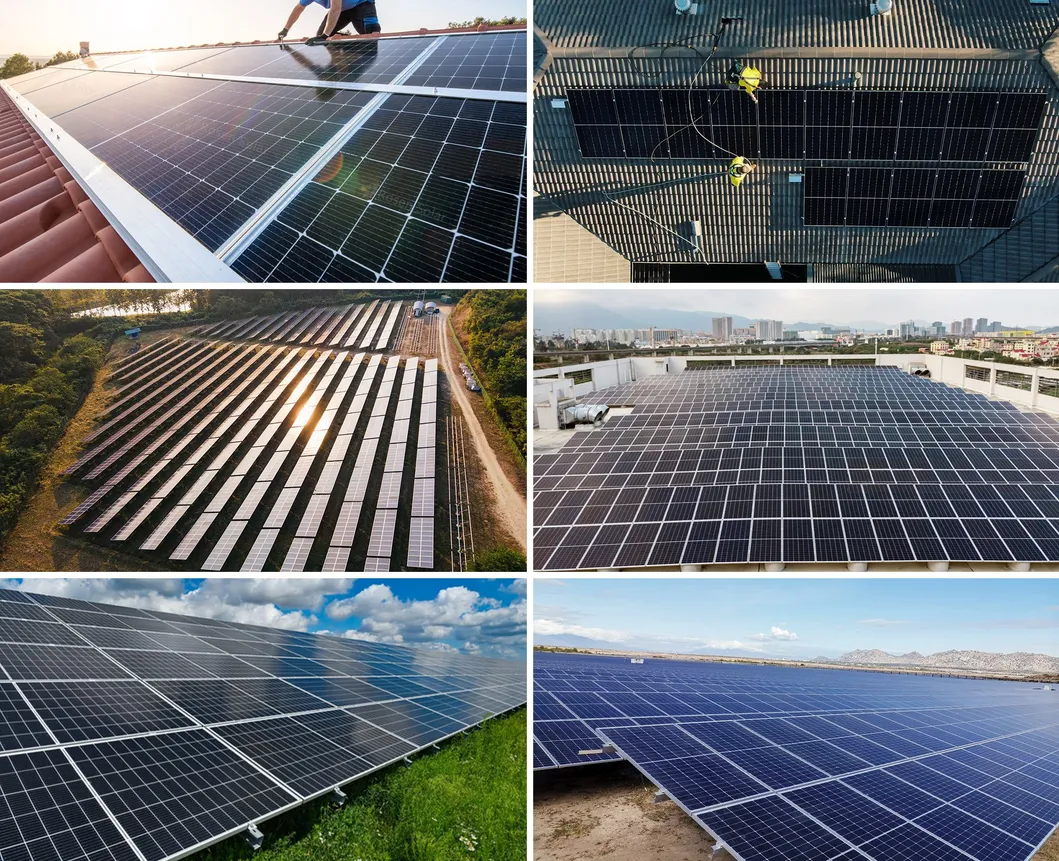

Project Showcase
❓ Frequently Asked Questions
🔹 What is the main application of these solar panels?
These high-efficiency panels are primarily designed for home appliances and large-scale solar energy storage systems.
🔹 What certifications do the solar panels have?
Our solar panels are fully certified with EST, ISO, CB, and CE standards, ensuring international quality and safety compliance.
🔹 How durable is the construction of the panel?
The panels feature 3.2mm high-transmission AR coated tempered glass and an IP68 rated junction box for maximum weather resistance.
🔹 Can I request custom branding (OEM)?
Yes, OEM and ODM services are acceptable. We can customize the panels and packaging according to your specific requirements.
🔹 What is the typical module efficiency?
Depending on the model, the module efficiency ranges from 20.9% up to 22.5% for the 700W peak power model.
🔹 How are the panels packaged for transport?
To ensure safety during transit, panels are typically packed 31 pieces per pallet or secured in robust wooden boxes.
