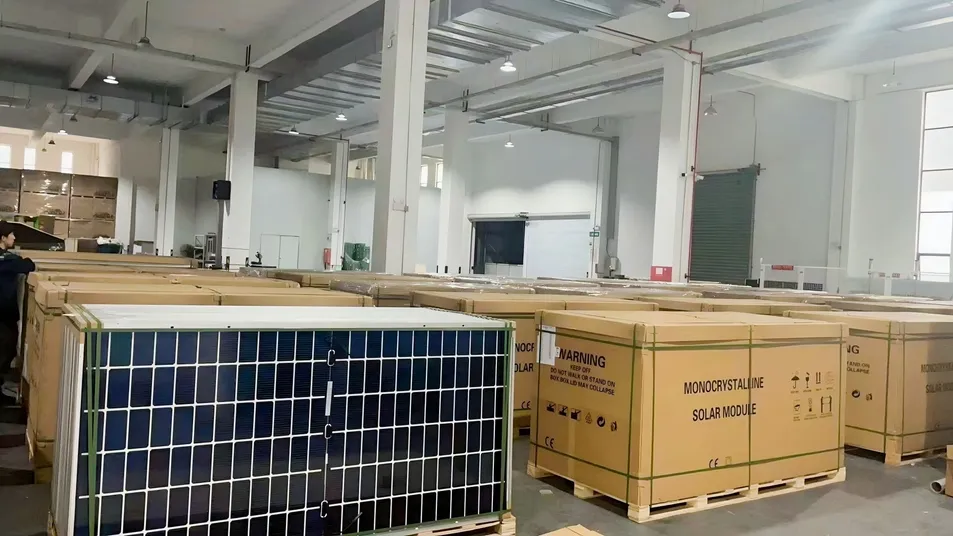

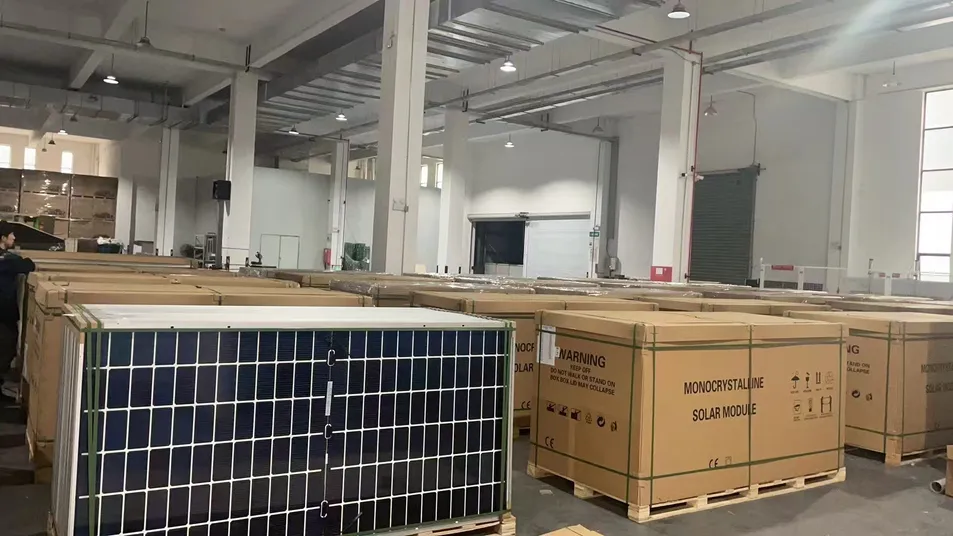

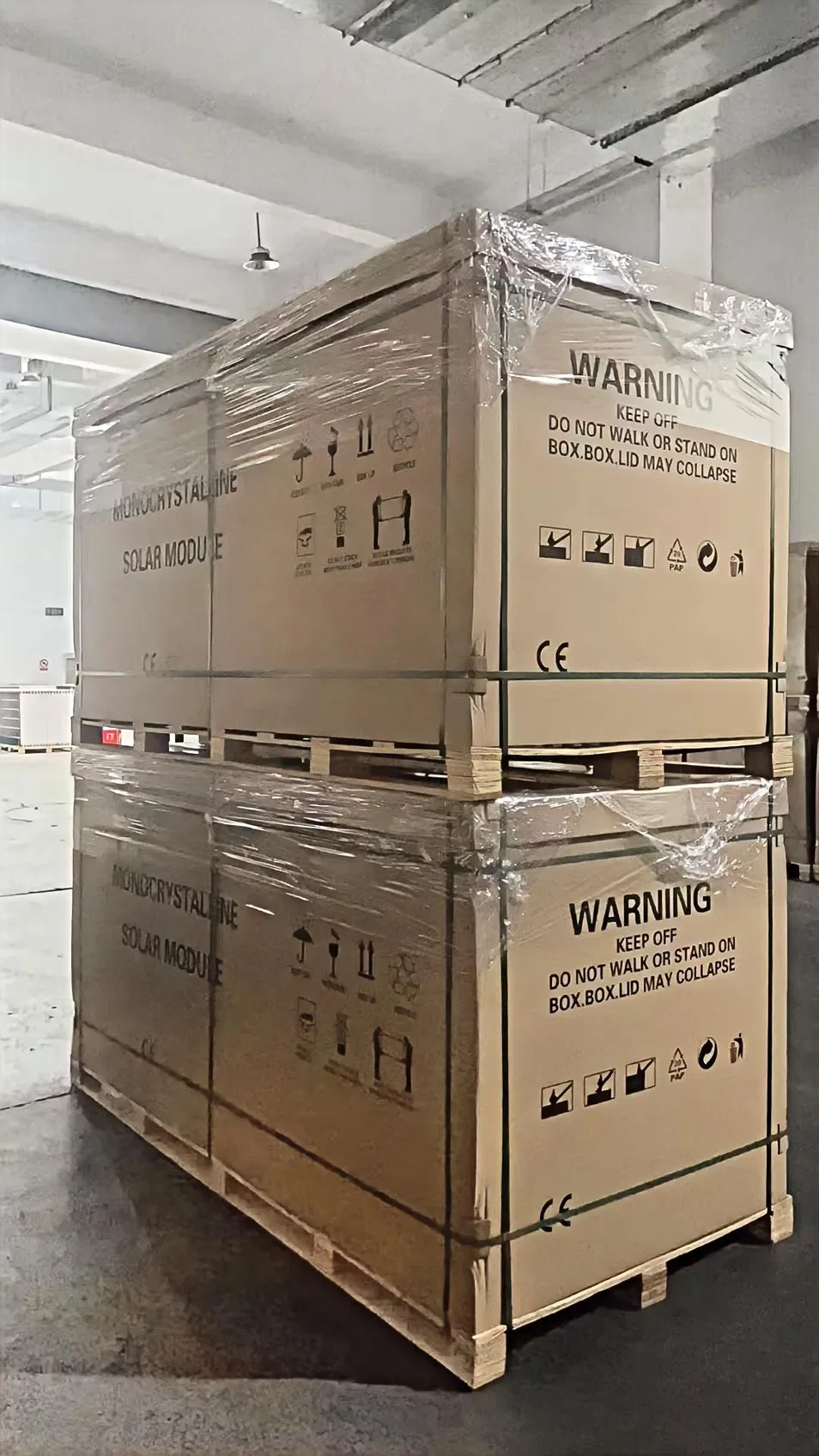

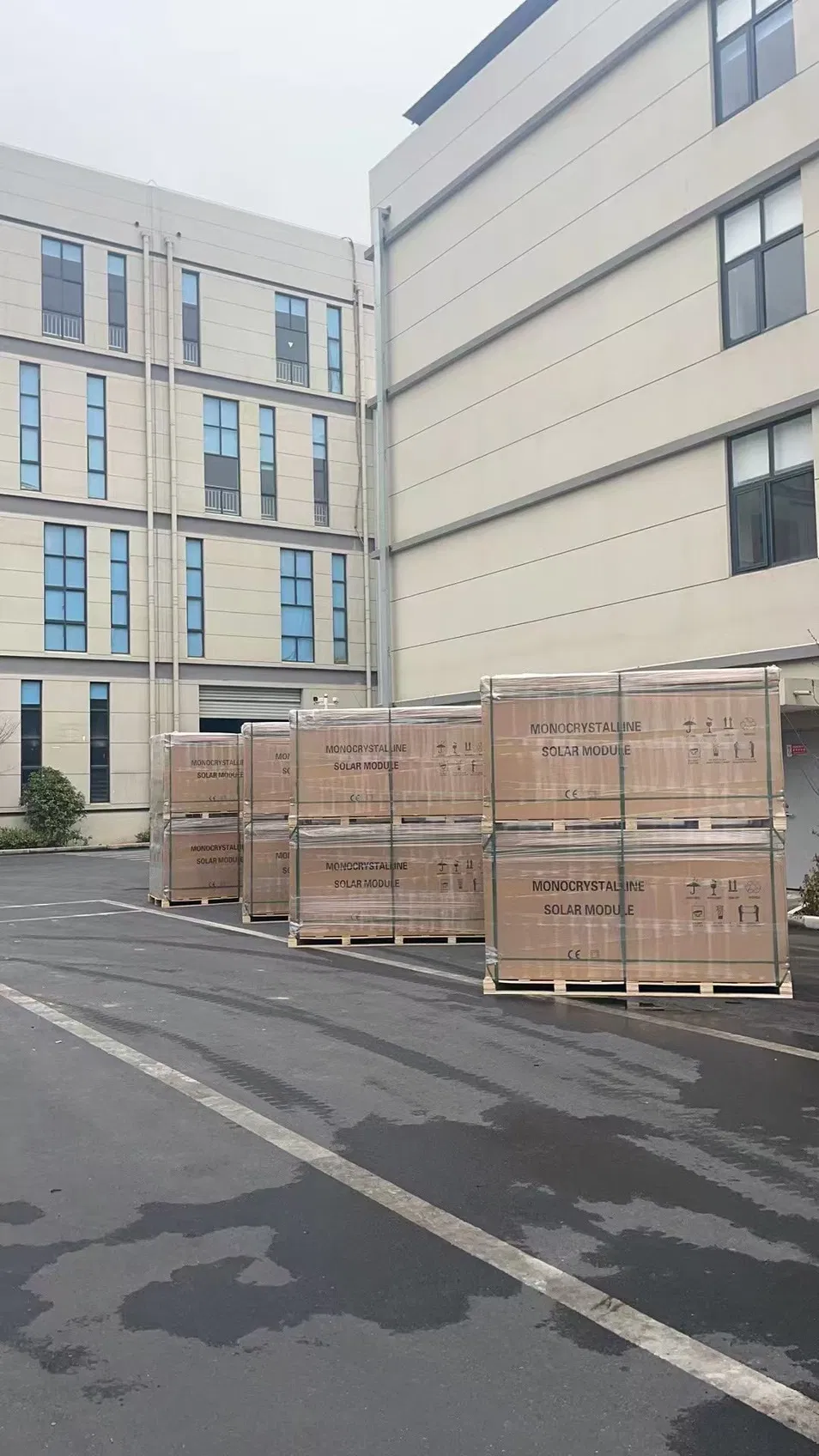

2 EL testing avoids cell cracking in each solar module. 2 Power flash testings avoid false welding and insufficient power output for each module. Tightly packed with angle protection to prevent transportation damage.
Official Warranty: Official warranty protection covers solar modules for 30 years.
This system features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc., and comes with a warranty period of 3 years. Moreover, various styles can be provided to meet your specific needs.
| Mechanical Characteristics | Electrical Parameters | ||
|---|---|---|---|
| Model Type | N-type Mono | Power Class | LNCU-640ND (STC) |
| No. of Cells | 144 (6x24) | Maximum Power (Pmax) | 640W |
| Dimensions | 2465 × 1134 × 30 mm | Open Circuit Voltage (Voc) | 52.41V |
| Weight | 34.5 kg | Short Circuit Current (Isc) | 15.36A |
| Front/Back Glass | 2.0 mm coated semi-tempered glass | Voltage at Maximum Power (Vmpp) | 44.17V |
| Frame | Anodized aluminium alloy | Current Maximum Power (Impp) | 14.49A |
| Junction Box | IP68 rated (3 bypass diodes) | Module Efficiency (%) | 22.90% |
| Output Cable | 4.0 mm² | STC: Irradiance 1000W/m², Cell Temperature 25°C, AM1.5G | |
| 250 mm (+) / 350 mm (-) | |||
| Length can be customized | |||
| Connectors | MC4 compatible | - | - |
| Mechanical Load Test | Front 5400Pa / Rear 2400Pa | - | - |
Maximize sunlight harvest with high-efficiency panels (up to 22%+) designed for durability across climates. Full customization is available:

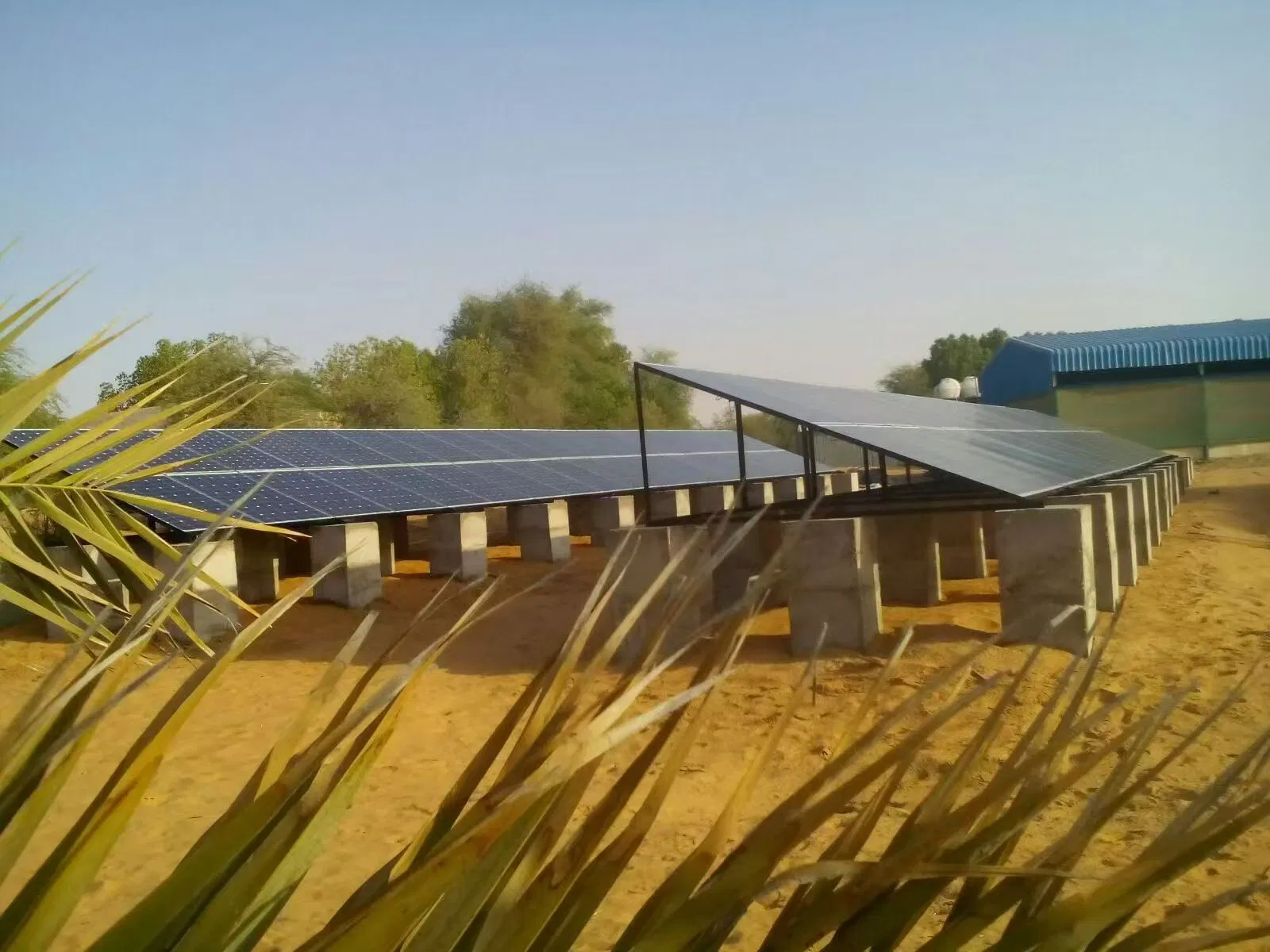

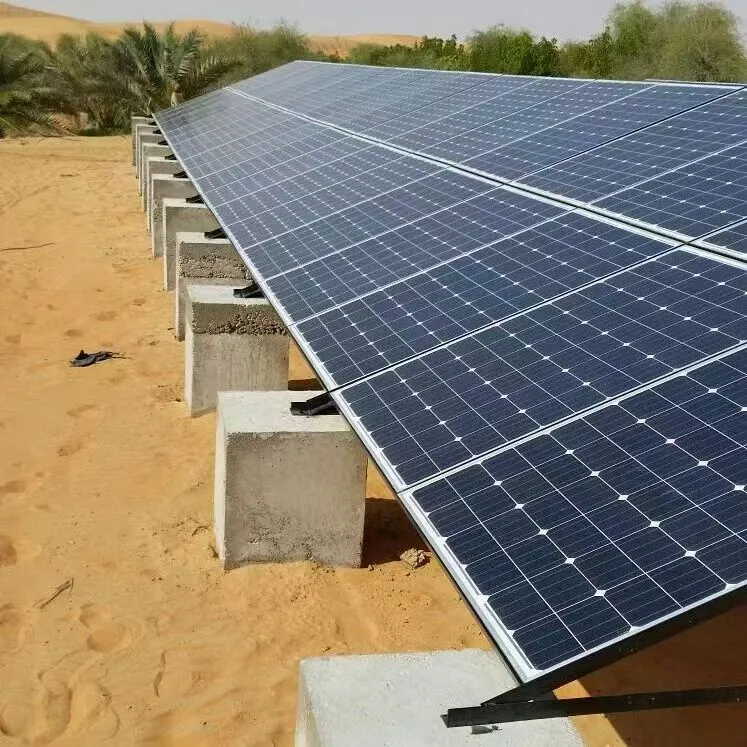

Ideal for homes, businesses, industry, or solar farms – engineering panels to match project specifications and regional requirements.

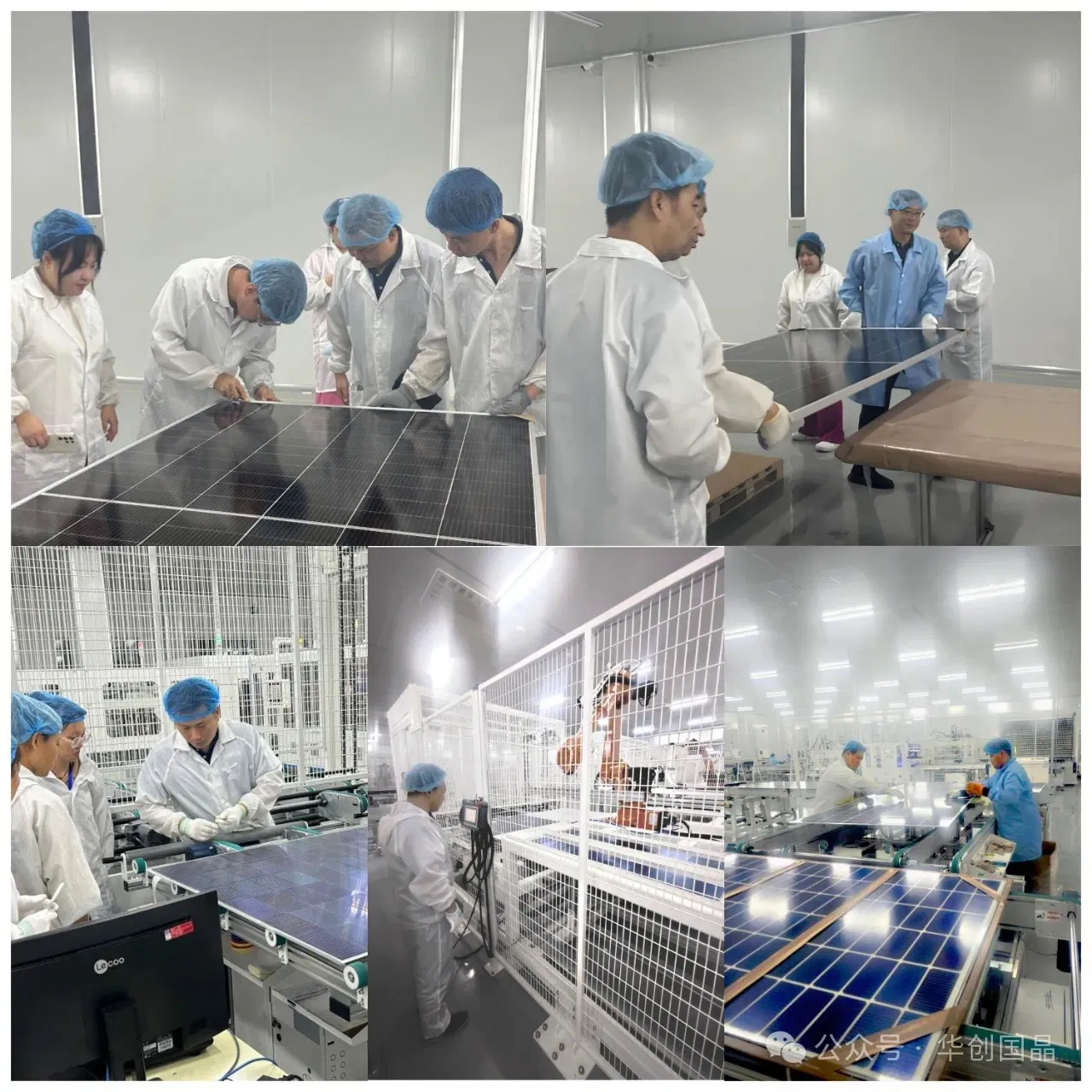

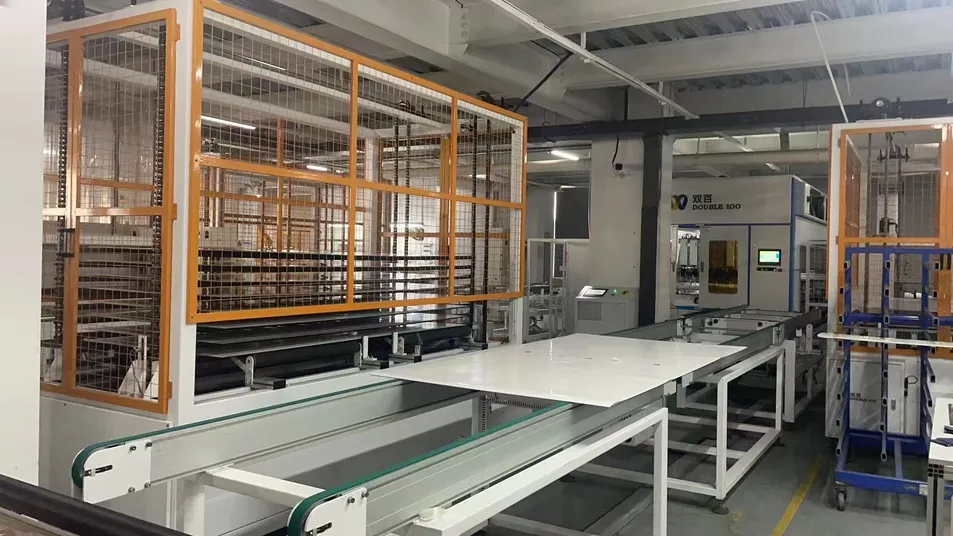

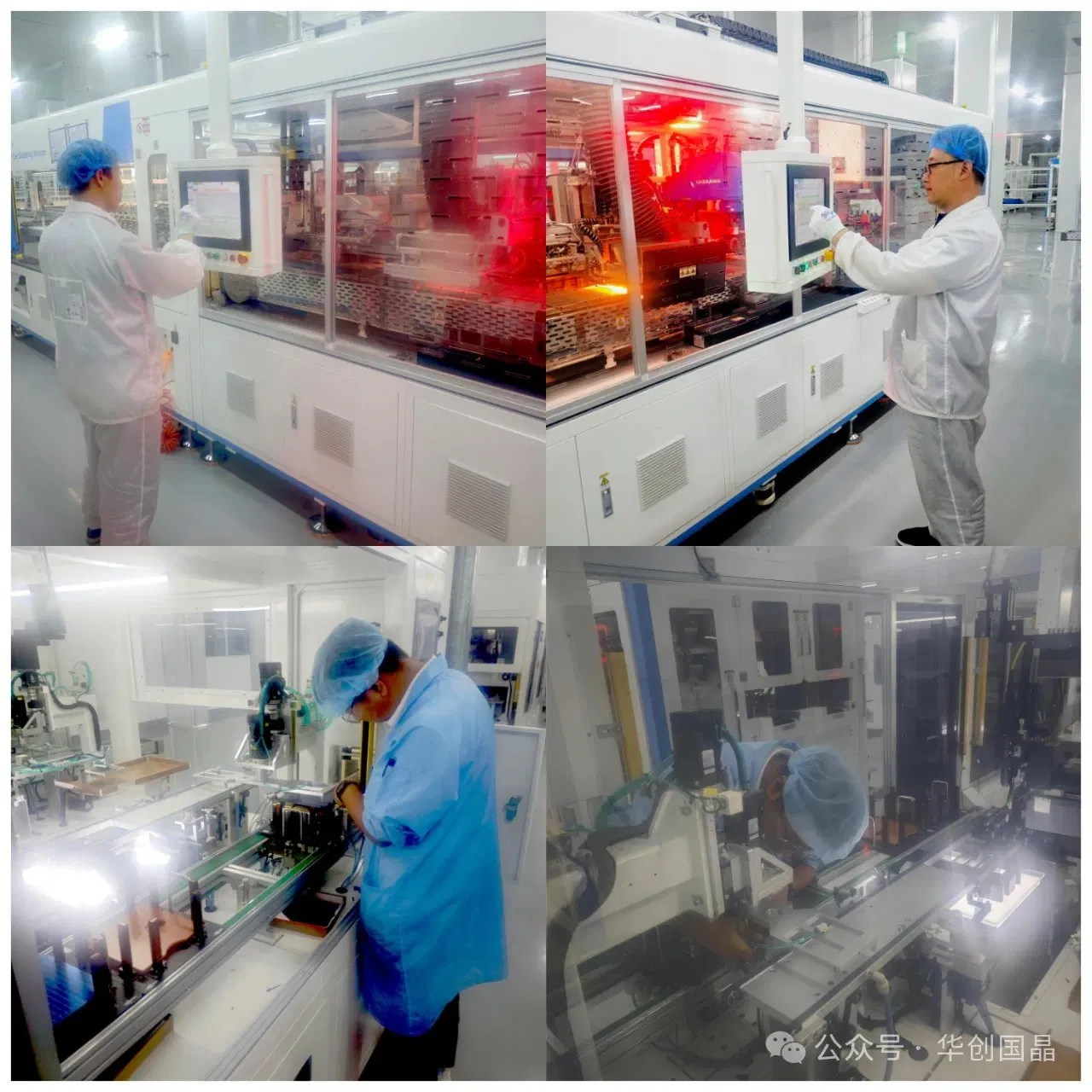

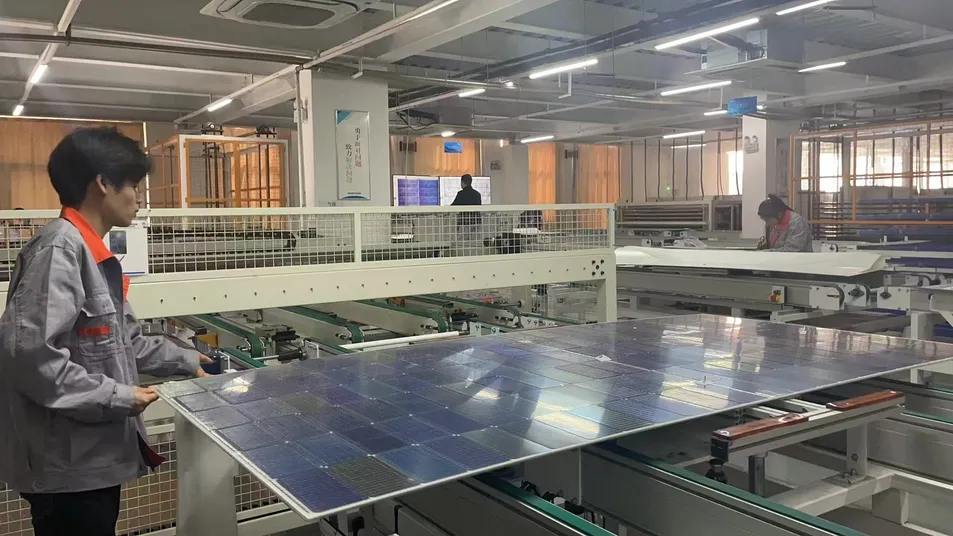

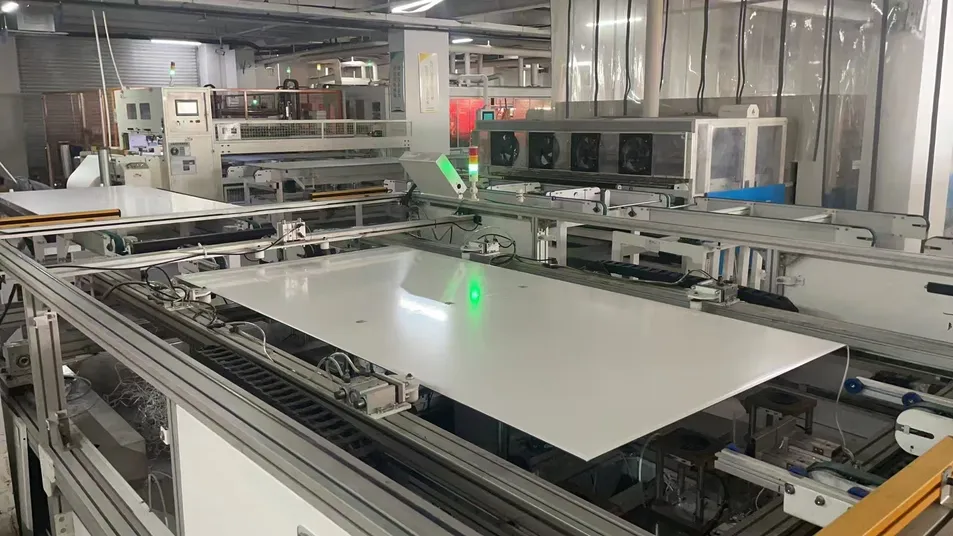

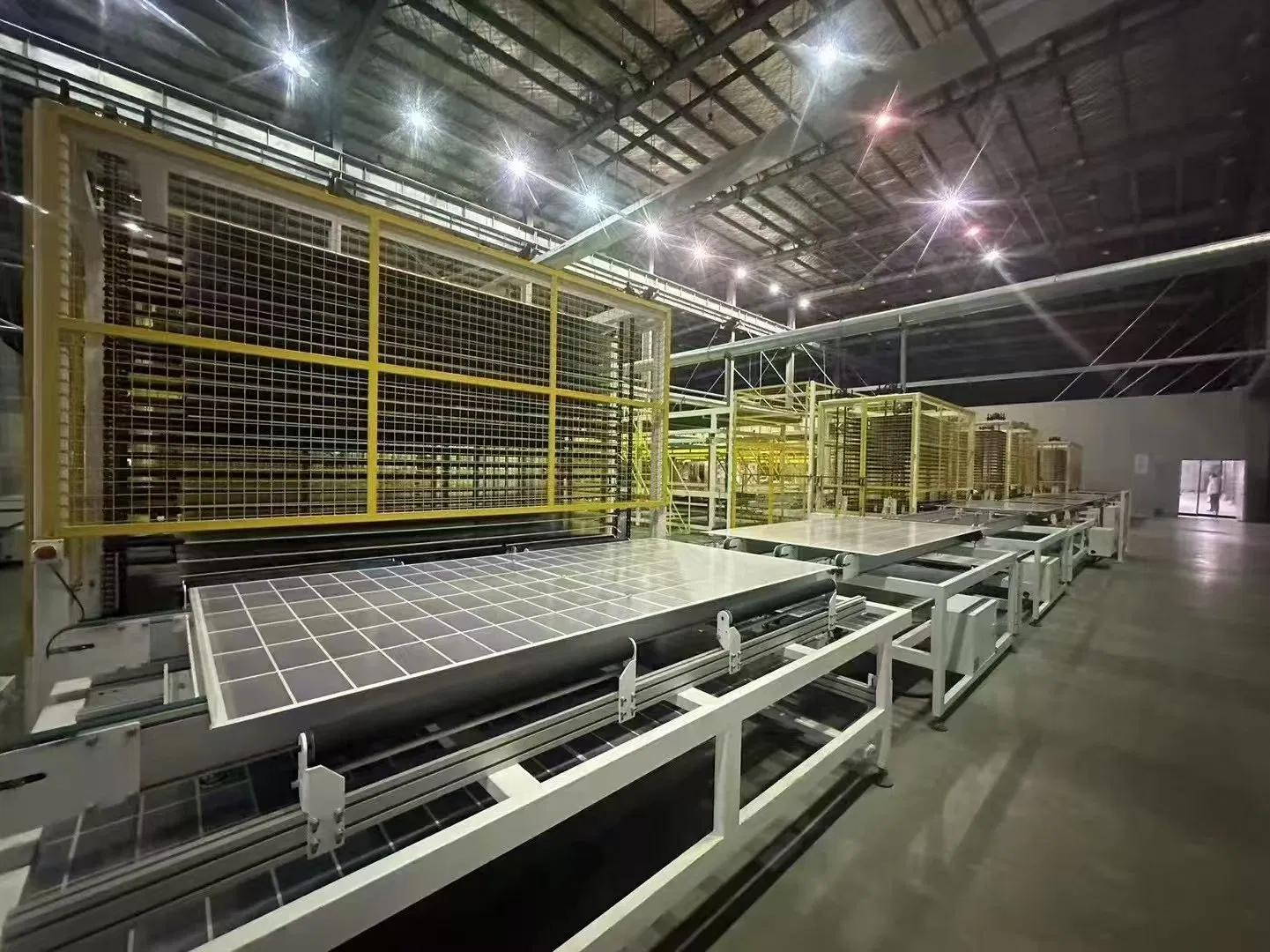

Specializing in comprehensive solutions for photovoltaic systems and energy storage applications, we deliver clean energy products including various types of solar panels and large or portable energy storage systems for homes, businesses, industrial plants, and solar farms. Featuring fully automated production lines capable of producing between 10,000 and 20,000 pieces daily, we offer comprehensive OEM/ODM/Custom-engineered solutions covering frame styles, color, and wattage adjustments.
Specialization in comprehensive solutions for photovoltaic systems and energy storage applications. This includes solar panels and large/portable energy storage systems for residential, commercial, industrial, and utility scale projects. Highly adaptable OEM/ODM and custom-engineered options are ready to support your requirements.
