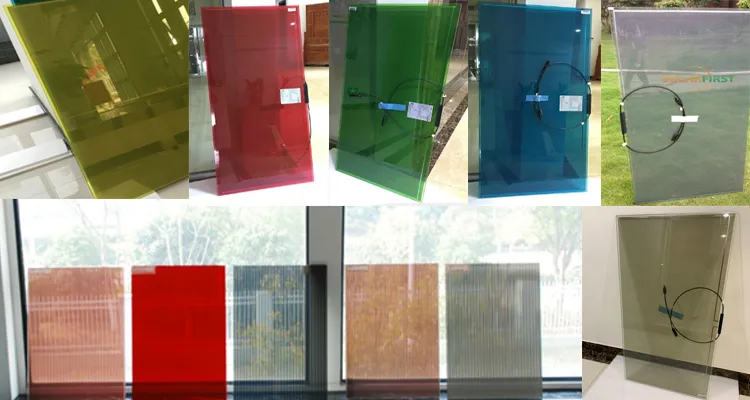

Cdte Price PV 20% 40% Transparent Thin Film Solar Panel for BIPV

Customization:	Available
Material:	Thin Film, Cdte
Application:	Industrial

📋

Basic Info

Model NO.

SF-TFSP27

Product Name

Thin Film Solar Panel

Color

Customized Color

Feature

Light Weight

Weight

11.8kg

Frame

None

Cell Type

Cadmium Telluride

Area

0.72m2

Thickness

7mm

OEM Order

Acceptable

Warranty

10 Years

Certification

ISO, CE

Production Capacity

100000 Watts / Week

Specification

1200*600*7mm

💡

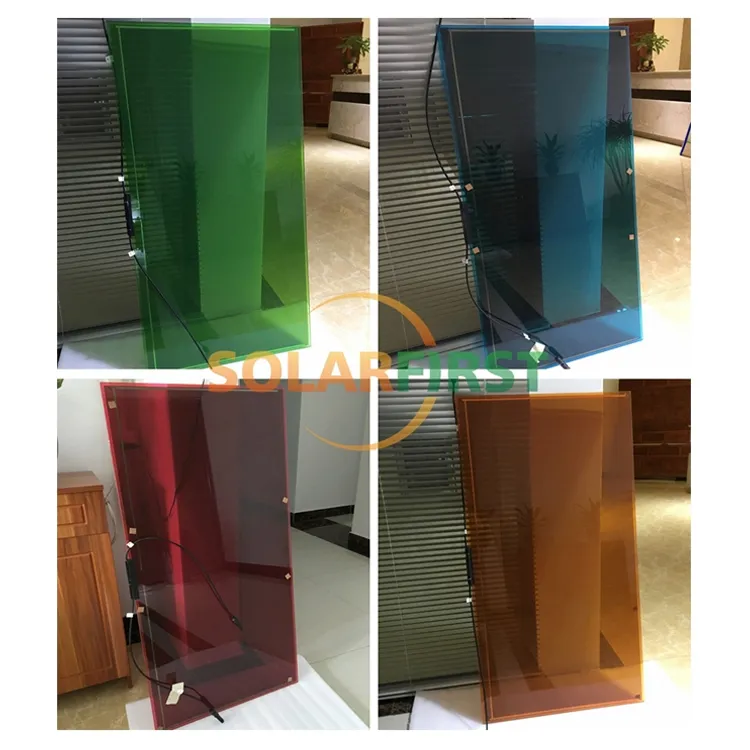

Product Description

Key Features:

✔Generates electricity even at low light levels, second generation solar technology, aesthetics to suit the application.

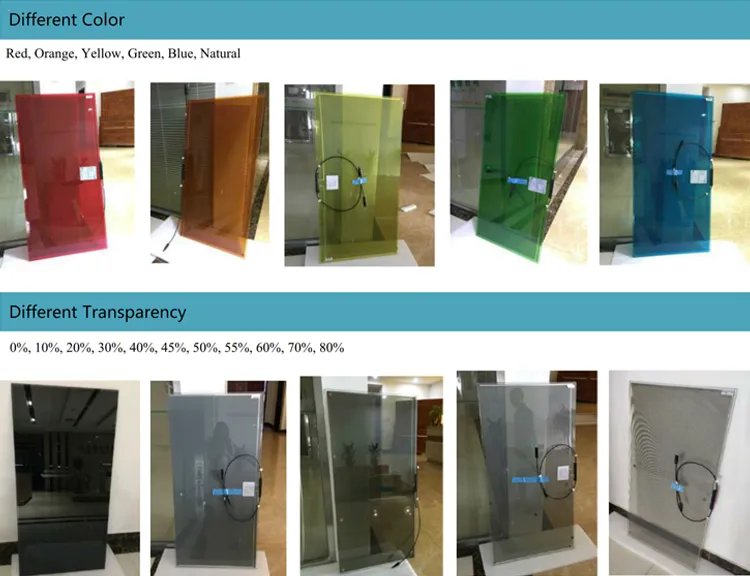

✔Available in transparencies up to 50%, efficiency of up to 12%.
✔Works down to ambient light levels, highly aesthetic finish.
✔Less position sensitive, bespoke sizing available single or double glazed panels available.

📊

Technical Details

CDTE Transparent Thin Film Solar Panels Specification
Item	Transparency	Size	Weight	Pmax	Voc	Isc	Vmpp	Impp
ST1-15w	80%	12006007mm	12Kg	15w	111V	0.23A	85.5V	0.18A
ST1-23w	70%	12006007mm	12Kg	23w	114V	0.31A	87.8V	0.26A
ST1-38w	50%	12006007mm	12Kg	38w	114V	0.51A	87.8V	0.43A
ST1-52w	30%	12006007mm	12Kg	52w	114V	0.72A	87.8V	0.59A
ST1-61w	20%	12006007mm	12Kg	61w	114V	0.82A	87.8V	0.70A

⚙️

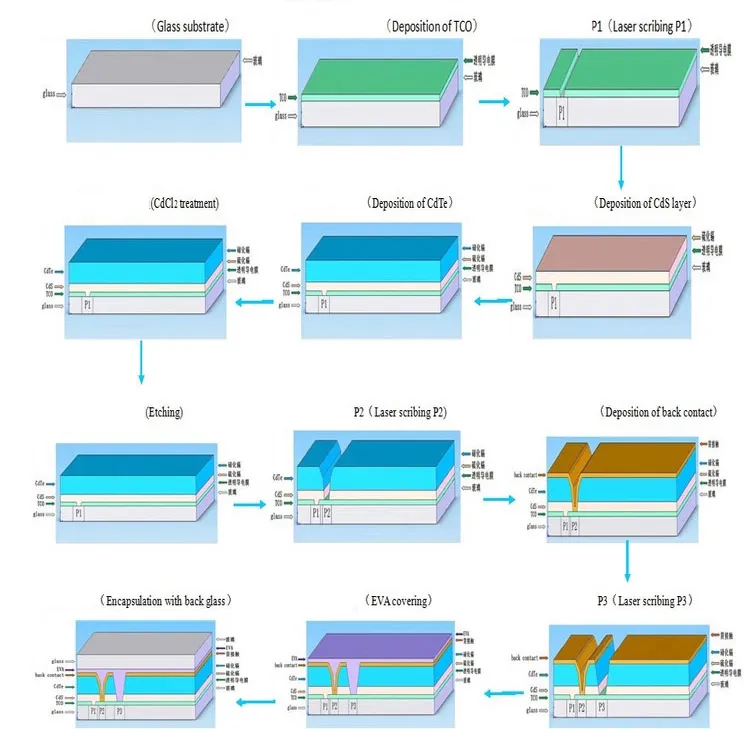

Production Process

📦

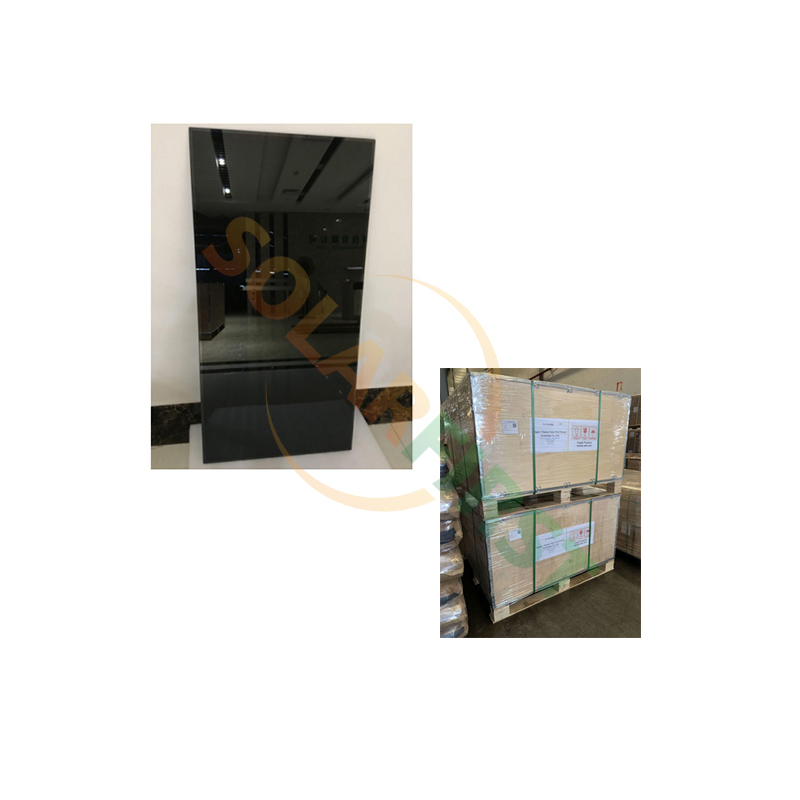

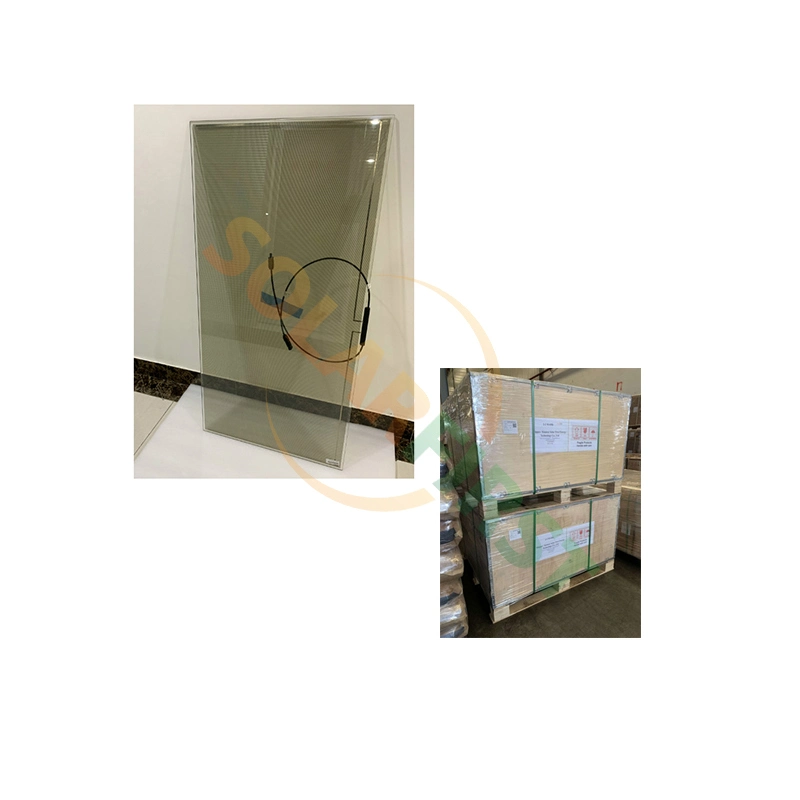

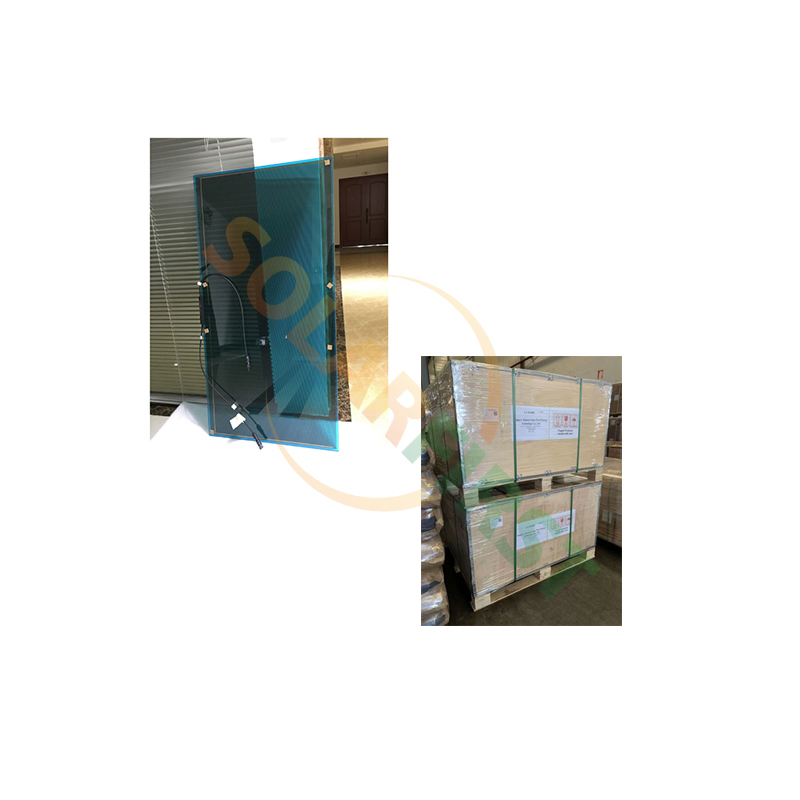

Packaging & Shipping

🏢

Project & Exhibition

❓

FAQ

What is the advantage of thin film solar panel?

Thin film solar panel is a kind of new product compared to traditional crystalline solar panels. It can produce electricity even in dim light conditions.

What is the application of the panel?

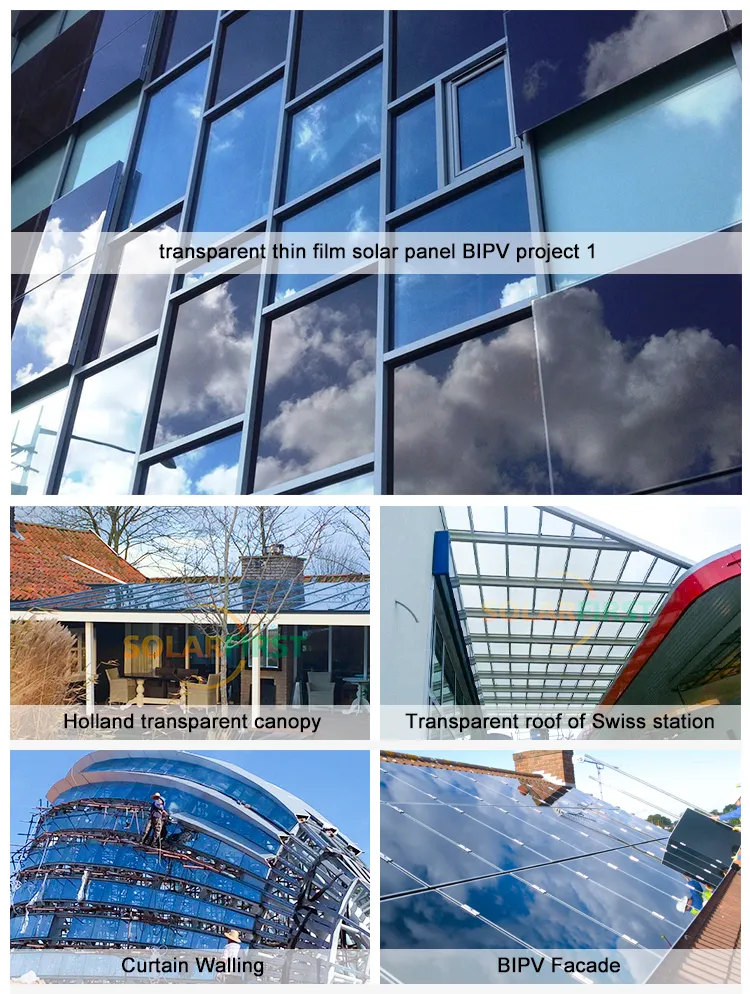

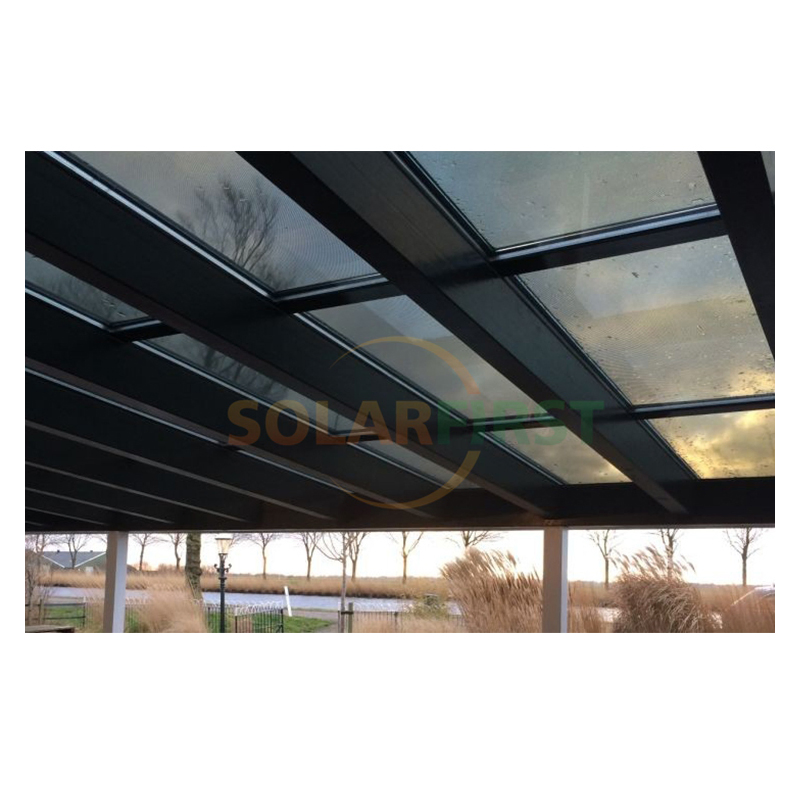

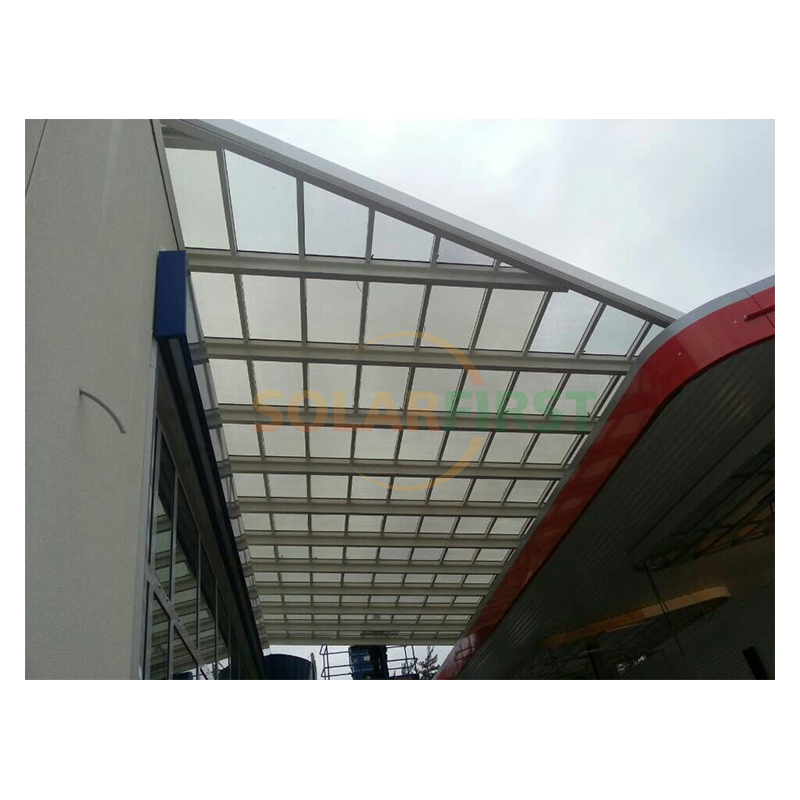

It is mostly used in BIPV (Building Integrated Photovoltaics) projects and on roof mounting systems where aesthetics and weight are important.

Are you a manufacturer?

Yes, we are a professional manufacturer. We warmly welcome visitors to our production facilities.

What is the size and color?

Our standard size is 1200*600*7mm. Any other sizes and colors can be customized according to specific customer demands.

What is the warranty for these panels?

We provide a 10-year warranty for our thin film solar panels, ensuring long-term reliability and performance.

Can these panels be used in low-light regions?

Yes, one of the primary advantages of CdTe thin film technology is its superior performance in low-light and shaded conditions compared to traditional panels.
