🛒 Product Description
📊 Specifications
| Cell Type | N type Mono-crystalline |
| No. of cells | 132(66*2) |
| Dimensions | 2382x1134x30mm |
| Weight | 32.4kg |
| Front Glass | 2.0mm, Anti-Reflection Coating |
| Back Glass | 2.0mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class ll |
| IEC Fire Type | Class C |
| Connector Type | JK03M/MC4/Others |
| Output Cables | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length |
| Pallet Dimensions | 2396x1110x1251 mm |
| Packing detail | 36pcs/pallets, 720pcs/40'HQ Container |
| Maximum Power - Pmax [Wp] | 610w | 615w | 620w | 625w | 630w |
| Maximum Power Voltage - Vmp [V] | 40.46 | 40.60 | 40.74 | 40.88 | 41.02 |
| Maximum Power Current - Imp [A] | 15.08 | 15.15 | 15.22 | 15.29 | 15.36 |
| Open-circuit Voltage - Voc [V] | 48.68 | 48.88 | 49.08 | 49.28 | 49.48 |
| Short-circuit Current - lsc [A] | 15.96 | 16.02 | 16.08 | 16.14 | 16.20 |
| Module Efficiency STC [%] | 22.58 | 22.77 | 22.95 | 23.14 | 23.32 |
| Power Tolerance | 0~+3% |
| Temp. Coeff. of Pmax | -0.29%/℃ |
| Temp. Coeff. of Voc | -0.25%/℃ |
| Temp. Coeff. of lsc | 0.045%/℃ |

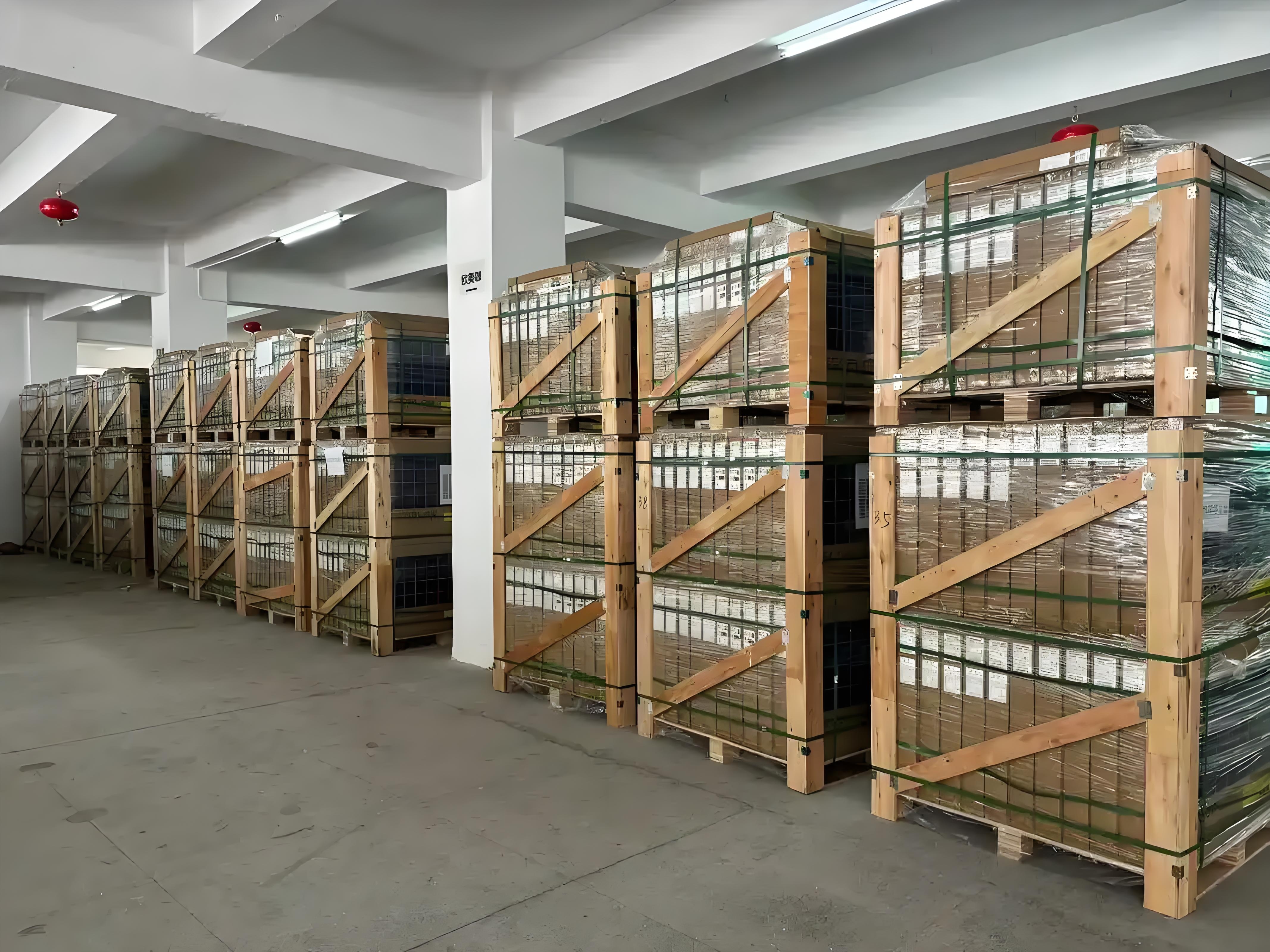

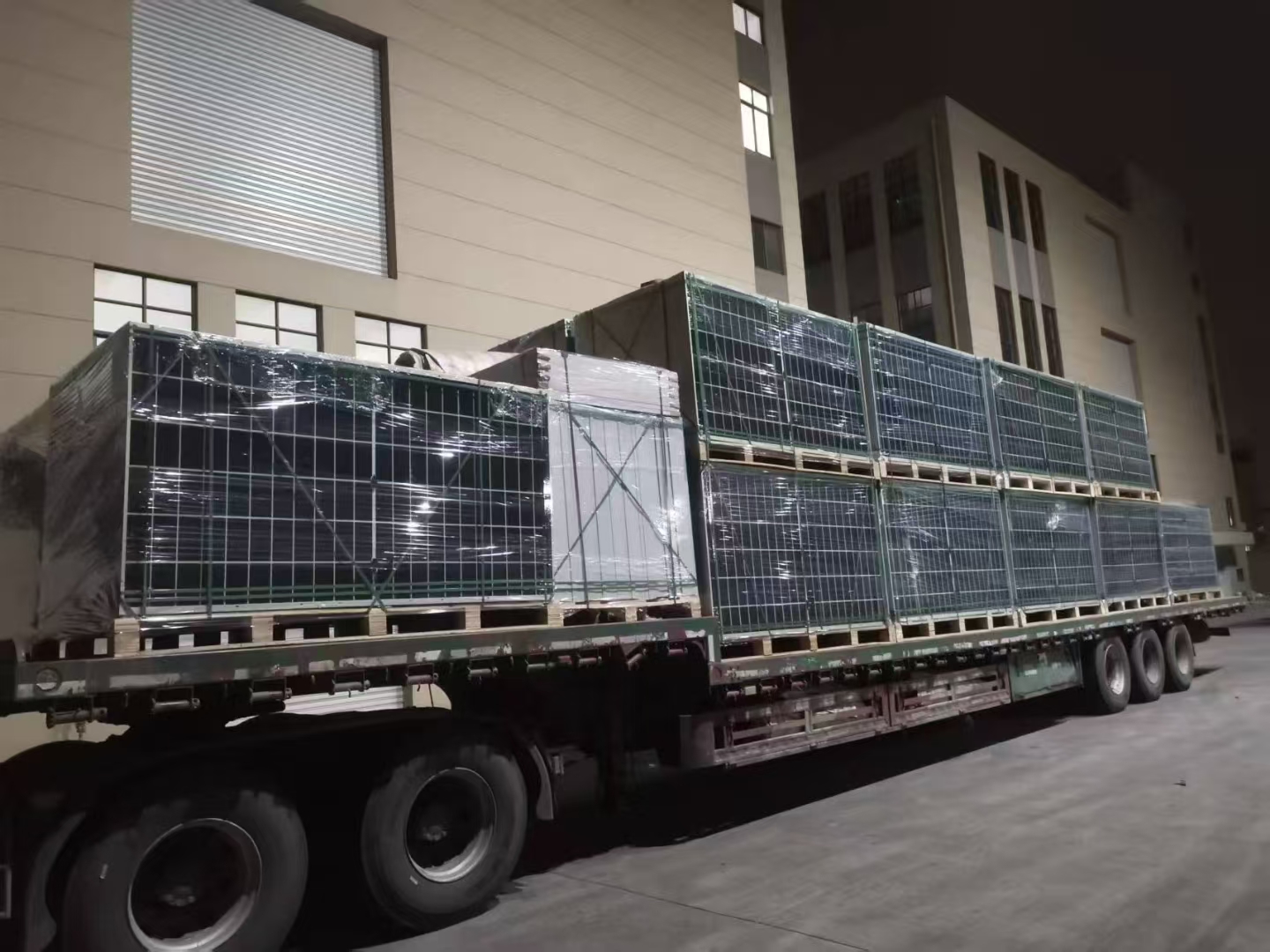

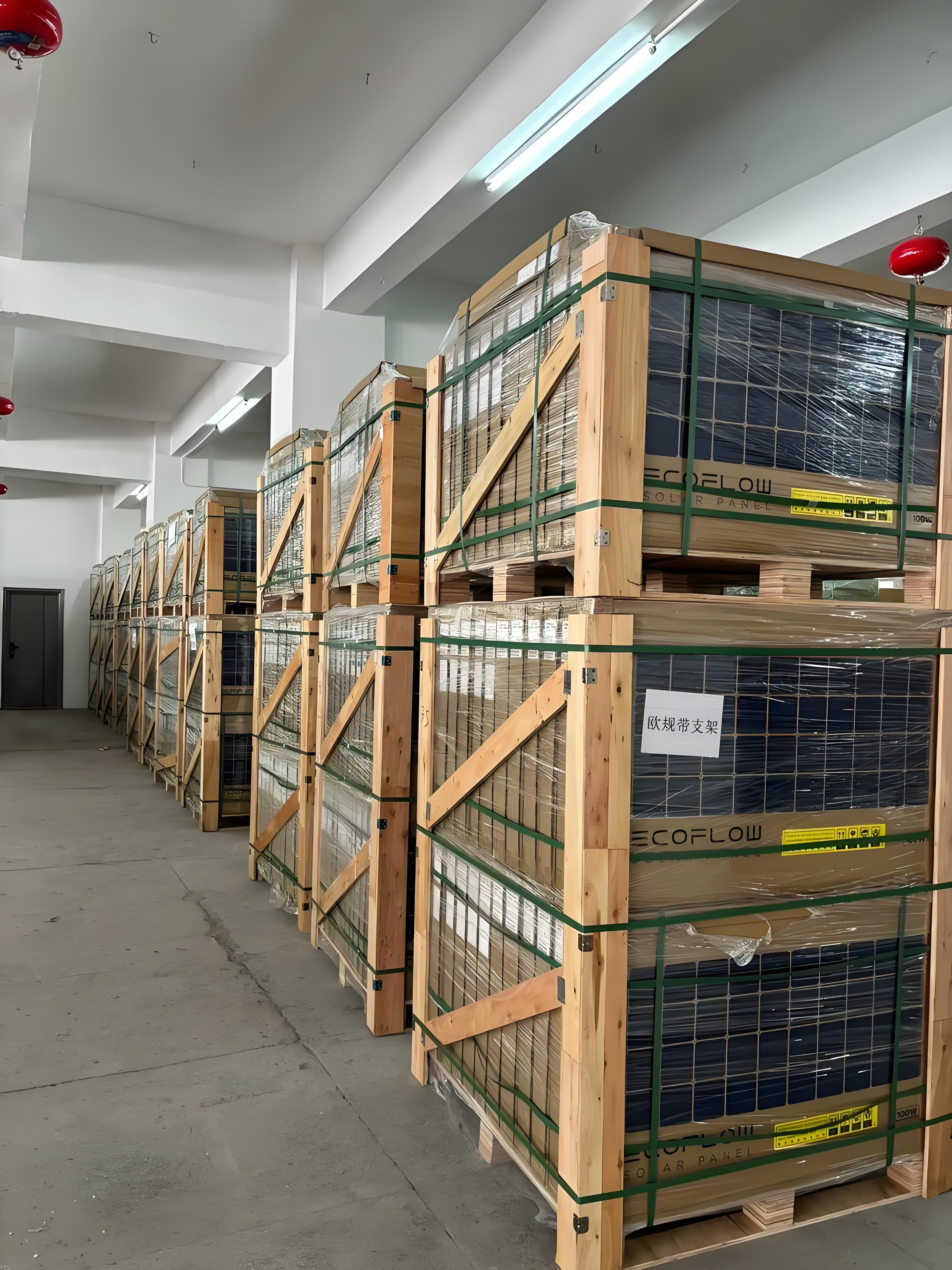

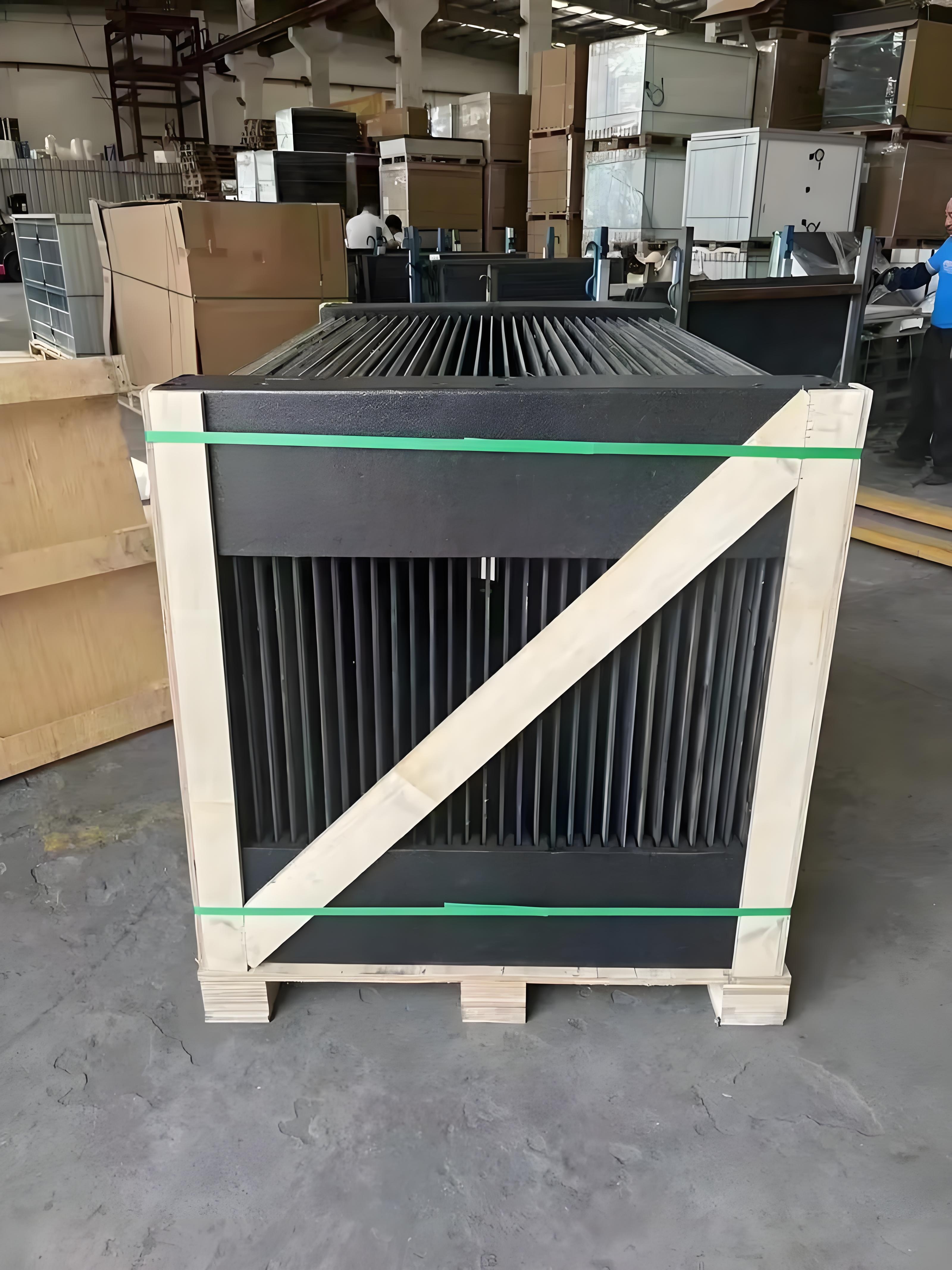

📦 Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
🏭 Profile
We are a high-tech enterprise integrating R&D and production. Our products involve monocrystalline/polycrystalline photovoltaic modules, solar street lights, photovoltaic brackets, off-grid solar systems, on-grid solar systems, etc. Our products are widely used in all walks of life. The sales network covers global markets and is exported overseas. We adhere to the tenet of "customer first, pioneering and innovative", maintaining a customer-centric focus, committed to providing global users with professional products and efficient solar power solutions. We sincerely welcome partners to realize win-win business opportunities and common development. Our major products include solar panels, solar controllers, solar inverters, batteries, DC output solar systems, and off-grid solar systems. Free technical service is supported.
❓ FAQ
What is the lifespan of these solar panels?
Our N-type mono-crystalline solar panels are designed for long-term durability, typically offering a power output warranty of 25 to 30 years with minimal annual degradation.
Are these solar panels resistant to extreme weather?
Yes, the panels feature 2.0mm heat-strengthened glass and an anodized aluminum alloy frame, allowing them to withstand high wind pressure and heavy snow loads.
What are the advantages of N-type cells?
N-type cells offer higher efficiency, better temperature coefficients, and lower light-induced degradation (LID) compared to traditional P-type cells, resulting in higher energy yield over time.
Do you support customized cable lengths?
Yes, while our standard output cables are (+): 400mm and (-): 200mm, we can provide customized cable lengths according to your specific project requirements.
How are the panels packed for international shipping?
Panels are securely packed with 36 pieces per pallet. A standard 40'HQ container can accommodate approximately 720 pieces, ensuring safe and efficient bulk transportation.
What certifications do your solar products hold?
Our products meet international quality and safety standards, including IP68 ratings for junction boxes and Class II protection ratings, ensuring reliable performance in various environments.
