| Electrical Characteristics | |
|---|---|
| Model | FFSP-200W-FB |
| Maximum Power at STC (Pmax) | 200W |
| Optimum Operating Voltage (Vmp) | 19.8 V |
| Optimum Operating Current (Imp) | 10.10 A |
| Open - Circuit Voltage (Voc) | 23.36 V |
| Short - Circuit Current (Isc) | 11.11 A |
| Cell Efficiency | 21.5% above |
| Power Tolerance | 0~+3 % |
| Operating Module Temperature | -20℃ to +50℃ |
| Maximum System Voltage | 1000V DC(IEC)/600V DC(UL) |

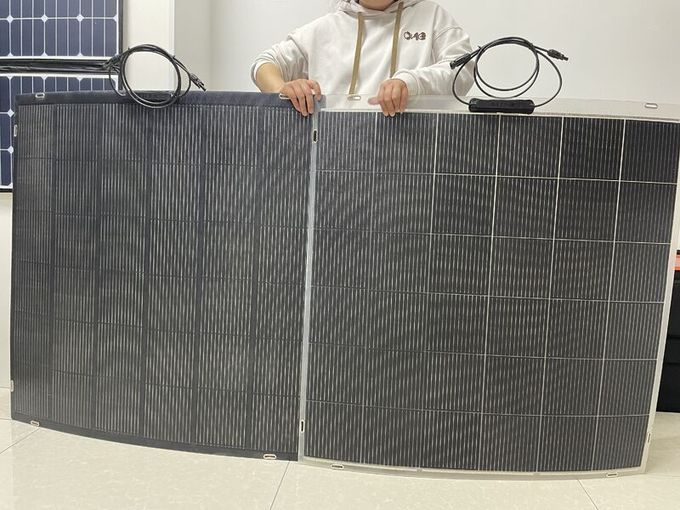

| Mechanical Characteristics | |

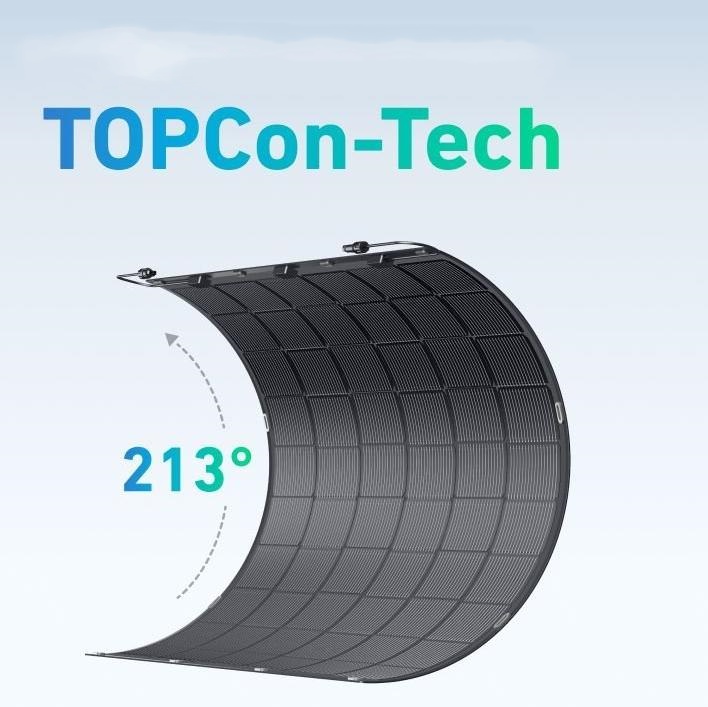

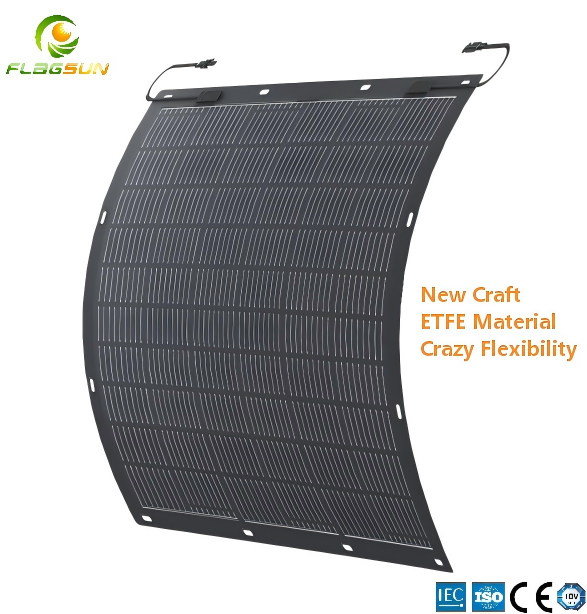

| Solar cell | Monocrystalline TOPCON |
| No.of Cells | 72 |

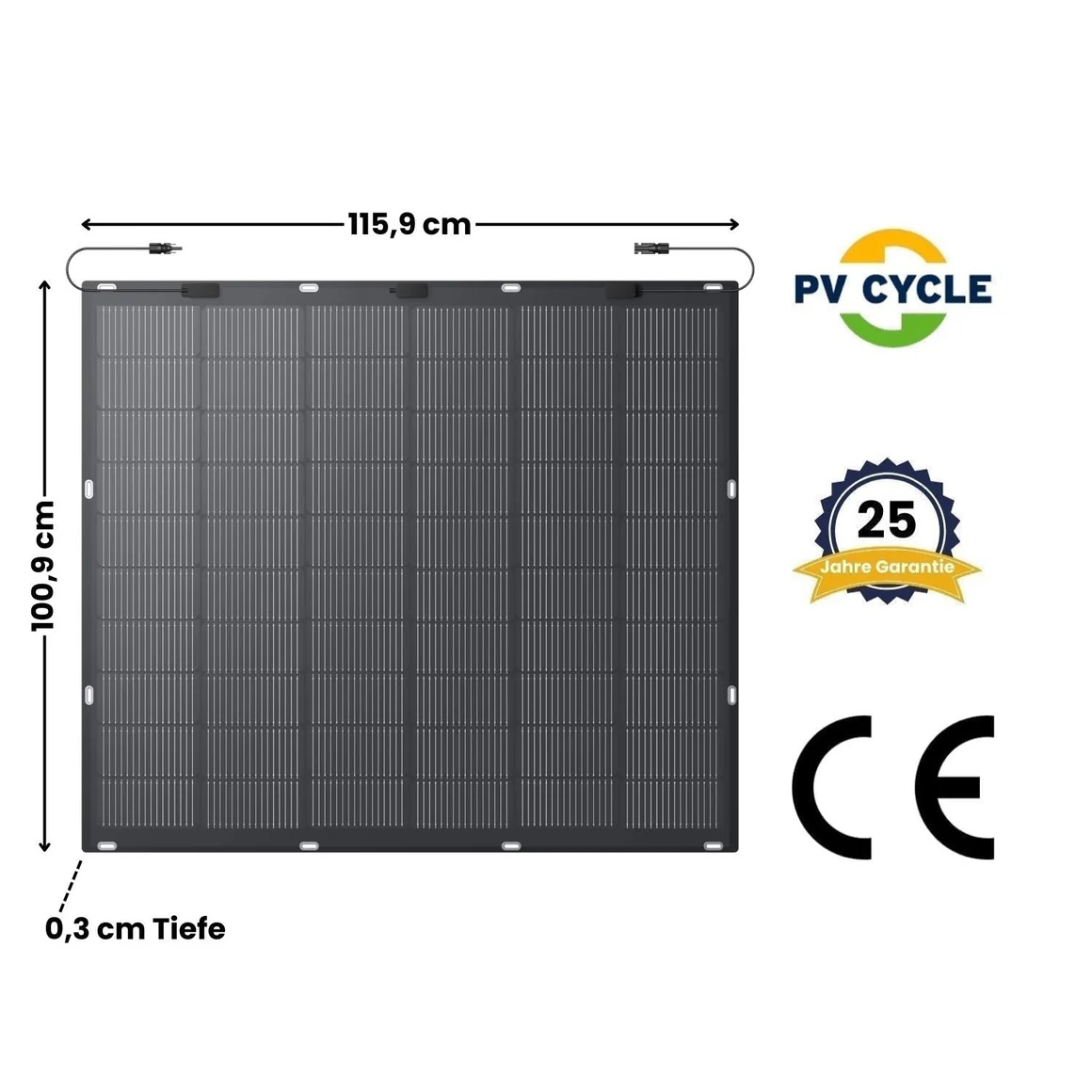

| Dimensions | 1150*1000*3 mm |
| Weight | 4.75 kg |
| Front Glass | ETFE |
| Junction Box | IP67 rated |
| Output Cables | 4.0 mm², symmetrical lengths 1000mm |
Global supplier of renewable energy solutions since 2008, offering solar systems, PV inverters, controllers, and application products.

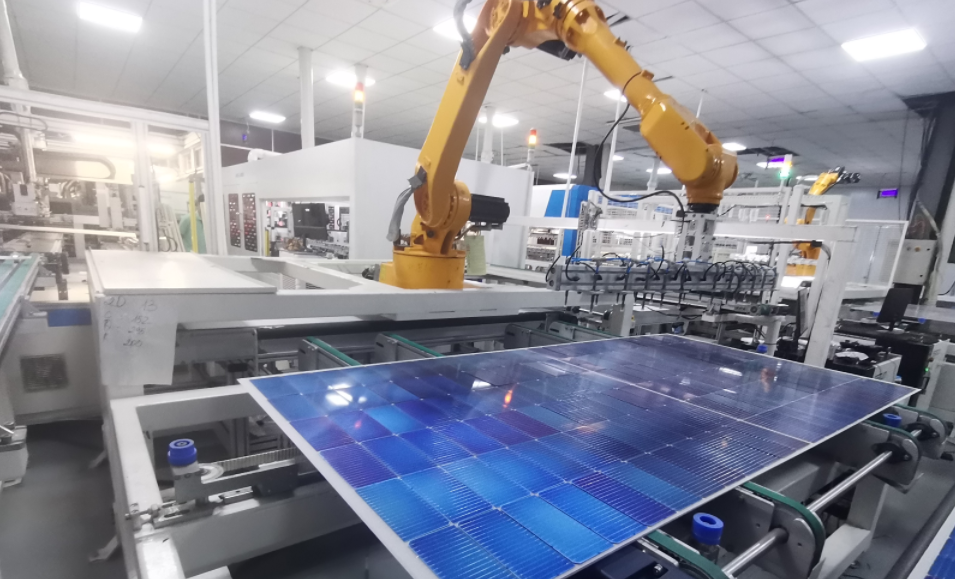

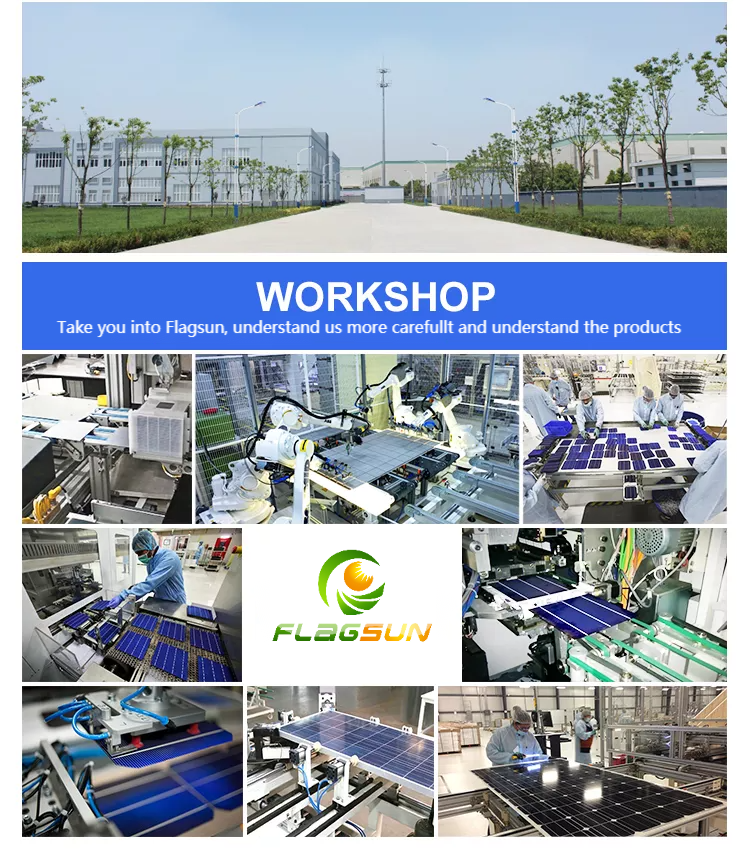

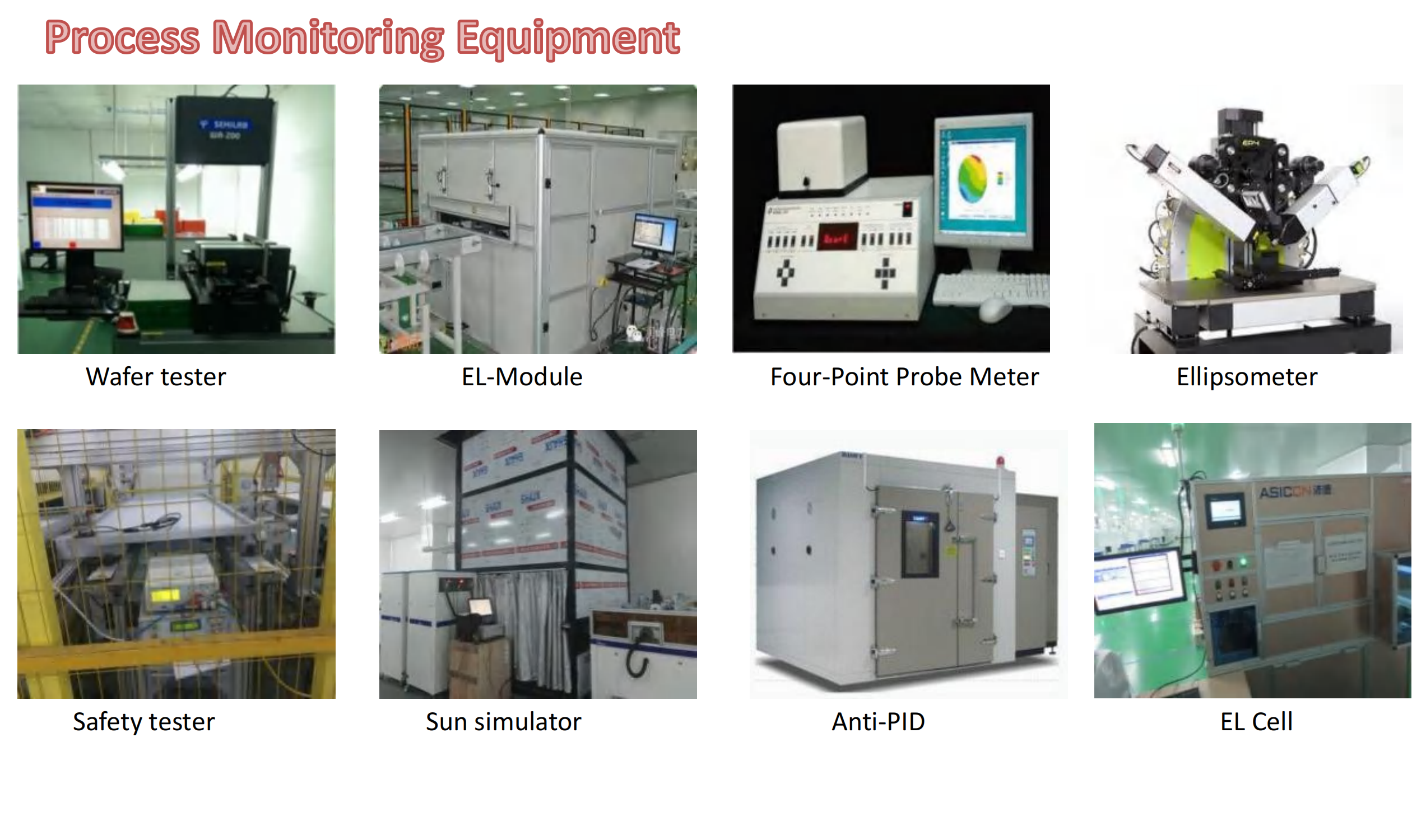

Advanced production equipment and strict quality control ensures reliable products at competitive costs.
12 years quality warranty. 25 years power warranty (10 years real power output >90%, 25 years real power output >85%).

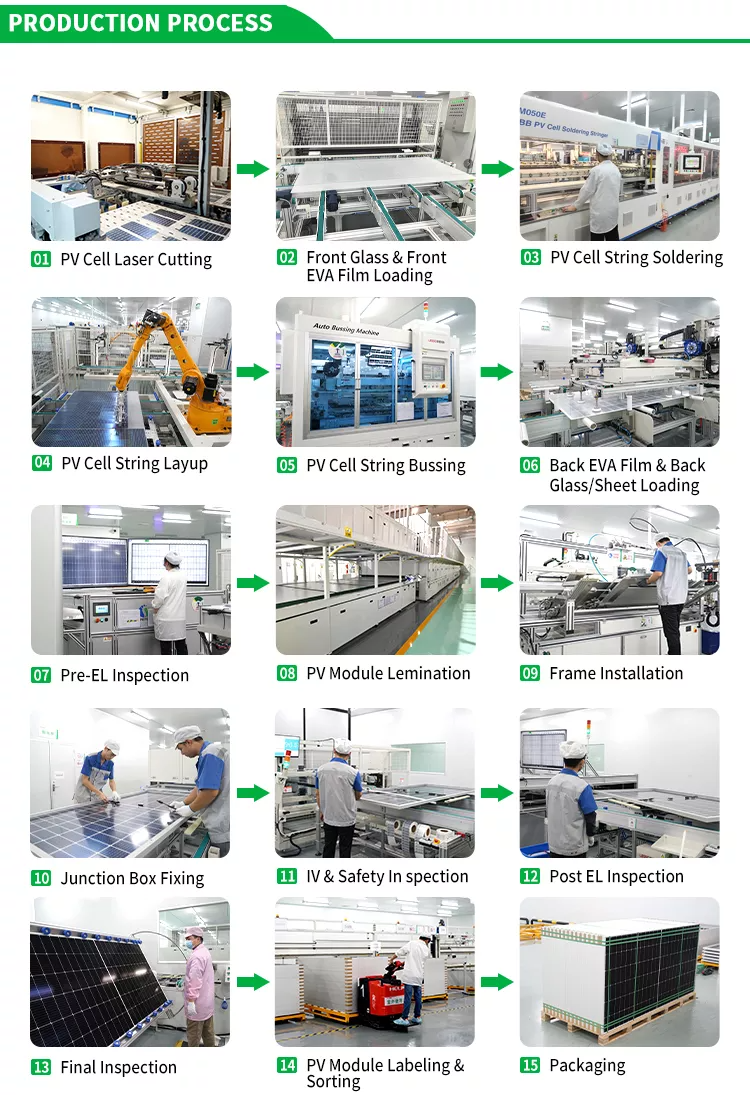

Supply chain management from raw materials to completed systems. Regular pre-shipment quality inspections and logistics arrangement.

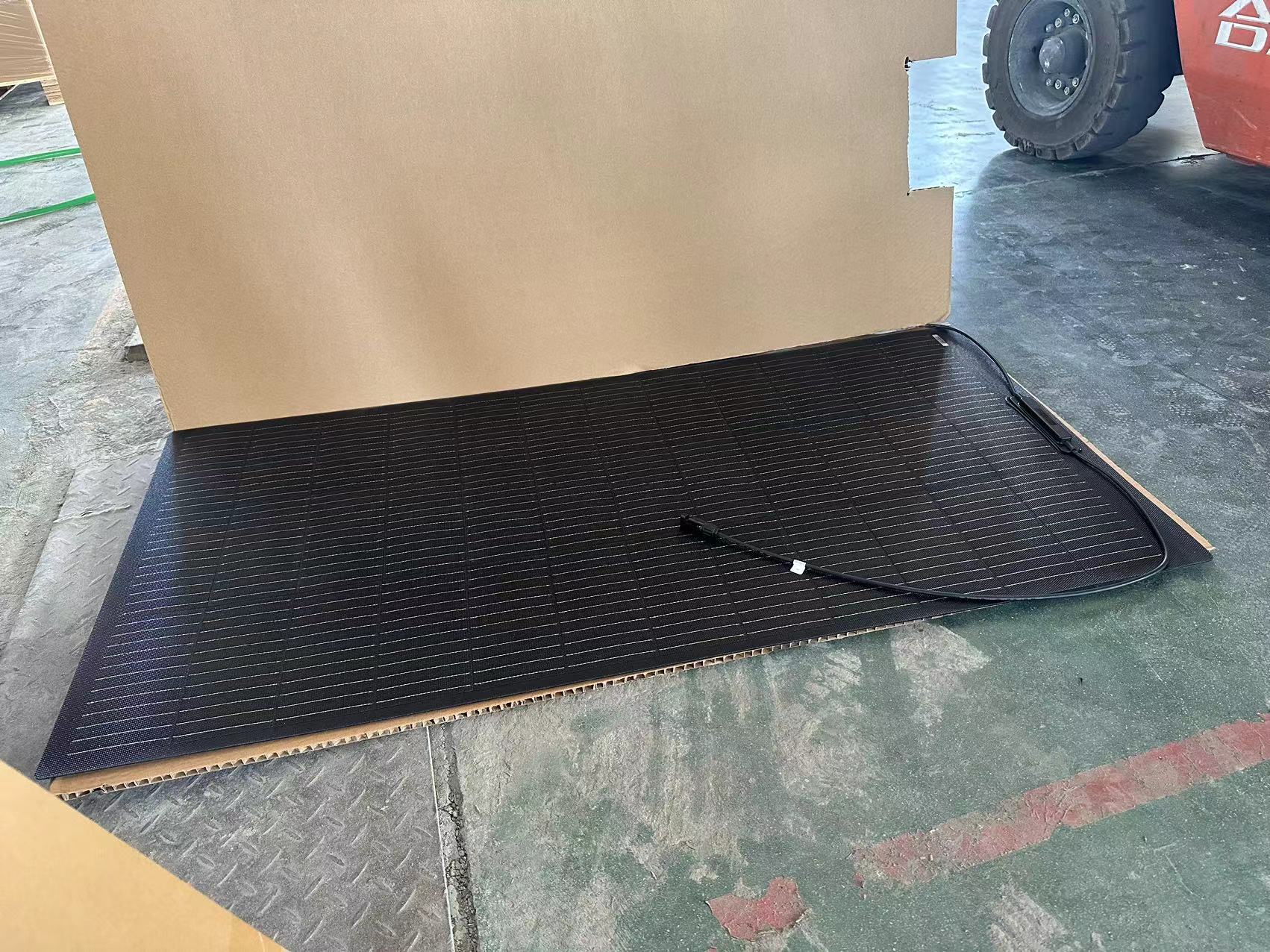

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
