✨ All items below are fully stocked. For orders exceeding 10 pieces, please contact us directly to apply for an exclusive bulk discount!

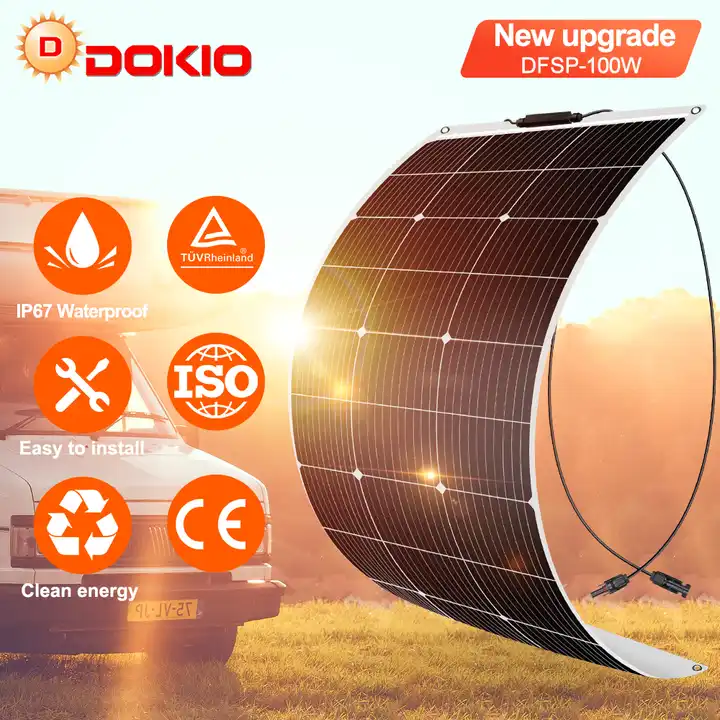

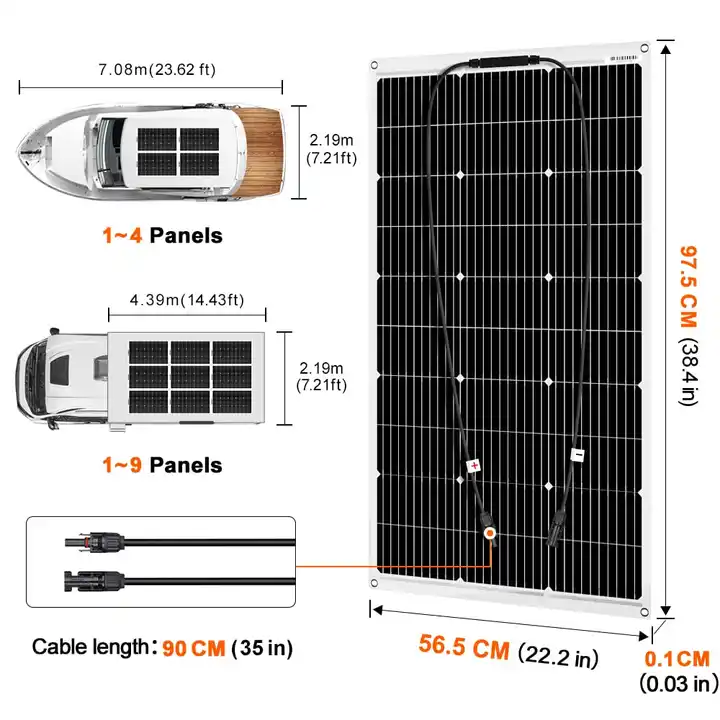

Our products have been upgraded! The new 100W flexible panel dimensions are 970*565 mm. Due to ongoing product upgrades and different production batches, there may be slight variations in the appearance and size of the unit you receive. If you have strict specifications regarding dimensions, please contact us prior to ordering.

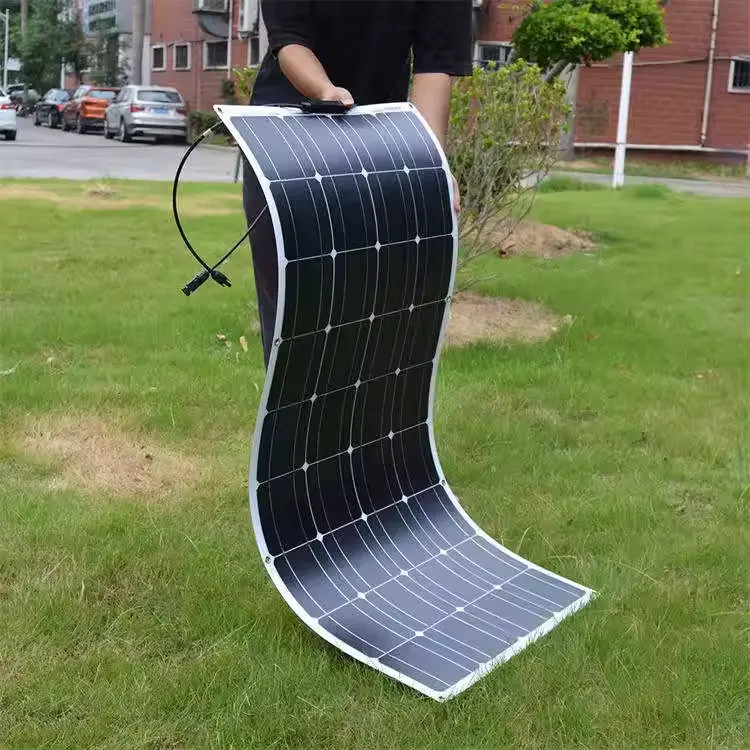

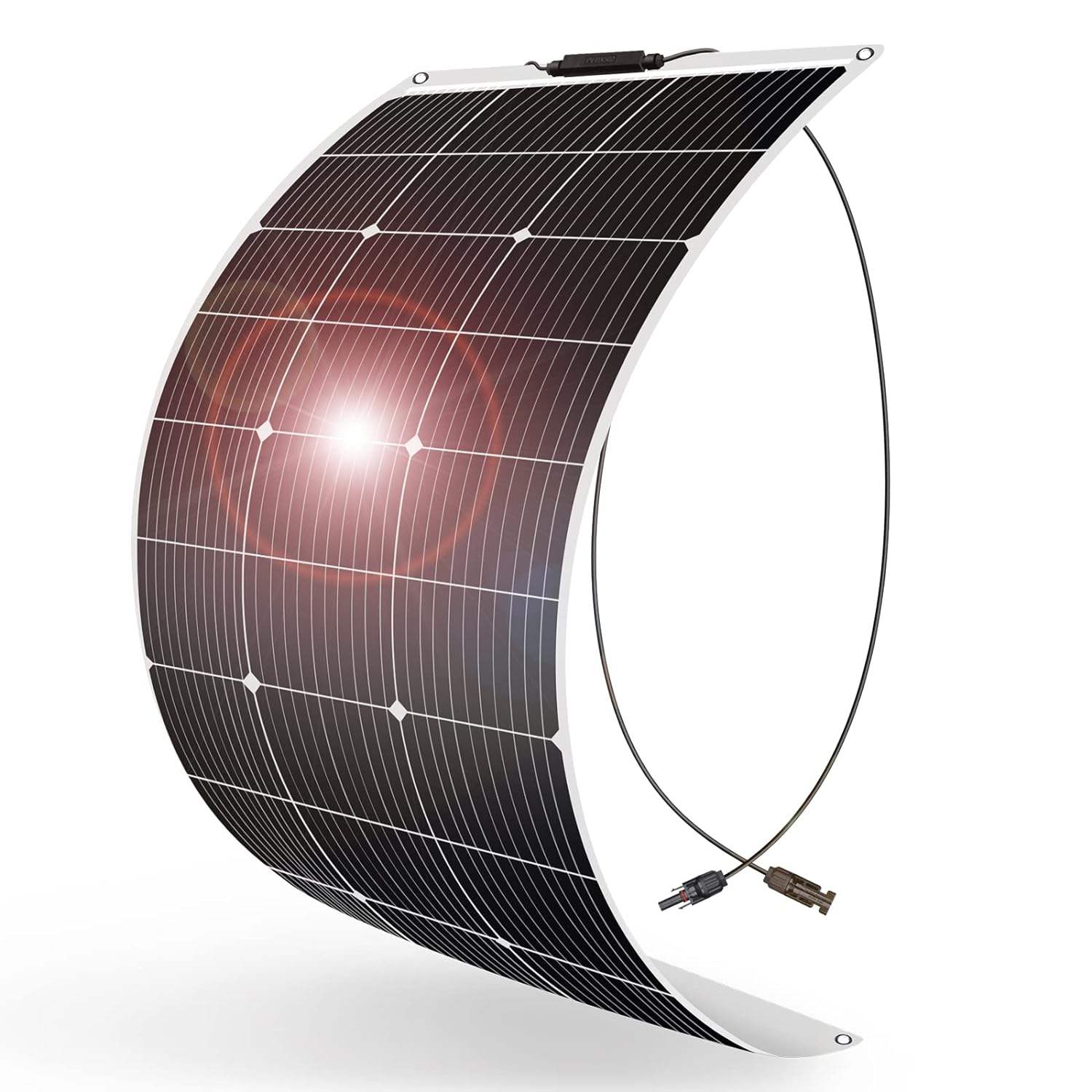

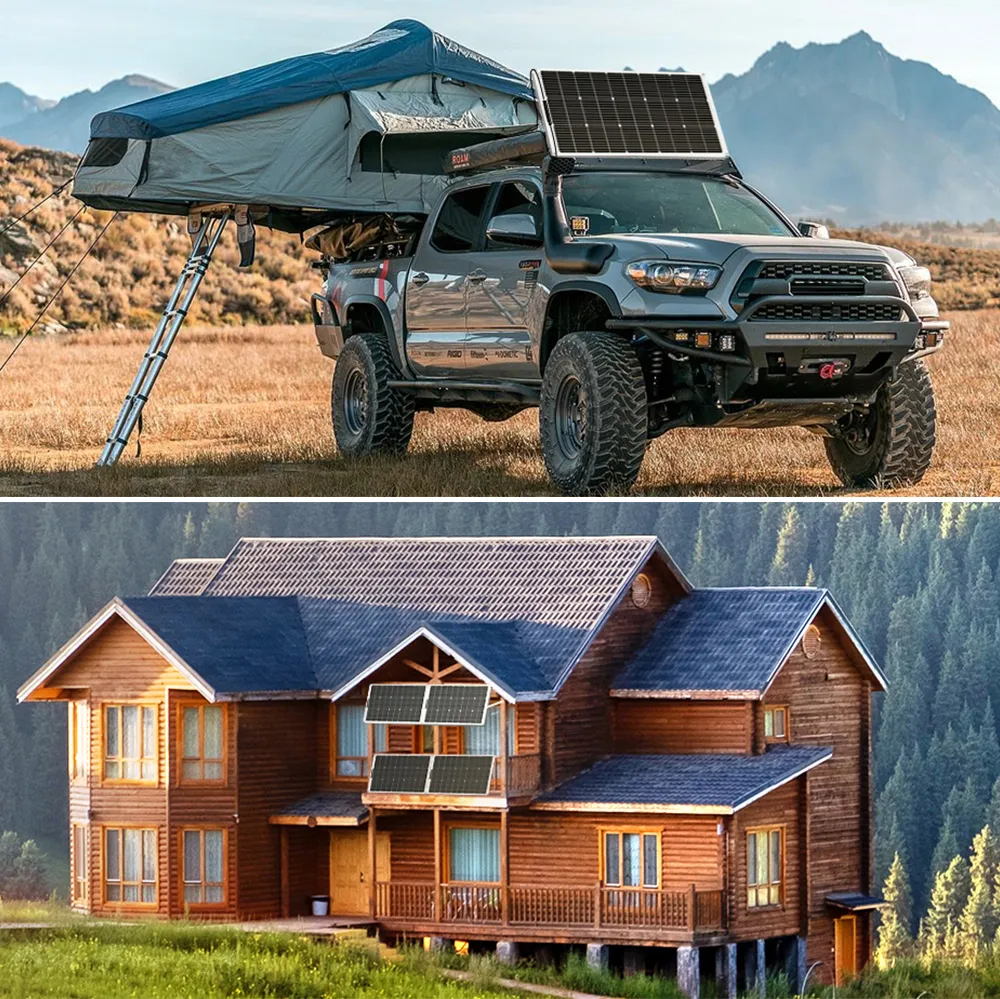

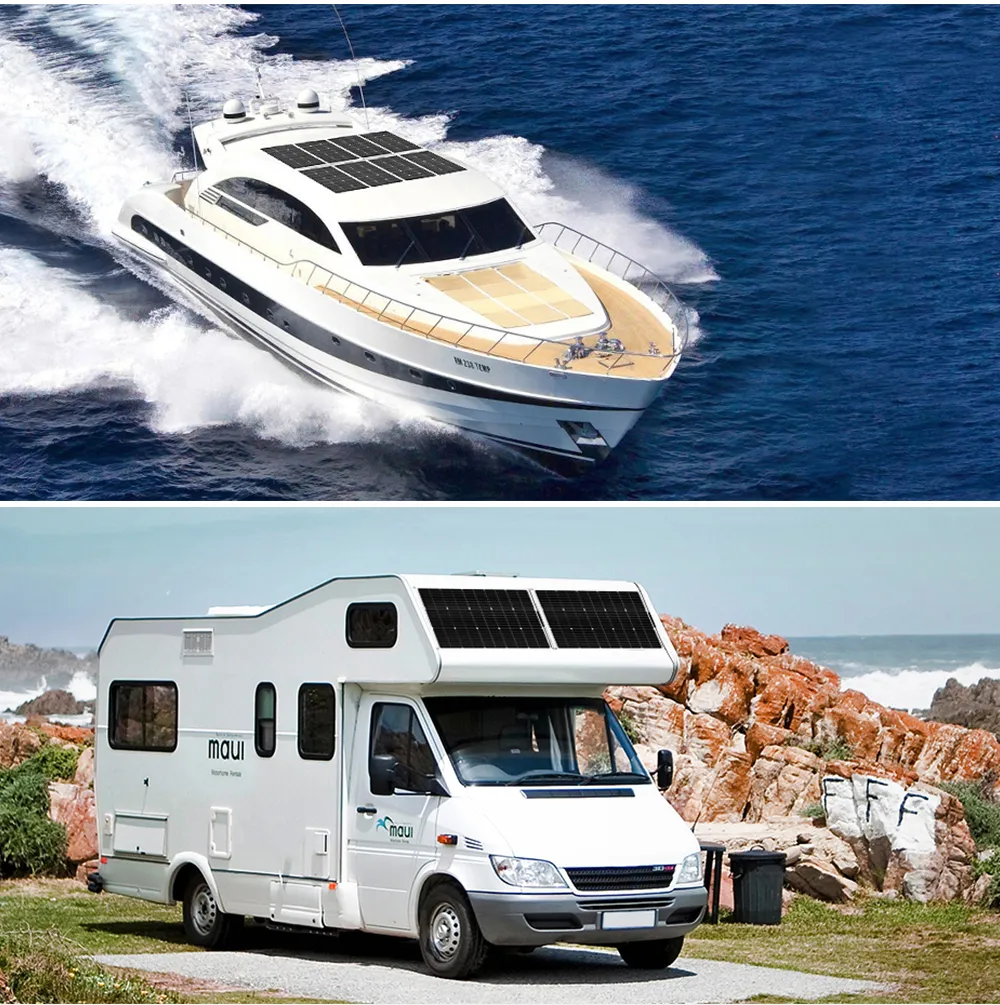

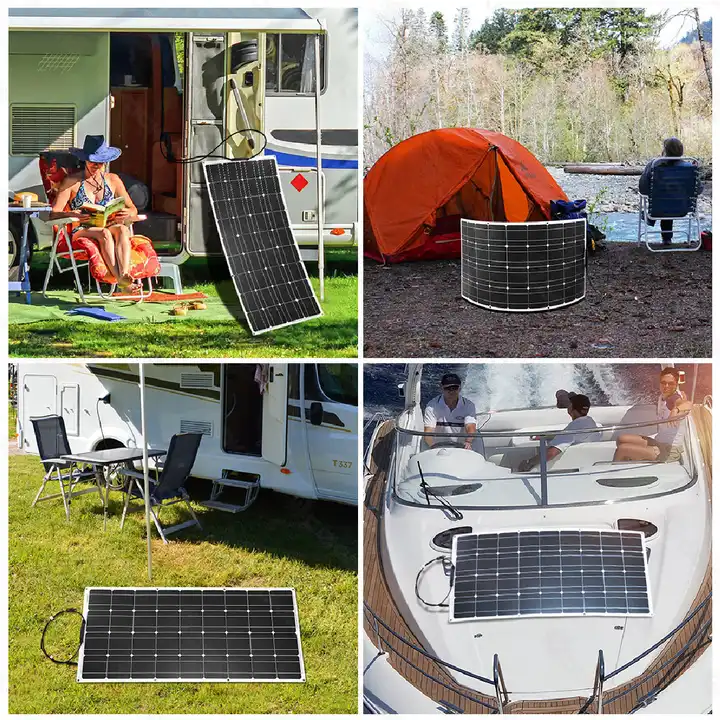

Easy to Use & Adaptable: Semi-flexible design allows mounting on irregular or curved surfaces up to 30 degrees, making it ideal for RV roofs, boats, yachts, tents, and vaulted architectures.
High Efficiency & Light Weight: Only 1.5mm thick and weighing a mere 0.7kg, this ultra-thin design makes it incredibly easy to hang, install, dismantle, and transport.
Simple Installation: Equipped with secure metal grommets in the four corners for quick screw fixing and mounting. Every individual solar panel undergoes rigorous quality testing before shipment.

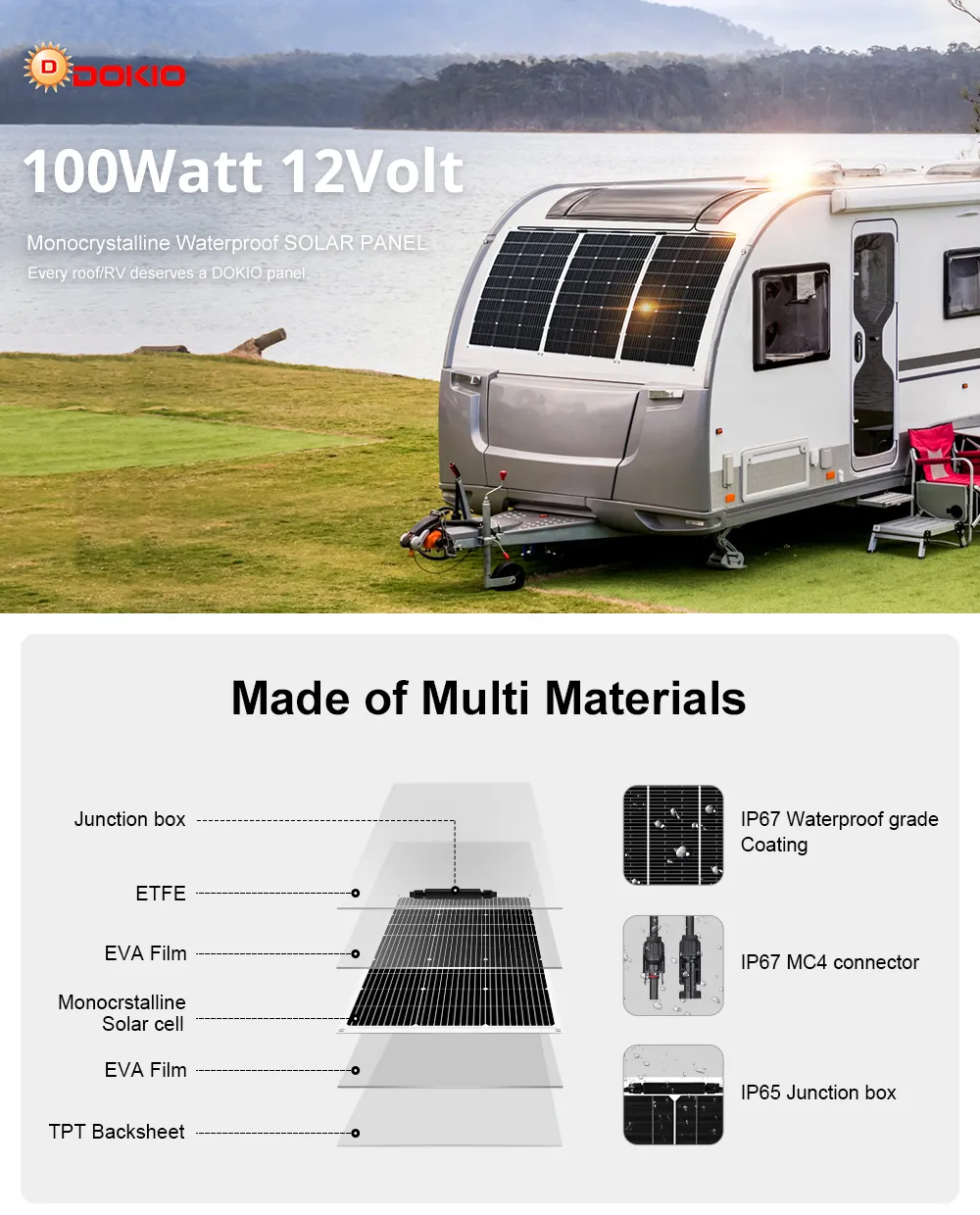

Premium Materials: The outer layer features ETFE advanced material, which is far more durable, weather-resistant, and UV-stable than standard PET alternatives.
Superior Waterproof Protection: The heavy-duty junction box mounted on the back carries a certified IP67 waterproof rating, ensuring dependable outdoor performance.
Reverse Current Protection: The junction box includes a built-in Schottky diode to completely prevent reverse current flow during low-light conditions.

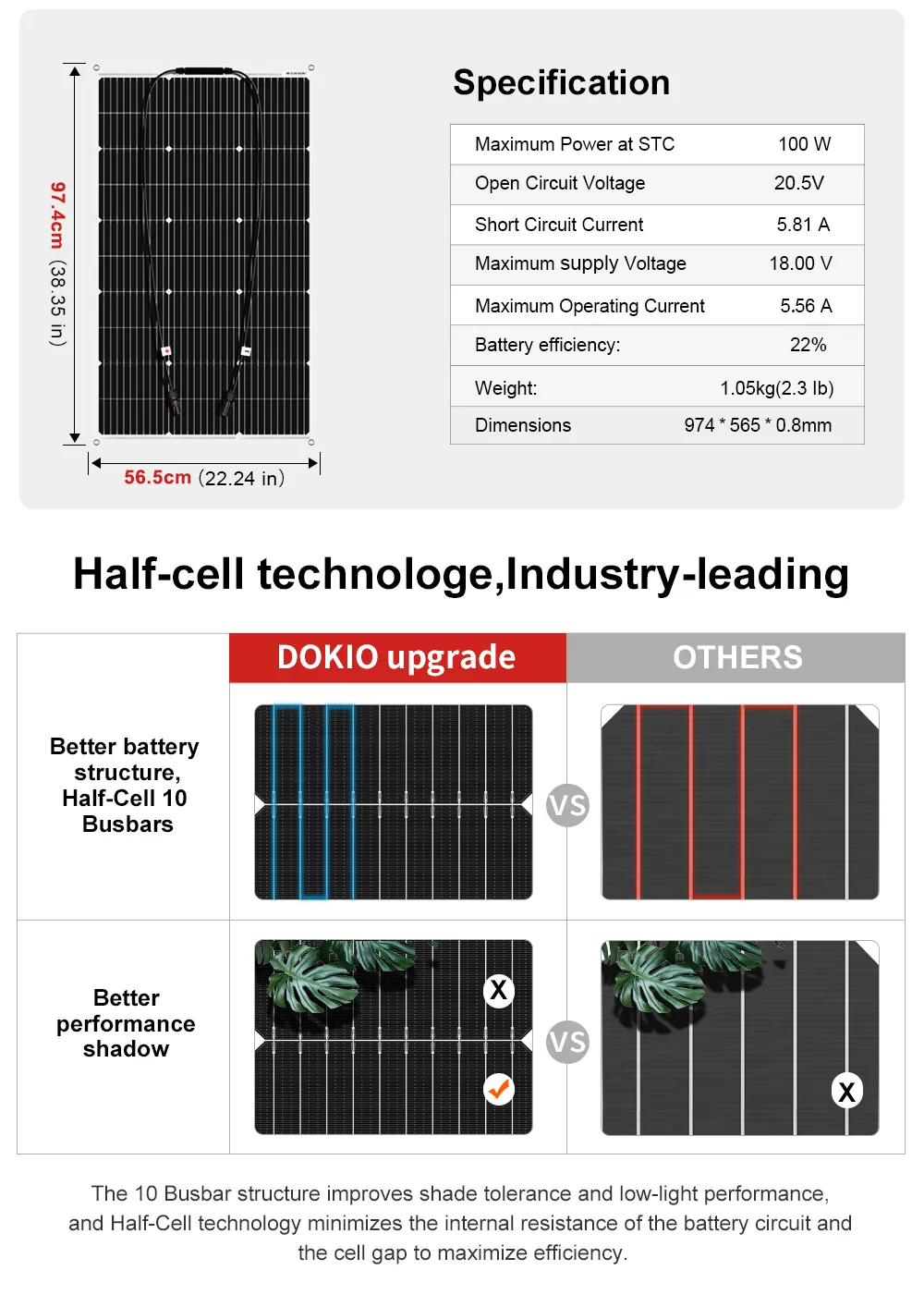

| PV Module | DFSP-100M |
| Rated Power (Pm) | 100W |
| Cells Type | Monocrystalline 182x91 mm square |
| Number of Cells | 30 (3x10) Series Connected |
| Size | 970(L) x 565(W) x 0.8(H) mm |
| Weight | 0.7 KGS |
| Typical Application | 12V DC System |
| Maximum System Voltage | 600V DC |
| Operating Temperature | 45°C |
| Hail Resistance | Up to 25 mm @ 80 Km/h |
| Continuous Wind Pressure | Up to 24 m/s |
| Cell Efficiency | ≥ 22% |
| Tolerance | ± 3% |
| Rated Current (Im) | 5.56A |
| Rated Voltage (Vm) | 18V |
| Short Circuit Current (Isc) | 5.81A |
| Open Circuit Voltage (Voc) | 22.5V |
We are a highly professional manufacturer specialized in the design and production of premium solar panels, solar power station systems, solar roof installations, balcony solar setups, garden solar solutions, flexible solar modules, portable folding solar configurations, and related accessories.
Since our inception in 2007, we have accumulated more than 15 years of industry-leading experience in the manufacturing and distribution of advanced photovoltaic products. We are strictly committed to providing customers with clean, highly efficient, and exceptionally cost-effective solar energy solutions. Using state-of-the-art automated machinery and a deeply experienced technical engineering team, we enforce meticulous quality control at every phase of production: sorting, testing, welding, laminating, framing, cleaning, and final packing before introducing them to the market.
We hold a strong dedication to excellence. Our operations span over 100 designs and innovation patents, certifying us as a highly recognized high-tech enterprise. We successfully serve a broad demographic in 50 countries and regions worldwide. Supported by over 10 overseas logistics centers—including locations in the United States, Poland, Germany, France, United Kingdom, Ukraine, Russia, Japan, Australia, and the UAE—we guarantee fast dispatch within 3 days. Packages are delivered safely to your door within 7-10 days, offering world-class end-to-end customer support.
