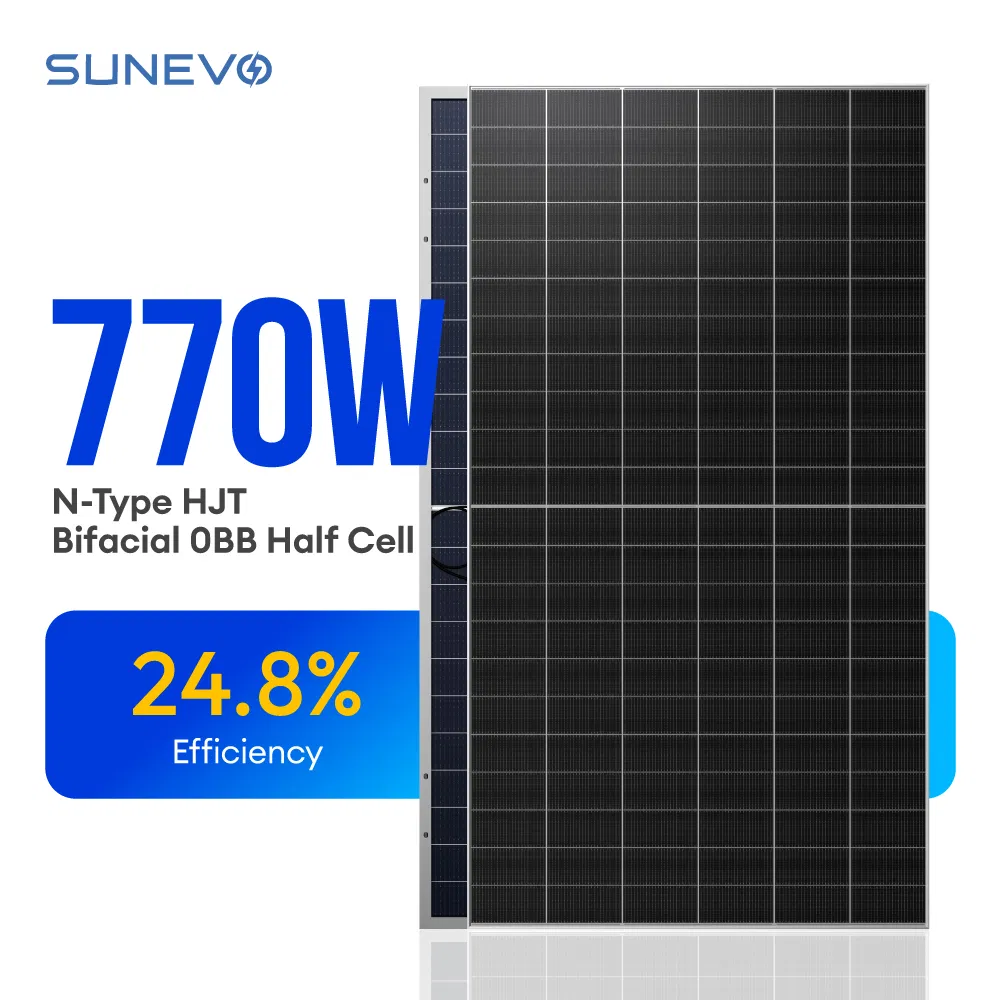

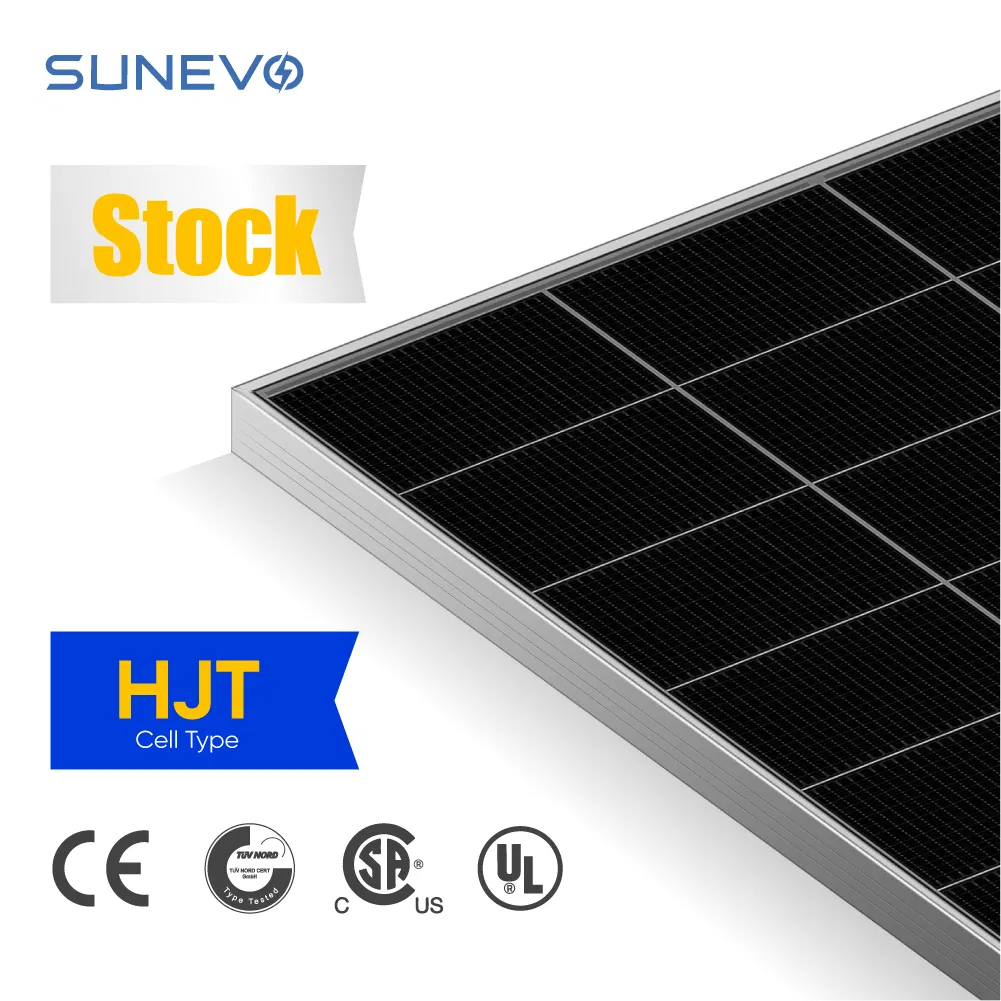

Home Use Bifacial Solar Panels 500W 550W 600watt 700watt 750watt 770W BIPV N Type PV Module Photovoltaic Panels Installation

Customization: Available
After-sales Service: Yes

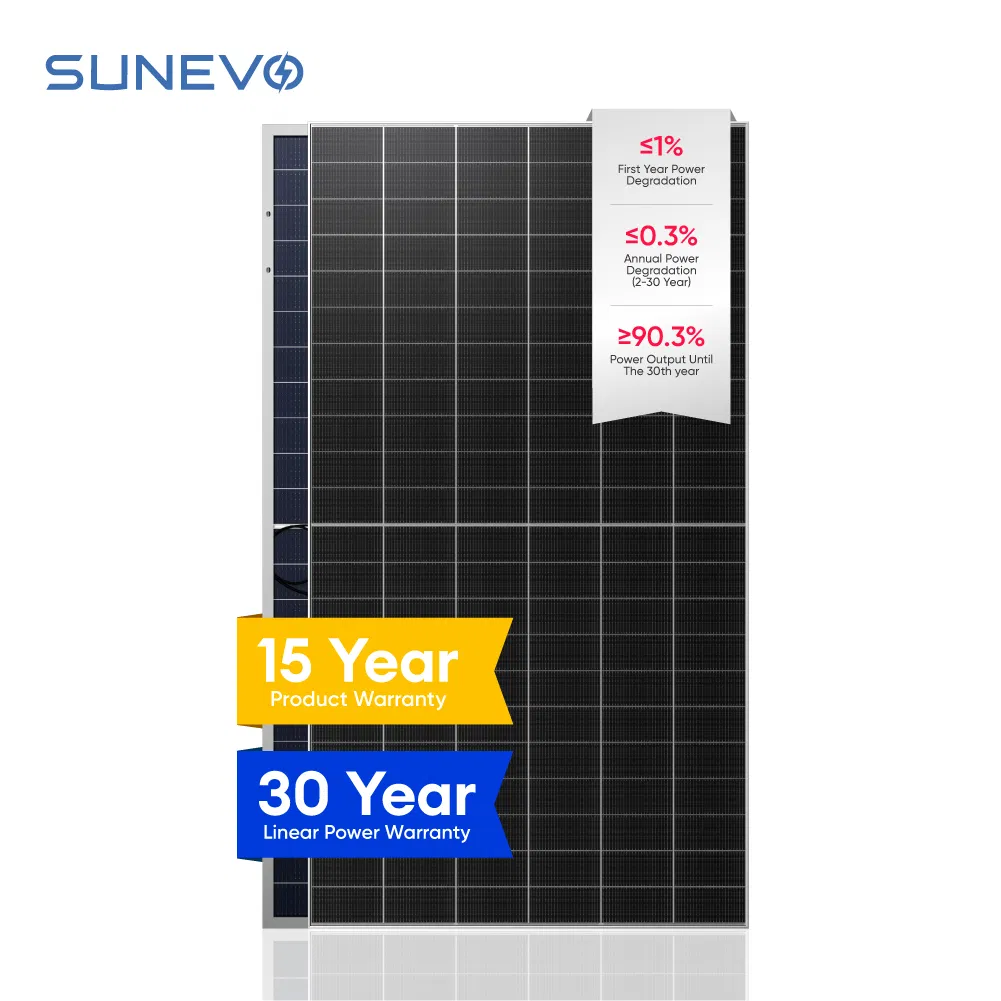

Warranty: 15-30 Years

Product Description

  • Overview
  • Product Description
  • Certifications
  • Production Process
  • Packaging & Shipping
  • Global Projects
  • Manufacturing Power
  • Customized Services

Basic Specifications

Model NO. SE6-66HBD
Number of Cells 132 (6*22)
Application Home, Commercial, Industrial
Condition New
Certification ISO, CE, TUV, IEC, Inmetro, UL, etc.
Material Monocrystalline Silicon
Solar Cells Size 210mm*210mm
Type Bifacial, Double-Glass, HJT, N-Type, OBB
Panel Efficiency 24.8%
Model Number Evo 6n 132 Half Cells 770W
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated, 3 Diodes
Connector MC4 Compatible
Cable Layout (+): 400mm, (-): 200mm (Customizable)
Wind/Snow Load 2400PA / 5400PA
Dimensions 2384*1303*33 mm
Production Capacity 5,000,000,000 Watts/Year
Packaging Setup 33PCS/Pallet, 594PCS/40'HQ

Product Description

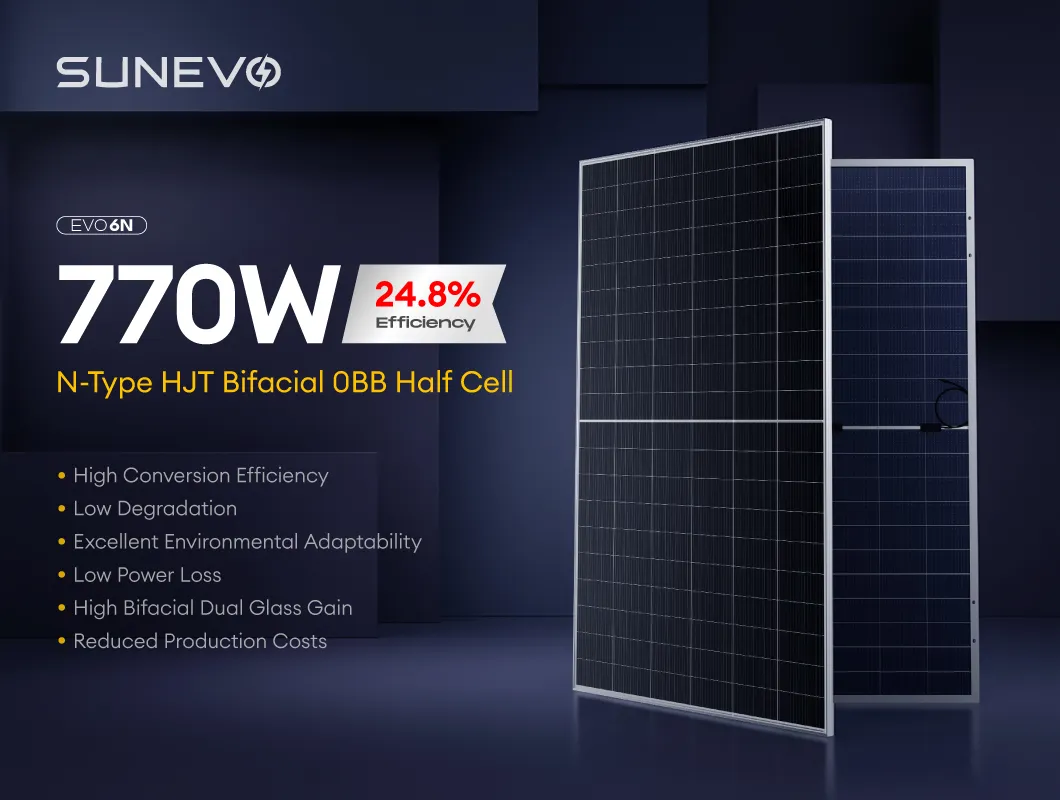

Bifacial N Type PV Module Photovoltaic Panels Installation
SE6-66HBD 745 750 755
Conditions STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax/W) 745 568 750 572 755 576
Maximum Power Voltage (Vmp/V) 42.59 40.67 42.68 40.76 42.13 40.25
Maximum Power Current (Imp/A) 17.50 13.99 17.58 14.05 17.92 14.32
Open Circuit Voltage (Voc/V) 50.67 48.36 50.77 48.46 50.16 47.87
Short Circuit Current (Isc/A) 18.62 14.88 18.71 14.95 47.87 15.24
Module Efficiency (%) 24.00 24.10 24.30
SE6-66HBD 760 765 770
Conditions STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax/W) 760 580 765 584 770 587
Maximum Power Voltage (Vmp/V) 42.22 40.33 42.30 40.41 42.39 40.49
Maximum Power Current (Imp/A) 18.00 14.39 18.09 14.46 18.17 14.52
Open Circuit Voltage (Voc/V) 50.26 47.97 50.36 48.07 50.46 48.16
Short Circuit Current (Isc/A) 19.15 15.31 19.24 15.38 19.33 15.45
Module Efficiency (%) 24.50 24.60 24.80
Specification Metrics 835 841 846 852 857 863
Maximum Power (Pmax/W) 835 841 846 852 857 863
Voltage at Pmax (Vmp/V) 42.75 42.83 42.28 42.36 42.45 42.53
Current at Pmax (Imp/A) 19.55 19.64 20.03 20.12 20.21 20.30
Open Circuit Voltage (Voc/V) 50.85 50.95 50.33 50.43 50.53 50.64
Short Circuit Current (Isc/A) 20.88 20.98 21.38 21.48 21.58 21.68

Key Product Advantages

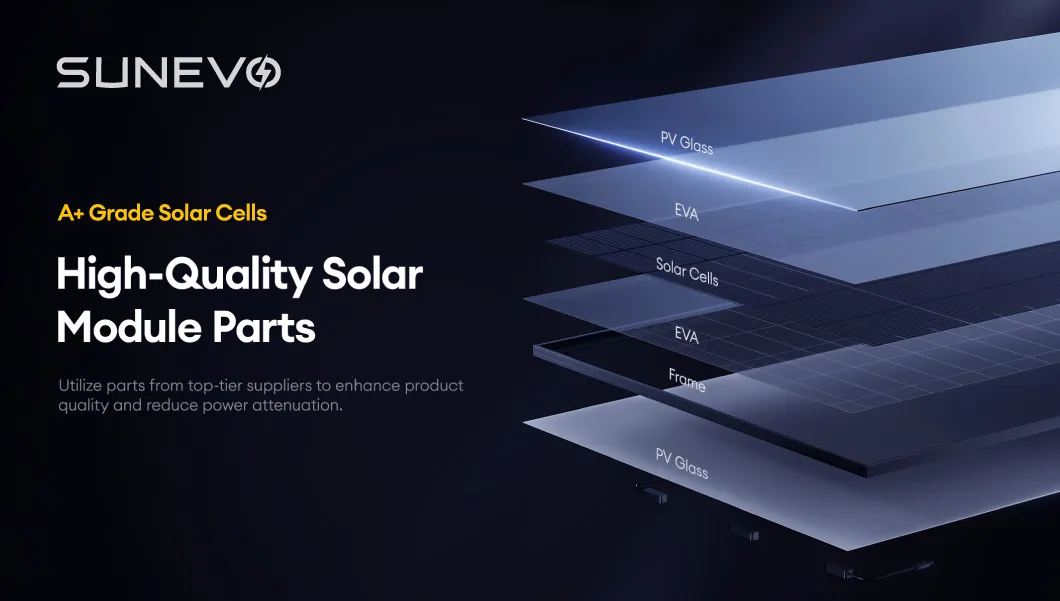

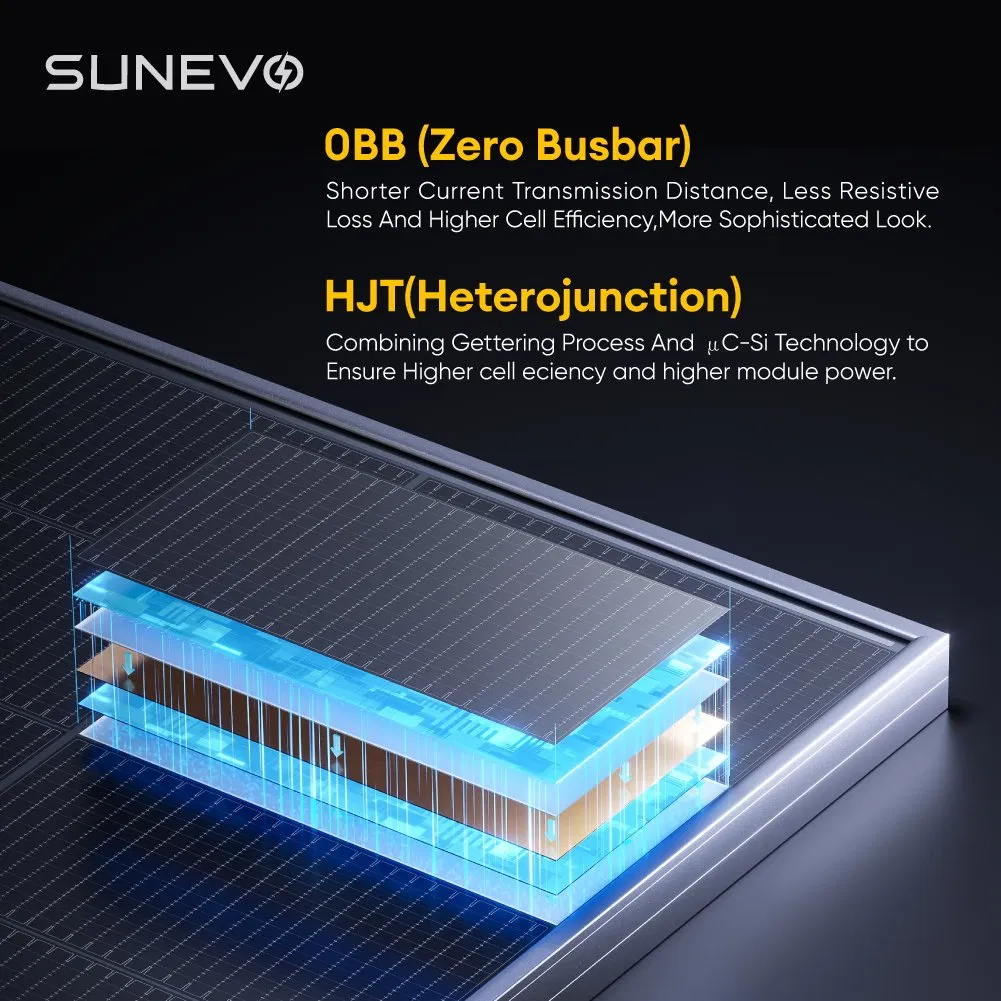

N Type PV Module Advantages
Bifacial Solar Panels Features

Global Certifications

Solar Panels Certifications

Production Process & Quality Control

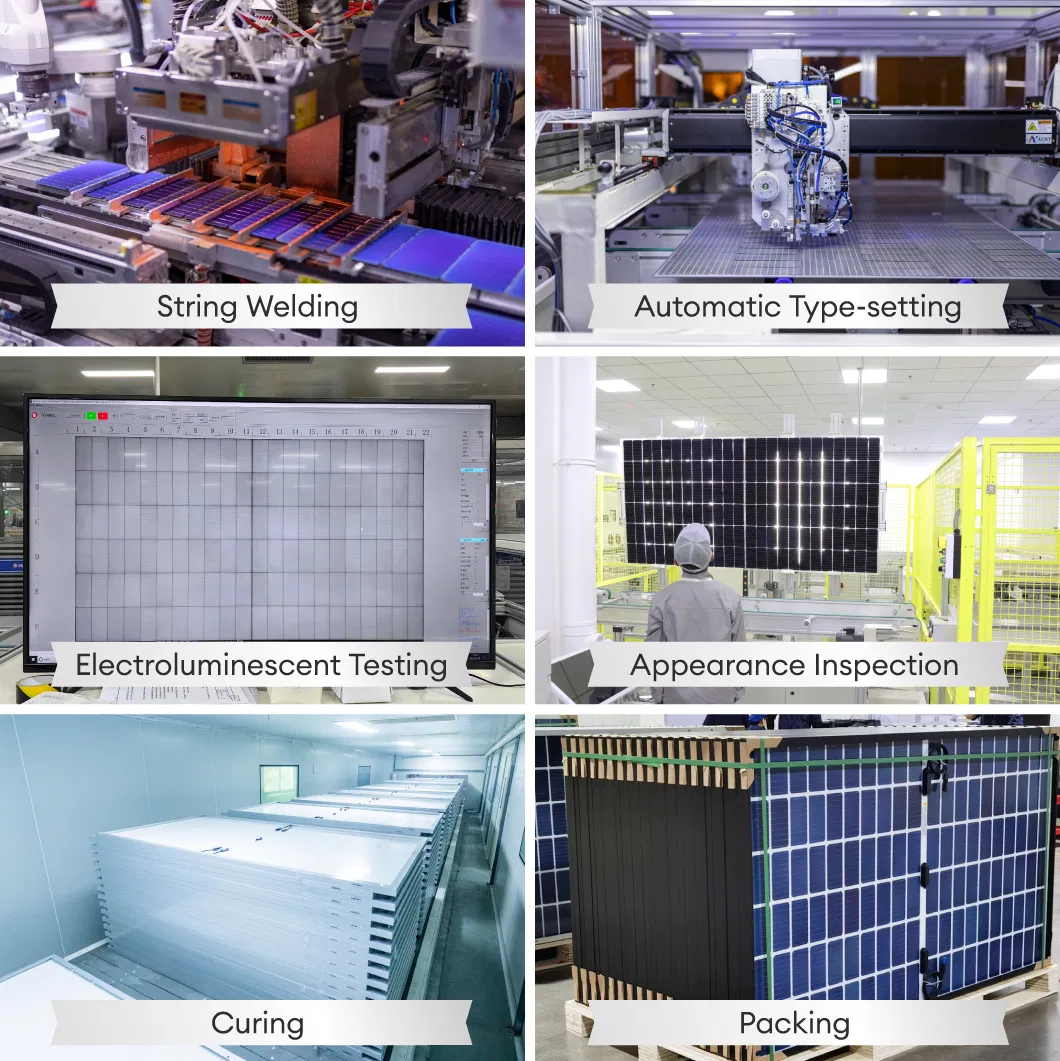

Solar Panel Manufacturing Production Process

Packaging & Global Shipping

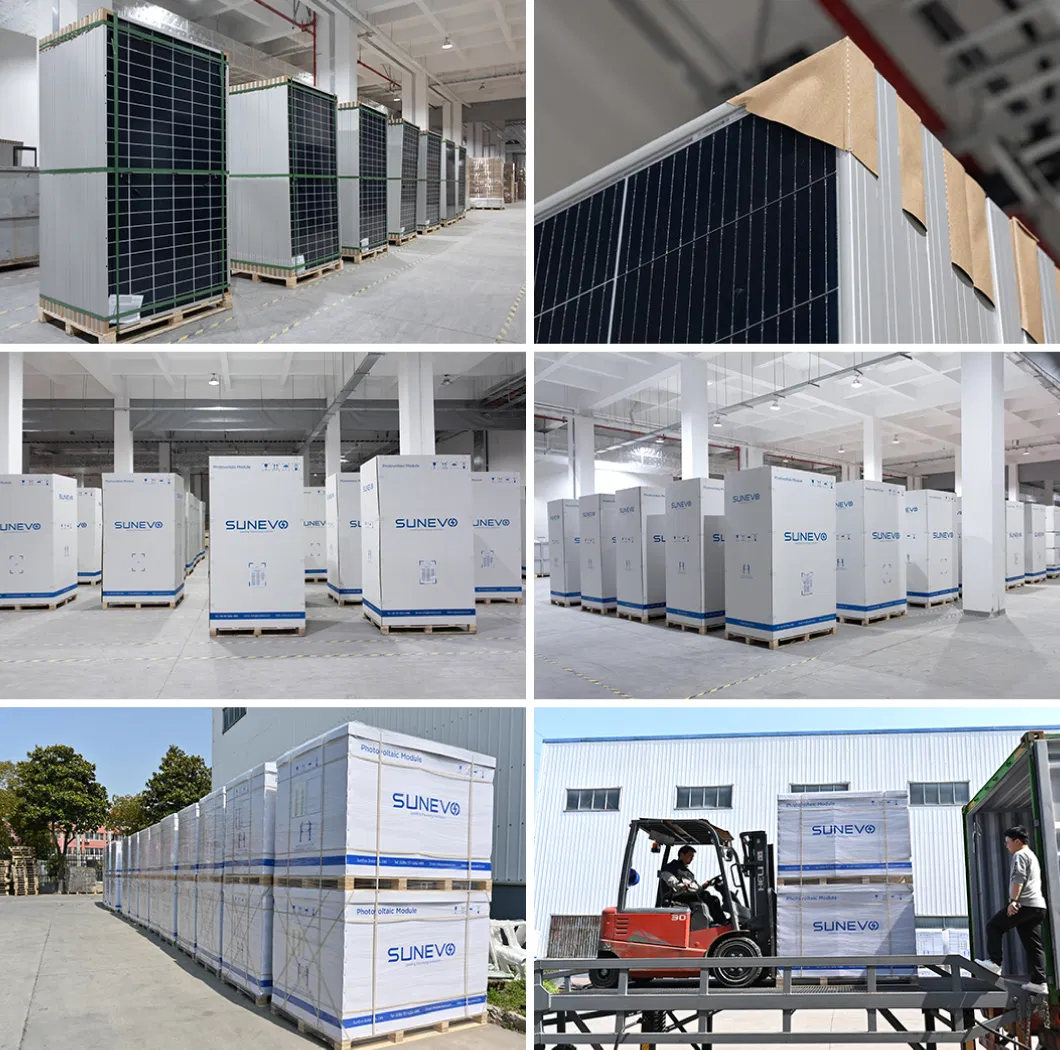

Solar Panel Packaging and Shipping

Global Project Footprint

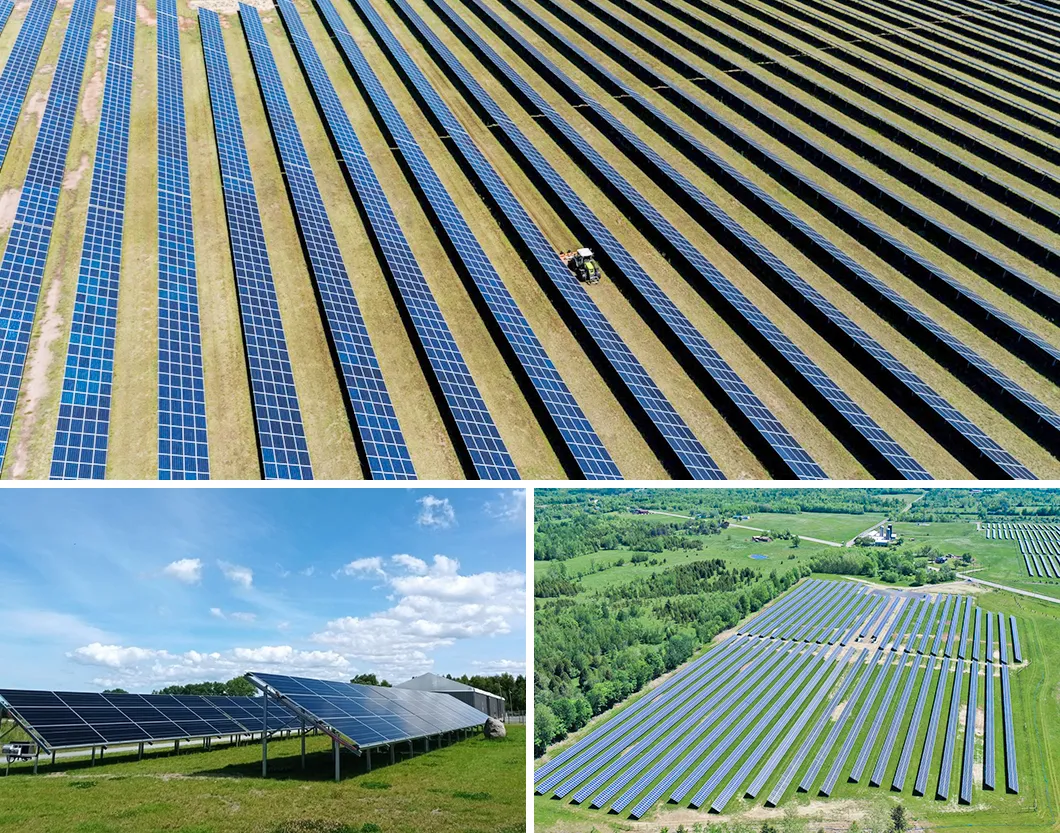

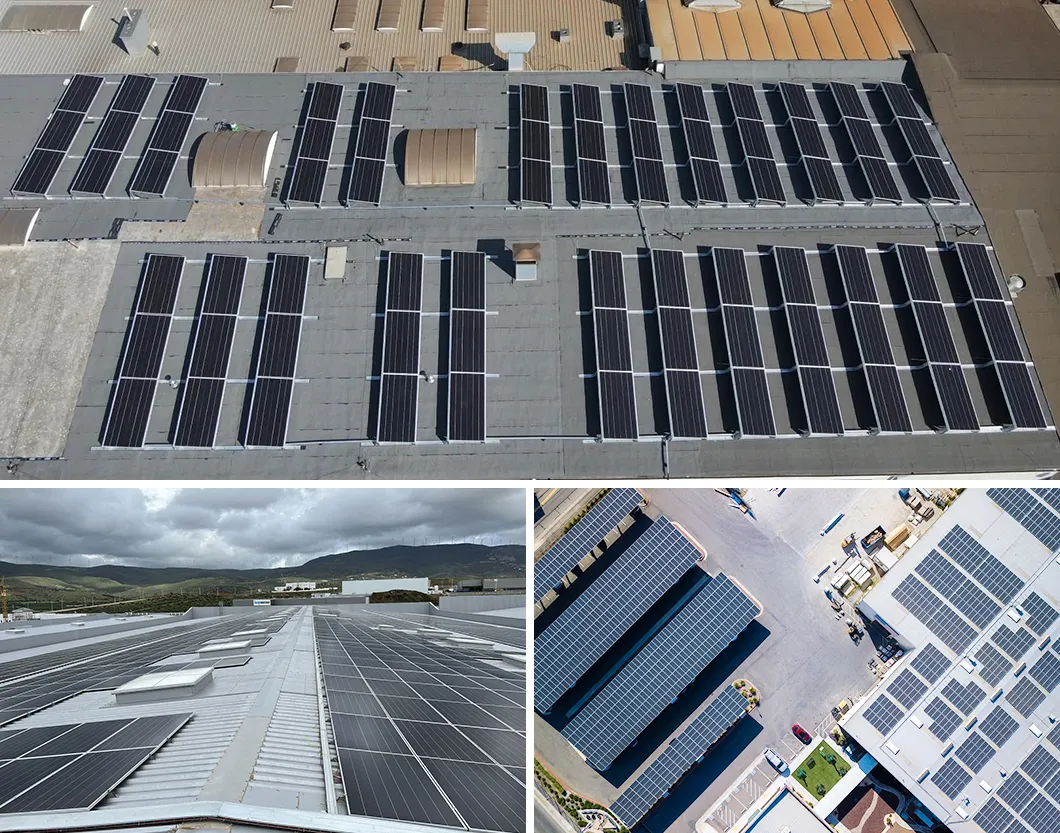

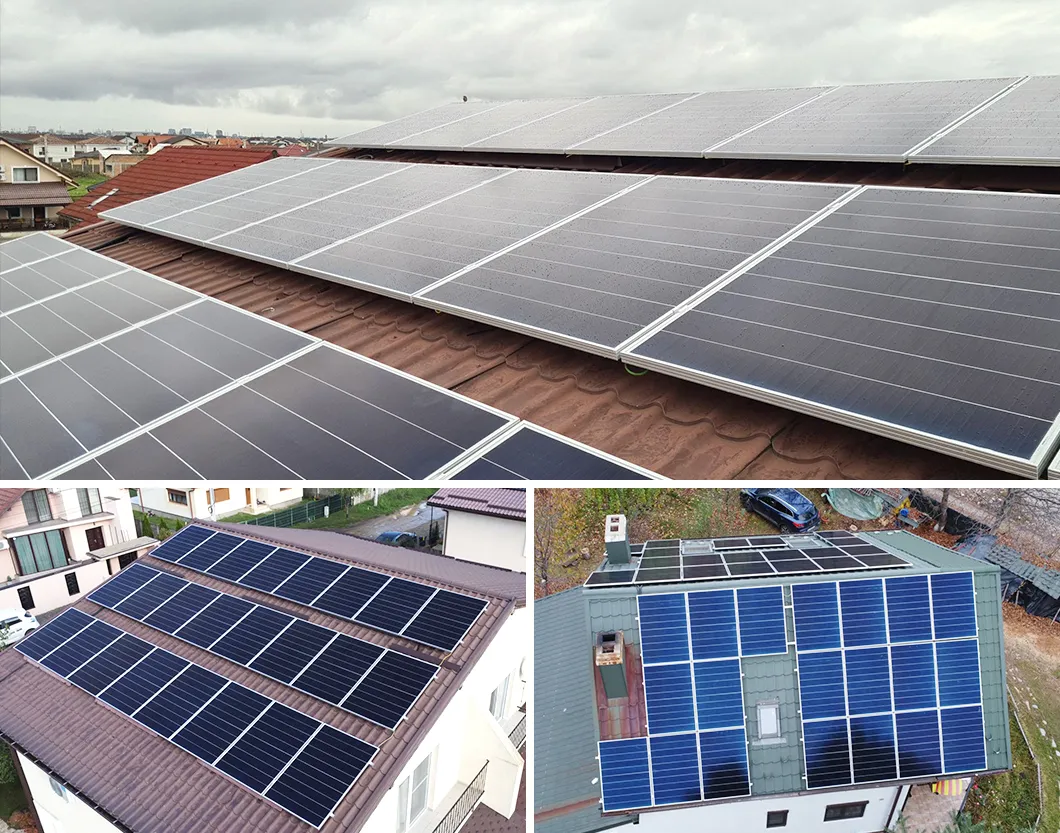

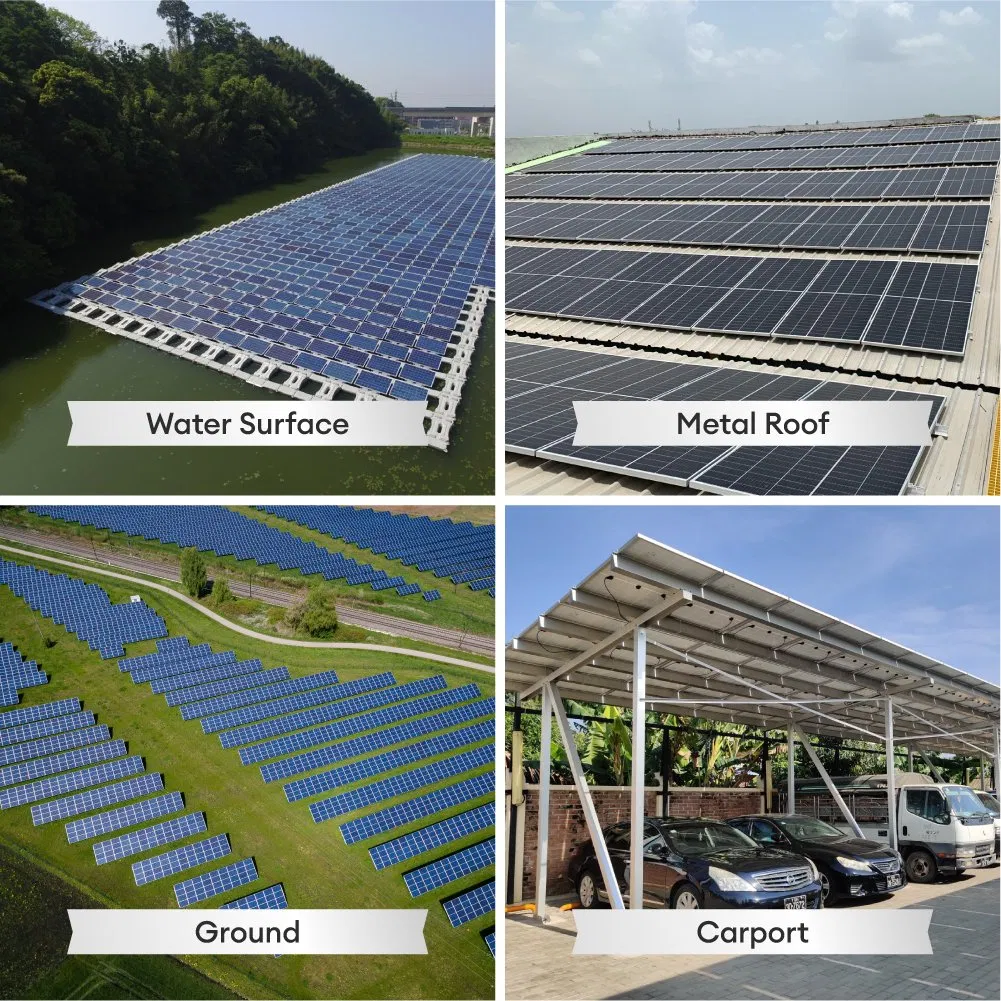

Global Solar Project Installation Case 1 Global Solar Project Installation Case 2 Global Solar Project Installation Case 3

Manufacturing & Technology Strength

Manufacturing R&D Center
We are a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. We have 20+ years of experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. Developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, the FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark with more than 300 sets deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. We are a national high-tech enterprise with such innovative platforms as a national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. We hold core technology patents in new materials, new technologies and new structures of battery power supply, leading and participating in the formulation of a number of international, national and industrial standards.

Tailored Solutions & Customized Services

Customized Solar Bracket System Design Customized Solar Panels Design Services

Frequently Asked Questions (FAQ)

What are the primary applications for these double-glass solar panels?
These N-Type Bifacial Double-Glass solar panels are optimized for Home, Commercial, and Industrial applications, offering reliable energy output in various environments.
What certifications do these photovoltaic panels hold?
Our products are manufactured according to strict international standards and hold certifications including ISO, CE, TUV, IEC, Inmetro, and UL.
What is the standard cell dimension and maximum efficiency?
The panels use monocrystalline silicon cells sizing 210mm*210mm, reaching a peak module efficiency of up to 24.8%.
Can these panels handle extreme wind and heavy snow loads?
Yes, they are structural-certified to withstand wind loads up to 2400PA and heavy snow loads up to 5400PA.
What is the default packaging layout for container shipping?
The standard packaging is 33 pieces per pallet, allowing up to 594 pieces stacked securely in a standard 40'HQ cargo shipping container.
Do you offer customization on cables and connectors?
Yes, while default cables are (+): 400mm and (-): 200mm with MC4 compatible connectors, we provide custom lengths based on project configurations.
