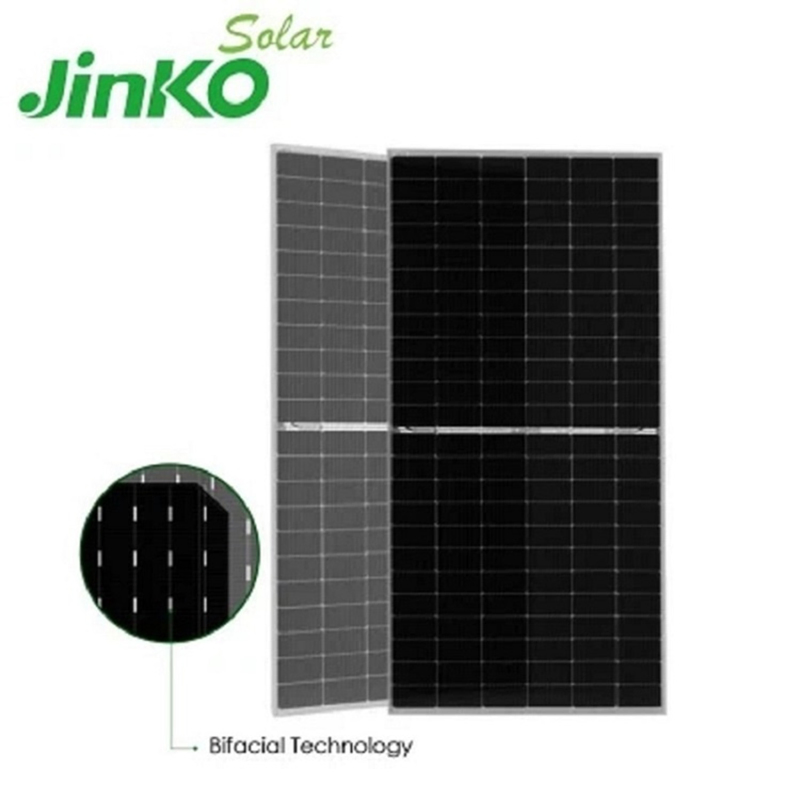

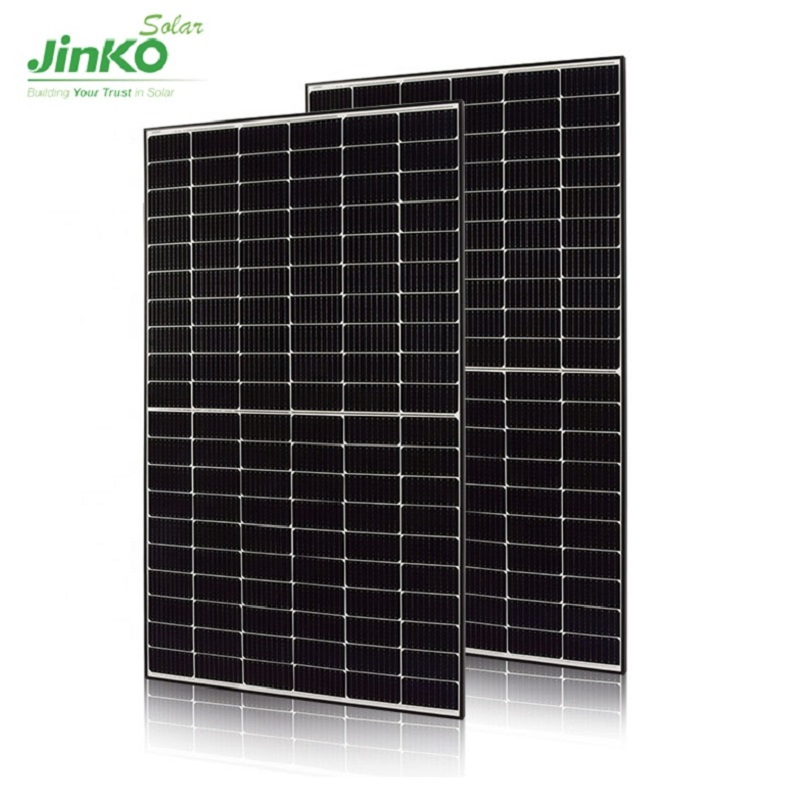

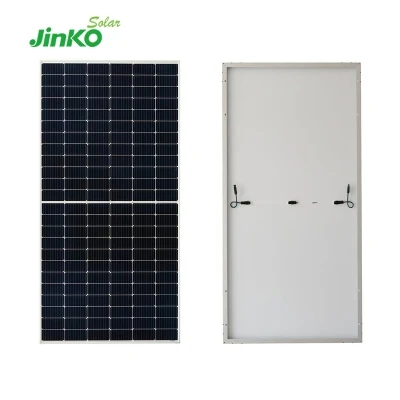

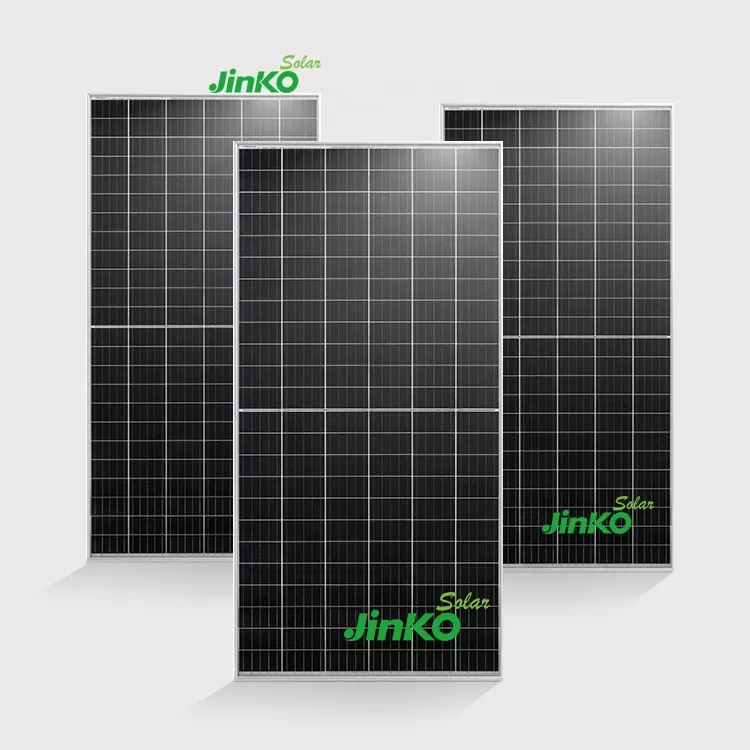

Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel
Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel
Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel
Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel
Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel
1 / 5
Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel
Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel
Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel
Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel
Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel

Jinko China Agent Supply 530W 545W 550W High Power Perc Module Solar Panels in Stock High Efficient Jinko Solar Panel

Customization: Available
After-sales Service: Yes
Warranty: 10 Years
Send Inquiry

Product Description

📋
Basic Product Information
Model NO.
JKM535-555M -72HL4(-V)
Number of Cells
144 cells
Application
Residential/Commercial
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Weight
28kg
Front Glass
3.2mm, Anti-Reflection Coating
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Power Tolerance
0~+3%
Dimensions
2278*1134*35mm
🖼️
Product Gallery

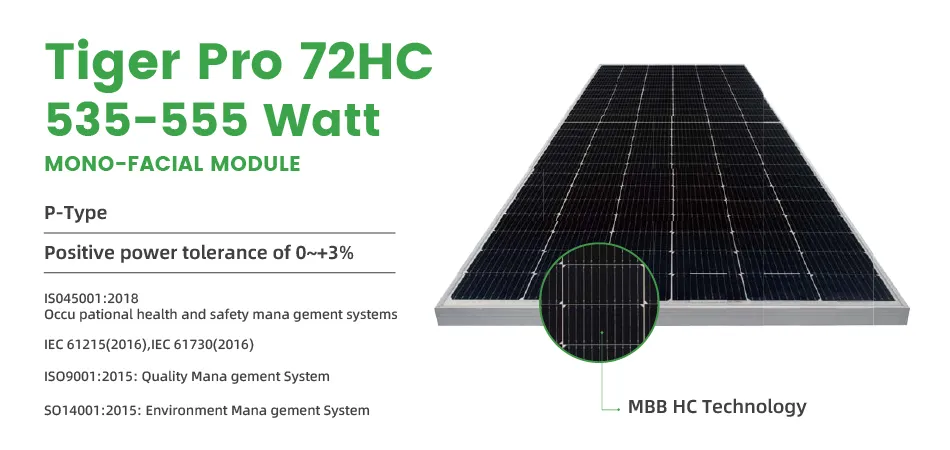

High Power Solar Panel

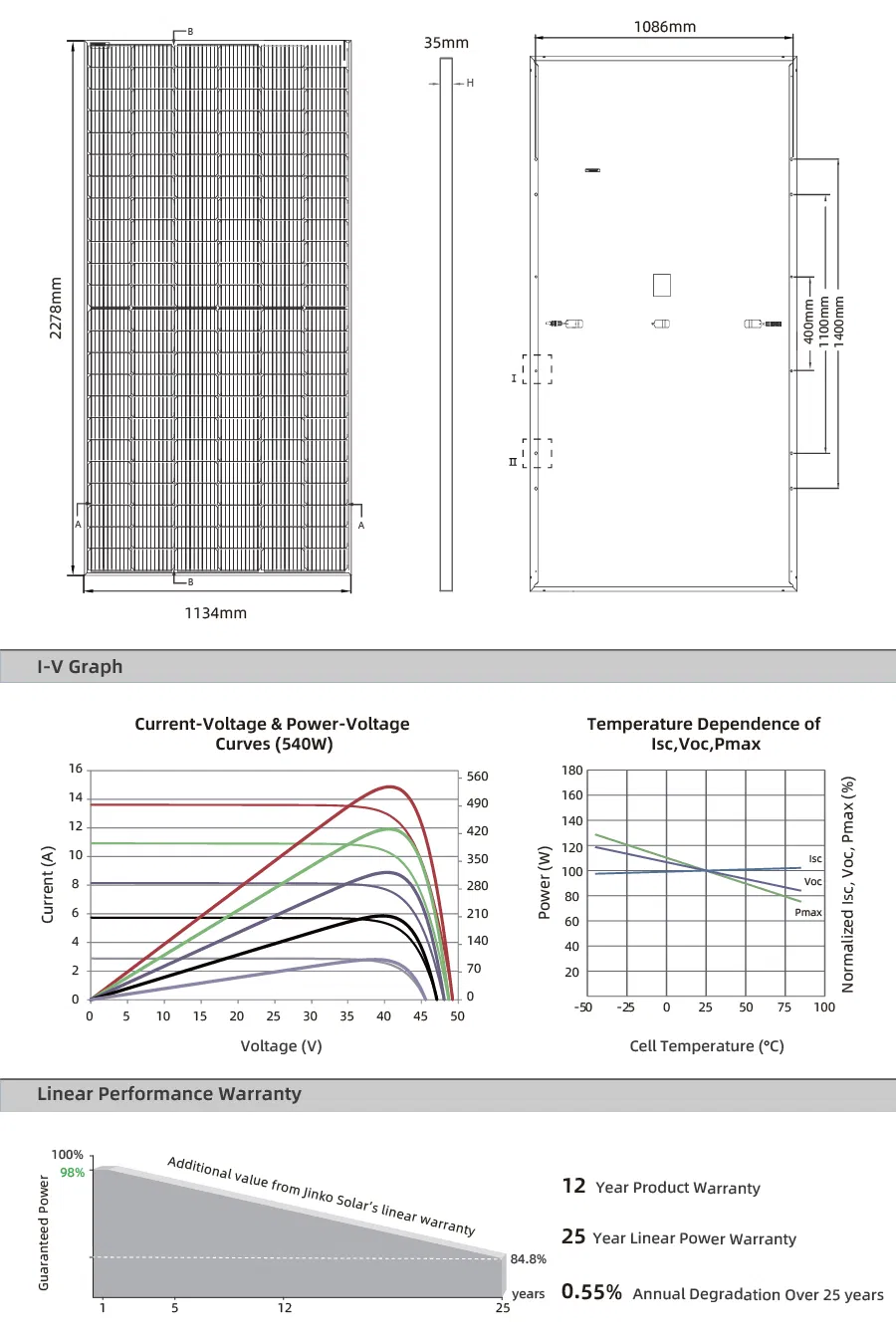

Module Details
⚙️
Technical Specifications
Module Type JKM535M-72HL4 JKM540M-72HL4 JKM545M-72HL4 JKM550M-72HL4 JKM555M-72HL4
Maximum Power (Pmax)535W540W545W550W555W
Voltage at Pmax (Vmp)40.63V40.70V40.80V40.90V40.99V
Current at Pmax (Imp)13.17A13.27A13.36A13.45A13.54A
Open-circuit Voltage (Voc)49.34V49.42V49.52V49.62V49.72V
Short-circuit Current (Isc)13.79A13.85A13.94A14.03A14.12A
Module Efficiency (%)20.71%20.90%21.10%21.19%21.48%
Operating Temperature -40°C ~ +85°C
Max System Voltage 1000/1500VDC (IEC)
⚡
Product Performance & Logistics

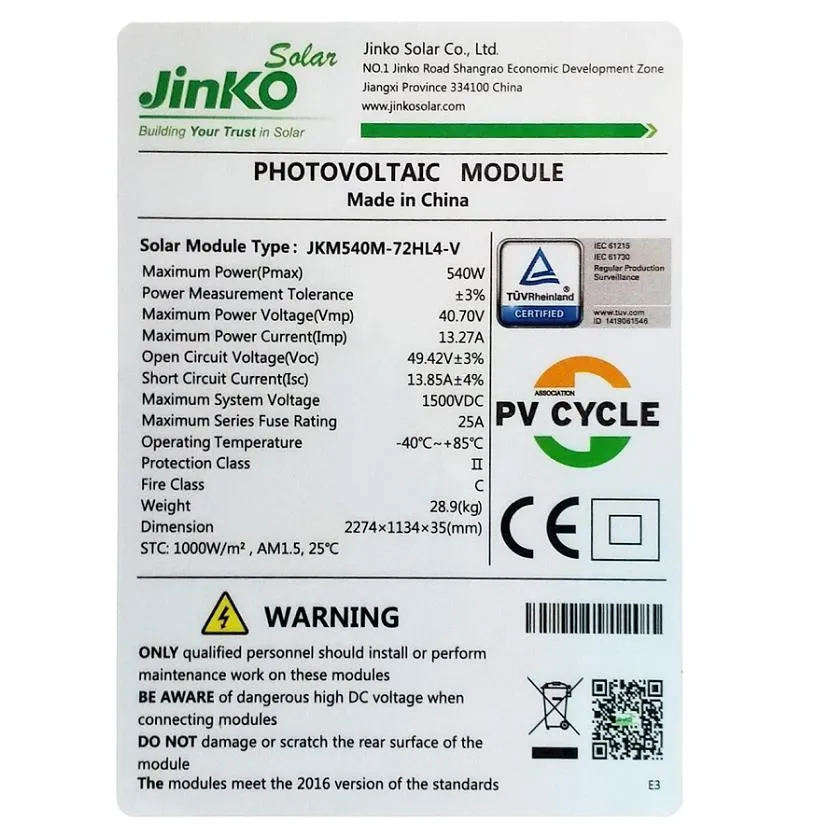

Efficiency Chart

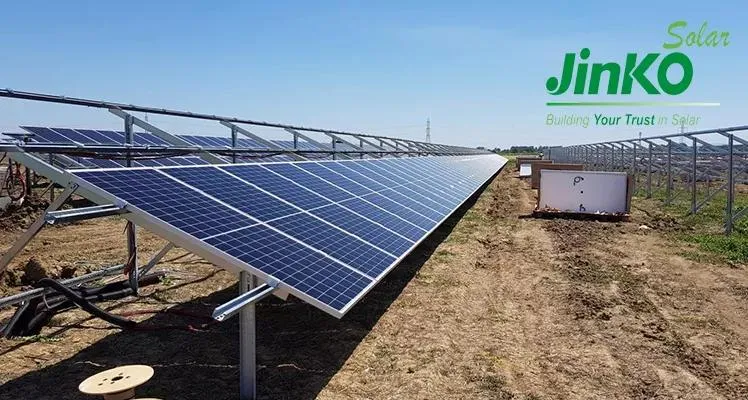

Project Case Study
Packaging and Shipping
❓
Frequently Asked Questions
How to choose the right solar panel?
Please determine your power consumption requirements and installation space. Our team can recommend the most suitable module based on your specific energy needs.
What is the difference between Mono and Poly panels?
Monocrystalline solar panels offer higher efficiency rates as they are made from high-grade silicon. Polycrystalline panels have a simpler manufacturing process and generally a lower cost, but lower space efficiency.
What is the typical delivery time?
Generally, the delivery time is approximately 7 days for samples and around 15 days for bulk orders, depending on stock availability.
What warranty is provided for these solar panels?
Standard panels come with a 10-year product warranty and a 25-year linear output power warranty to ensure long-term performance.
How is the post-purchase technical support?
We provide professional engineering support. For any operational issues, online assistance is available to provide solutions within a short timeframe.
Are these panels resistant to harsh weather?
Yes, the panels are designed with tempered glass and an anodized aluminum alloy frame, rated for temperatures between -40°C and +85°C, making them durable against wind and snow loads.
Solar Panel Standards
