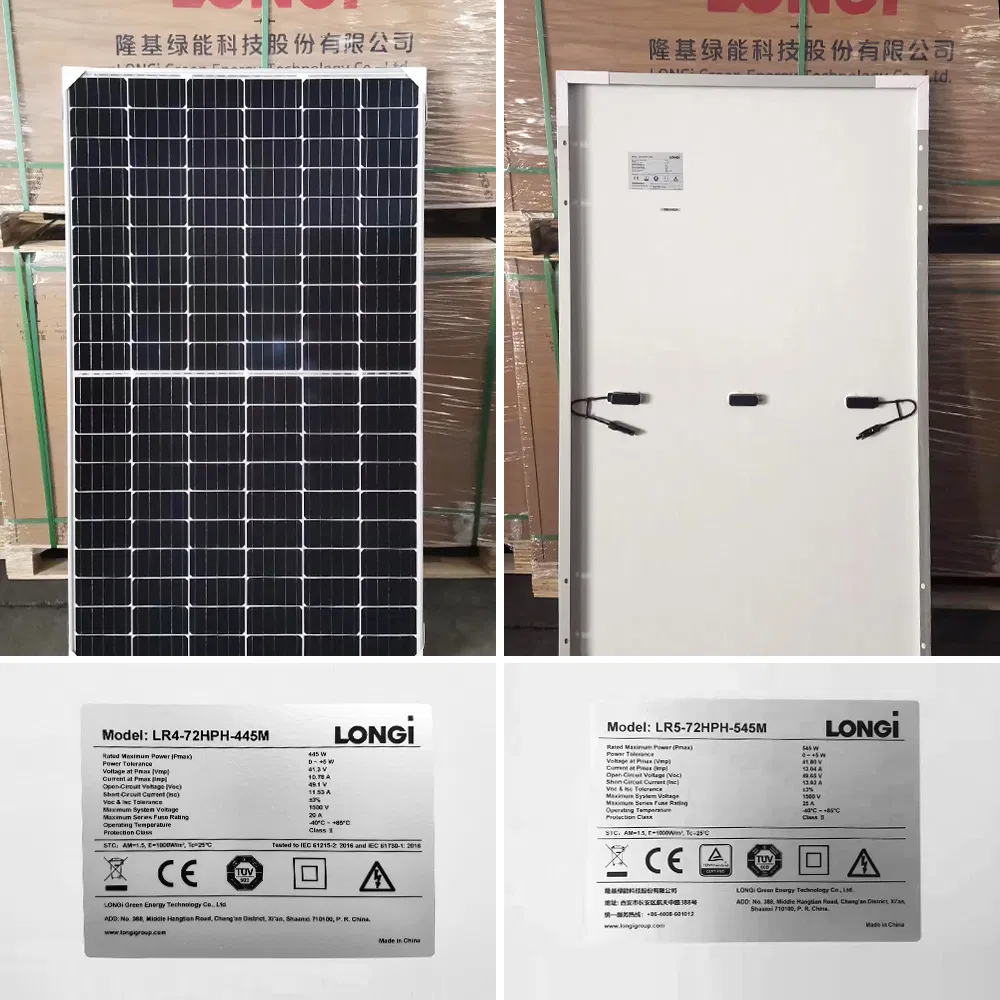

Longi Europa Shingled Solar Panel Mono 420W 425W 440W 500W 540W 560W Solar Panels Outdoor

Customization:	Available
Material:	Monocrystalline Silicon
Application:	Industrial

Basic Information

Packing

858PCS Per 40FT Container

Cell Type

Mono Perc Half Cell

Type

Half Cell Solar Panel

Keyword

Monocrystalline Solar Panel

Frame

Anodized Aluminium Alloy

Operate Temp

-40~+85

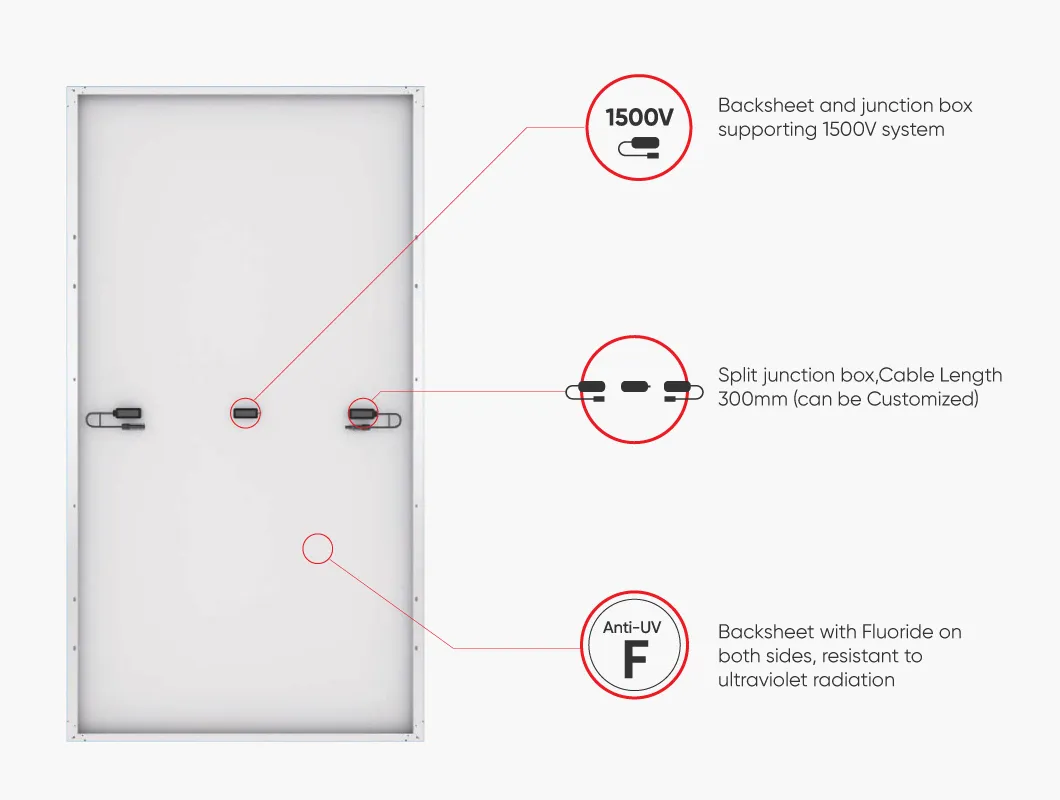

Max Voltage

DC1500V

Weight

27.5kg

Warranty

25 Years

Certification

ISO, CE, TUV

Specification

2278*1134*35mm

Origin

China

Product Presentation

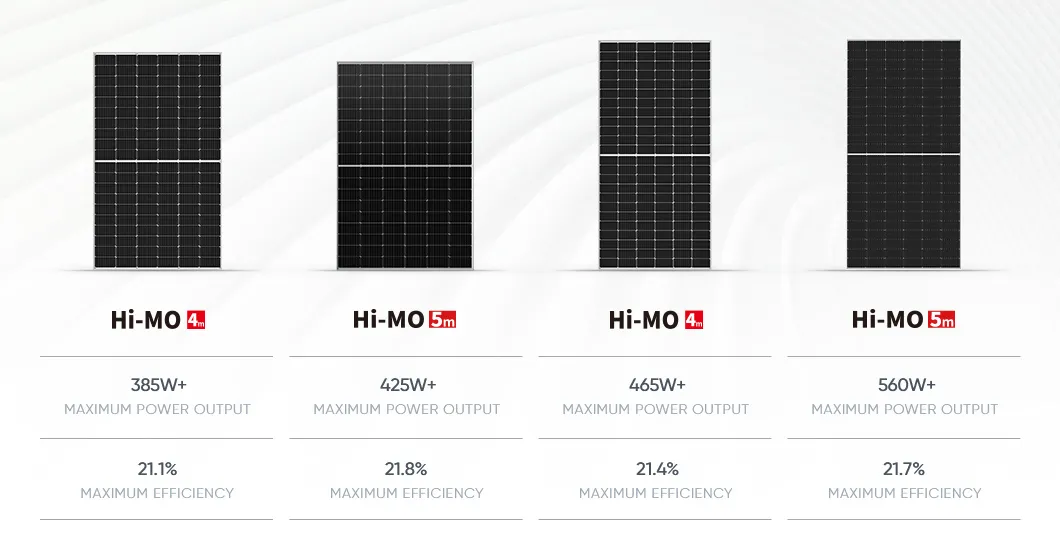

Technical Specifications - Tiger Neo Series

Module Model	LR4-60HPH 365-385M	LR4-72HPH 445-465M	LR5-54HPH 405-425M	LR5-72HPH 540-560M
Power Range	365-385W	445-465W	405-425W	540-560W
No. of Cells	120 cells	144 cells	108 cells	144 cells
Dimension	1755X1038X35mm	2094x1038x35mm	1722x1134x30mm	2278x1134x35mm
Weight	19.5kg	24.3kg	20.8kg	27.5kg

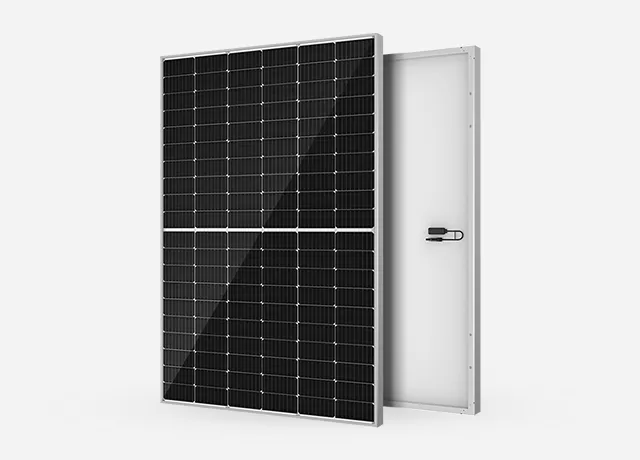

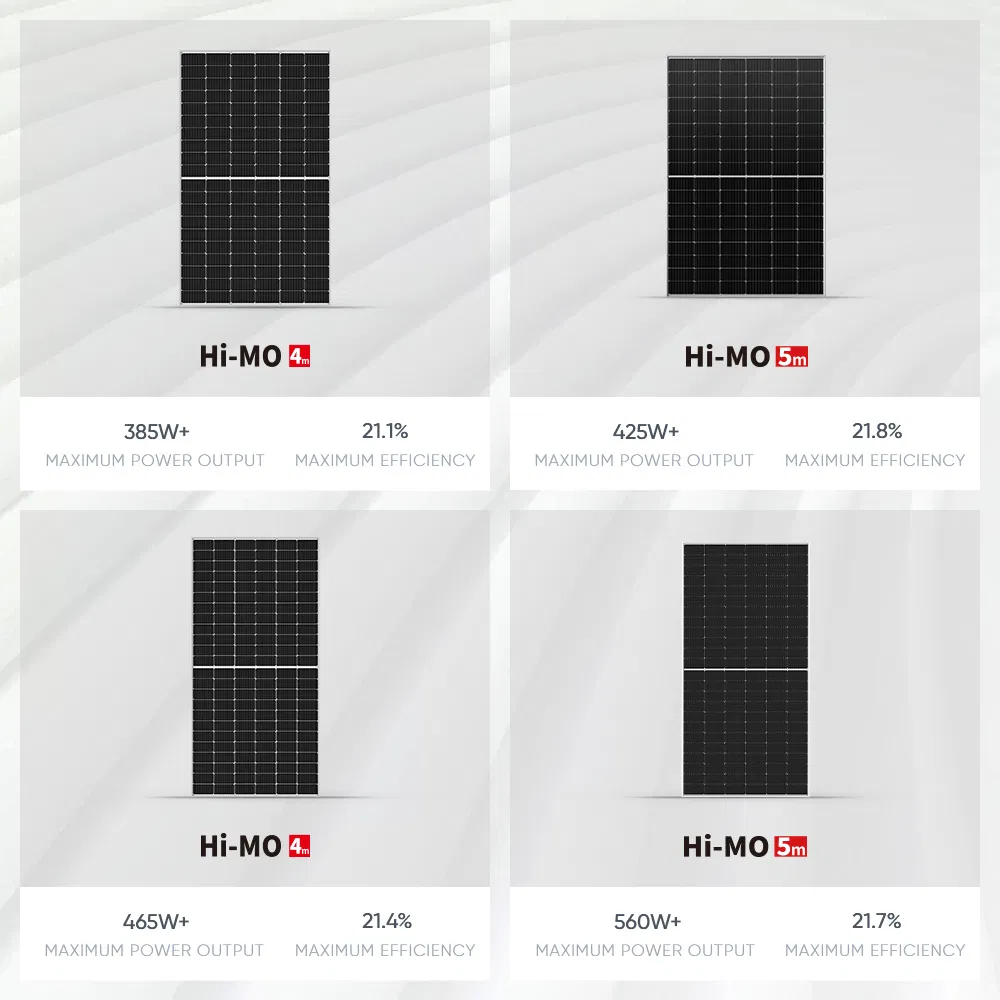

Hi-MO 4m LR4-60HPH

Power Range: 365-385W
Cells: 120 cells
Size: 1755×1038×35 mm
Weight: 19.5 kg
Packaging: 30pcs/box, 780pcs/40'HQ

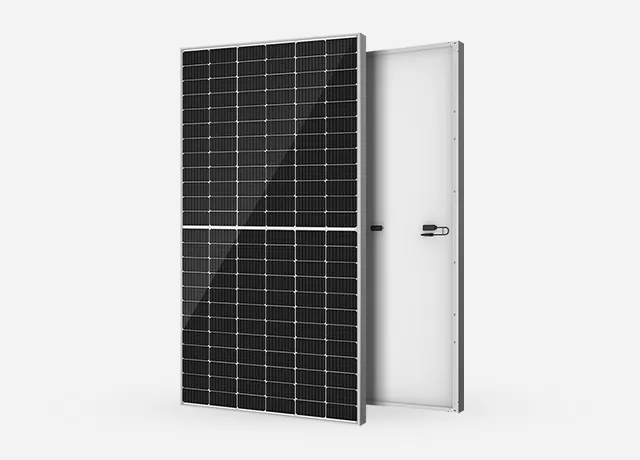

Hi-MO 4m LR4-72HPH

Power Range: 445-465W
Cells: 144 cells
Size: 2094x1038x35 mm
Weight: 24.3 kg
Packaging: 30pcs/box, 660pcs/40'HQ

Hi-MO 5m LR5-54HPH

Power Range: 405-425W
Cells: 108 cells
Size: 1722×1134×30 mm
Weight: 20.8 kg
Packaging: 36pcs/box, 936pcs/40'HQ

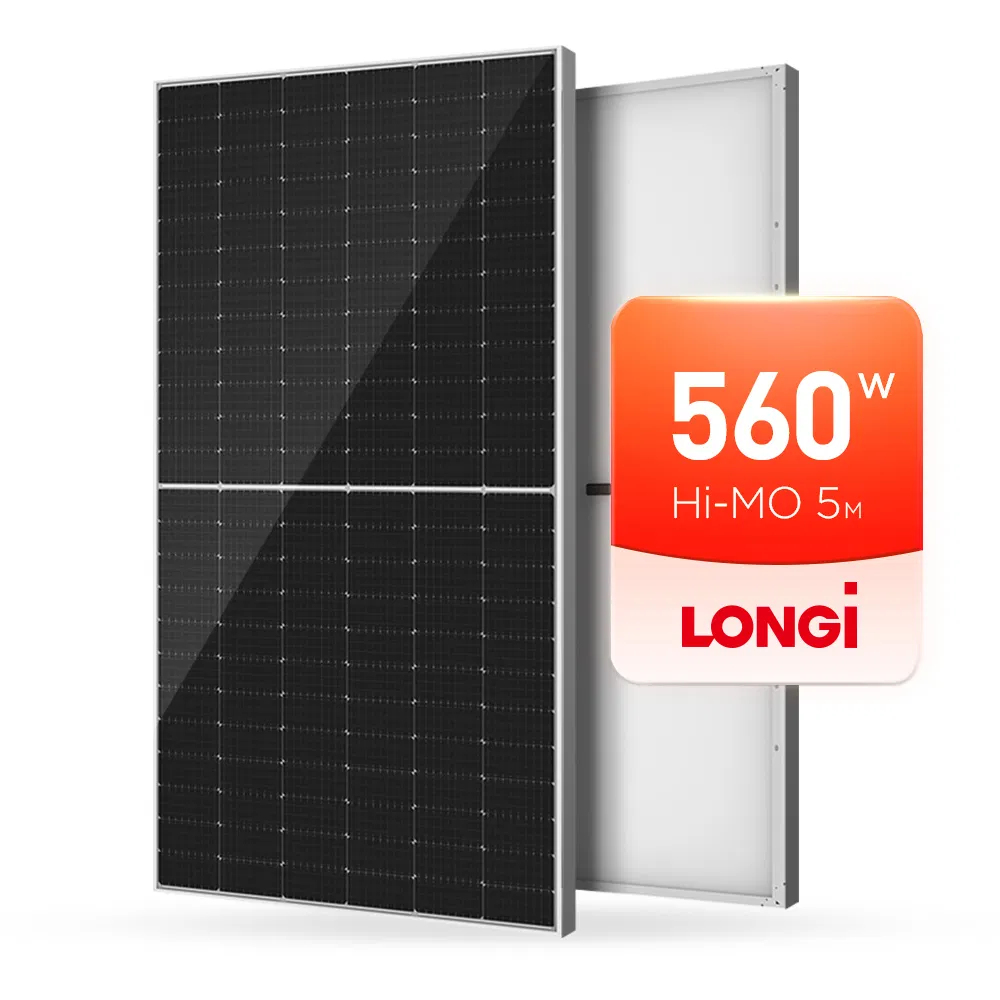

Hi-MO 5m LR5-72HPH

Power Range: 540-560W
Cells: 144 cells
Size: 2278×1134×35 mm
Weight: 27.5 kg
Packaging: 31pcs/box, 620pcs/40'HQ

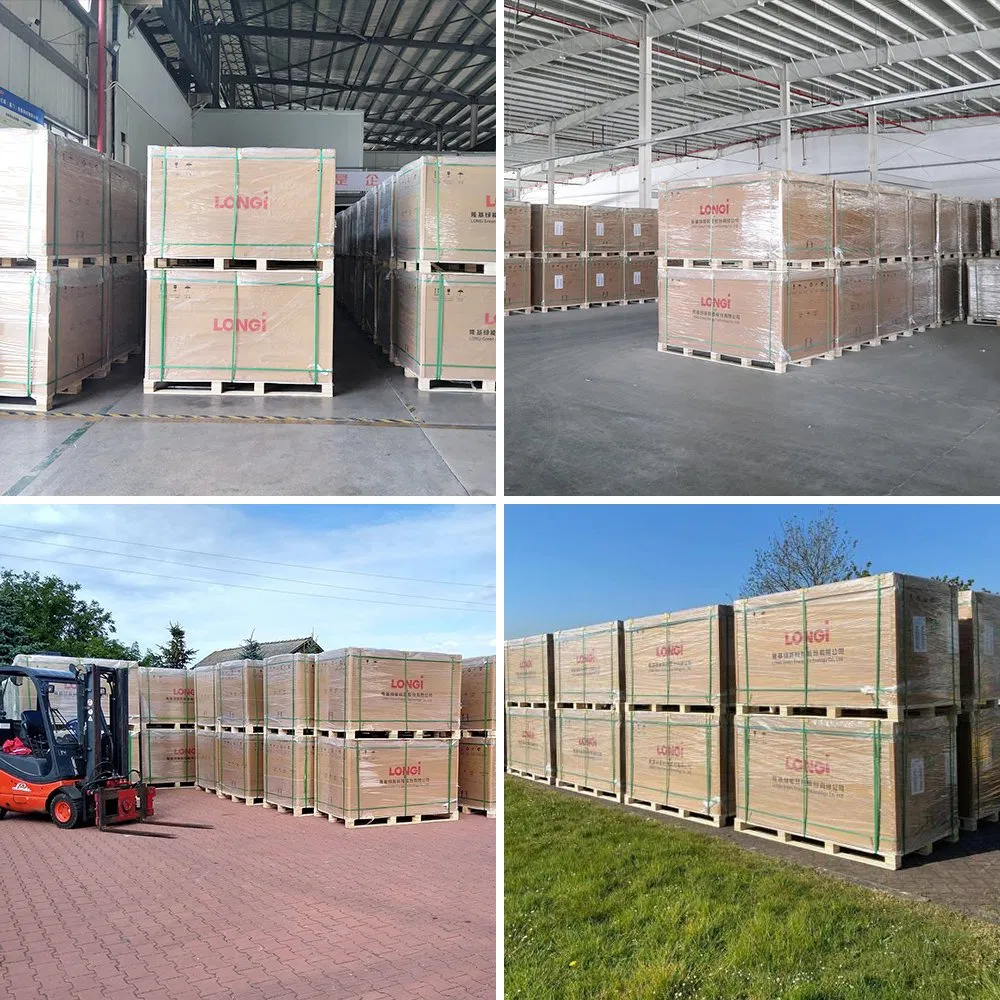

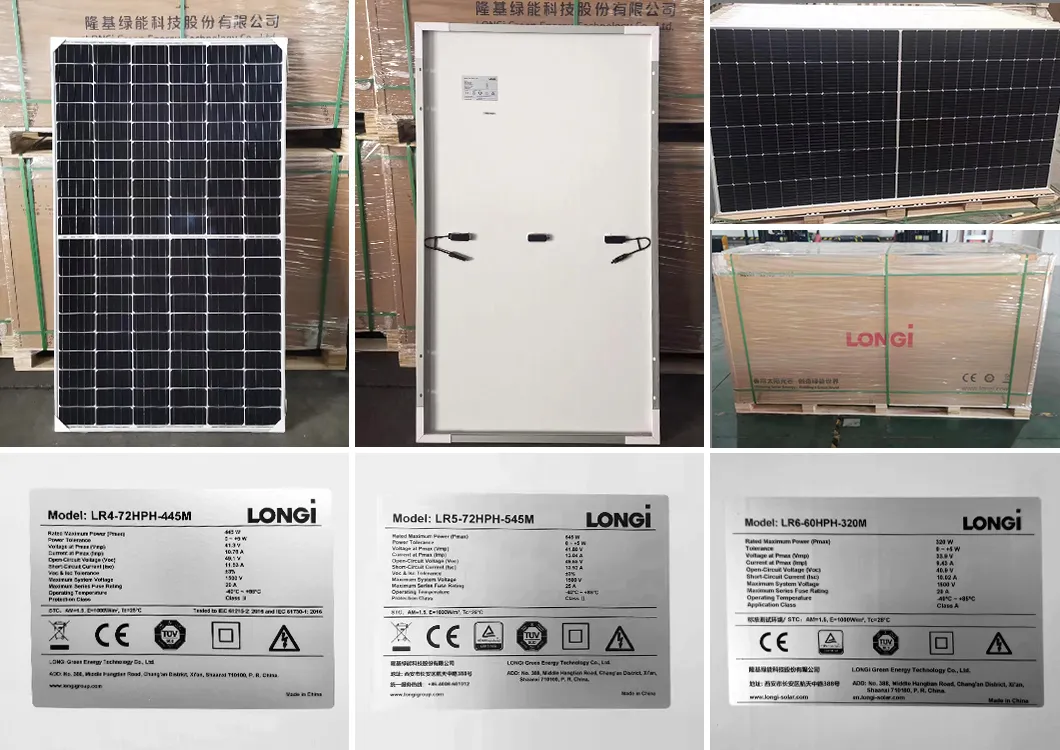

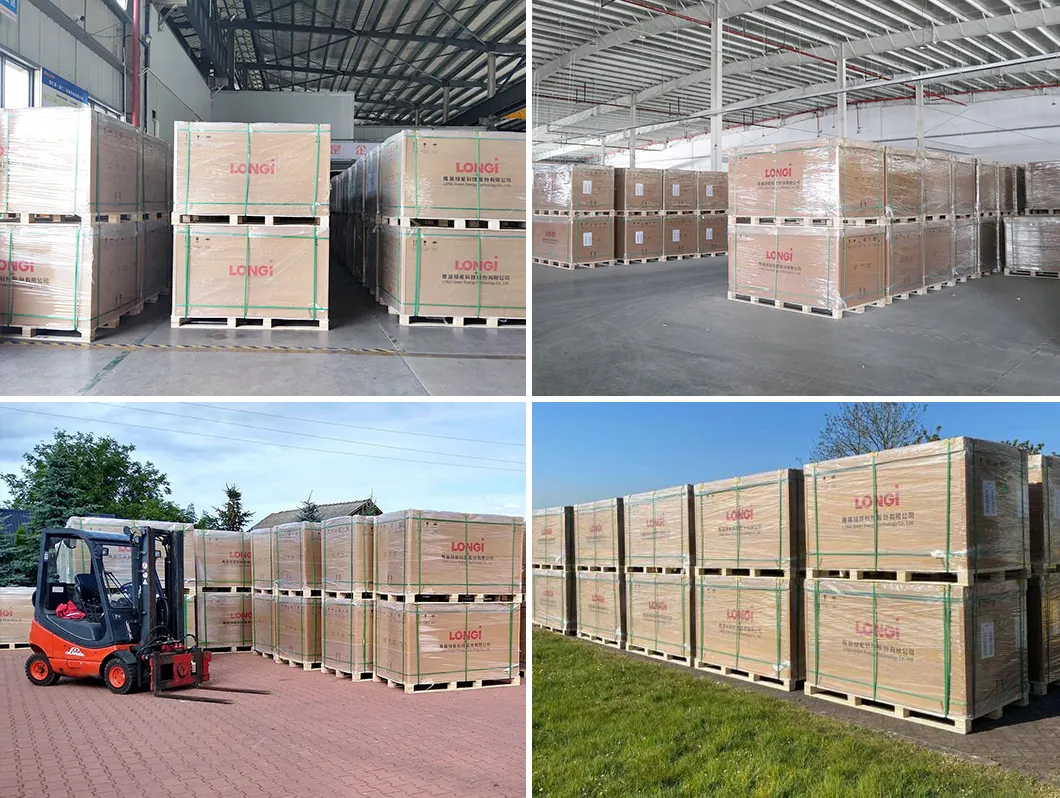

Packaging & Logistics

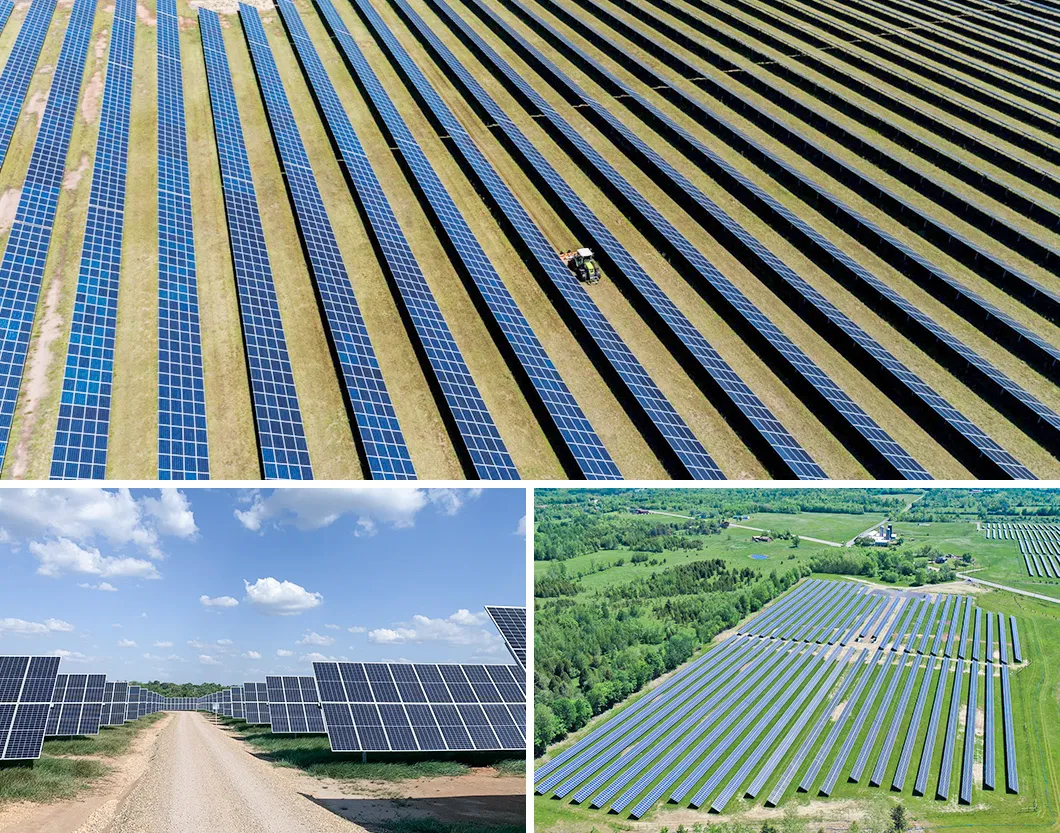

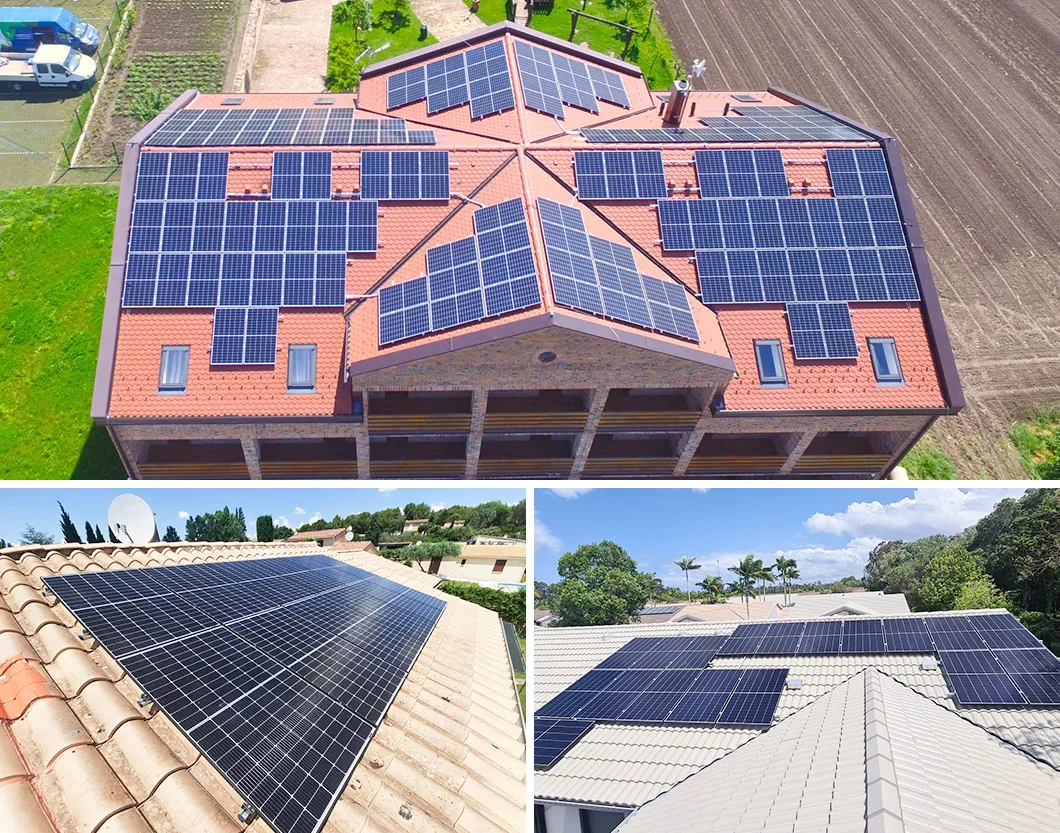

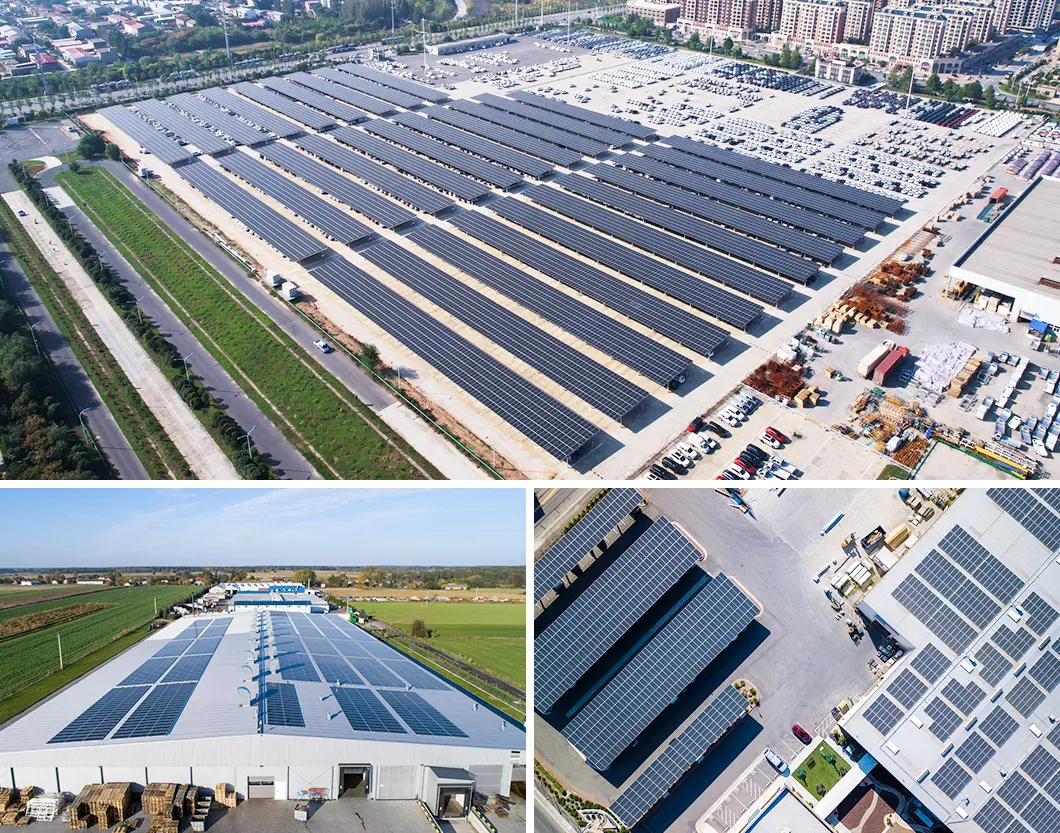

Project Cases

Frequently Asked Questions

What is the warranty period for these solar panels?

These solar panels come with a comprehensive 25-year warranty covering both performance and after-sales service.

What type of solar cell technology is used?

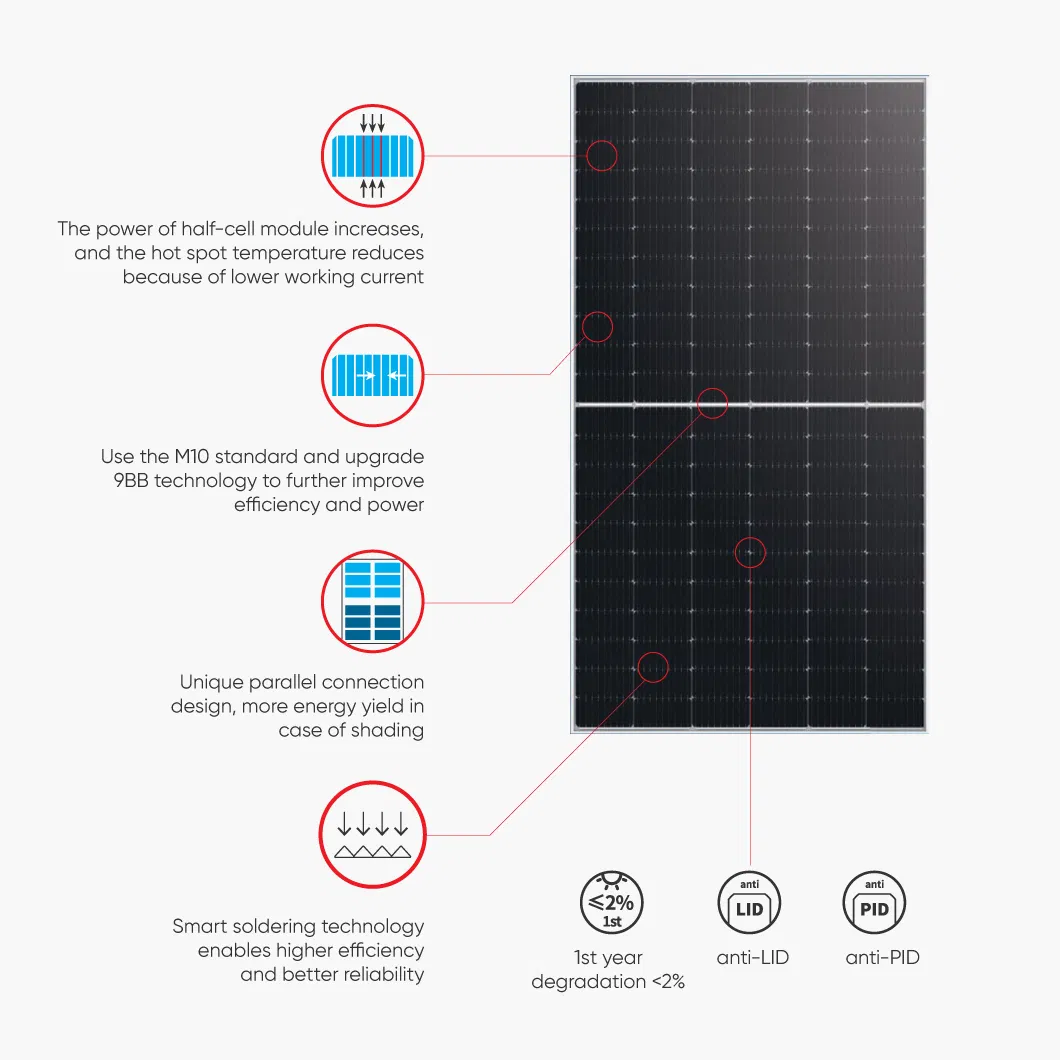

The panels utilize Mono PERC Half-Cell technology, which offers higher efficiency and better performance under shaded conditions compared to standard cells.

Can these panels withstand extreme weather conditions?

Yes, they are designed to operate in temperatures ranging from -40°C to +85°C and feature an anodized aluminum alloy frame for structural durability.

What certifications do the products hold?

Our solar modules are fully certified by international standards including ISO, CE, and TUV.

How many modules can fit in a standard 40FT container?

Depending on the specific model, a 40FT container can hold between 620 and 936 pieces. For the 540-560W series, it typically holds 620 pieces.

Is it possible to place an OEM or custom order?

Yes, we provide custom product options to meet specific project requirements and OEM orders.
