⚡ Basic Specifications
Model NO.
Smart PV-ESS All-in-One Unit-a-A
Overload Capacity
110% Long-Term
Battery Type
3.2V/314ah/LFP
Cooling System
Intelligent Liquid Cooling
📦 Packaging & Logistics
Package Size
170.00cm * 130.00cm * 225.00cm
Fire Protection
Perfluorohexane/Aerosol (Optional)
Production Capacity
500 pieces/Year

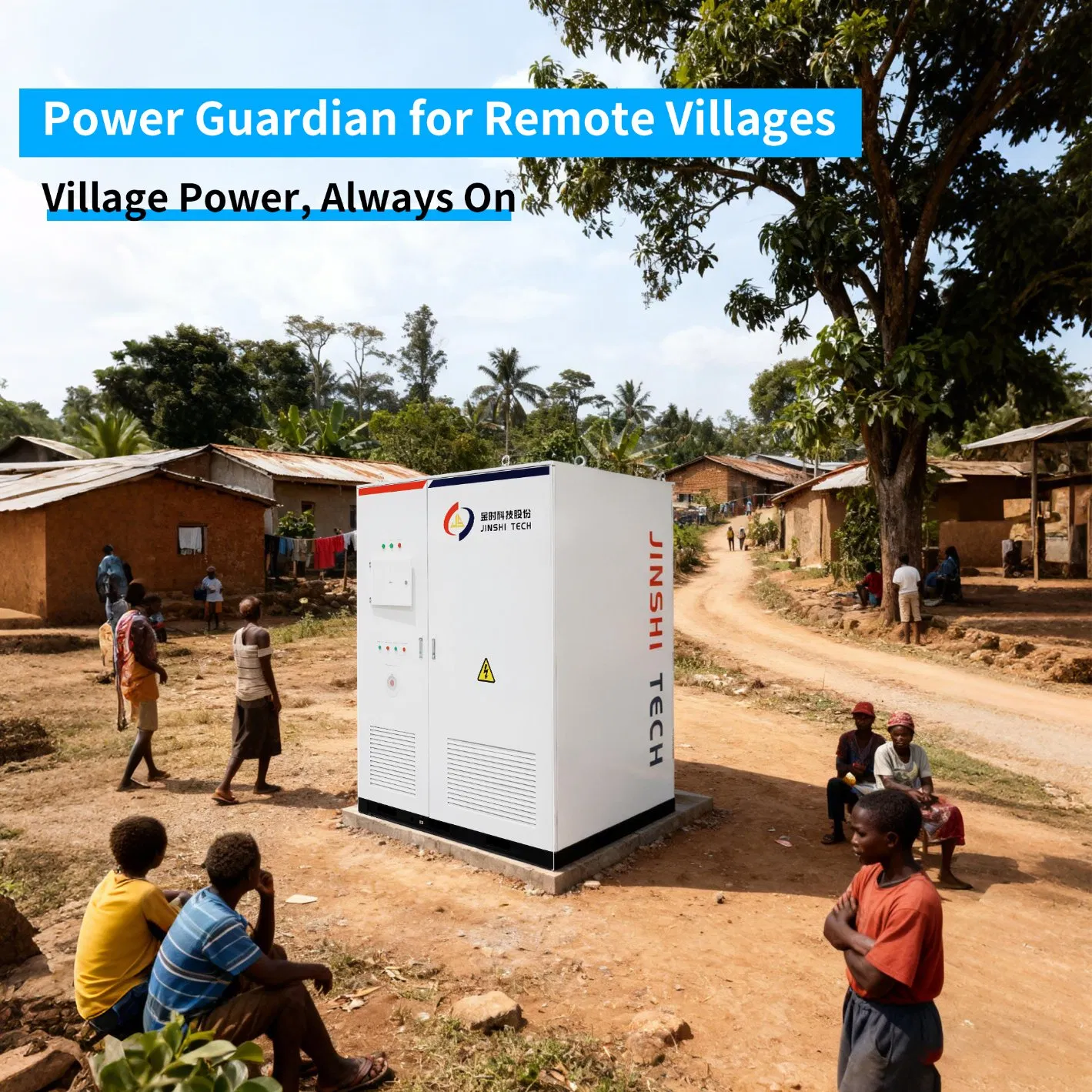

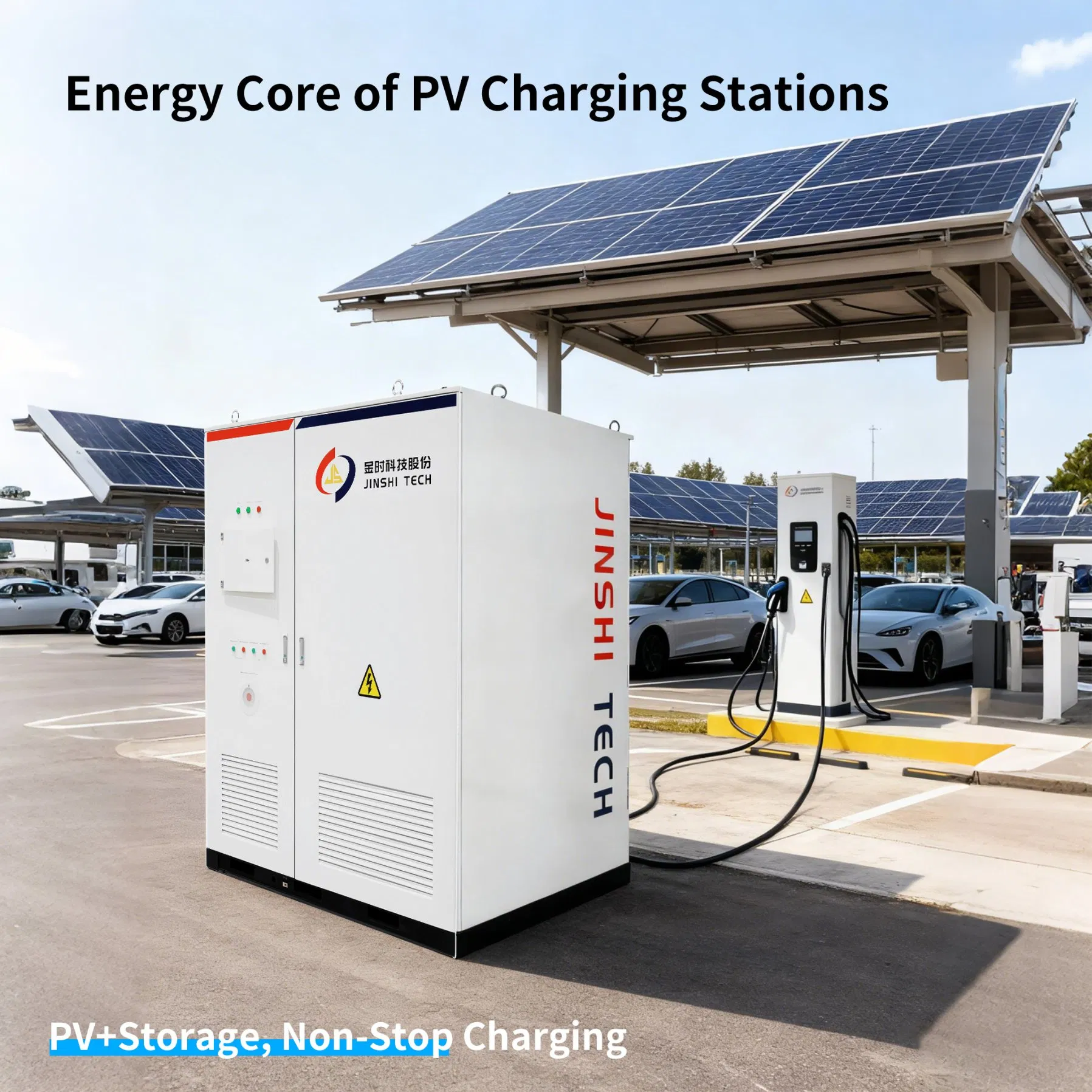

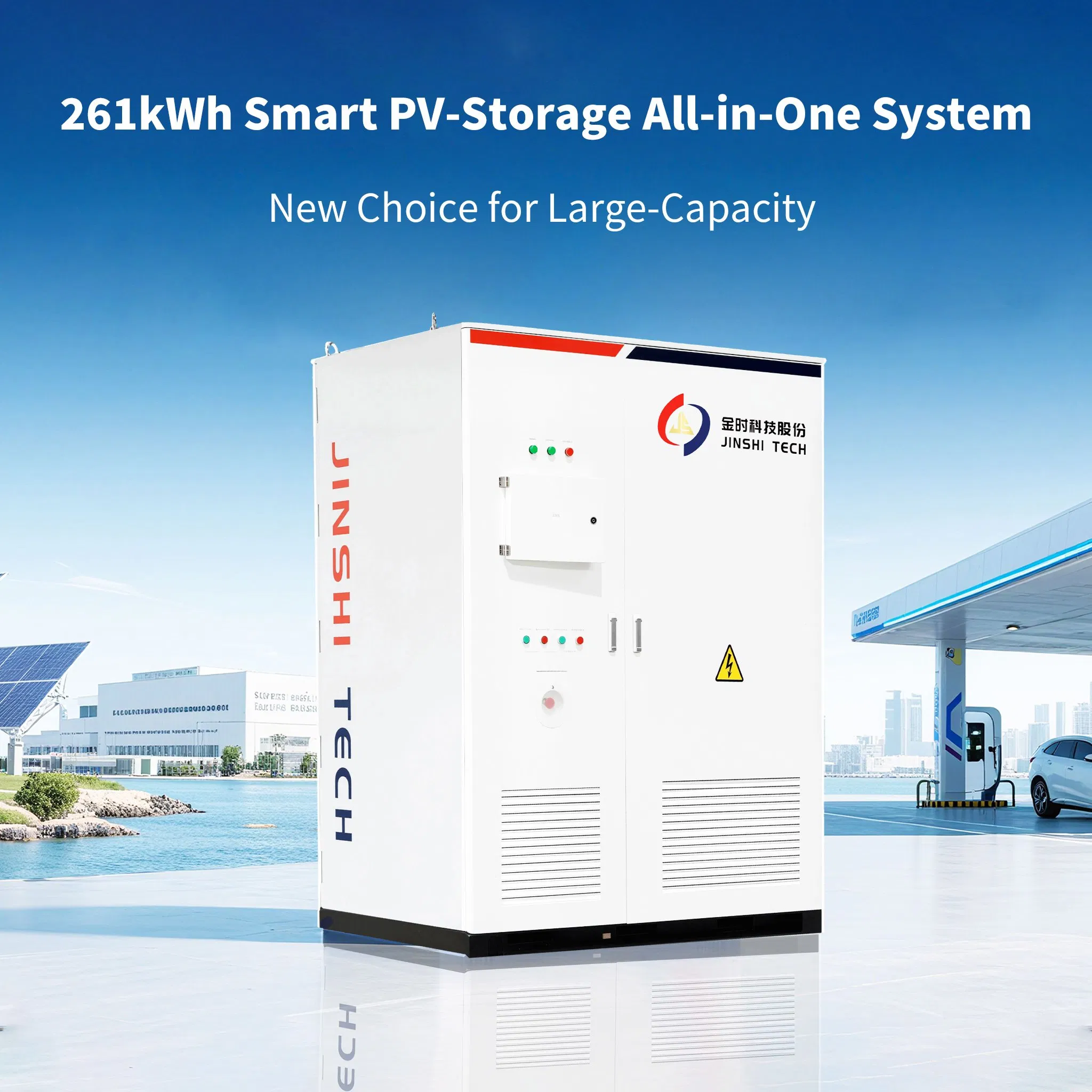

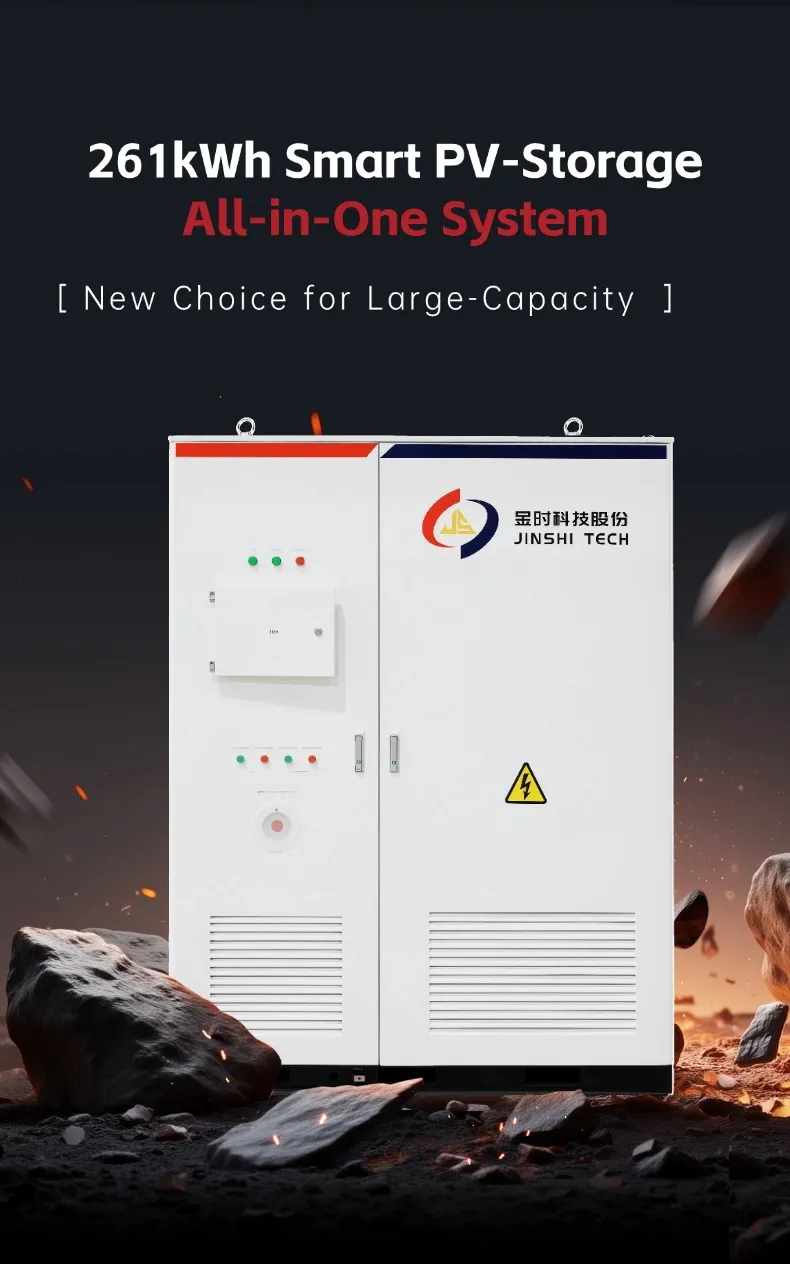

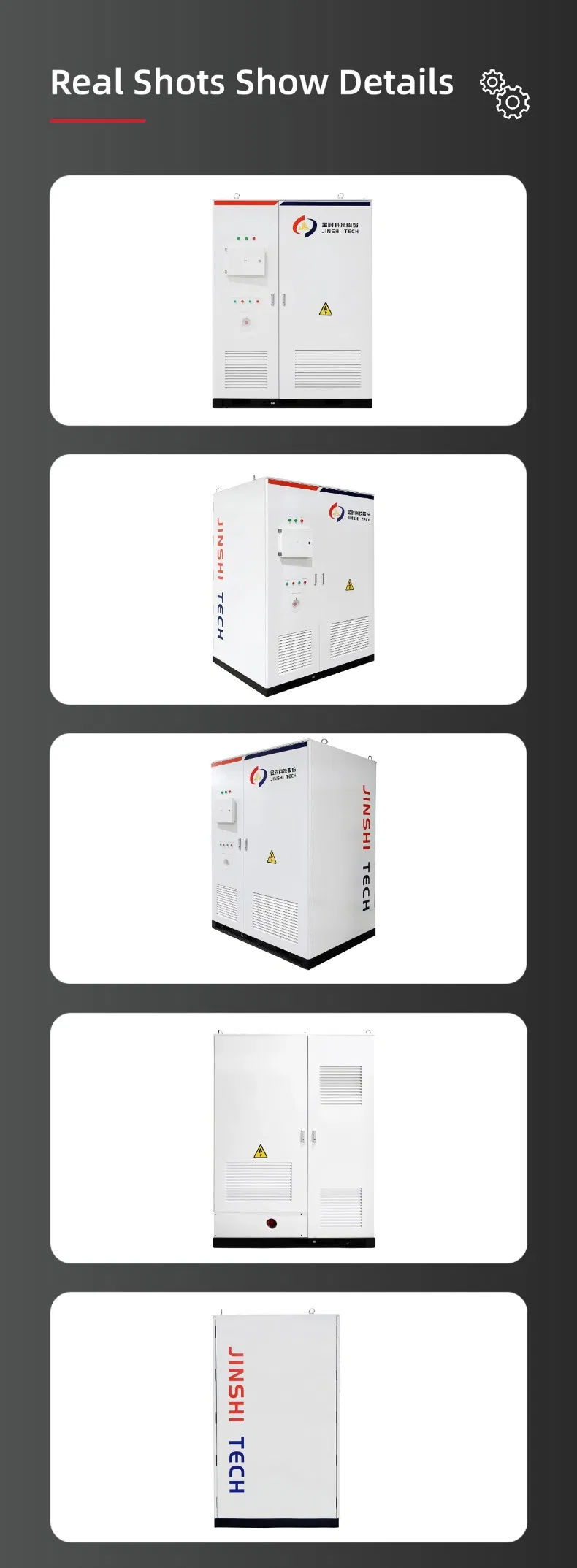

🖼️ Product Showcase

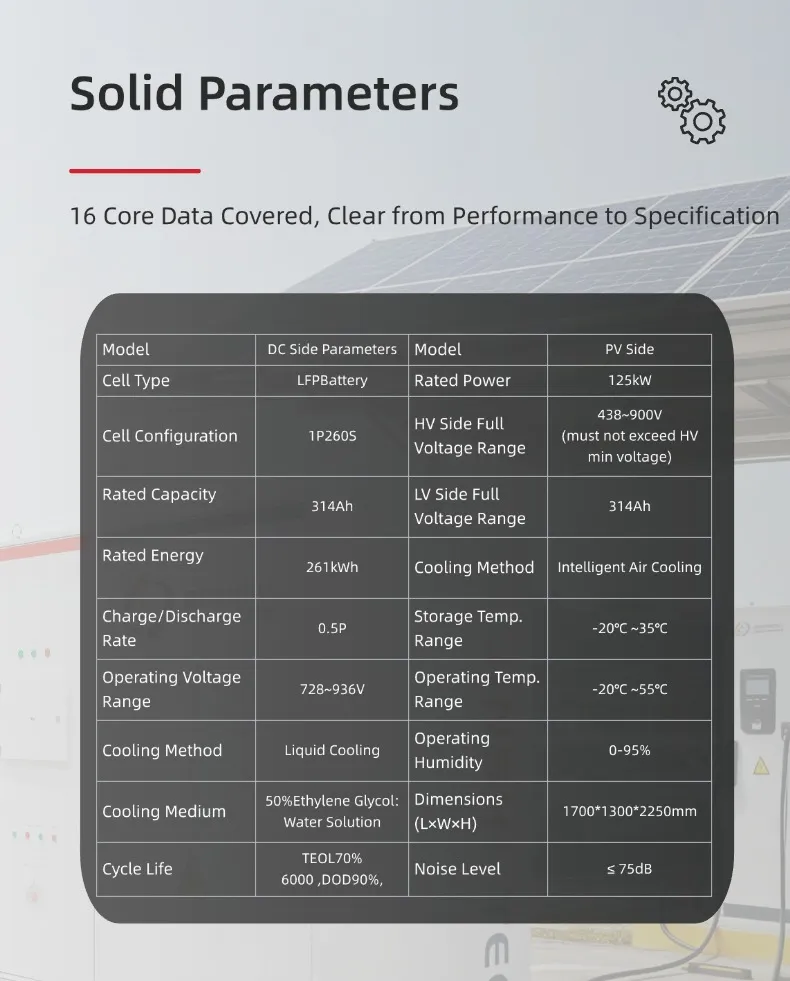

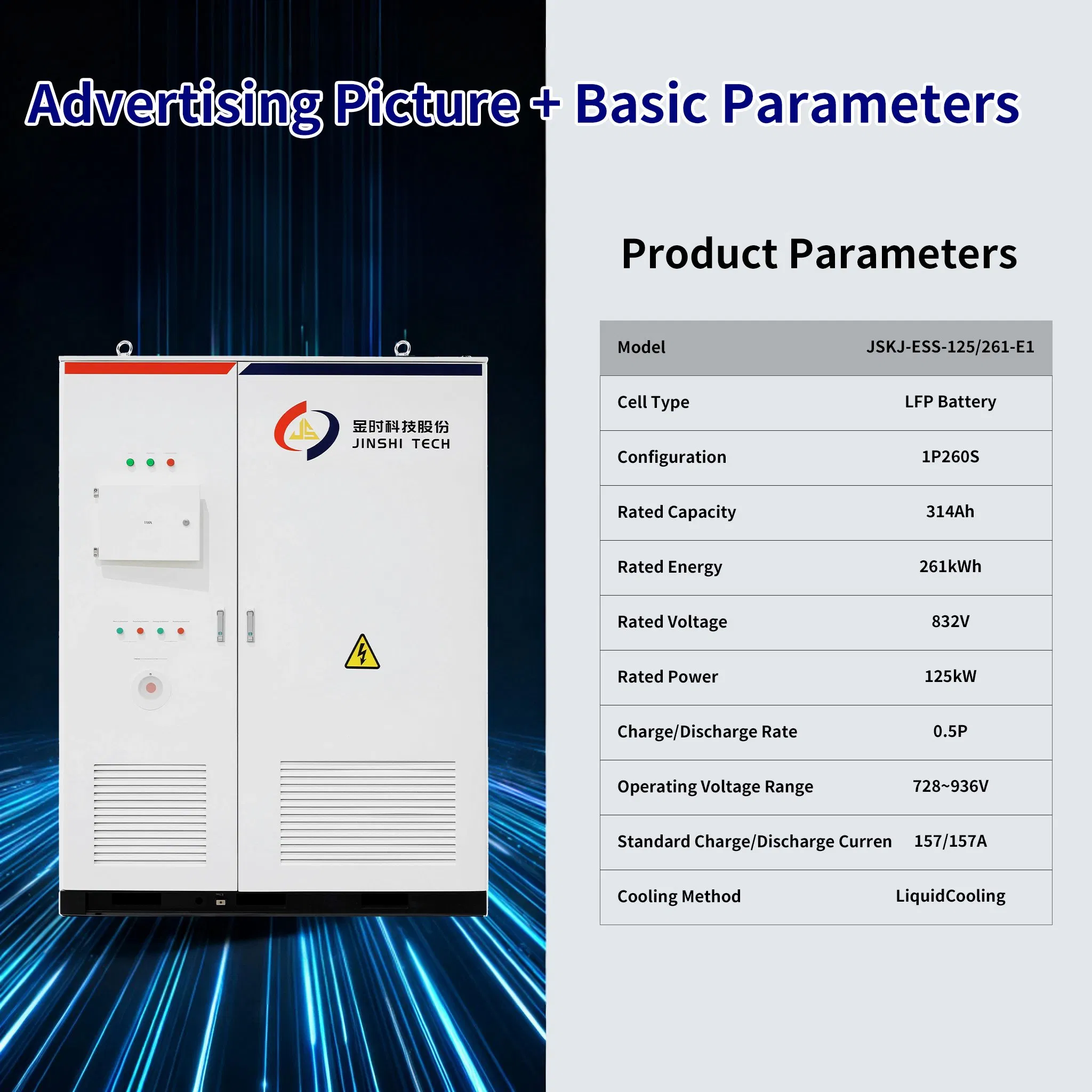

📊 Technical Parameters
| Detailed Product Parameters |
| Cell Type | LFP Battery |
| Configuration | 1P260S |
| Rated Capacity | 314Ah |
| Rated Energy | 261kWh |
| Rated Voltage | 832V |
| Rated Power | 125kW |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 728~936V |
| Standard Current | 157/157A |
| Cooling Method | Liquid Cooling |
| Maximum Efficiency | 99% |
❓ Frequently Asked Questions
Q1: What is the battery technology used in this system?
A: The system utilizes high-quality LFP (Lithium Iron Phosphate) battery cells with a 3.2V/314Ah specification, known for safety and long cycle life.
Q2: How does the cooling system operate?
A: It features an Intelligent Liquid Cooling system, which ensures the battery maintains an optimal temperature for higher efficiency and longer lifespan compared to traditional air cooling.
Q3: What is the estimated cycle life of the battery unit?
A: The Smart PV-ESS All-in-One Unit is designed for a long service life of approximately 6000 cycles.
Q4: Is this system suitable for outdoor installation?
A: Yes, the unit comes with an IP54 protection level rating, making it suitable for various outdoor environmental conditions.
Q5: What safety features are included for fire protection?
A: The system offers professional fire protection options, including Perfluorohexane or Aerosol systems to ensure maximum safety.
Q6: What is the maximum efficiency of this energy storage system?
A: The system is highly optimized for performance, achieving a maximum efficiency of up to 99%.
