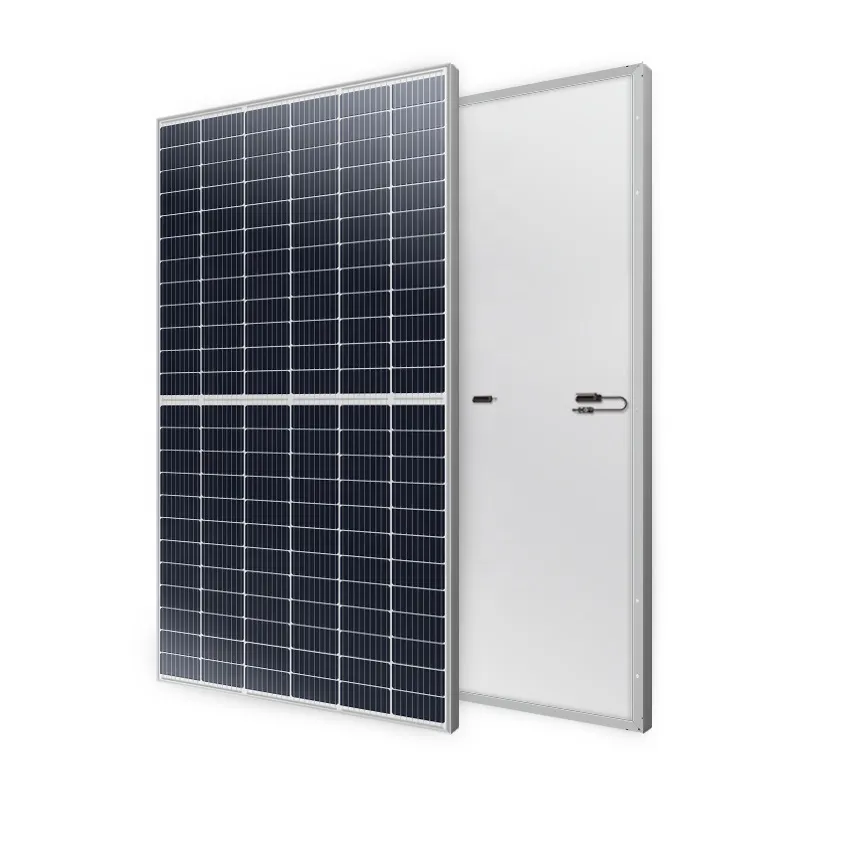

Peak Power Watts: 590W

Maximum Power Voltage: 41.5V

Maximum Power Current: 11.3A

Open Circuit Voltage: 48.5V

Short Circuit Current: 11.96A

Dimensions: 2094 * 1038 * 35 mm

Weight: 25 kg

AC 220V/230V/50HZ, Capacity 5.5KW, MPPT voltage range 70-450Vdc, Maximum open-circuit voltage 500Vdc. Maximum photovoltaic connection 5.5kwp.

WIFI service is an additional 160 yuan. It is not a combined package. The combined package costs an additional cost.

Gross Weight (KG): 15

Packaging Dimensions (mm): 600 * 180 * 420

Volume (m³): 0.045

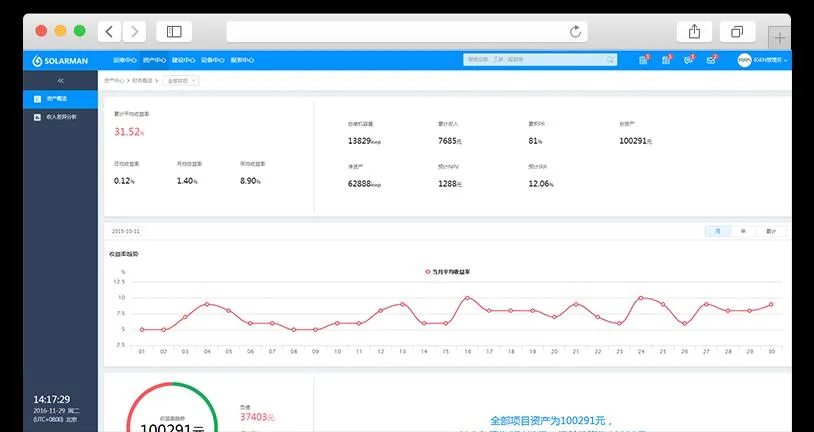

Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi, Lan or GPRS.

App Support: Available for PC, iOS & Android

Mounting Rail & Rail Splice Kit: Al6005 & SUS304 Bolt

Mid & End Clamps: 35, 40, 45, 50mm

Optional Fittings: L Foot Asphalt Shingle Mount & Hanger Bolt

Cables & Safety: Cable Clip & Tie, Ground Clip & Lugs (Optional)

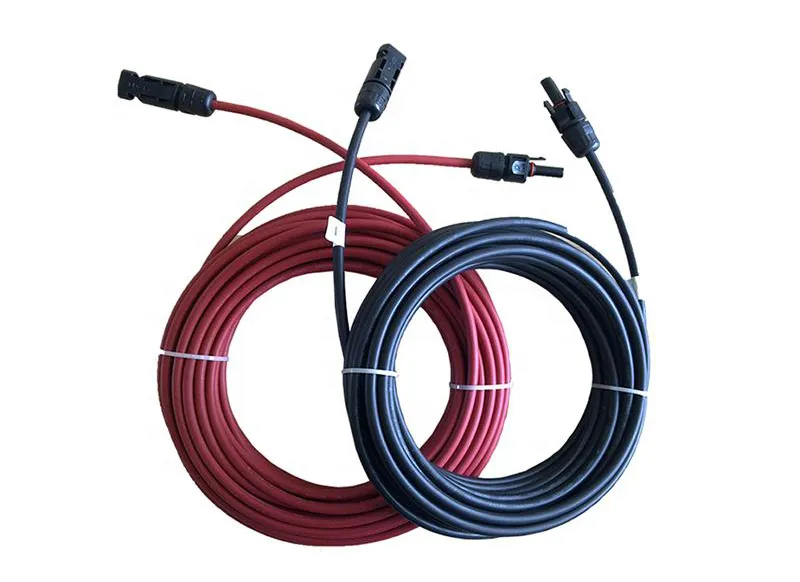

Cross Section: 4mm², 6mm² Optional

Rated Voltage: 600VDC / 1000VDC (TUV)

Rated Current: 55A, 70A

Colors: Black For STD, Red Optional

Lifetime: ≤25 Years

Capacity: 4.8KWH (Including battery connection cables and communication cables)

Gross Weight: 103 kg

Package Size: 710 * 500 * 310 mm

Volume: 0.110 m³
