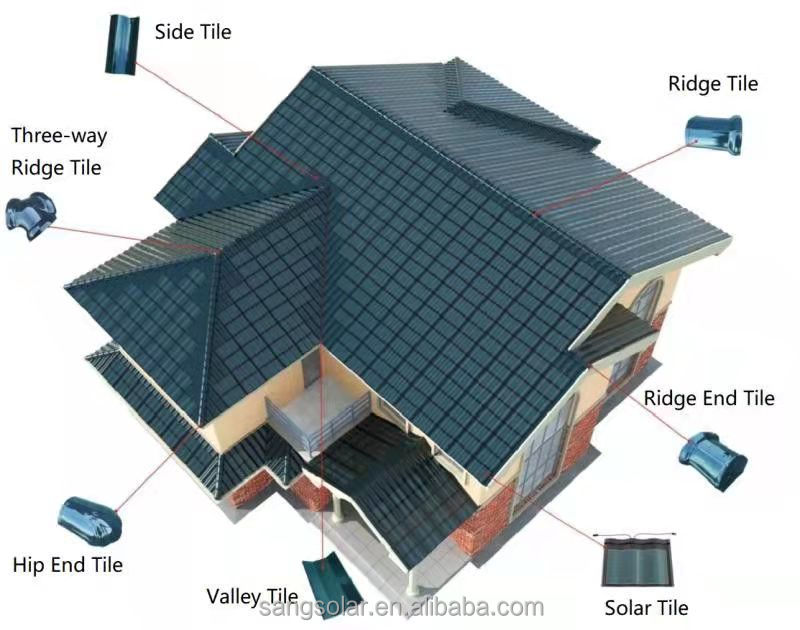

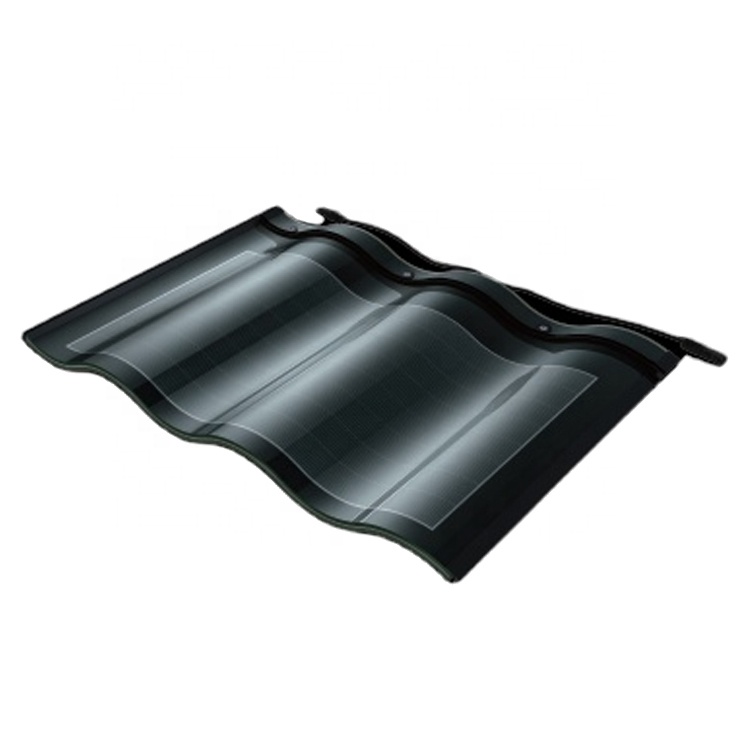

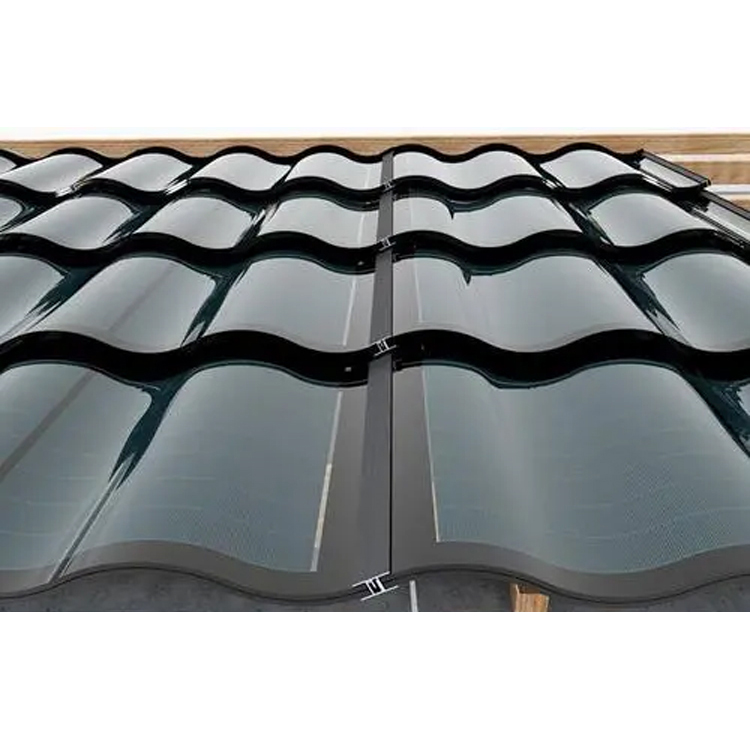

Solar Roof Curve Tile 30W CIGS Thin Film Photovoltaic Power Generates Energy System Glass Shingle Panel BIPV Solar Roof Tiles

Send Inquiry

Product Description

Products Description

Specification

Physical Parameters
Product model	HW-MQSB-V1 / HW-MQSG-V1	Color	black and grey
Length	721±1mm	Junction box	394616.6mm IP67
Width	500±1mm	Cable type	2.5mm Solar energy cable; 450(+10/-0)mm
Height	8±1mm	Cable connecter	MC4
Weight	6.5±0.5Kg
Electrical property parameters
Core type	CIGS	Open-circuit voltage	10.6V
Power	25W (one piece)	Current under PMPP	3.5A
Short-circuit current	4A	Voltage under PMPP	8.6V
Performance rate
Loading rate	2400 Pa	Fireproofing rate	A
Water proofing rate	IP67	Operating temperature	-40°C to +85°C
Anti-hail rate	4 (ANSI FM 4473)	Operating humidity	0-80%
Qualification and certification
3C / CQC / ISO9001 / Rohs (being applied) / UL (being applied)

Recruitment of agents

Packing And Shipping

FAQ

Q1: What is the power output of this solar module?

A1: This solar module provides a power output of 25W per piece.

Q2: What are the physical dimensions of the product?

A2: The dimensions are 721mm in length, 500mm in width, and 8mm in height.

Q3: Is the solar panel suitable for outdoor use in harsh weather?

A3: Yes, it is rated IP67 for waterproofing and has an anti-hail rate of 4 (ANSI FM 4473), making it durable for various outdoor conditions.

Q4: What is the operating temperature range for this panel?

A4: The module is designed to operate efficiently within a temperature range of -40°C to +85°C.

Q5: What core technology is used in this solar panel?

A5: This module utilizes advanced CIGS (Copper Indium Gallium Selenide) thin-film solar technology.

Q6: Does this product come with certification?

A6: It complies with various standards, including 3C, CQC, and ISO9001, with RoHS and UL certifications currently being applied for.
