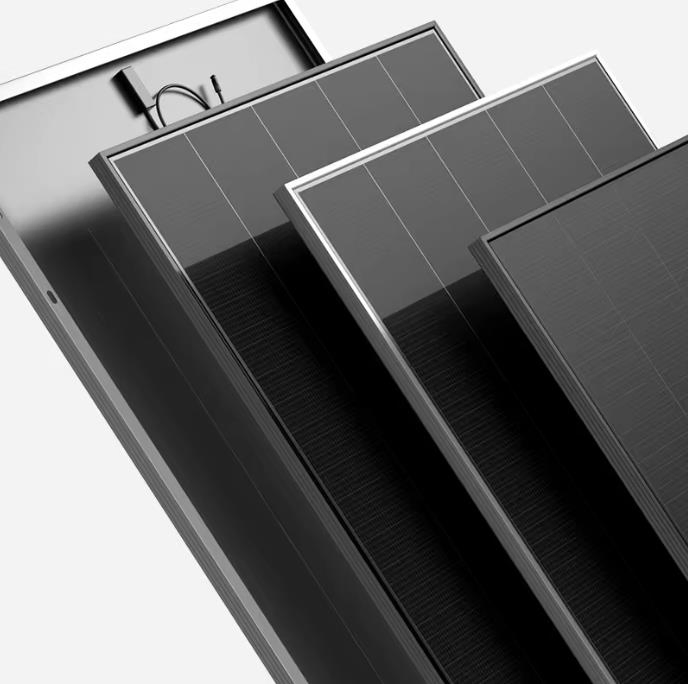

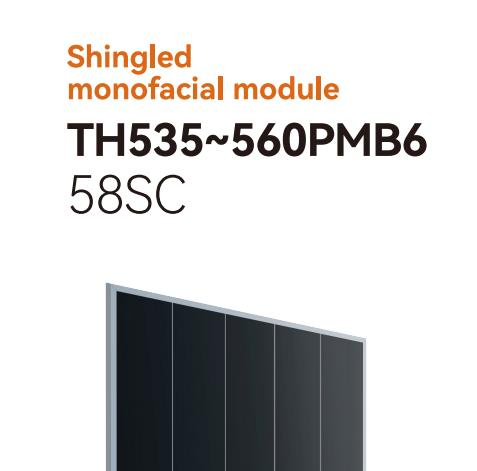

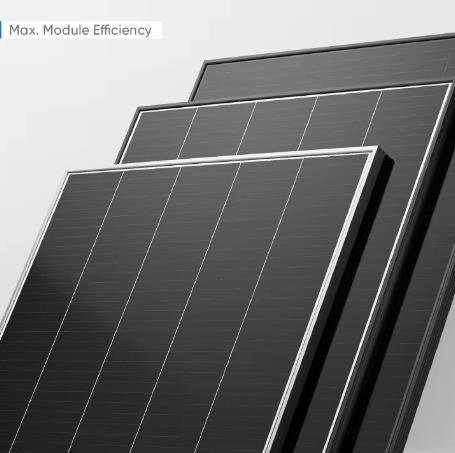

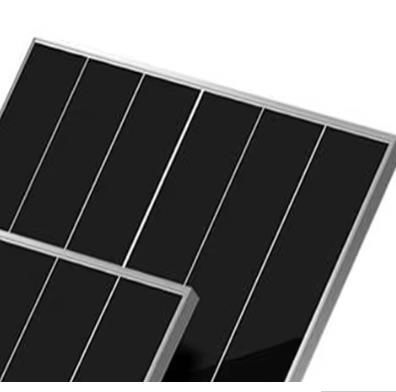

Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use
Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use
Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use
Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use
Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use
1 / 5
Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use
Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use
Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use
Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use
Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use

Tw Solar Shingled Roof Tiles Photovoltaic 540W 550W 555W 560W Solar Panels Shingled Solar Panel for Home Use

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Overview
Product Description
Product Parameters
Case Show
Shipping
Our Advantages
Certifications
FAQ
Basic Info
Model NO. TH535-560PMB6
Number of Cells 345
Application Light Industry
Condition New
Certification EST, ISO, CB, CE, TUV
Material Monocrystalline Silicon
Weight 28.3kg
Front Glass Tempered Glass, 3.2mm
Frame Anodized Aluminum Profile
Cells Mono-Crystalline Solar Cell
J-Box IP68, Three Diodes
Serious Fuse Rating[a] 25
Maximum Surface Load Capacity[PA] Front 5400/Back 2400
Temperature Range -40~+85
Transport Package Carton
Specification 2384*1096*35mm
Origin China
HS Code 8541430000
Production Capacity 100000000PCS/Year
Packaging & Delivery
Package Size 243.00cm * 115.00cm * 124.00cm
Package Gross Weight 893.000kg
Product Description

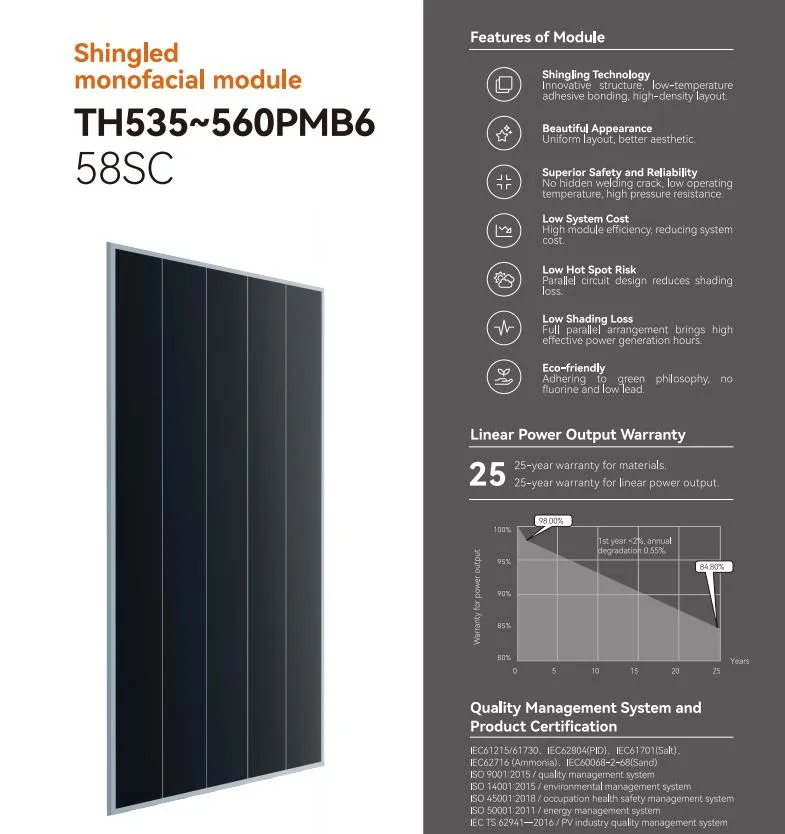

Solar Panels Shingled Solar Panel for Home Use
Solar Panels
Solar Panels
Product Parameters
Electrical Characteristics (STC)
Module Type 560 555 550 545 540 535
Maximum Power (W) 560 555 550 545 540 535
Open Circuit Voltage - Voc (V) 47.3 47.2 47.1 47.0 46.9 46.8
Short Circuit Current - Isc [A] 15.17 15.07 14.97 14.86 14.76 14.65
Maximum Power Voltage - Vm [V] 39.3 39.2 39.1 39.0 38.9 38.8
Maximum Power Current - Im [A] 14.26 14.17 14.07 13.97 13.87 13.77
Module Efficiency [%] 21.4 21.2 21.0 20.9 20.7 20.5
Electrical Characteristics at NMOT
Maximum Power (W) 422 418 414 410 407 403
Open Circuit Voltage - Voc (V) 45.1 45.0 44.9 44.8 44.7 44.6
Short Circuit Current - Isc [A] 12.22 12.14 12.06 11.97 11.89 11.80
Maximum Power Voltage - Vm [V] 37.4 37.3 37.3 37.2 37.1 37.0
Maximum Power Current - Im [A] 11.27 11.19 11.11 11.03 10.96 10.88
Case Show

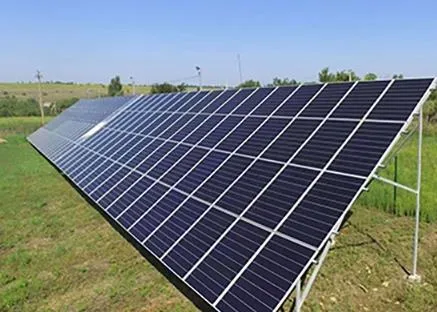

Solar Case 1

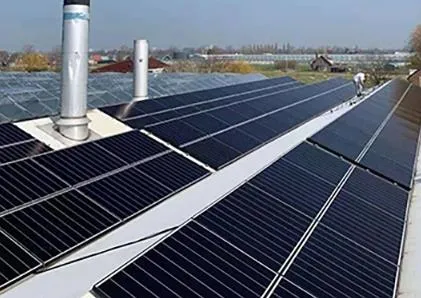

Solar Case 2

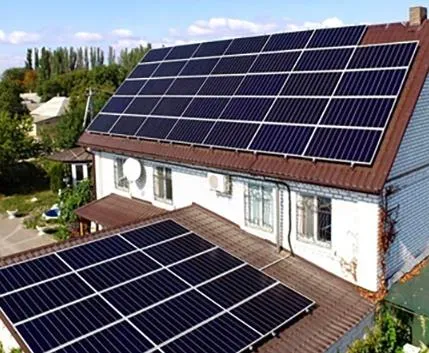

Solar Case 3

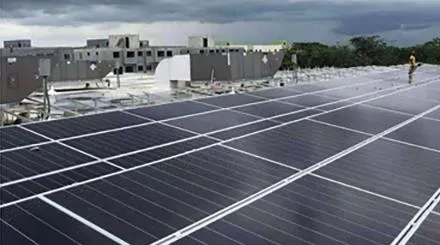

Solar Case 4
Shipping
Shipping Logistics 1
Shipping Logistics 2
Shipping Logistics 3
Our Advantages
Advantages Diagram
Certifications
Product Certificate 1
Product Certificate 2
FAQ
Q What is the cost of a photovoltaic power generation system?
The cost of a photovoltaic power generation system varies depending on factors such as scale, brand, and installation location. We will provide you with a specific quotation based on your needs.
Q What is the lifespan of a photovoltaic power generation system?
The lifespan of photovoltaic panels is generally 25-30 years, while the lifespan of inverters is about 10-15 years. However, the actual lifespan depends on usage and maintenance conditions.
Q How much maintenance and upkeep do photovoltaic power generation systems require?
Maintenance of photovoltaic power generation systems is relatively simple. Regularly clean the photovoltaic panels and check the system's operating status. We also provide professional maintenance and upkeep services.
Q How much will I save on electricity bills after installing a photovoltaic system?
The amount saved on electricity bills depends on the scale of the photovoltaic system, power generation efficiency, and your electricity usage. Generally, a photovoltaic system can significantly reduce electricity expenses.
Q What types of buildings are suitable for photovoltaic power generation systems?
Photovoltaic power generation systems are suitable for various types of buildings, such as residential, commercial, and industrial structures. The key is to ensure that the installation location has sufficient sunlight exposure.
Q Are photovoltaic power generation systems environmentally friendly?
Photovoltaic power generation systems use solar energy to generate electricity, which is a clean and renewable energy source. They help reduce greenhouse gas emissions and are environmentally friendly.
