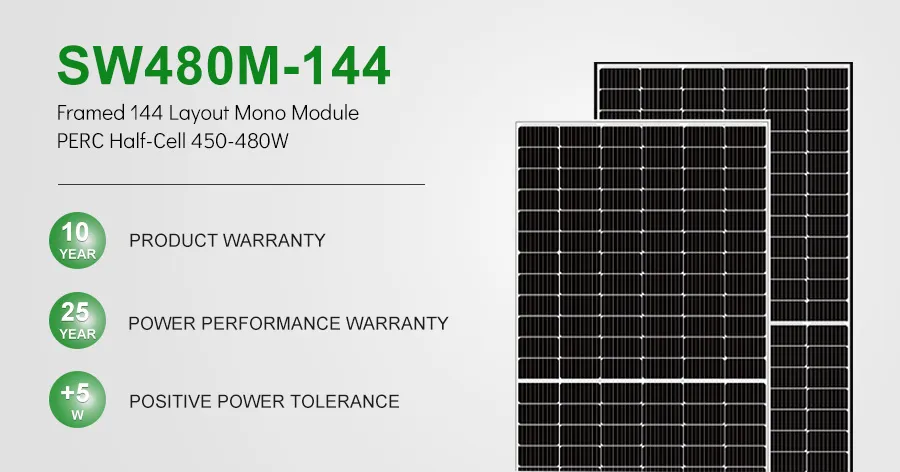

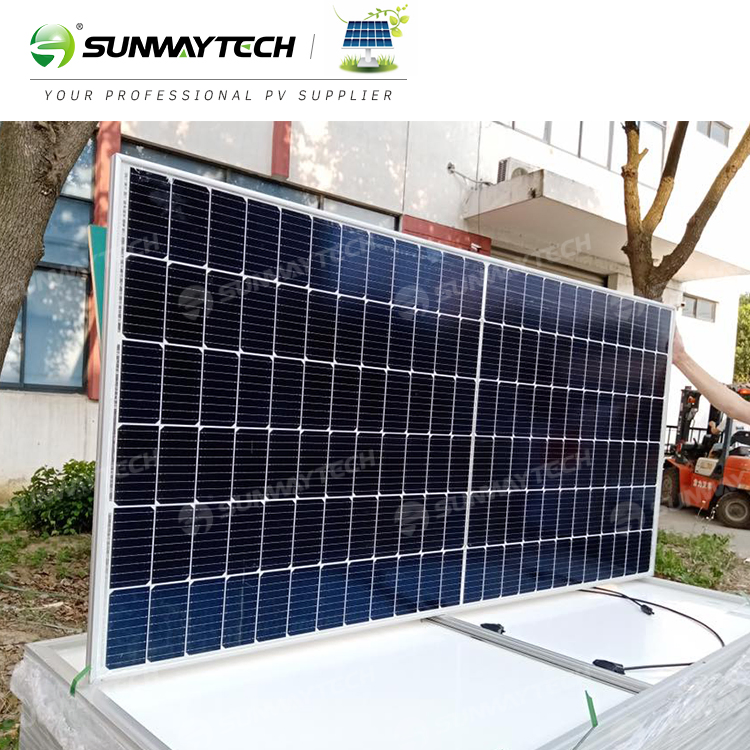

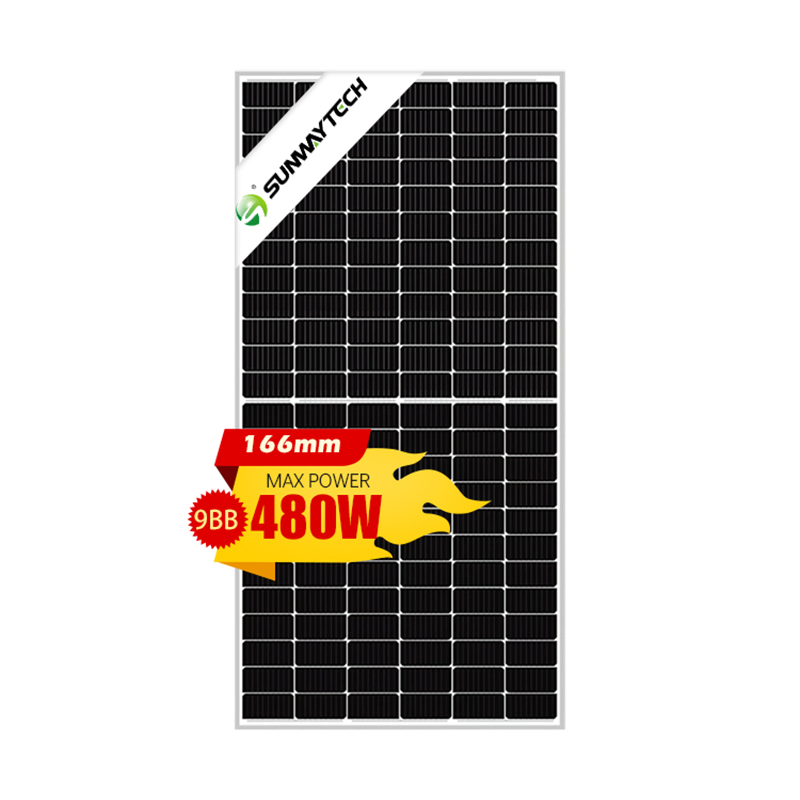

Half Cells 9bb Mono 400W 450W 500W 600W Solar Energy Panel
Perc Monocrystalline Module 144 Cells 166mm
Half Cell Module comprises two separated and identical solar cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, when a module is shaded, the affected working areas will be 50% less. By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.
💡 Half-cell design brings higher efficiency:
- New cell string layout and split J-box location to reduce the energy loss caused by shading between modules.
- Low thermal certificates for greater energy production at high operating temperatures.
- Low cell connection power loss due to half-cell layout (144 monocrystalline PV module).
Electrical Parameters
| Electrical Specification Data |
| Model |
450M-144 ~ 480M-144 Series |
| Encapsulation |
Glass / Eva / Cell / Eva / Backsheet |
| Maximum Power Pmax(W) |
450W |
460W |
470W |
480W |
| Maximum Power Voltage (Vmp/V) |
41.00 |
41.20 |
41.80 |
42.20 |
| Maximum Power Current (Imp/A) |
10.98 |
11.10 |
11.22 |
11.34 |
| Open-circuit Voltage (Voc/V) |
49.50 |
50.00 |
50.50 |
51.00 |
| Short-circuit Current (Isc/A) |
11.42 |
11.54 |
11.60 |
11.79 |
| Module Efficiency (%) |
20.37 |
20.82 |
21.27 |
21.73 |
| Power Tolerance |
0~+5W |
| Temp. Coeffcient (Pmax) |
-0.410%/ºC |

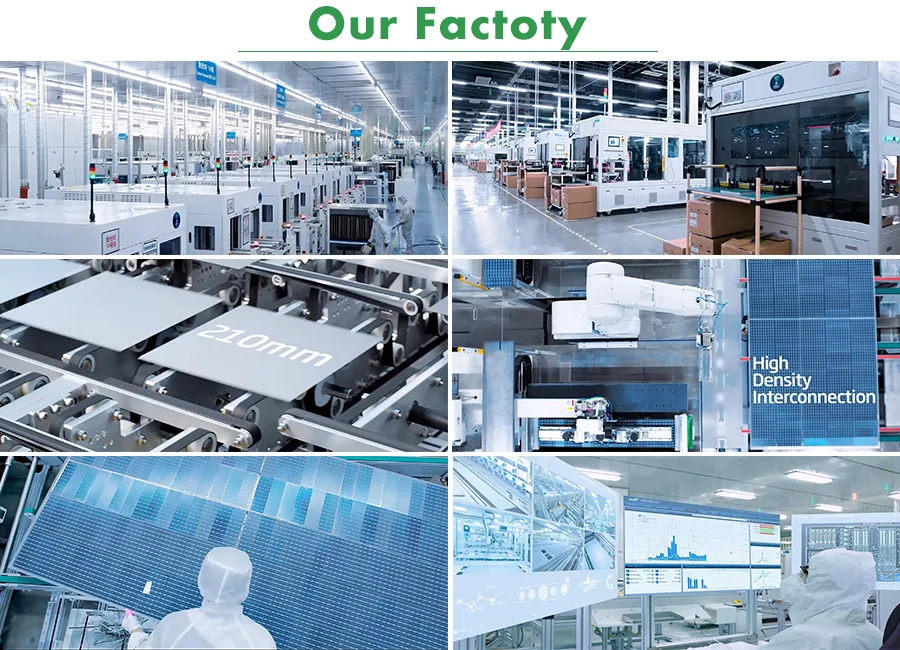

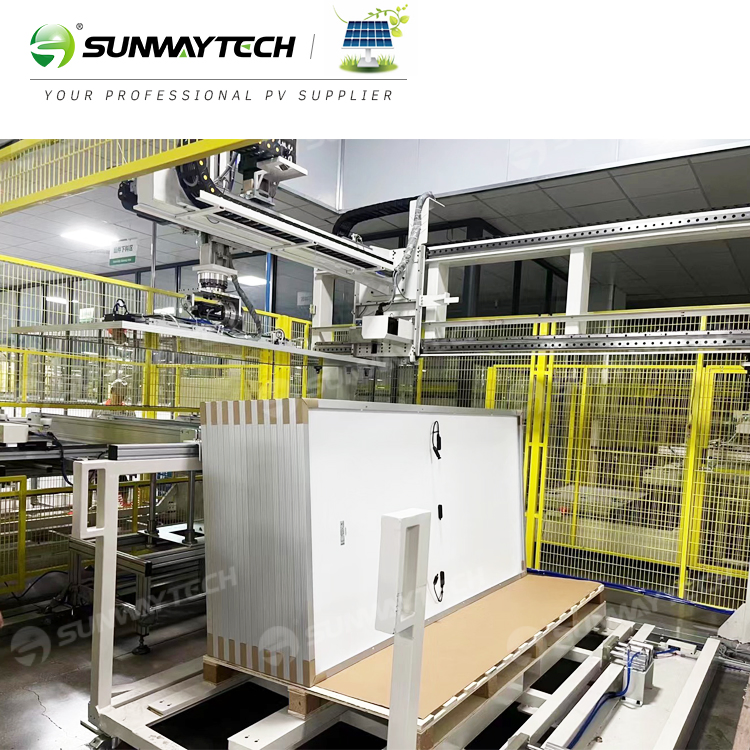

Advanced Manufacturing & Testing
Manufacturing systems are equipped with sophisticated scheduling and dispatching capabilities, automated material handling functionality, automated manufacturing systems, and smart devices utilization. All cells and modules must pass through a list of 48 different tests to ensure that the visual, optical, electrical, physical, and mechanical properties of the products meet high standards before reaching customers.
Frequently Asked Questions
What are the main products available?
We offer comprehensive solar solutions including solar systems, solar panels, inverters, controllers, batteries, mounting systems, and all related solar power accessories.
Is it possible to customize the nameplate and packaging?
Yes, we can print specific logos and information on the nameplate and packaging according to your specific design requirements.

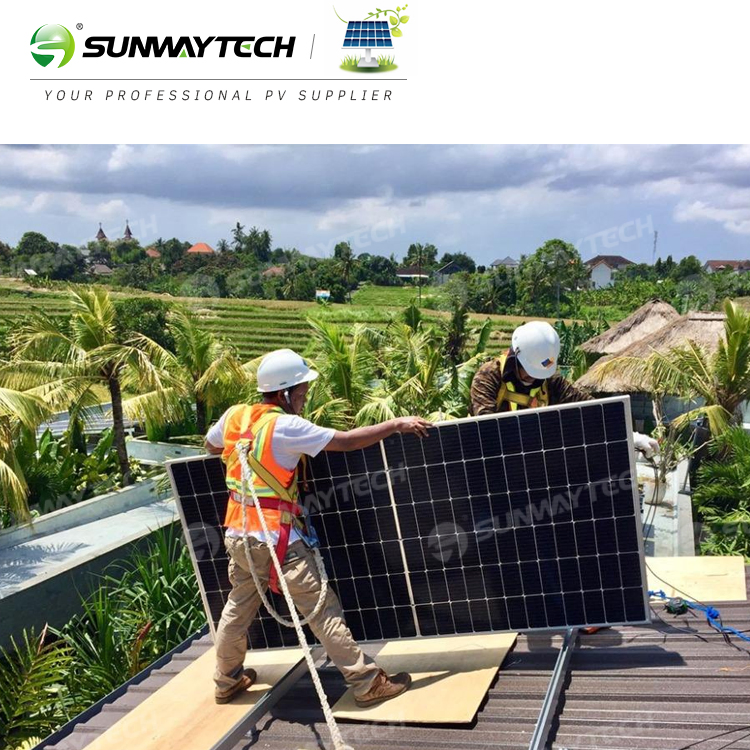

Do you support OEM services and on-site installation?
As a professional manufacturer, we fully support OEM requirements and can assist with on-site installation, providing comprehensive technical support and competitive high-quality products.
How is quality control managed during production?
Quality is our priority. A professional QC team carries out strict quality control processes from the initial production stages to the final product testing to ensure high standards.
What are the advantages of your Solar Energy Systems?
Our systems are produced on automatic production lines with advanced international equipment, integrating first-class manufacturing engineering and management systems for optimal performance.
How do 9BB cells improve panel performance?
The 9-busbar (9BB) design reduces the distance between busbars and finger grid lines, decreasing resistance loss and increasing the reliability and conversion efficiency of the solar module.
