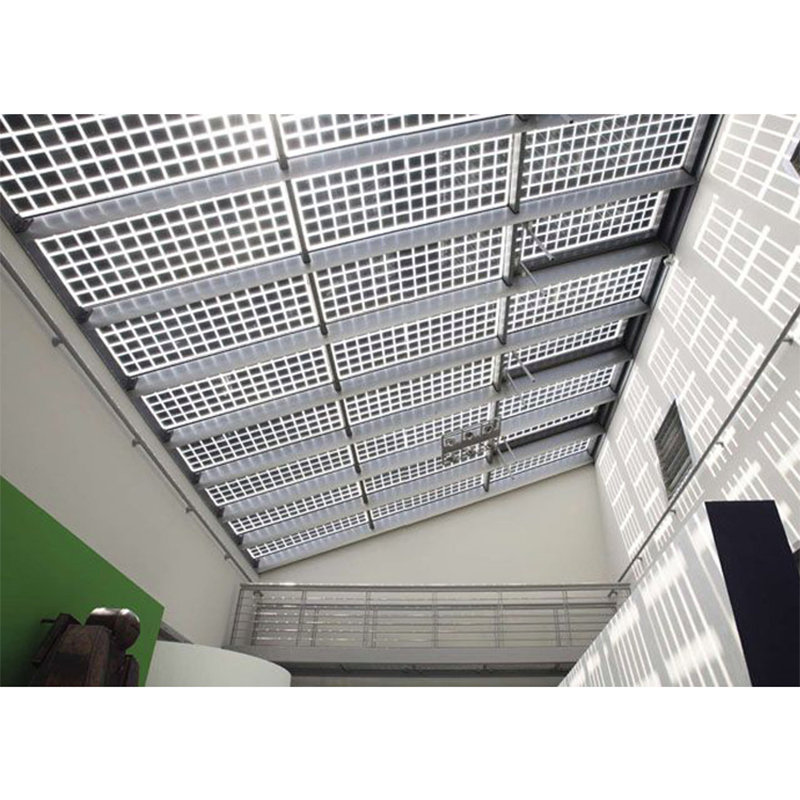

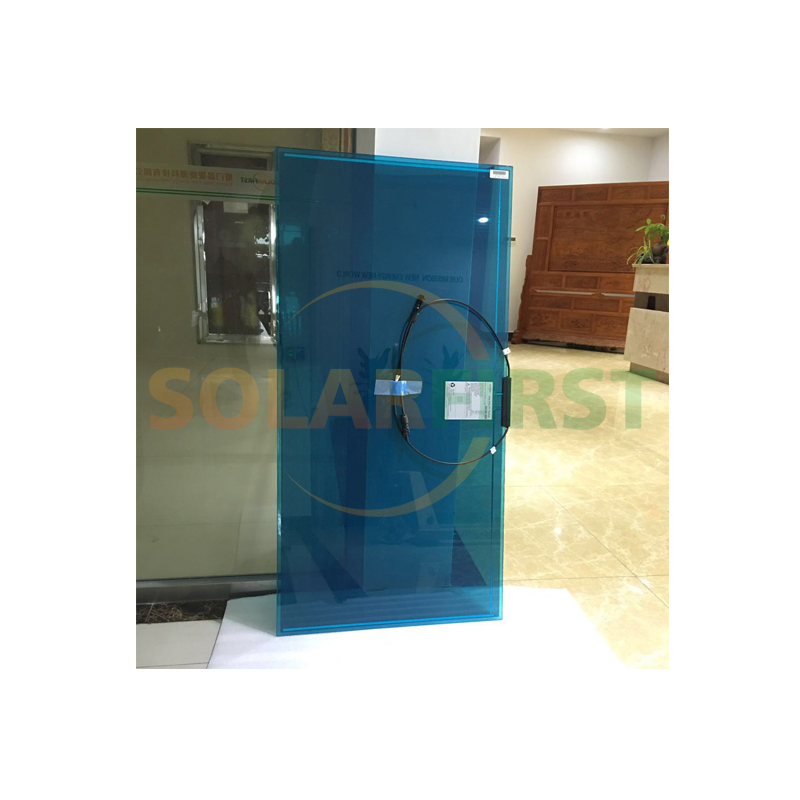

Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel
Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel
Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel
Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel
Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel
1 / 5
Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel
Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel
Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel
Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel
Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel

Cdte 30% 40% 50% Transparent Glass Color BIPV Thin Film Solar Panel

Customization: Available
Material: Thin Film, Cdte
Application: Industrial
Send Inquiry

Product Description

Basic Information
Model NO.
SF-TFSP10
Product Name
Thin Film Solar Panel
Color
Customized Color
Feature
Light Weight
Weight
11.8kg
Cell Type
Cadmium Telluride
Area
0.72m2
Thickness
7mm
Warranty
10 Years
Certification
ISO, CE
Specification
1200*600*7mm
Capacity
100000 Watts / Per Week
Product Description

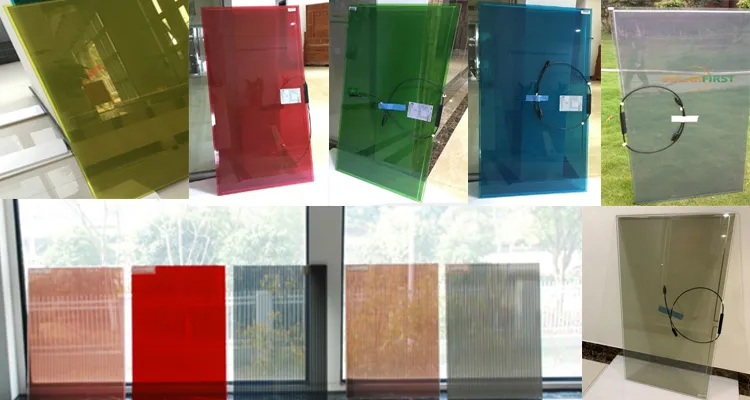

Thin Film Solar Panel
Key Features:
  • ✓ Generates electricity even at low light levels, featuring second-generation solar technology and aesthetics to suit various applications.
  • ✓ Available in transparencies up to 50%, with efficiency reaching up to 12%.
  • ✓ Works down to ambient light levels with a highly aesthetic finish.
  • ✓ Less position-sensitive; bespoke sizing available in single or double glazed panels.
Technical Details
CDTE Transparent Thin Film Solar Panels Specification
Item Transparency Size Weight Pmax Voc Isc Vmpp Impp
ST1-15w80%1200*600*7mm12Kg15w111V0.23A85.5V0.18A
ST1-23w70%1200*600*7mm12Kg23w114V0.31A87.8V0.26A
ST1-38w50%1200*600*7mm12Kg38w114V0.51A87.8V0.43A
ST1-52w30%1200*600*7mm12Kg52w114V0.72A87.8V0.59A
SF1-94wNo1200*600*6.8mm11.8Kg94w122.5V1.08A96V0.96A

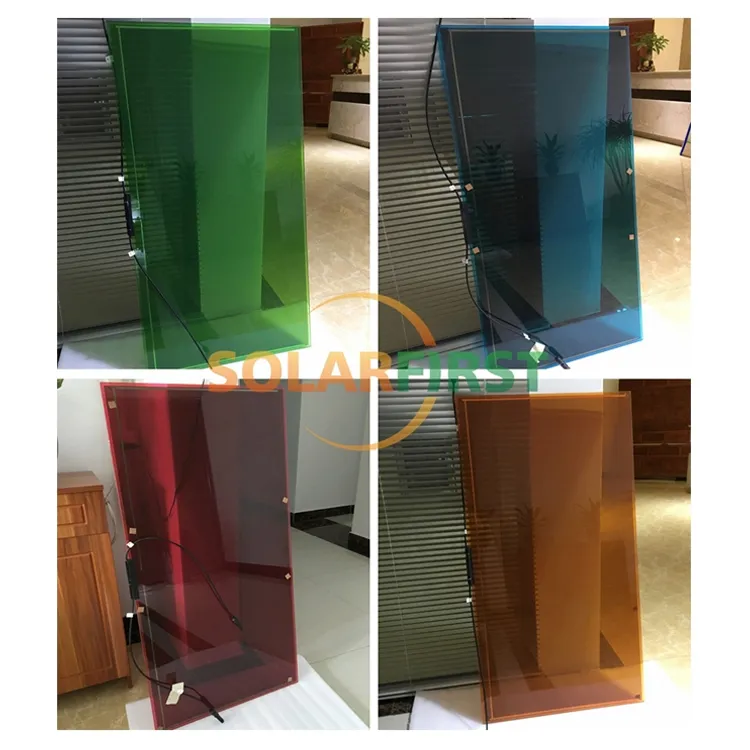

Gallery 1

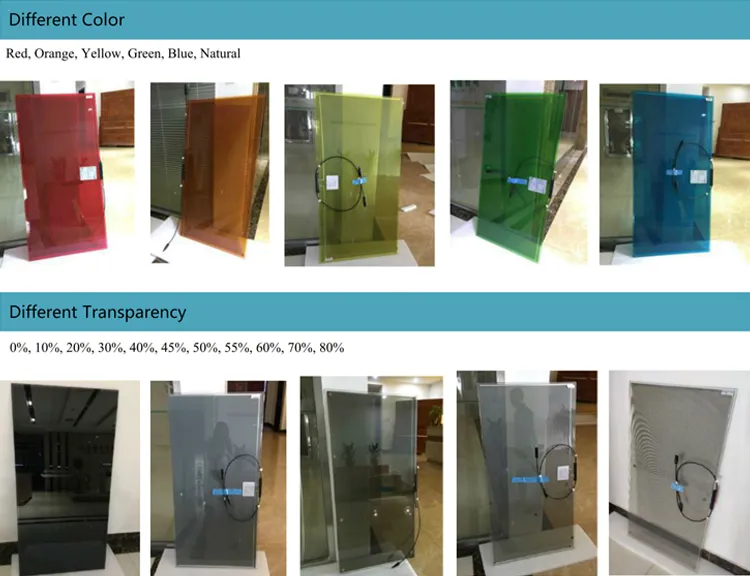

Gallery 2

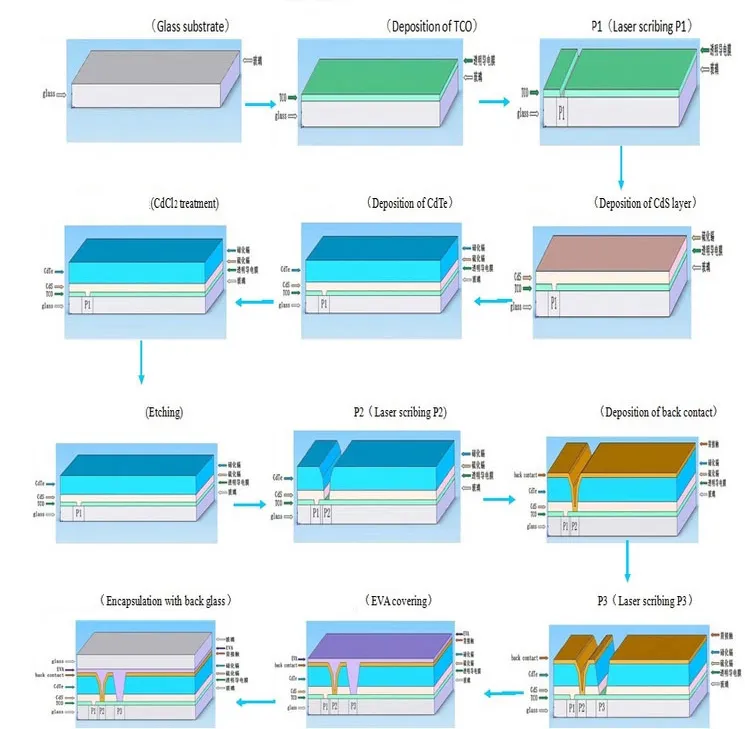

Production & Process
Production Process
Packaging & Shipping
Packaging

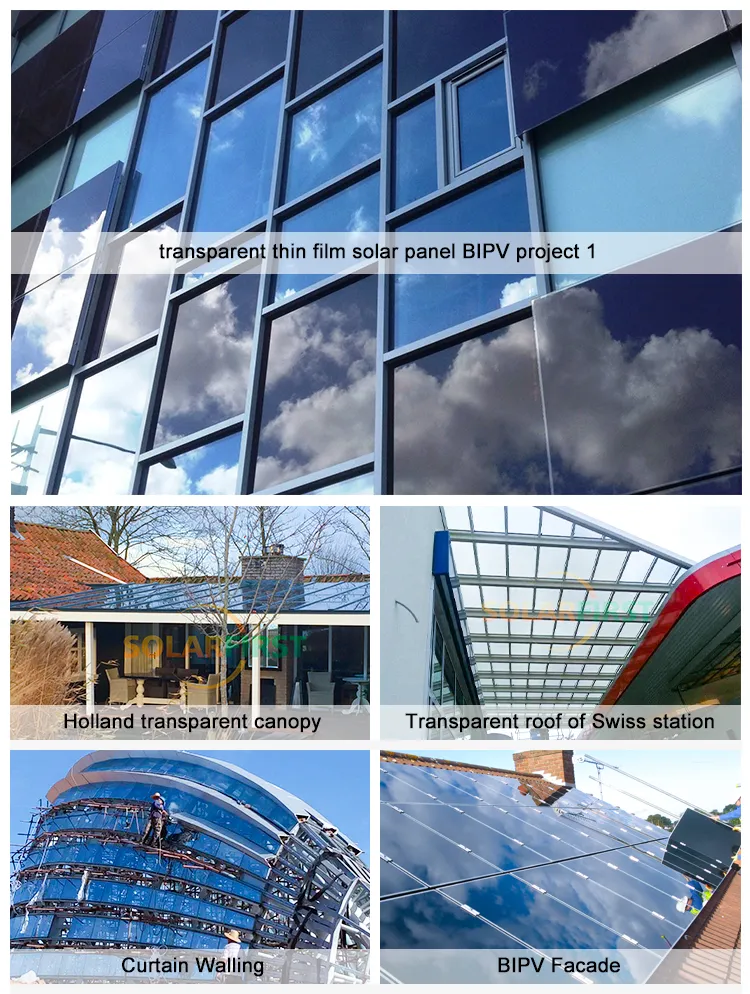

Project Case Study
Project Case
Exhibition
Exhibition
Frequently Asked Questions
What is the main advantage of thin film solar panels?
Thin film solar panels can produce electricity even in dim or low-light conditions, offering superior performance in ambient light compared to traditional crystalline panels.
What are the typical applications for these panels?
They are primarily used in BIPV (Building Integrated Photovoltaics) projects, such as glass facades, windows, and roof mounting systems where aesthetics and transparency are required.
Can the size and color be customized?
Yes. While our standard size is 1200*600*7mm, we can customize the dimensions and colors according to specific project demands.
What is the warranty period for the thin film panels?
We provide a 10-year warranty on our thin film solar panels, ensuring long-term reliability and performance.
Are these panels certified for international markets?
Yes, our products are manufactured under strict quality controls and hold ISO and CE certifications.
Do you support OEM orders?
Yes, OEM orders are acceptable to meet the specific branding and technical requirements of our global clients.
