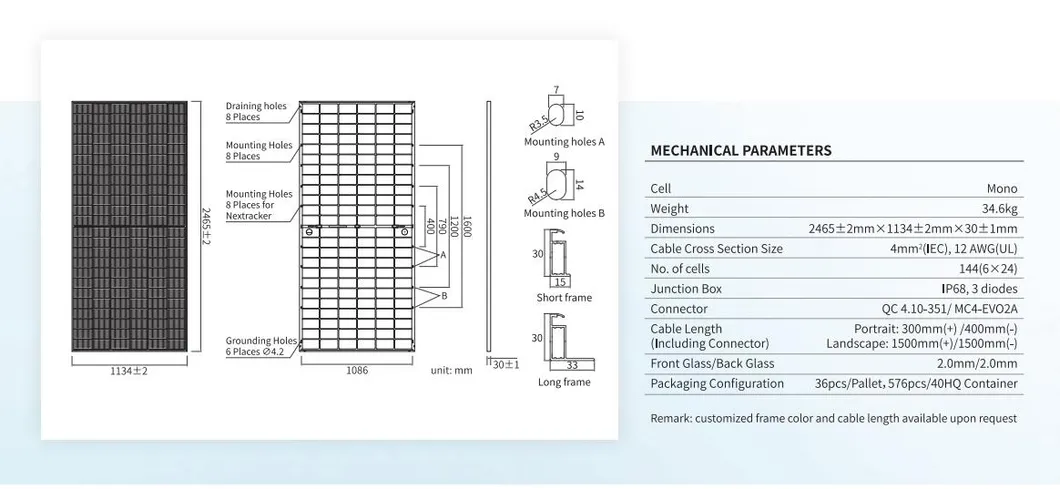

| Cell | Mono |
| Weight | 34.6kg |

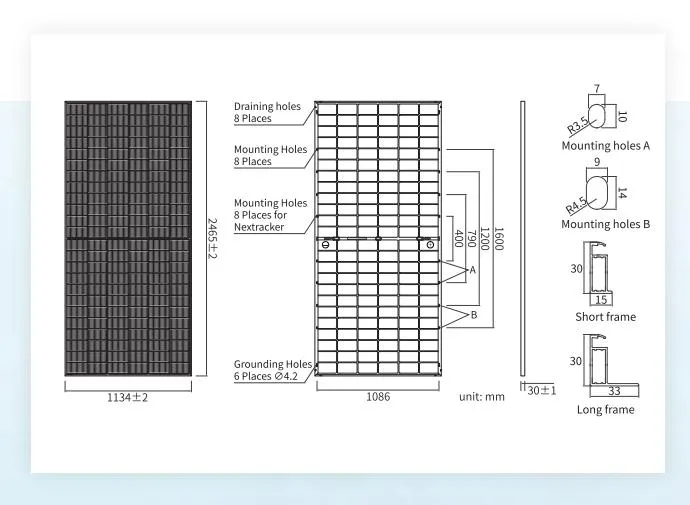

| Dimensions | 2465±2mm x 1134±2mm x 30±1mm |
| No. of cells | 144(6x24) |
| Junction Box | IP68, 3 diodes |
| Connector | QC 4.10-351 / MC4-EVO2A |
| Front/Back Glass | 2.0mm / 2.0mm |
| Packaging Configuration | 36pcs/Pallet, 576pcs/40HQ Container |

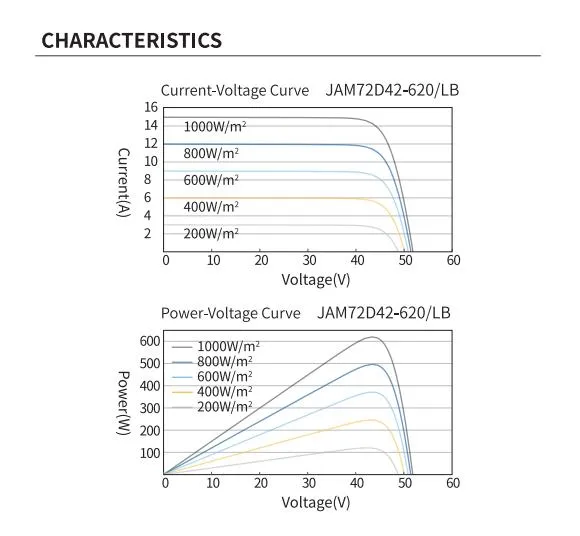

| TYPE | JAM72D42-620/LB | JAM72D42-625/LB | JAM72D42-630/LB | JAM72D42-640/LB |
|---|---|---|---|---|
| Rated Power (Pmax) [W] | 620 | 625 | 630 | 640 |
| Open Circuit Voltage (Voc) [V] | 52.07 | 52.27 | 52.47 | 52.87 |
| Max Power Voltage (Vmp) [V] | 43.51 | 43.71 | 43.90 | 44.29 |
| Short Circuit Current (Isc) [A] | 15.11 | 15.16 | 15.21 | 15.31 |
| Max Power Current (Imp) [A] | 14.25 | 14.30 | 14.35 | 14.45 |
| Module Efficiency (%) | 22.2% | 22.4% | 22.5% | 22.9% |
| Maximum System Voltage | 1500V |
| Operating Temperature | -40ºC~+85ºC |
| Maximum Series Fuse Rating | 30A |
| Maximum Static Load (Front) | 5400Pa |
| Maximum Static Load (Back) | 2400Pa |
| Bifaciality | 80%±10% |

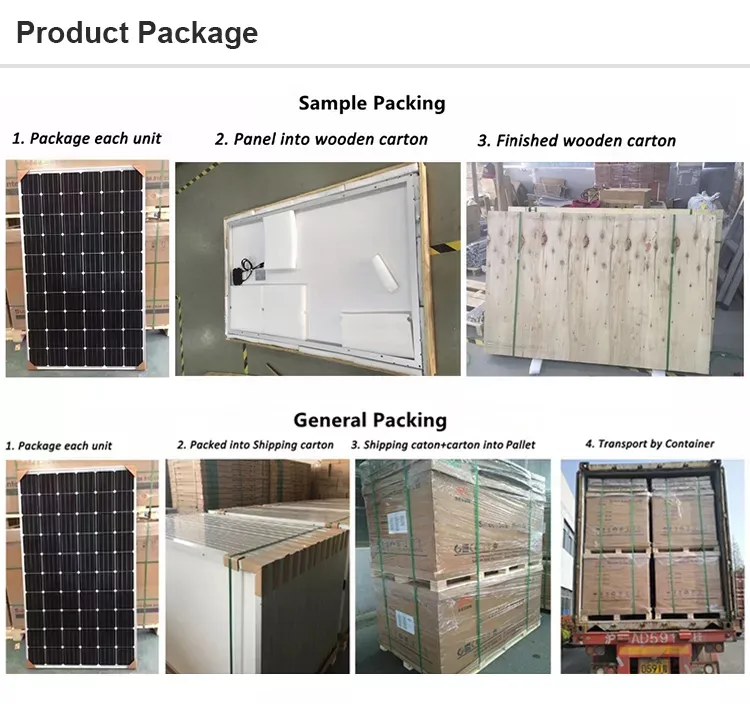

1. Secure Packaging: We ensure secure packaging using durable cartons for safe transit.
2. Custom Solutions: Custom packaging solutions available as per customer requirements.
